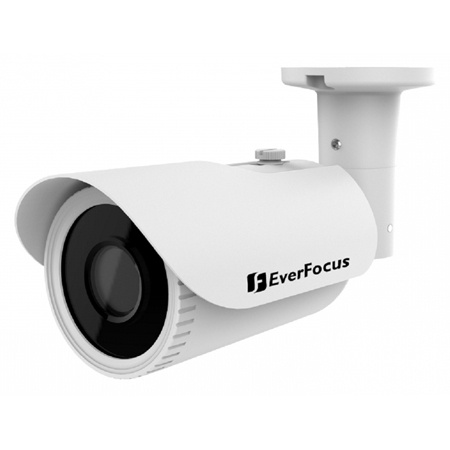

Everfocus EZA1280 2 Megapixel True Day/Night Outdoor IR Bullet Camera with 2.8-12mm Lens

EZA1280 - Overview

EZA1280 - Overview

• Features:

  • Project Based Ship to Order
  • 1080p Sony STARVIS CMOS sensor, delivering amazing high sensitivity
  • Varifocal 2.8-12mm with ICR to capture the desired field of view
  • Extended IR range of up to 40m / 131ft. with 4 LEDs (depends on scene IR reflectivity)
  • D-WDR to improve the visibility under high contrast scene
  • The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
  • IP66-rated with metal housing
  • Supports dual power (12VDC / 24VAC)
  • Supports UTC function: Control camera OSD settings directly from DVR end


• Specifications:

  • Pickup Device: 1080p Sony STARVIS CMOS sensor
  • System Format: NTSC / PAL (switchable via OSD)
  • Effective Pixels: 1920 (H) x 1080 (V)
  • Scanning System: Progressive Scan
  • Sensitivity: 0.1 Lux with IR On
  • Electronic Shutter: 1/30s ~ 1/30000s
  • Gamma Correction: 0.45 / 0.55 / 0.65 / 0.75
  • Lens Type: Varifocal 2.8-12mm with ICR, F1.6
  • FOV (D x H x V): 118~45° x 102~40° x 55~22°
  • BLC: Off / BLC / HLC / WDR
  • AGC: Auto
  • White Balance: Auto / Manual
  • Sync. Mode: Internal
  • Day / Night: Auto / Color / B&W / Extern
  • UTC Function: Supported
  • IR LEDS: 4 Units
  • IR Distance: Up to 40m / 131ft. (Depends on scene IR reflectivity)
  • Video Format: AHD / TVI / CVI / CVBS
  • S/N Ratio: =50dB
  • OSD Languages: English / Simplified Chinese / Traditional Chinese / Japanese / Korean / Portuguese
  • DNR: Off / Middle / High / Low
  • DWDR: 96dB
  • SensUp: Off / x2 / x4 / x8 / x16 / x32
  • Mirror / Flip: Off / On
  • Motion Detection: Supported
  • Privacy Mask: Supported
  • Environmental: IP66 Weather Resistant
  • Power Source: Dual Power (12VDC/24VAC~)
  • Max. Power Consumption: 12Vdc 8.5w/24Vac 7.8w
  • Operating: -20°C ~ 50°C / 14°F ~ 122°F
  • Humidity: Less than 95%

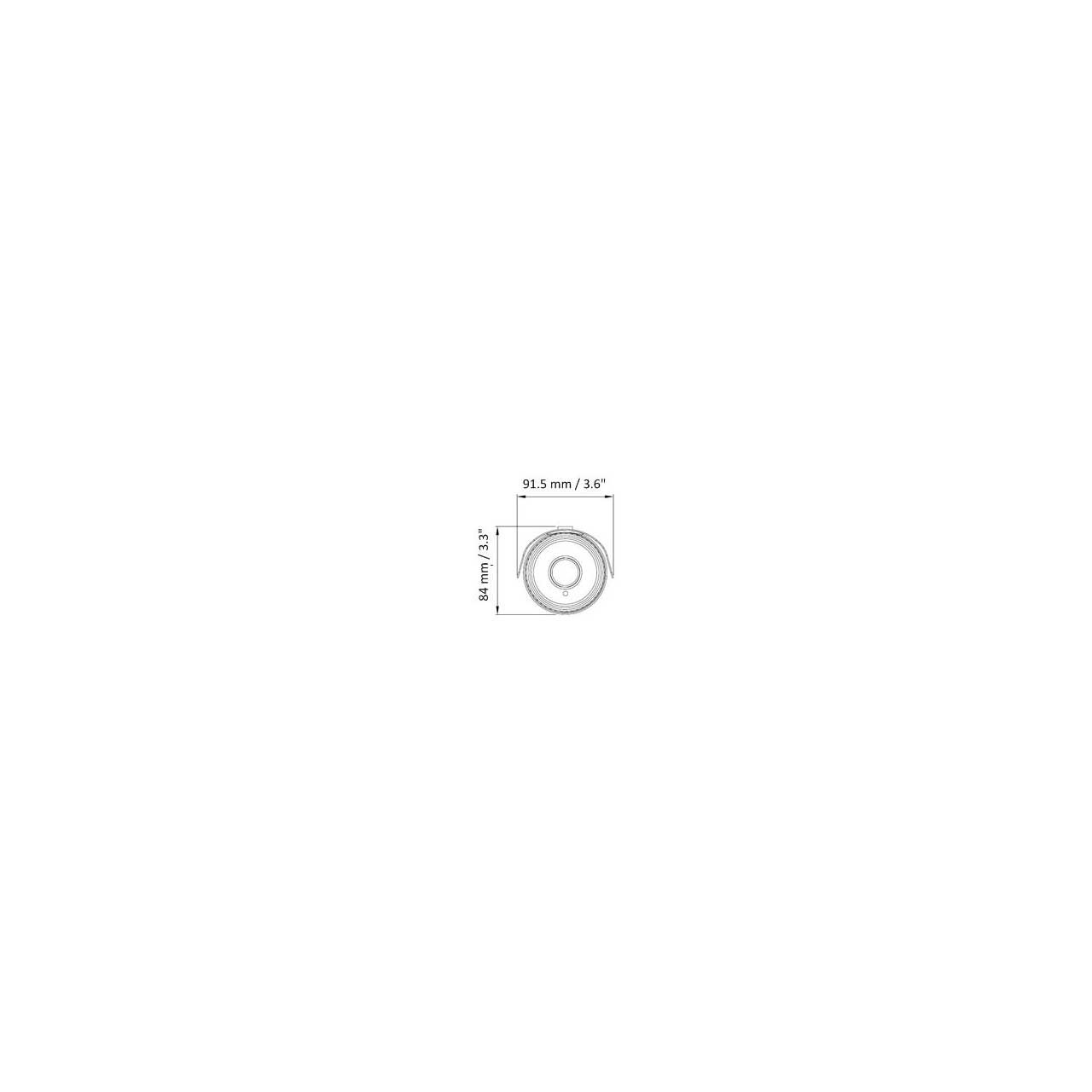

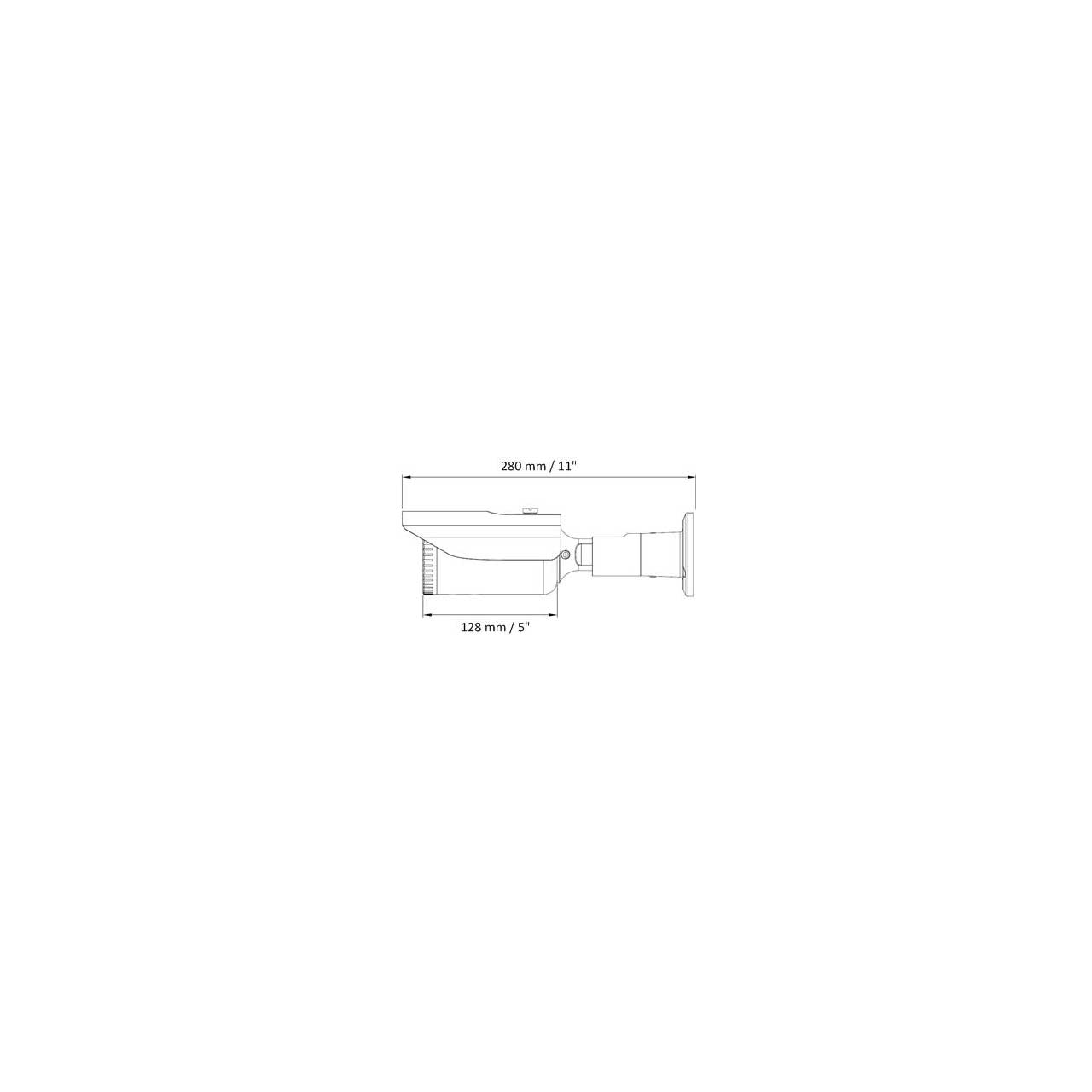

  • Dimensions: 91.5(W) x 84(H) x 280(D)mm / 3.6" x 3.3" x 11"
  • Weight: 1400g / 3.09lb
  • Certificates: CE, FCC, RoHS
