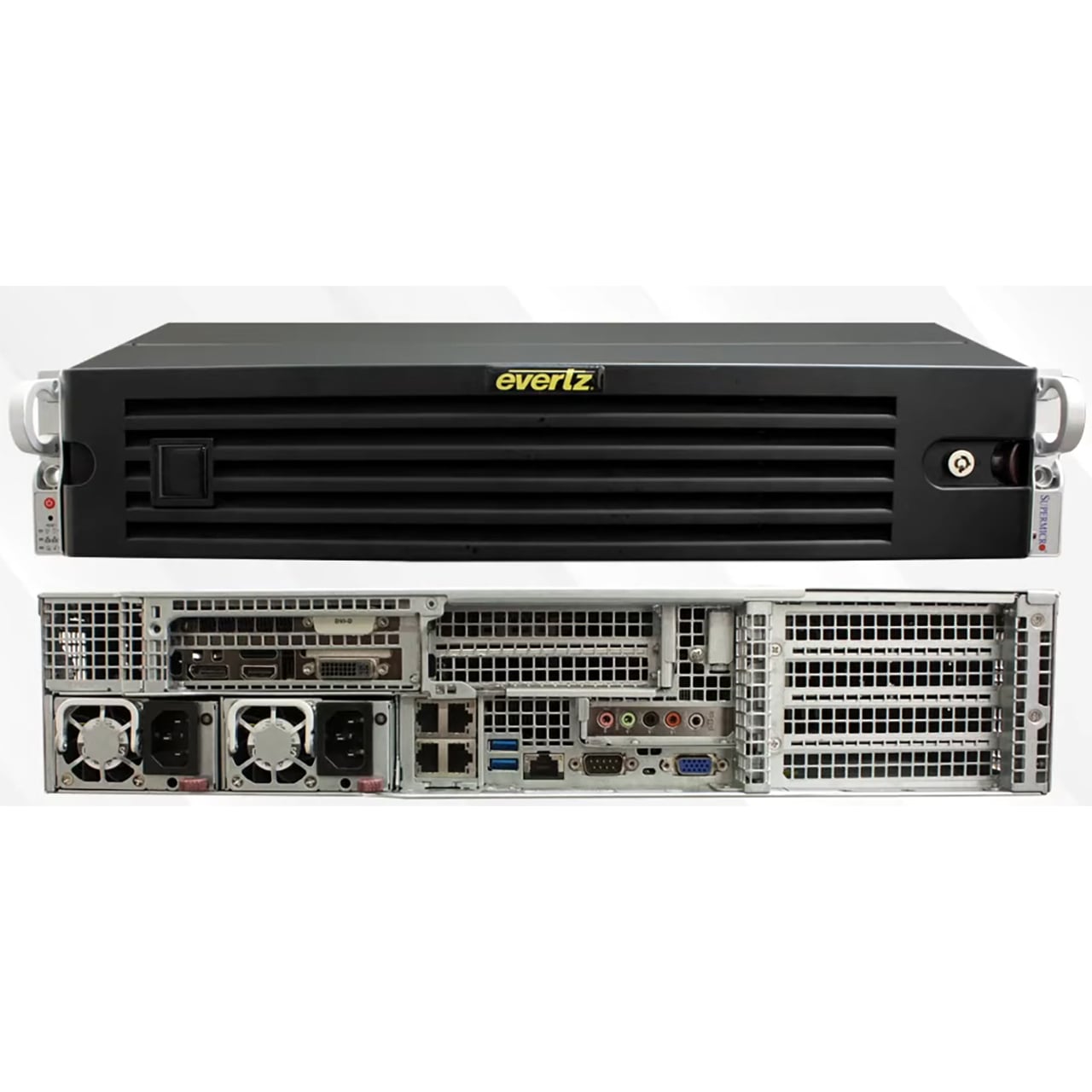

Evertz MViP-II DPX4 2RU IP-Based Multi-Image Display & Monitoring Solution - Up to 128x SD MPEG-2 / H.264 or 64 HD MPEG2

MVIP-II-DPX4 - Overview

Developed to be used as a tool for digital headends, IPTV networks, and sites using IP for distribution with a requirement to monitor and display audio and video along with fault information and transport details on a simple to configure system.

• Features:

  • Supports all major transport: UDP, RTP, SRT, RIST, HLS, LSS, HDS, MPEG-DASH, MMSH, MMST, RTMP
  • Supports video compression formats: MPEG-2, H.264/AVC, HEVC, JPEG-2000
  • Supports audio compression formats: MPEG-1, MPEG-2, AC-3, AAC, Dolby E
  • Up to 8 audio programs decode Stereo or Dolby 5.1
  • Quad output resolution 2160p
  • Audio monitor output via 3.5mm

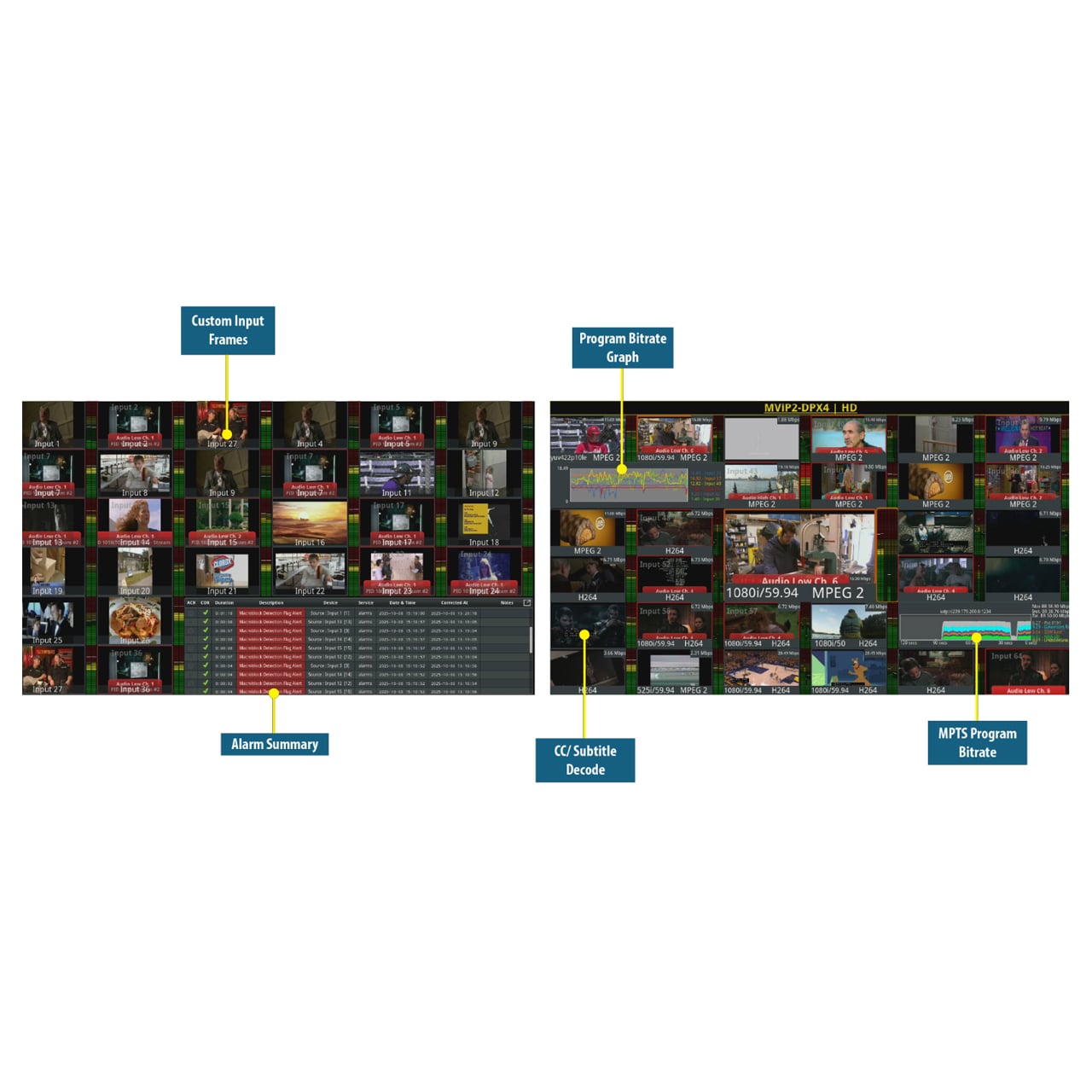

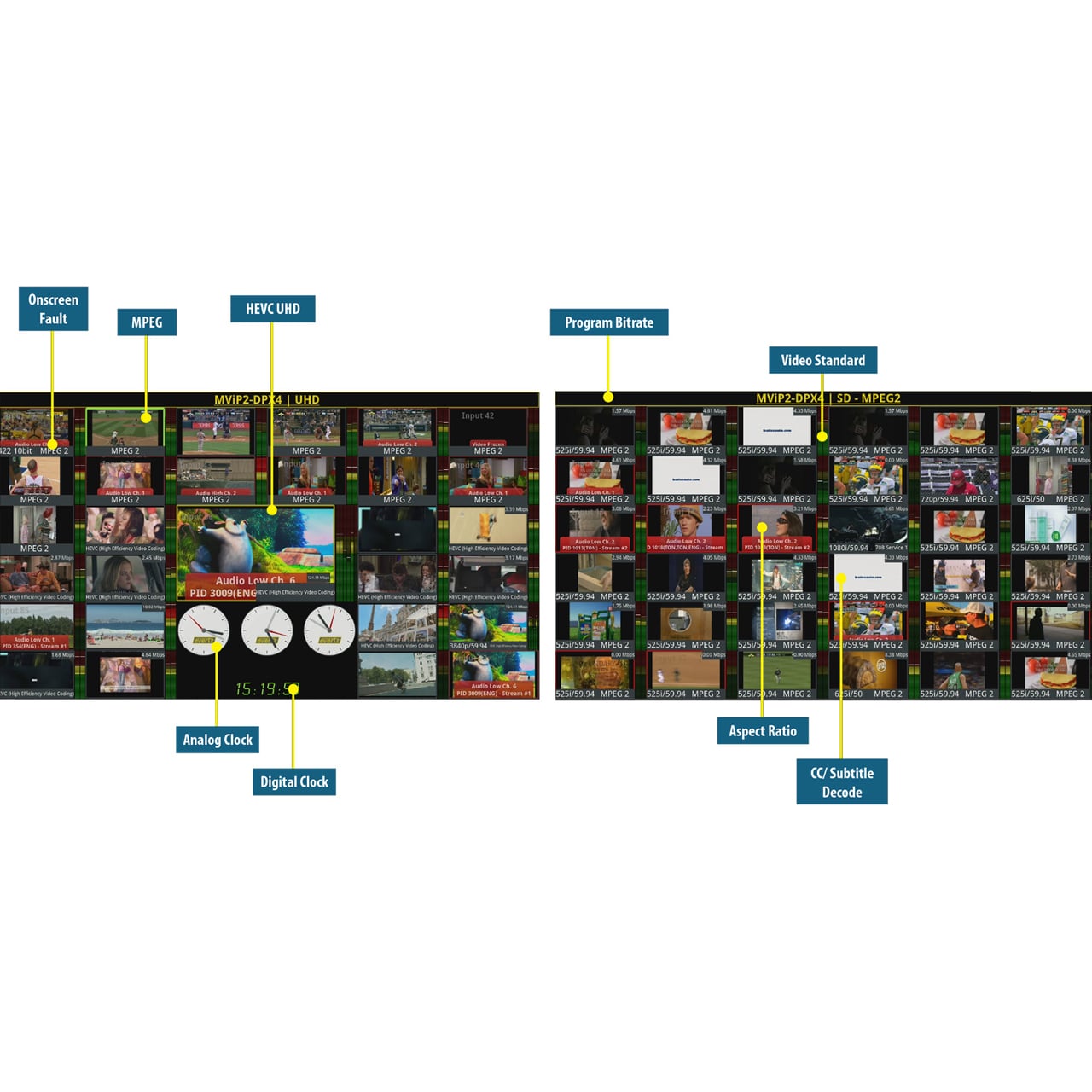

  • Decoded video can be displayed multiple sizes up to full screen on the multiviewer outputs
  • Decoded & display up to 9 DVB subtitles or caption per program.
  • Simple and easy to use on screen user interface
  • WebRTC UI interface.
  • Video Monitoring: Black, Freeze, Macroblock detection
  • Audio Monitoring: Low, High, Loudness monitoring
  • Close captioning, DVB/teletext subtitling and XDS metadata decode and monitor
  • MPTS/SPTS bandwidth information display
  • Bitrate High/low
  • SCTE-35 status monitoring
  • TR101290 monitoring P1 & P2
  • Redundant power supply
  • 4xGigE (RJ45) ports & 2x 10GigE (SFP)
  • Build on Linux OS platform
  • RF via 7780DM-LB+IP series
  • ASI via 7880IP-ASI-IP and 3080ASI-IPGE series


• Specifications:

  IP Inputs
  • Connectors:
    - 4x 1Gbs RJ45 Ethernet connector (1x Management & 3x Data)
    - 2x 10Gbs SFP (Data)
  • Additional Input Format: RF via 7780DM-LB+IP series. (optional)
  • ASI via 7880IP-ASI-IP and 3080ASI-IPGE series. (optional)
  • USB Ports: 2x USB 2.0 (Keyboard/Mouse & upgrades)
  • Video Outputs: 4x Display Port 1.4A (Display port to HDMI adapter included)
  • Output Resolution: XGA up to 2160p
  • Audio Output: 3.5mm audio Jack

    Transport Protocols
  • MPEG transport stream
  • MPTS or SPTS over RTP/UDP Multicast or Unicast
  • RIST
  • SRT
  • TS over TCP
  • RTMP (Flash streaming)
  • HTTP/HTTPS (web based streaming, HLS, MPEGDASH, LSS, HDS)
  • MMSH (Windows Media HTTP)
  • MMST (Windows Media TCP/IP)
  • VNC (remote desktop)
  • Multi-Cast Protocols
  • IGMP V2
  • IGMP V3

    Video Decode Formats
  • MPEG-2 SD (MP@ML)
  • MPEG-2 HD (MP@HL)
  • MPEG-4 Part 2
  • H.264/MPEG-4 AVC SD (MP@L3)
  • H.264/MPEG-4 AVC HD (MP@L4)
  • H.264/MPEG-4 AVC HD (High 4:2:[email protected])
  • HEVC Level 1,2,2.1,3,3.1,4,4.1,5,5.1,5.2
  • JPEG-2000
  • VC-1 (SMPTE ST 412)

    Performance
  • Simultaneous decoding of 128 SD MPEG-2/H.264 or 64 HD MPEG2/H.264 or 64 SD HEVC or 32 HD HEVC or 8 4K HEVC or 16 JPEG 2000 inputs
  • Decoding performance is based on stream bit rate

    Audio Decode Formats
  • MPEG-1 L2 Audio
  • AC3 Audio
  • E-AC3 Audio
  • AAC Audio
  • Dolby E® Audio monitoring

    Physical
  • Dimensions (HxWxD): 3.13" x 17.7" x 32.5"
  • Rack Units: 2RU
  • Cooling: Front to back air flow

    Electrical
  • Power Supply: 2x 850W/1200W
  • Voltage: 110V/240V switching power supply
  • EMI/RFI: Complies with FCC Part 15, Class A
  • EU EMC Directive


• Item Includes:

  • 1x MViP-II-DPX4
  • 2x 10GigE port and redundant hot swappable power supplies
