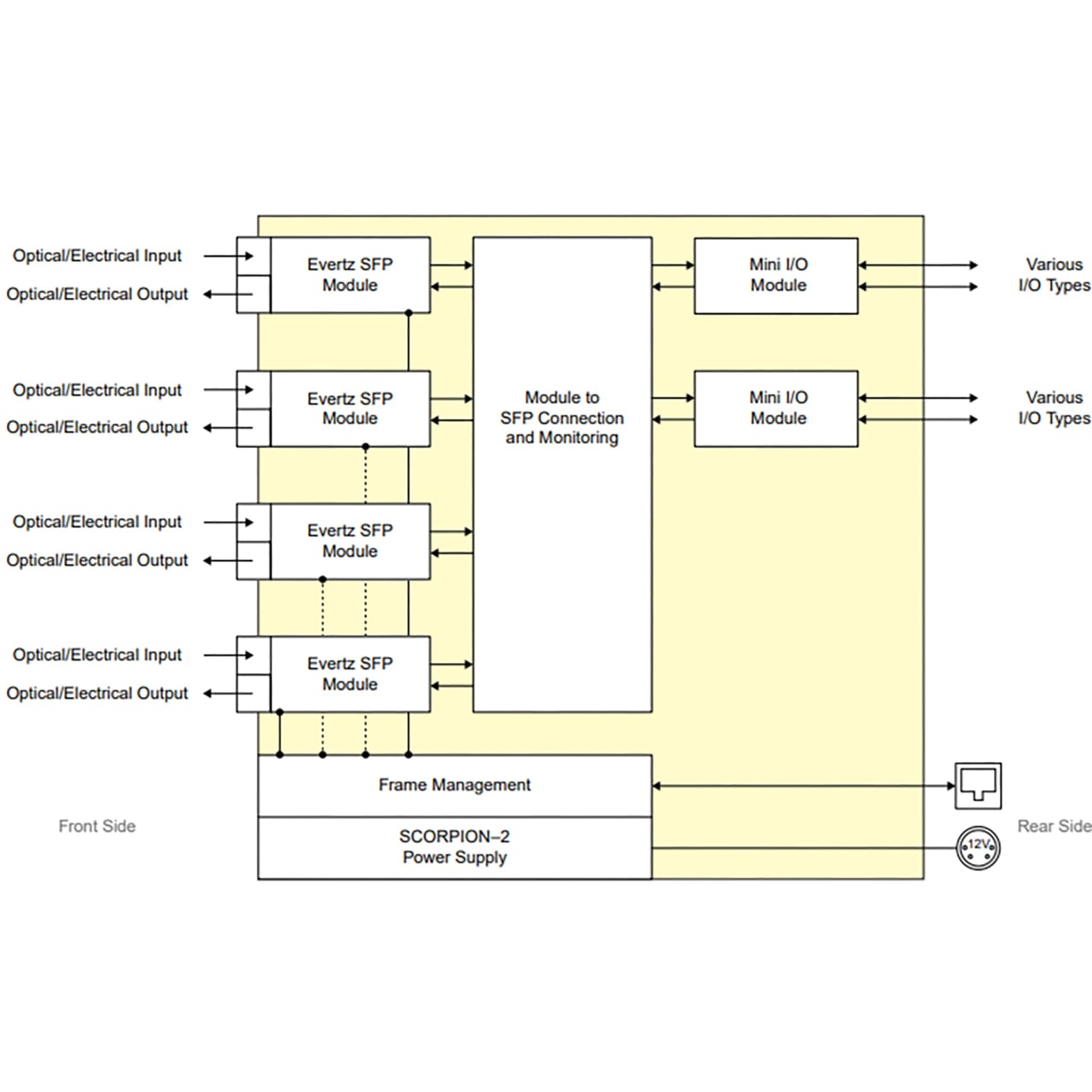

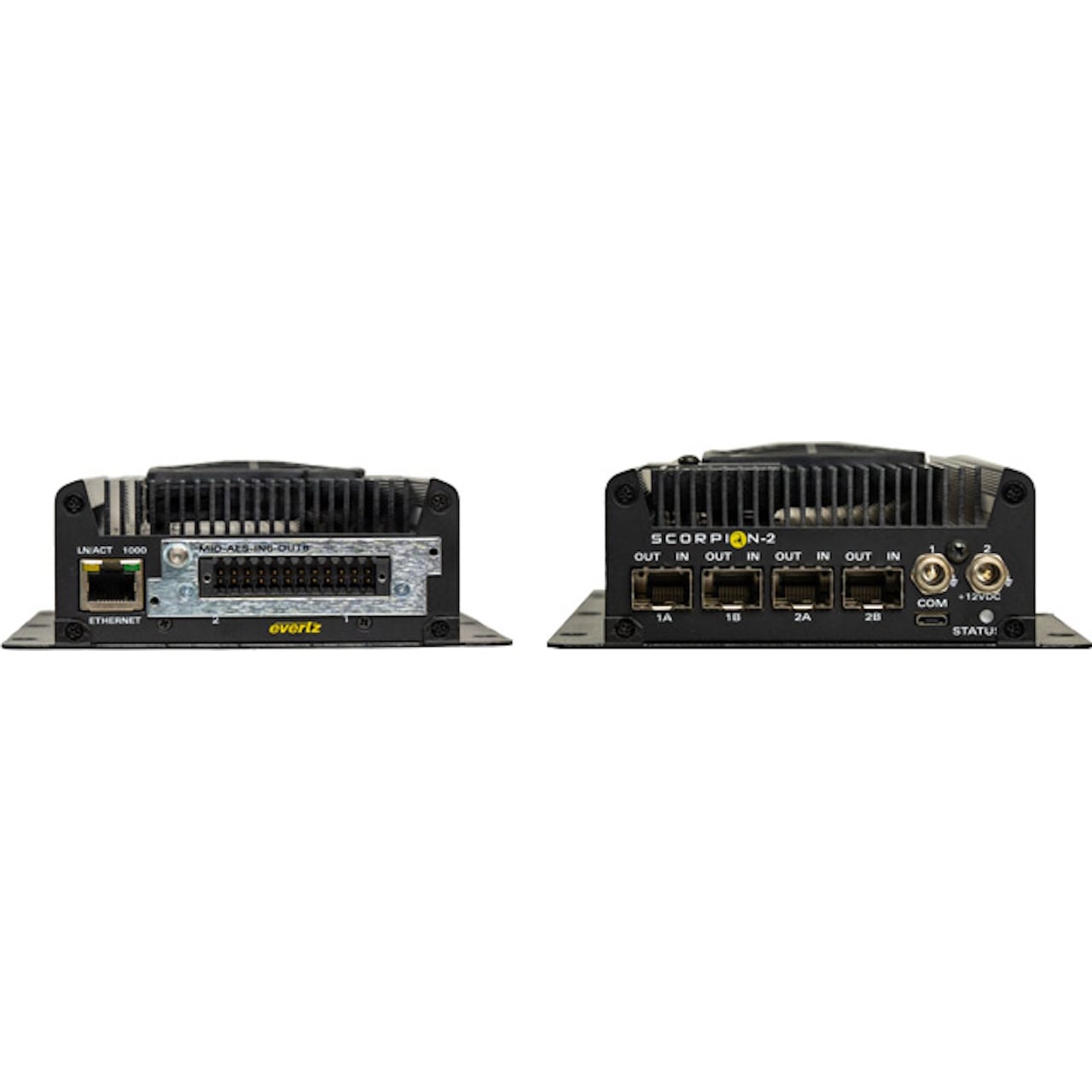

The Evertz SCORPION-2 Media Processing Platform is a miniature form factor, multi-service signal conversion, aggregation enclosure capable of simultaneously transporting video, audio, and data services over Ethernet or fiber networks. Using SCORPION MIO modules, the SCORPION-2 is highly flexible and can accommodate a multitude of video, audio, and data signals. The SCORPION-2 will take on the function of the mini I/O module installed and can become a standalone IP gateway, miniature throwdown encoder, or dark fiber media converter, to highlight a few use cases.
When combined with other SCORPION form factors, the SCORPION-2 becomes part of an integrated, scalable transport network, enabling the sharing of content from different sites using different transport media.
The SCORPION-2 possesses a compact fanless form factor and is designed to be operated in portable and/or low noise environments. SCORPION-2 is ideal for mobile and live sports production applications.
Application Highlights
- Dual-channel JPEG2000 Encoder and Decoder
- Dual-channel JPEG XS Encoder and Decoder
- Dual-channel HEVC/H.264 Streaming Encoder
- SMPTE ST 2110 SDI and HDMI Edge Device up to 4K
- SMPTE ST 2022-2/6 Edge Device up to 4K
- Fiber Extender for Video, Audio, and Data formats
