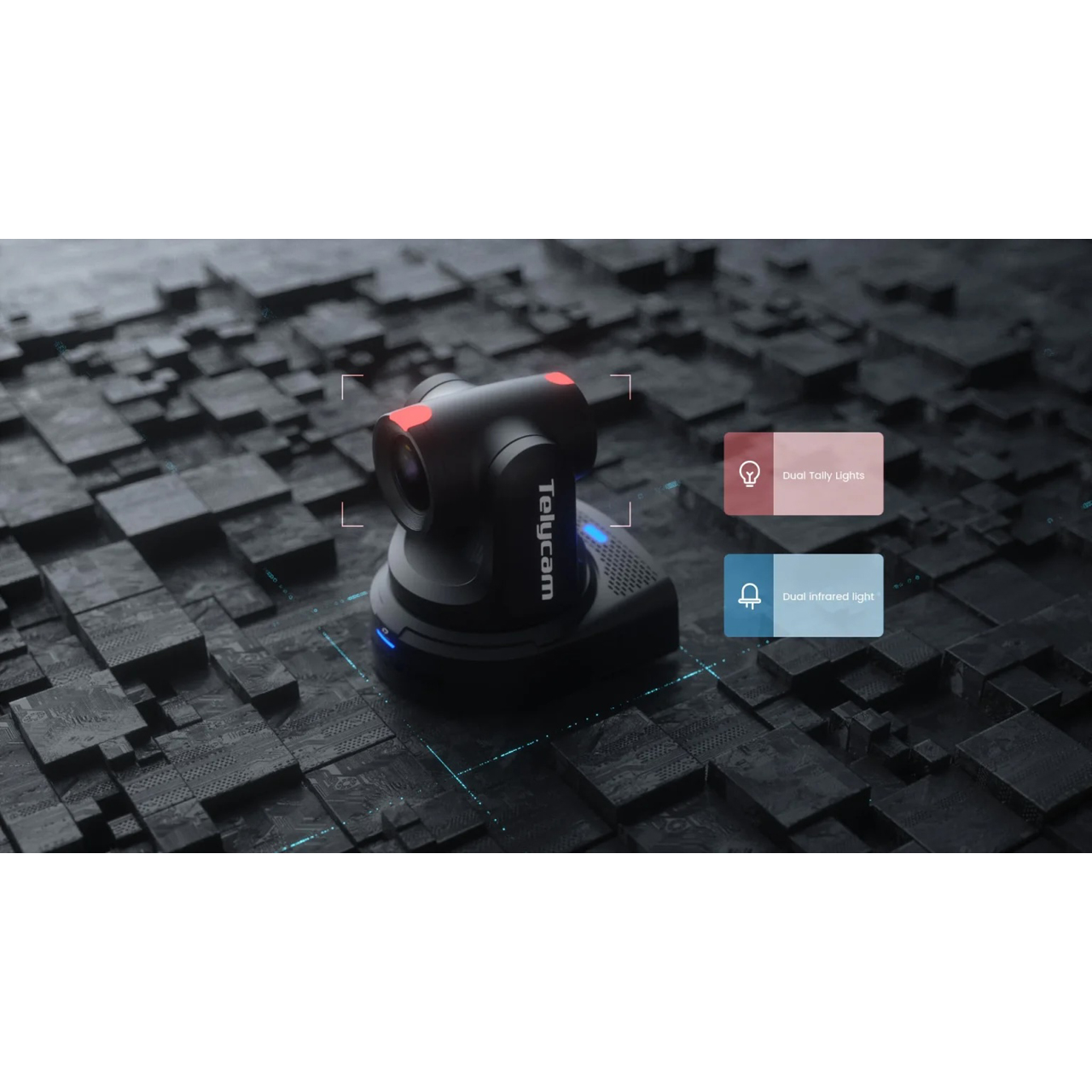

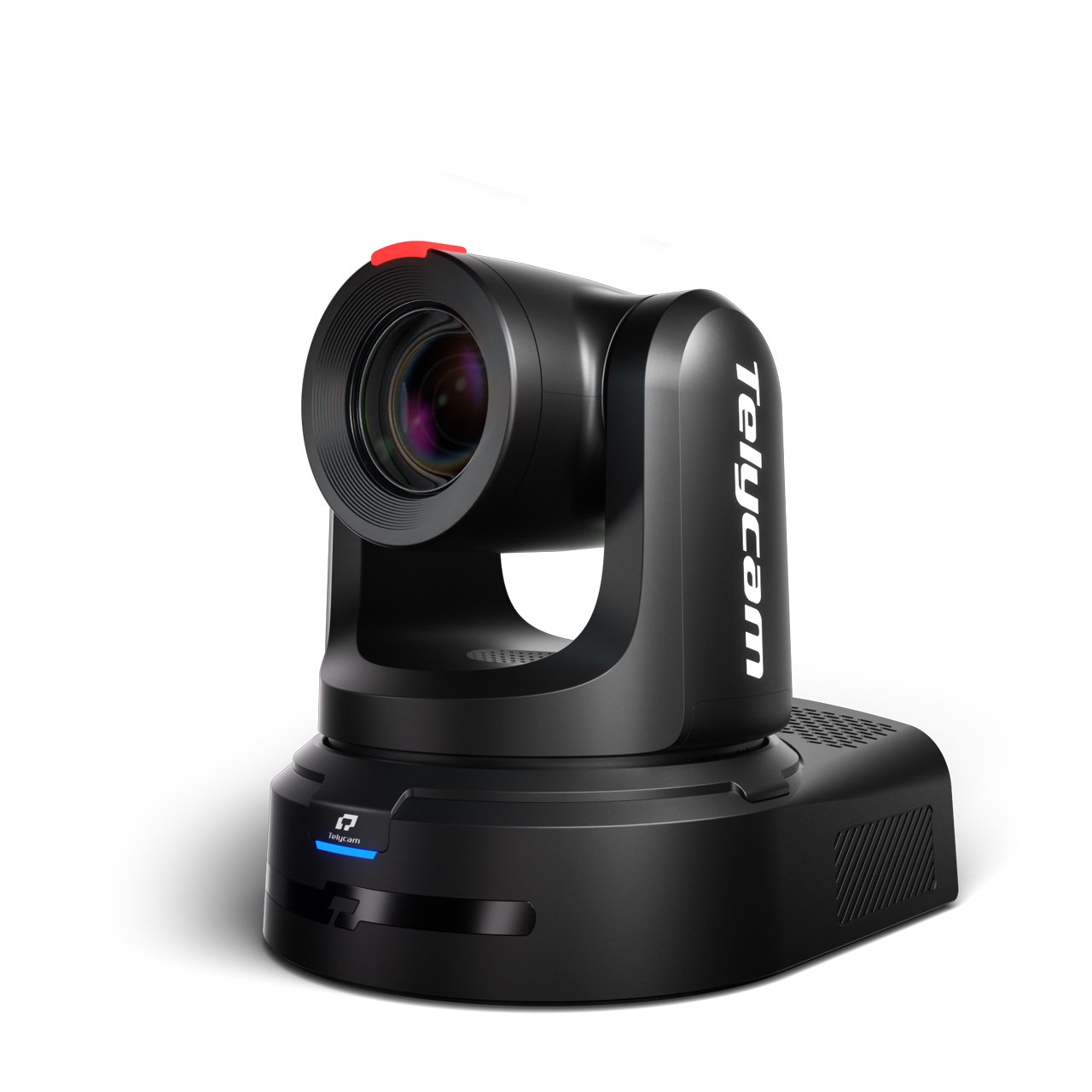

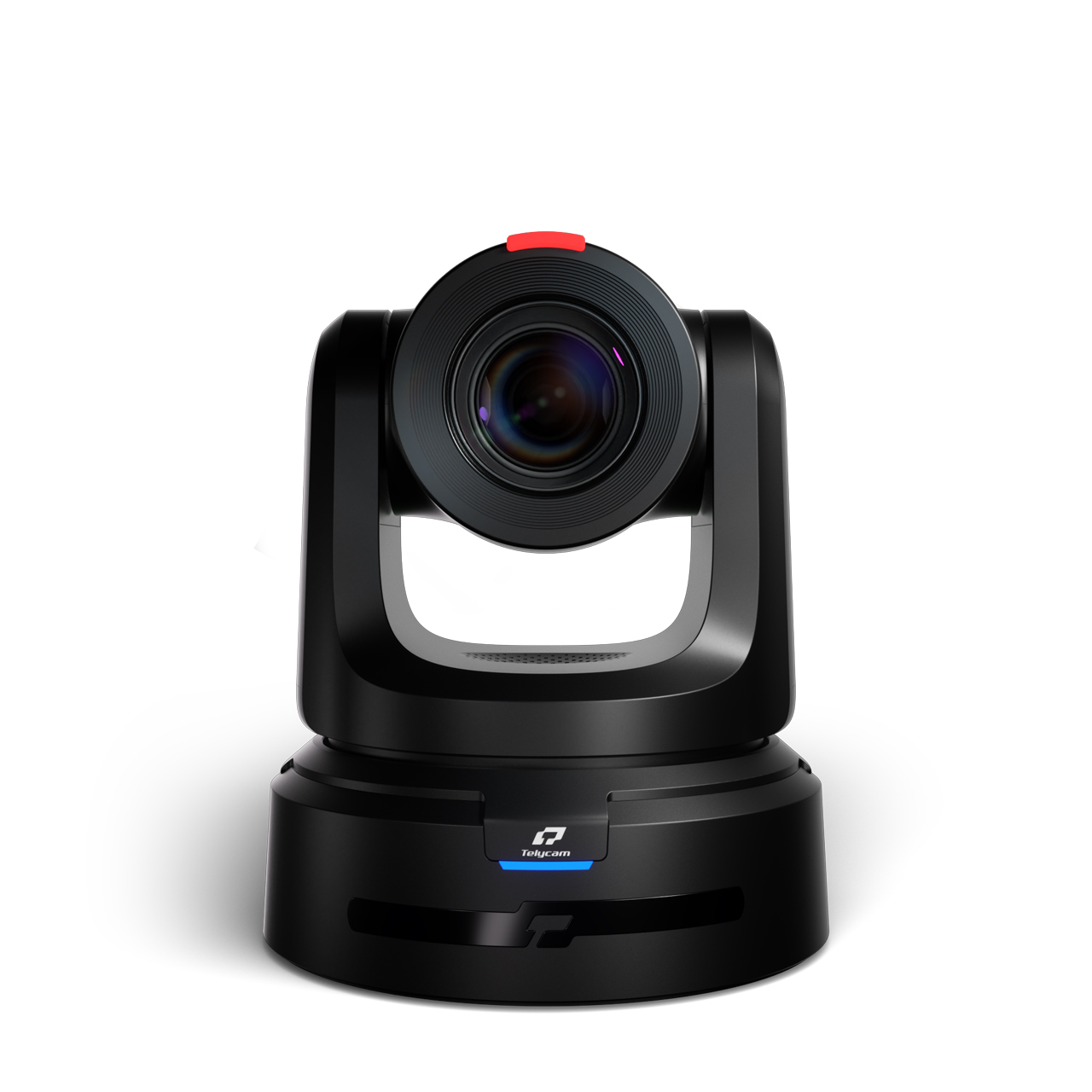

Telycam Explorer XE 4K60 PTZ Auto Tracking Camera with 20x Optical Zoom - NDI HX3 - Black

ITEM #: EX910-20-4K-B MFG #: EX910-20-4K-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,895.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EX910-20-4K-B - Overview

Boasting the industry-leading Sony 1" large CMOS sensor, Telycam Explore XE revolutionizes image quality. This powerful sensor excels in low-light conditions, capturing stunning detail with minimal noise. Its superior light sensitivity, combined with an impressive depth of field, ensures sharp focus on subjects while beautifully blurring backgrounds. This makes it the versatile choice for broadcast professionals who demand the best, delivering cinematic quality in every shot.

PDAF
Experience the power of precise focusing with the industry-leading phase-detection autofocus (PDAF) ability. PDAF technology ensures rapid and accurate subject tracking, even in fast-paced environments. Capture stunningly sharp footage with minimal focus hunting, thanks to PDAF's lightning-fast response times. Enjoy the freedom to concentrate on framing and composition while PDAF handles the intricate task of keeping your subjects in focus, delivering professional-grade results every time.

NDI°HX3: Enhanced Performance & Lower Latency for Live Production
NDI°HX3 brings better quality and lower latency to video production, supporting H.264/H.265 compression for flexibility and performance. With NDI°HX3 certification, Explore XE series provide superior video quality with minimal latency, ensuring smooth and professional live productions. The optimized low latency of NDI°HX3 enhances real-time transmission, making it perfect for dynamic and interactive content creation.

FreeD Integration Unlocks Immersive Virtual Productions
FreeD is a protocol that enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system. Widely supported by most virtual set systems, FreeD makes virtual productions easier than ever. The Explore XE seamlessly integrates FreeD technology, empowering users to explore dynamic shooting angles and perspectives, ideal for versatile real-world and virtual-world applications. Explore XE's broad compatibility with industry-leading virtual set systems like Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine, and VSet3D ensures a smooth workflow for all your virtual production needs.

Robust Audio Capabilities
The Explore XE features 3.5mm line-in and Mini XLR with Phantom power, providing compatibility with various microphones and audio equipment.

  • Features:

    • High-Performance Sensor and Image Processor
    • PDAF (Phase Detection Auto Focus)
    • Versatile Output Options
    • Robust Audio Capabilities
    • Native AI-Based Auto-Tracking
    • FreeD Technology Integration
    • MicroSD Card Slots

  • Specifications:

      Camera
    • 1", 9MP UHD CMOS sensor
    • 20x Optical Zoom
    • Lens: f=9.79 - 186.5mm, F2.8 - F4.5
    • Horizontal View Angle: 71° (Wide) - 4.05° (Tele)
    • Vertical Viewing Angle: 39.6° - 2.2°
    • Diagonal Viewing Angle: 78.5° - 4.6°
    • Minimum Working Distance:
      - Wide: 15cm
      - Tele: 150cm
    • S/N Ratio: =50dB

      Image Parameters
    • Noise Reduction: 2D & 3D
    • Minimum Lux: 0.5Lux (50 IRE Max AGC, 1/30, F1.8)
    • White Balance: Auto/Manual/ATW/Push/Indoor/Outdoor/Color Temperature
    • Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
    • Anti-Flicker: OFF, 50Hz, 60Hz
    • Image Flip/Mirroring: Supported
    • Focus/Iris/Electronic-Shutter: Auto/Manual
    • Gamma: Supported
    • Backlight Compensation: Supported

      Video Formats
    • 3G-SDI:
      - 1920*1080P60/59.94/50/30/29.97/25/24/23.98
      - 1920*1080I60/59.94/50
      - 1280*720P60/59.94/50/30/29.97/25
    • HDMI 2.0:
      - 3840*2160P60/50/30/25 /59.94/29.97/24/23.98
      - 1920*1080P60/50/30/25 /59.94/29.97 /24/23.98
      - 1920*1080I60/50/59.94
      - 1280*720P60/50/30/25 /59.94/29.97
    • NDI®HX3:
      - Main Stream: 3840*2160P15 ~ 60; 1920*1080P15 ~ 60; 1280*720P15 ~ 60; 1024*576P15 ~ 60;
      - Sub Stream: 640*360P15 ~ 30
    • USB Type-C:
      - NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
      - YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
      - MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
      - H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60

      IP Streaming
    • Video Encoding: H.264/H.265
    • Bitrate Control: Variable bitrate (VBR), Constant bitrate (CBR)
    • Bitrate Range: 1024Kbps - 122800Kbps
    • Network Port Speed: 1000M
    • Protocol: NDI®HX3, SRT, HTTP, HTTPS, RTSP, RTMP, RTMPS, ONVIF, VISCA over IP (TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC, MPEG-TS

      Pan/Tilt Movement
    • Preset: Remote Controller: 10; Serial Port: 256; Accuracy: 0.1°
    • Pan Rotation Angle: -176° - +176°
    • Tilt Rotation Angle: -90° - +90°
    • Pan Rotation Speed: 0.1° - 80°/s
    • Tilt Rotation Speed: 0.1° - 60°/s

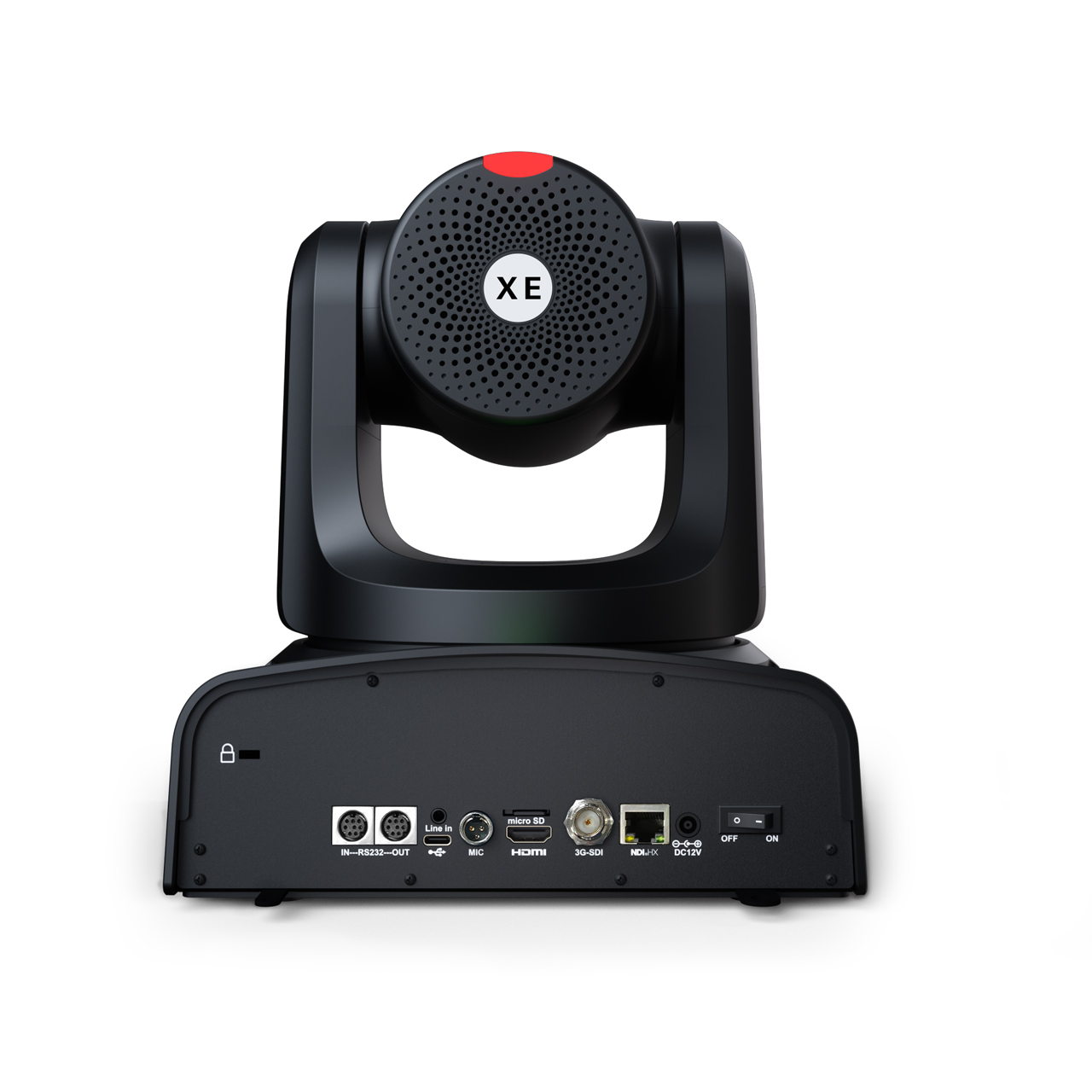

      I/O Interface
    • Control Port: RS232, RS485, USB, NDI®HX3
    • Video Port: NDI®HX3, HDMI 2.0, 3G-SDI, USB Type-C
    • Audio Port: Mini XLR (with phantom power), stereo 3.5mm line in
    • Tally: Supported
    • POE+: Supported
    • Daisy Chain: Supported

      General
    • Input Voltage: DC12V, POE+ (IEEE802.3bt)
    • Operating Temperature: 14°F - 122°F
    • Operating Humidity: ≤80%
    • Dimensions (LxWxH): 9.17" x 10.39" x 10.59"
    • Net Weight: 10.15lbs

  • Item Includes:

    • 1x Camera
    • 1x Power Adapter
    • 1x Power Cable
    • 1x Remote Controller
    • 1x USB Type-C Cable
    • 1x RS232 Cable
    • 1x User Manual
    • 1x QC PASS
    • 1x Shock-absorbing Pad
