Gefen EXT-DVI-FM1000 DVI Over Fiber Extender

Questions? Ask a Markertek Expert:
800-522-2025 Email

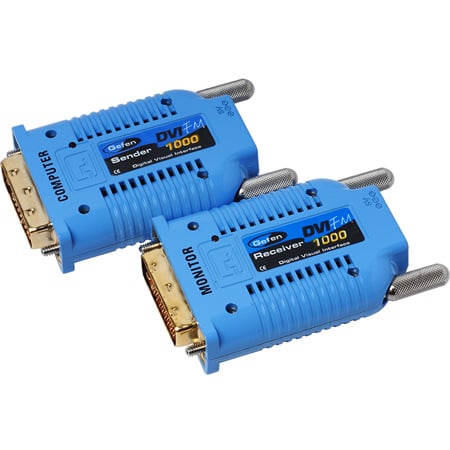

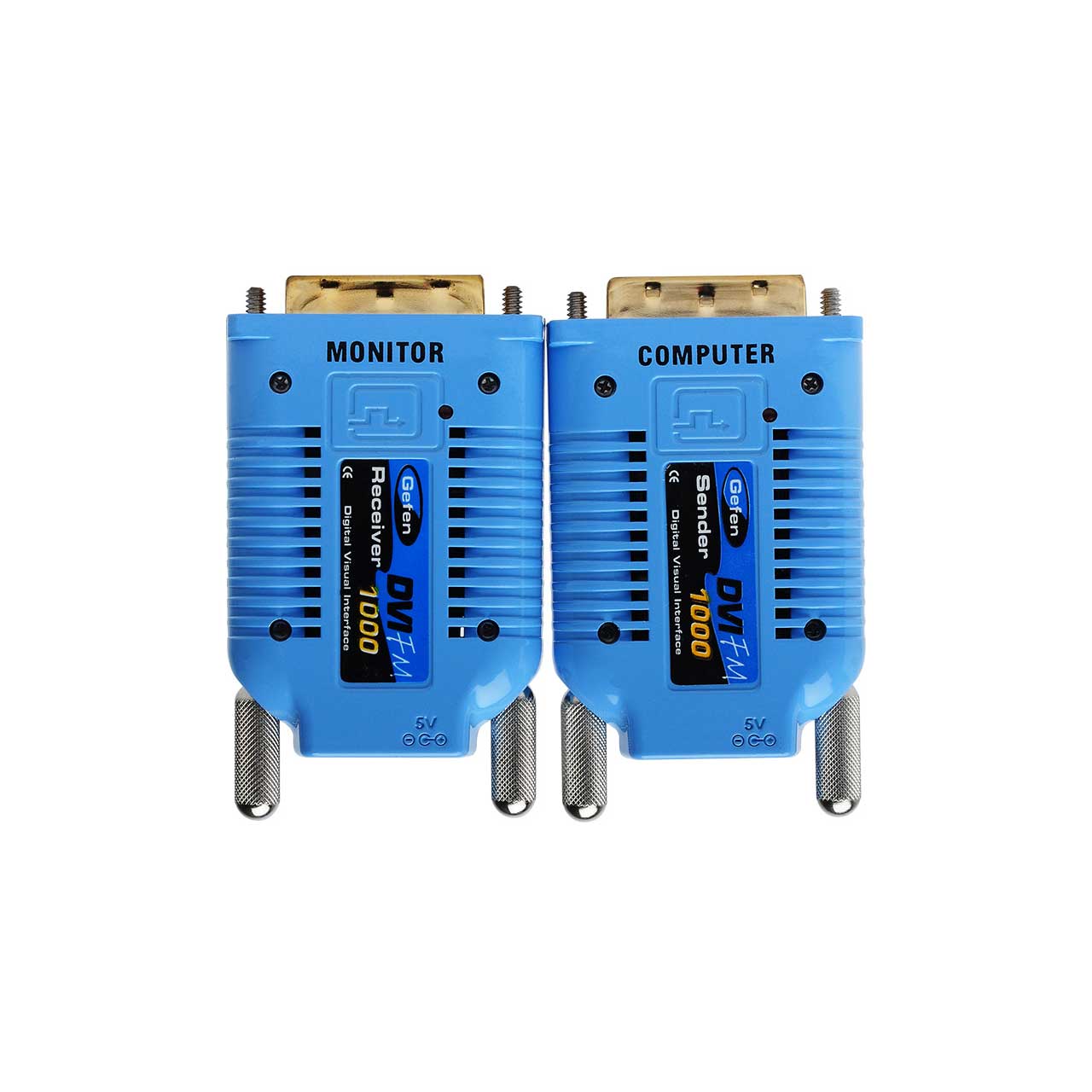

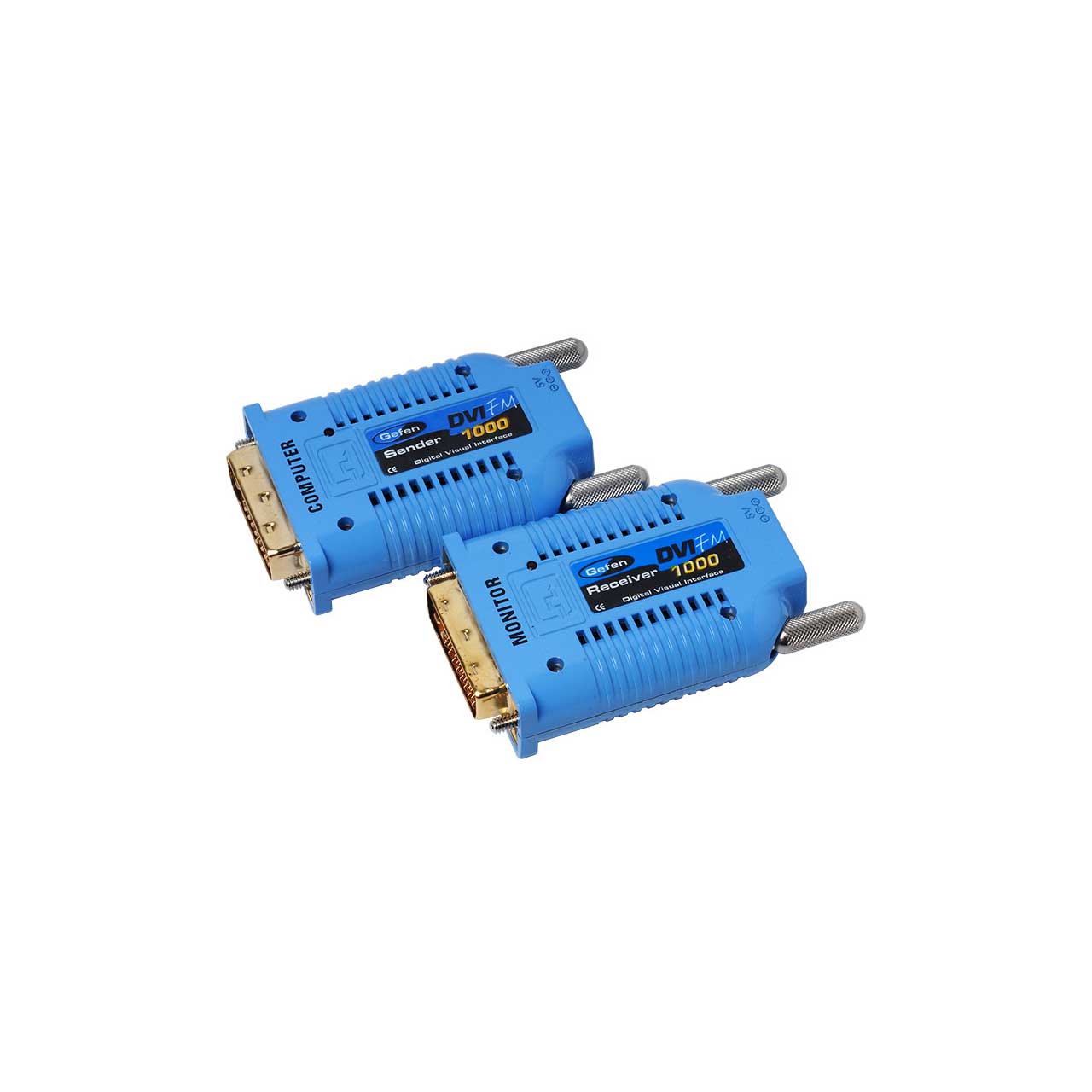

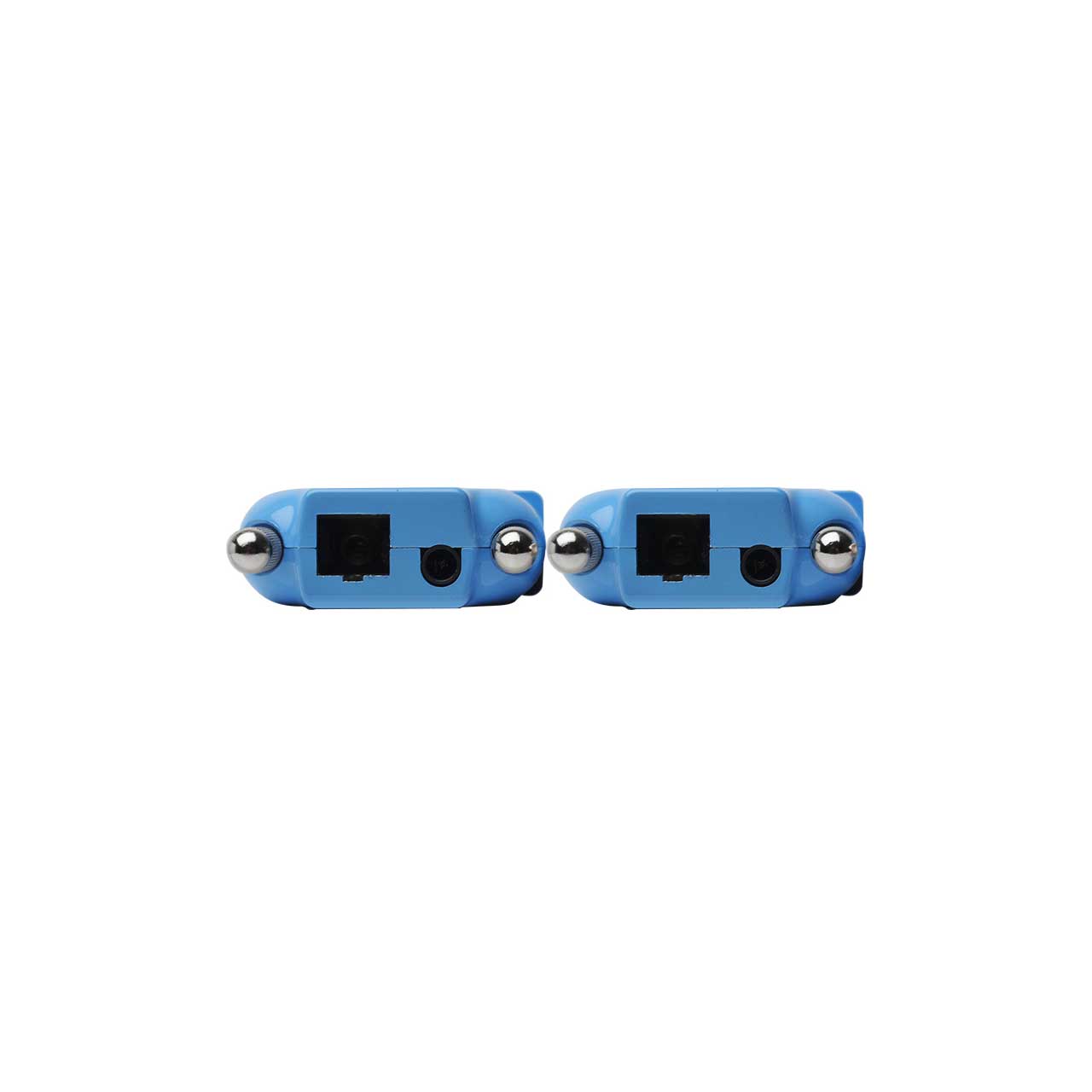

Gefen EXT-DVI-FM1000 DVI Over Fiber Extender

Manufacturer: Gefen Inc

Item #: EXT-DVI-FM1000   •   MFG #: EXT-DVI-FM1000



List Price:$1,029.00
Our Price:$639.00

free ship


Versions:



Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.



    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Extend DVI over One Strand of Fiber Cable -- Up to 3,280 feet (1km) Away

    The Gefen DVI FM1000 is a fiber optic extender that allows users to extends their DVI display up to 3,280' (1km) away from the video source. The process is accomplished with only two tiny transceivers, using a 100% optical SC fiber solution with a single strand of fiber optic cable.

    Automatic EDID Programming enables quick and correct synchronization of the video source to the display without any manual configuration needed. It's a great way to extend DVI video easily and unobtrusively.

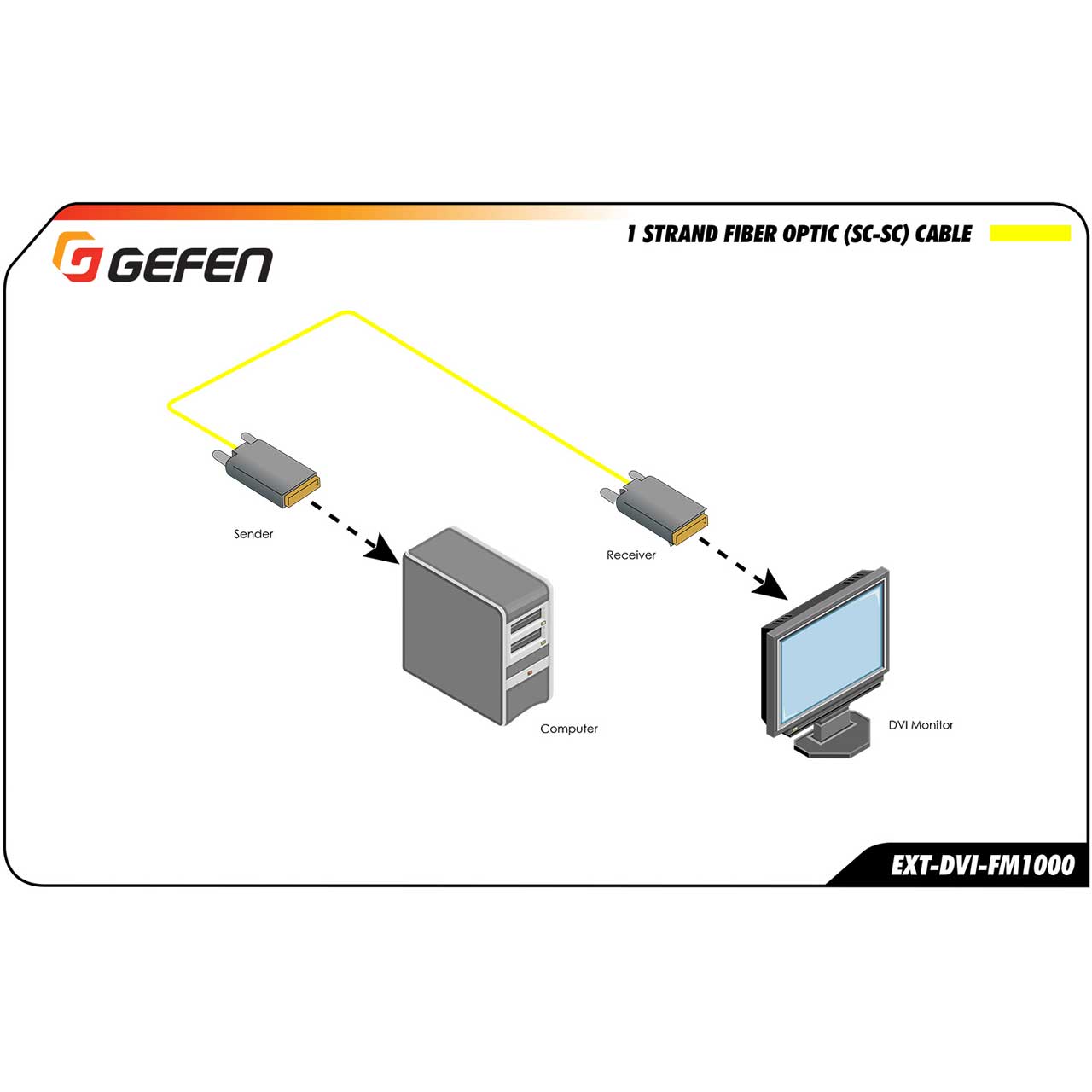

    The DVI FM1000 sender unit plugs into a DVI port, which can be either a computer source or another device transmitting a DVI signal. The DVI-FM1000 Receiver unit plugs into a DVI display. Once connected, a single strand of multimode SC fiber optic cable connects the sender to the receiver. Power is connected to the FM-1000 receiver using the 5V wall adapter. The result is a crisp and vibrant digital video image over extremely long distances.

    *Supports video resolutions up to 1080p, 2K, and 1920 x 1200.
    *Uses inexpensive and widely available single-strand multimode SC fiber optic cable.
    *Automatic EDID Programming feature enables quick and correct sync of source to display.
    *Immunity from electromagnetic influences (EMI) is thanks to all-fiber construction.
    *Saves space on your desktop and increases productivity.
    *Eliminates computer noise where you work.
    *Supports DDWG standard for DVI compliant monitors.


    • Features

      • EDID Programming feature enables quick and correct sync of source to display
      • Eliminates computer noise at your workstation
      • Extends any DVI source up to 3,280 feet (1000 meters) from the source
      • Fiber cable provides immunity from electromagnetic int

    • Specifications

      • Bandwidth 165 Mhz
      • Input Signal 1.2V p-p

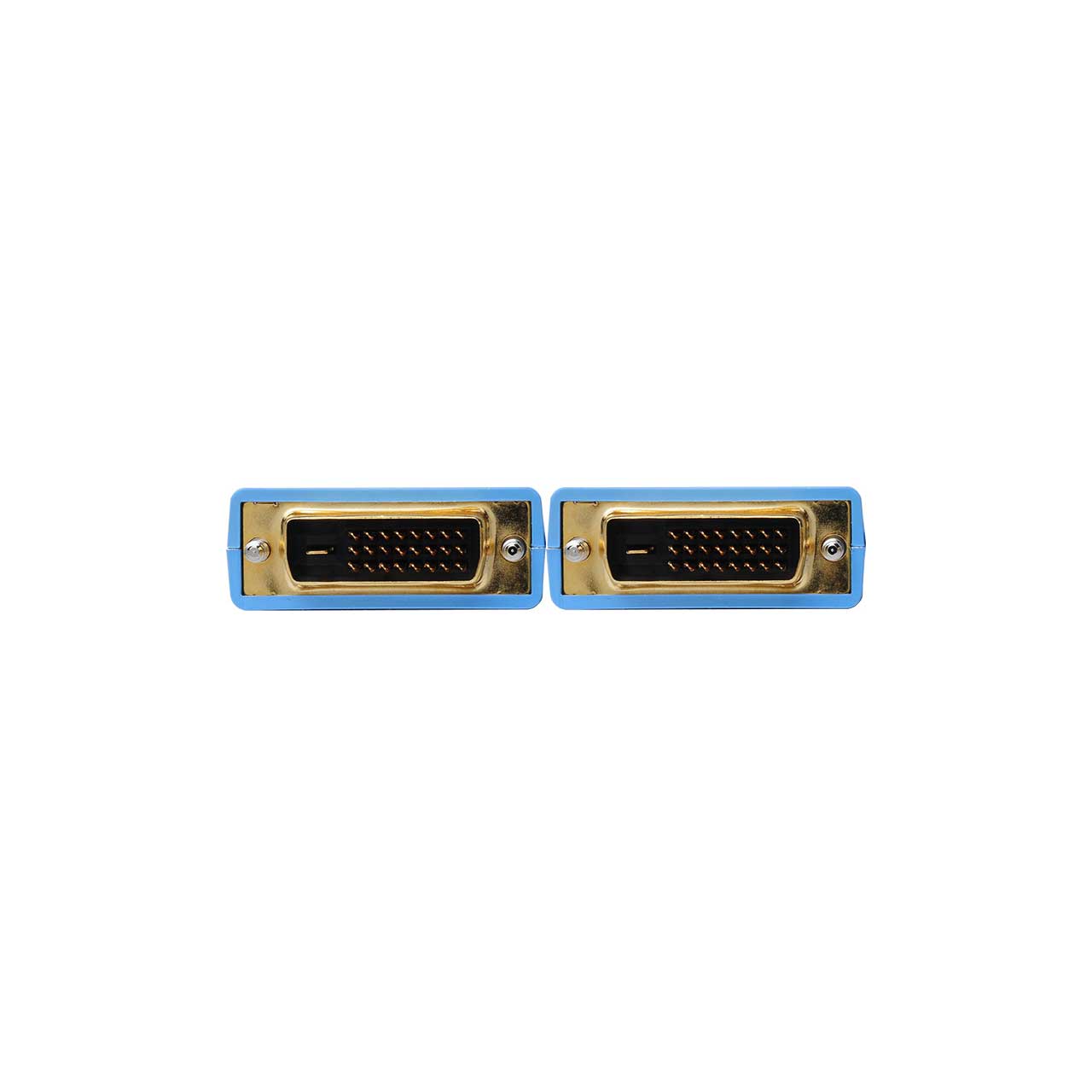

      • Inputs/Outputs DVI: DVI-D
      • Power Requirements 5VDC
      • Power Consumption 2.5W (Per Power Supply Unit)
      • Dimensions (WxHxD) Transceiver
      • 1.6 x 0.6 x 2.6" (4.1 x 1.5 x 6.6cm)
      • Weight 1 lb(0.5kg)

    • Item Includes

      • Gefen EXT-DVI-FM1000 Fiber Optic DVI Extension Module
      • 2-Year Limited Warranty
