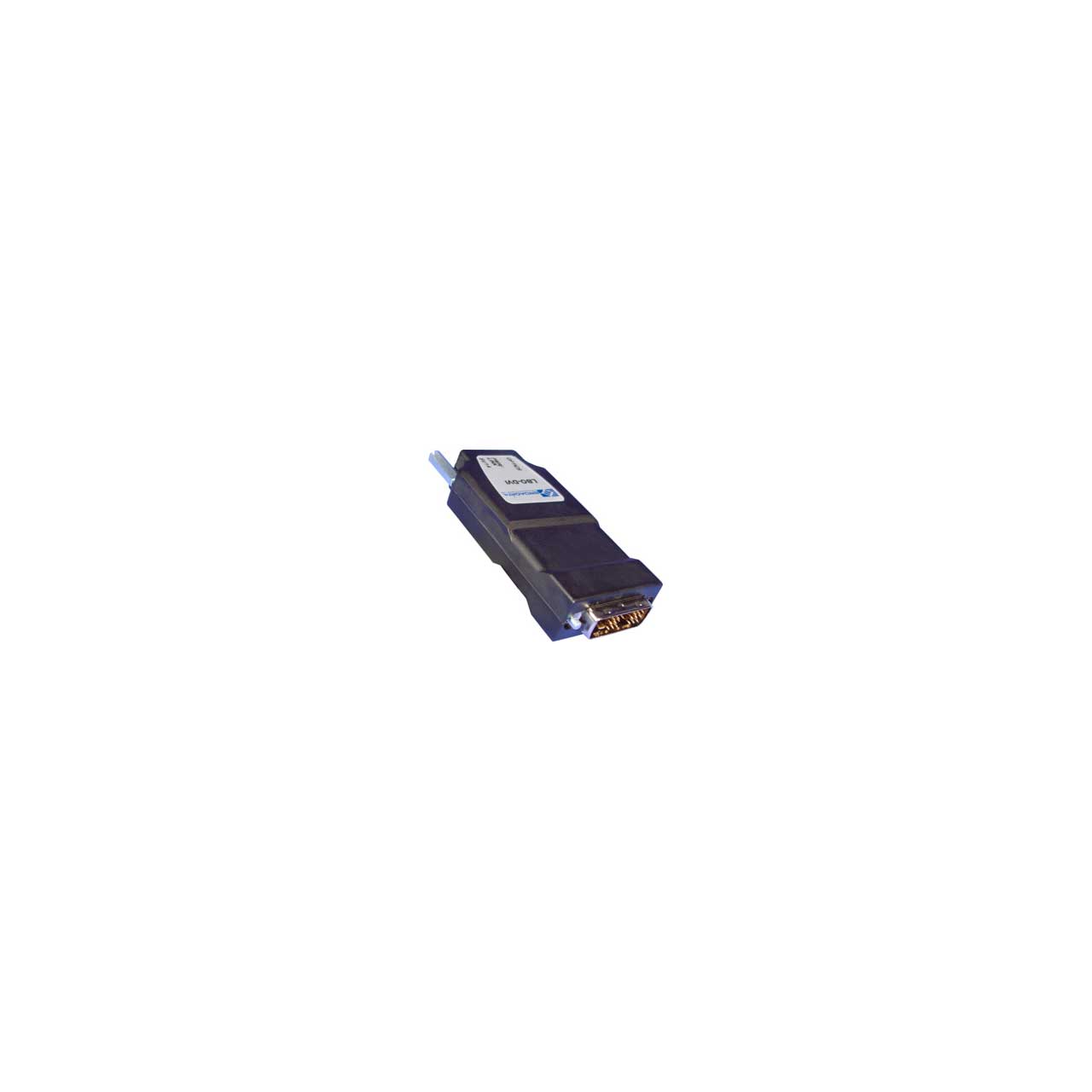

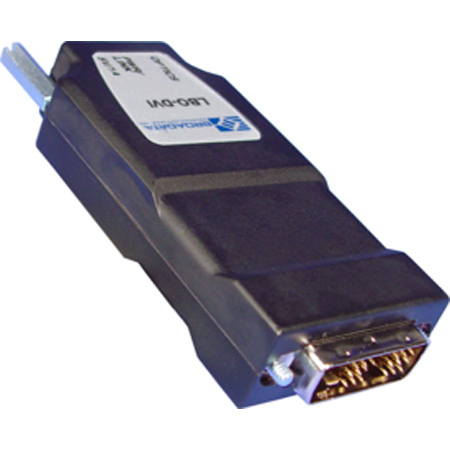

Link Bridge LBO-DVI-R-M-SC-MC DVI Over 1 SC Multimode Fiber Receiver

Item #: BD-DVI-R-MSC   •   MFG #: LBO-DVI-R-M-SC-MC



List Price:$568.83
Our Price:$399.95

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





Required Accessories

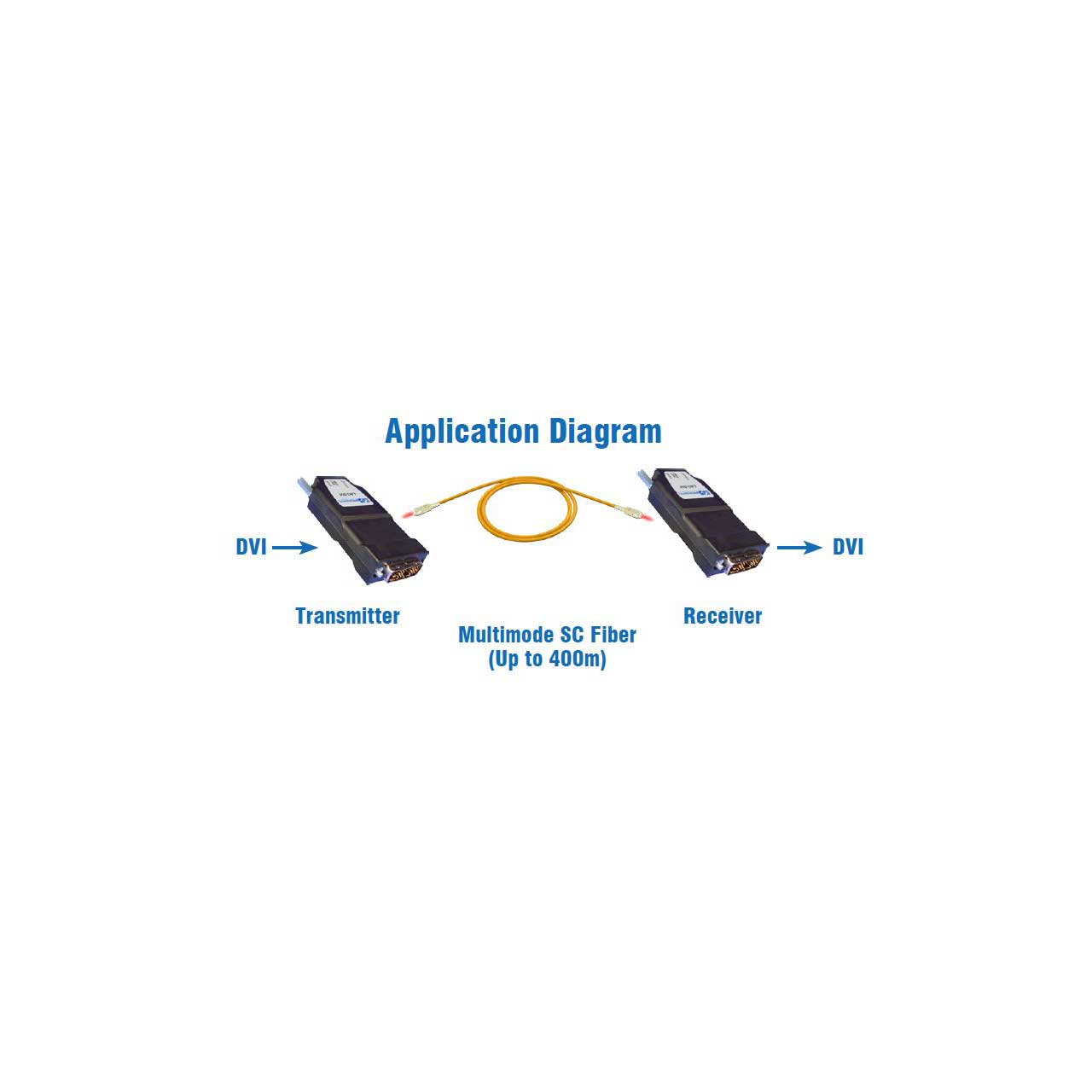

The LBO-DVI Series is a high performance, low cost, miniature, directly pluggable Link BridgeT Fiber Optic DVI Transmission System. It carries one (1) unidirectional DVI video, together with DDC/EDID, through one (1) multimode fiber. This unique fiber optic transmission system lets your digital flat panel display extend up to 400m at WUXGA (1920x1200 @ 60Hz) resolution. Thumb screws are designed in the rear for convenient installation in tight spaces.

No user adjustment is required for the LBO-DVI system due to the use of advanced digital fiber optic transmission system technology with zero compression and zero bit reduction. This allows for a quick and easy setup, offering trouble-free operation for many years to come. The LBO-DVI supports video resolution up to WUXGA (1920 x 1200 @ 60 Hz) or 1080p @ 60Hz HDTV video resolution, with 12-bit deep color capability.

Please note! Receiver only, transmitter sold separately


  • Features

    • Extend DVI Signals up to 400 meters Over Multimode Fiber
    • Supports Full HDTV Video Resolutions up to 720p/1080i/[email protected] Hz
    • Fully Uncompressed Video & Audio Provides Zero Loss of Quality
    • Supports True DDC/EDID/HDCP Transmission Over Fiber
    • Video Over 1 Multimode Fiber
    • Compatible with our LBO Series Products
    • Built-in Signal Conversion When Used with SDI, VGA, and S-video Transmitters

  • Specifications

    • Video Specifications
    • Resolution: Up to [email protected] or [email protected]
    • Connector: DVI Male.
    • Protocol: DDC/EDID/HDCP Capable.

      Physical
    • Dimension (HxWxD): 0.65" x 1.58" x 3.12".
    • Power Consumption: +5VDC @ 1.0A
    • LED Indicator: Power/Link
    • Operating Temperature: 0 to +50 degrees C
    • Humidity: 0 to 95% RH, Non-Condensing.

      Optical
    • Fiber Type: Multimode.
    • Number of Fibers: 1.
    • Connector: SC.
