Thor Fiber F-4SDI-3G-GET-TXRX 4-Ch SD/HD/3G-SDI Transmitter/Receiver Kit - Singlemode - ST/PC - 12 Mile Range

ITEM #: F-4SDI-3GGETTXRX MFG #: F-4SDI-3G-GET-TXRX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Thor Fiber
Free Shipping with $49 Minimum Order

List Price:

$5,394.00

Our Price:

$4,495.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

F-4SDI-3G-GET-TXRX - Overview

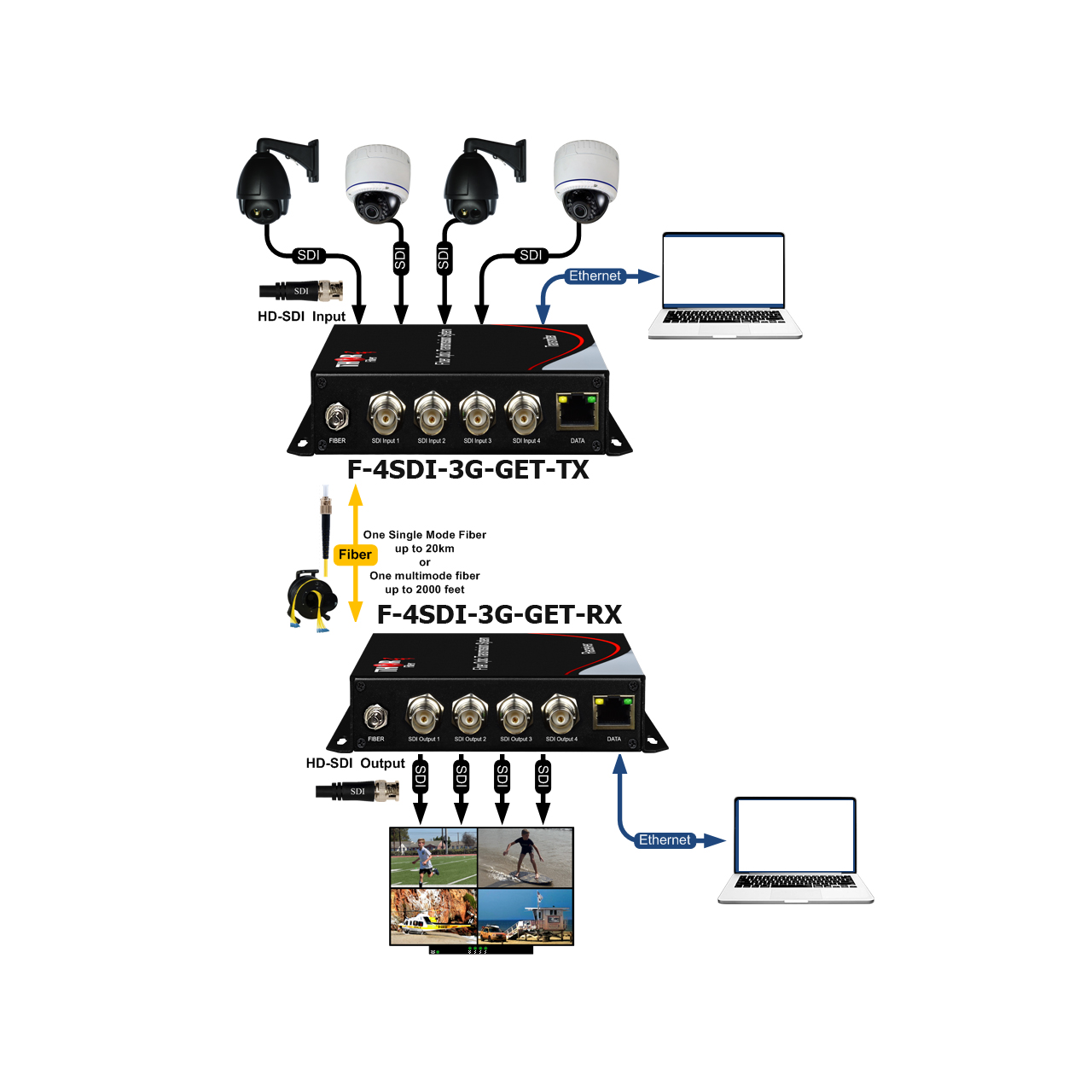

The Thor Fiber F-4SDI-3G-GET-TXRX is a flexible system that allows customers to send 4 unique 3G SDI video signals and bi-directional Gigabit Ethernet over a single fiber link, with distances 20,40,80 and 112.42 Miles (20km) (model dependent). This makes it perfect for real-time applications like live broadcast or video transmission over long distances.

Real-Time Application
Send Video and Extend LAN Simultaneously - You can use this system to transport live video (3G-SDI) from Point A to Point B, while at the same time extending your LAN network over the same fiber connection. This means you can connect computers, routers, or any IP-enabled devices alongside your video signals.

  • Features:

    • 4 channels of 3G-SDI video and bi-directional Ethernet over one fiber strand
    • Supports real-time video transport and LAN extension for devices like computers, routers, or IP cameras
    • No need for separate cables or links-everything runs on the same fiber, simplifying setup and reducing costs
    • Plug-and-play design for easy installation in broadcast, live events, or any application requiring video and Ethernet transport
    • Single Optical Fiber for Video and Ethernet
    • Compatibility with CWDM Bands
    • Passes SDI Embedded Audio and Ancillary Data
    • Input Equalization and Reclocking for SDI
    • Customizable for Bi-Directional Transport
    • Real-Time LED Indicators
    • Works as an unmanaged pass-through transceiver


  • Specifications:

      Optical Characteristics
    • Wavelength:
      - 1310 nm CWDM Band
      - 1271nm, 1291nm, 1311nm, 1331nm
      - 1351nm, 1371nm, 1411nm, 1431nm
      - 1550 nm CWDM Band
      - 1471nm, 1491nm, 1511nm, 1531nm
      - 1551nm, 1571nm, 1591nm, 1611nm
    • Fiber Cable: Single Mode ONLY
    • Optical Data Rate: Up to 4.25Gbps (Model Specific)
    • Optical Source: DFB Laser Module - CWDM
    • Optical Budget:
      - 15dB Standard
      - 30dB Long Range
    • Fiber Connectors: ST/PC - Standard

      Electrical Characteristics
    • Input: Any Serial Digital Signal up to 3.0Gbps
    • Input Level: 1.00V Peak to Peak
    • I/O Impedance: 75Ω
    • Electrical Connectors:
      - BNC: 75Ω
      - RJ45 Port: Supports 10/100/1000Mbps Gigabit Ethernet Interface - Unmanaged

      Mechanical/Environmental
    • Dimensions (LxWxH): 18.89" x 8.85" x 3.46" (480mm x 225mm x 88mm)
    • Weight: 8lbs (3.6kg)
    • Operating Temperature: 14°F - 131°F (-10°C - 55°C)
    • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
    • Humidity Range: 0% - 95%, non-condensing
    • Power:
      - 100V - 240V AC Auto Switching PSU
      - 10W - 30W Depending On Configuration


  • Item Includes:

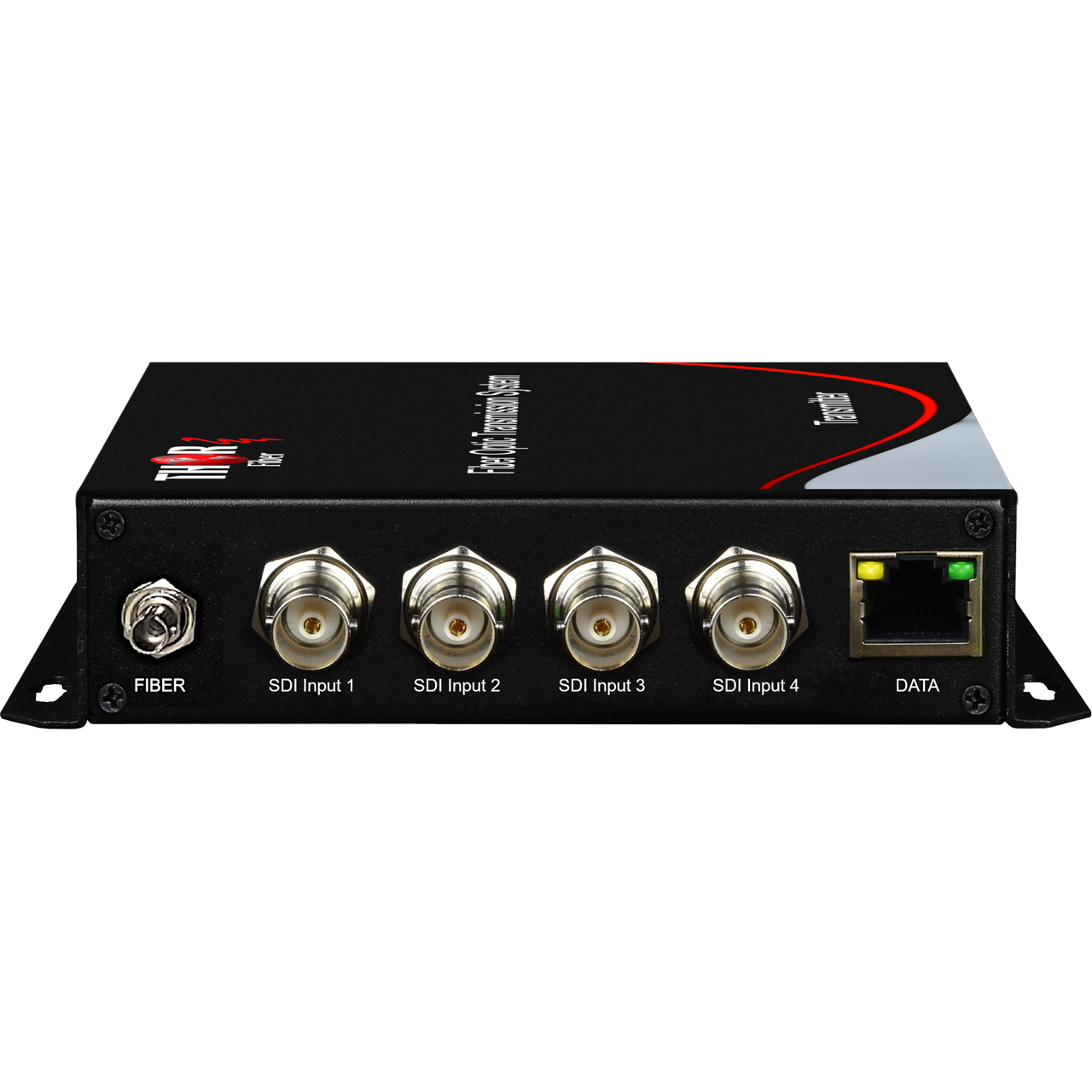

    • 1x Thor Fiber F-4SDI-3G-GET Transmitter
    • 1x Thor Fiber F-4SDI-3G-GET Receiver
    • 2x US Power Cord


  • Warranty:

    • 5 Year Limited Warranty
