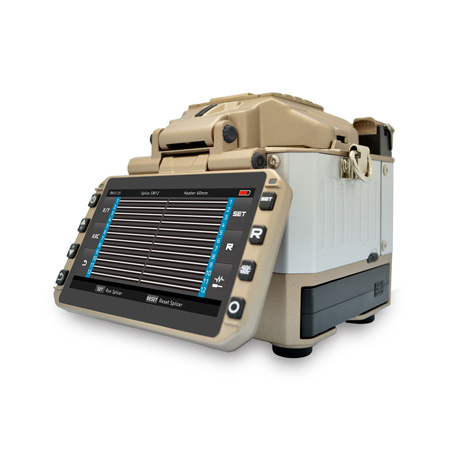

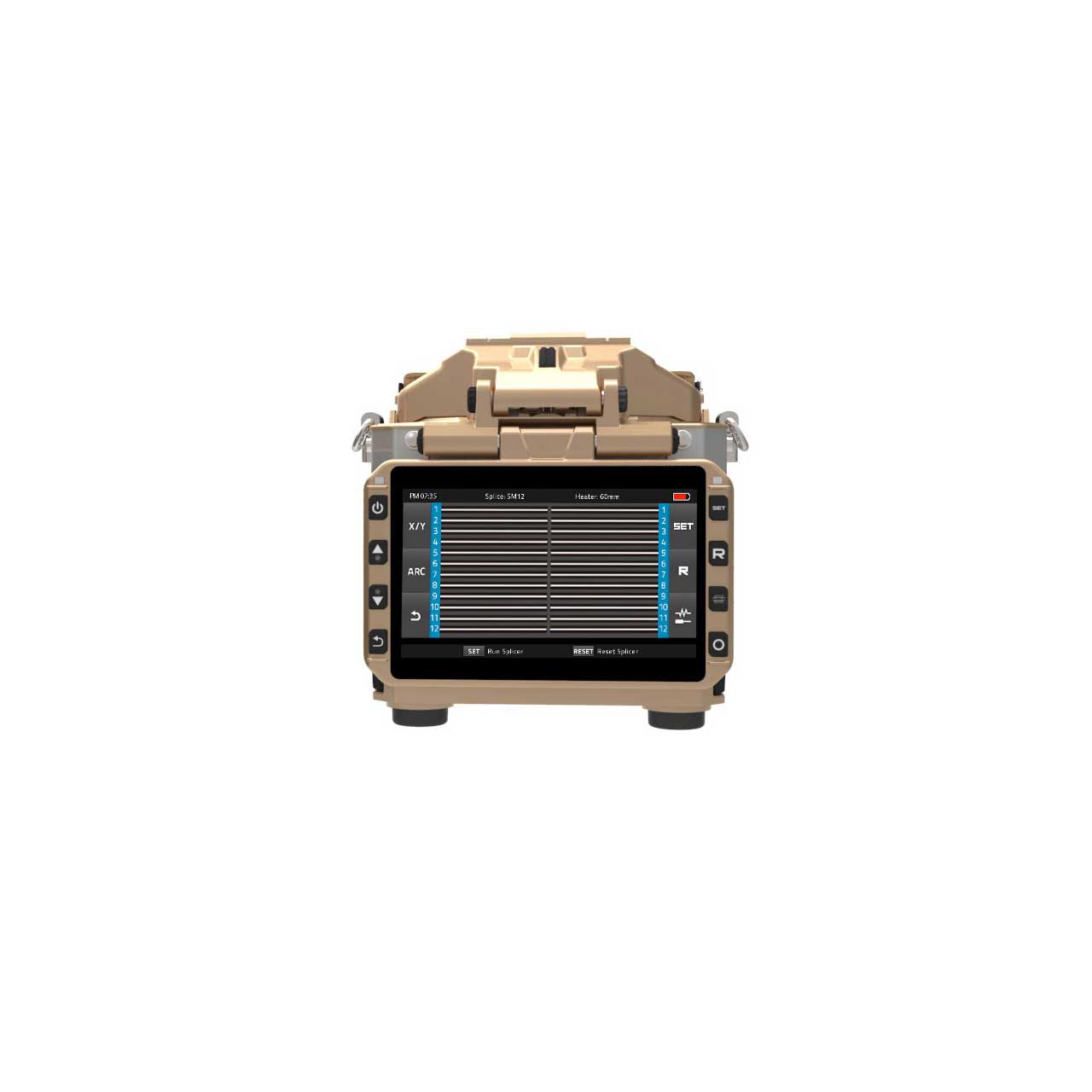

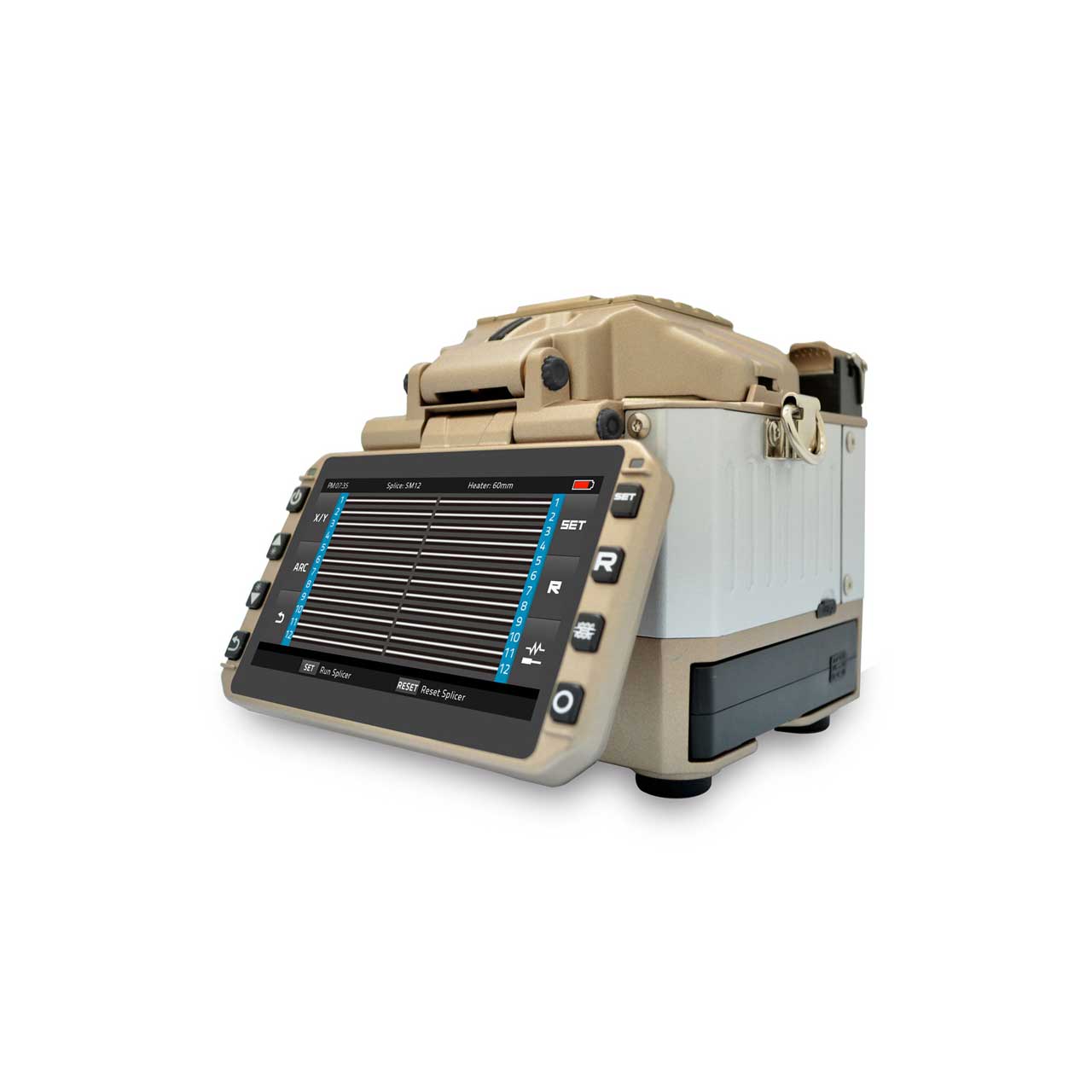

Fiber Fox MINI 12R Ribbon Fiber Fusion Splicer with Cleaver

ITEM #: FBF-MINI-12R MFG #: MINI 12R

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$11,000.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    MINI 12R - Overview

    Fiber Fox's MINI 12R is the Smallest and the lightest ribbon fiber fusion splicer with guaranteed stability and splicing performance. The mini 12R is MPO SOC compatible, heats up in just 20 seconds, and can splice single mode fiber cable in just 15 seconds all while being controlled by a full touch screen pad.

    • Features:

      • Fastest Splicing Time: 15 sec with single mode fiber (quick mode)
      • 20 sec Heating time
      • Comes with 2 Battery Packs
      • Full Touch Screen
      • MPO SOC Compatible

    • Specifications:

      • Applicable Fiber: SMF(G.652/657), MM(G.651), DSF(G.653), NZDS(G.655)
      • Fiber Count: Single to 12 Ribbon Fiber
      • Cladding dia./Sheath dia.: Single: 125 / 160 to 3mm by Fiber Holder System / Riboon: 125 / Ribbon Fiber Thickness 0.25 to 0.4mm
      • Average Slice Loss: 0.03bB(SM), 0.02db(MM), 0.08dB(DS) and 0.08dB(NZDS) Measured by cut - back method relevant ITU-T and IEC standards
      • Splice Mode/Heating Mode: 100 Splice Modes / 32 Heating Modes
      • Splice Time/Heating Time: 15 Sec / 20 Sec
      • Splice Result Data save: up to 2000 Splices
      • Viewing Method/Magnification: 2 Axis CMOS Camera with 4.3? Color LCD / 33X and 60X Magnification
      • Applicable Protaction Sleeve: 60mm, 40mm (2.36in, 1.57in)
      • No. of Splice/Heating per Battery: 120 cycles with LBT-50
      • Electro Life: 1500 Splices
      • LCD Screen: 4.3" Hi-Def Touch Screen w/ Temper proof glass
      • Optical System: Mirror
      • Weight: 2.77 lbs (without battery)
      • Size: 4.8 x 4.88 x 5.4 (in)
      • Operating Environment: Elevation 0-5,000 meters, 14~140°F, 0~95% relative humidity
      • Storage Condition: Temperature -40 to 176°F, 0~95% relative humidity, battery -4~86°F
      • Termial: USB 2.0 (Mini-B Type) for PC
      • Pull Test: 1.96~2.25N (standard) 4.4N (Optional)

    • Item Includes:

      • 1x - Mini 12R Splicer
      • 1x - Mini 50G Cleaver
      • 1x - Cleaver softcase
      • 1x - COoling Tray
      • 1x - Spare Electrode
      • 1x - Connector Heater Block
      • 1x - Connector Holder
      • 1x - Operation Manual CD
      • 1x - Car Cigar Jack
      • 2x - Battery Packs
      • 1x - Shoulder Strap
      • 1x - Hot Jacket Stripper
      • 1x - Power Cord
      • 1x - AC adapter
      • 1x - USB Cable
      • 1x - Hand Carrying Case
