Lemo FHG.1B.310.CLAD52Z 10 Position Right Angle Plug Male Cable Collet Circular Push Pull Connector Used & Useable

ITEM #: FHG1B310CLAD52Z MFG #: FHG.1B.310.CLAD52Z

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the FHG1B310CLAD52Z

FHG.1B.310.CLAD52Z - Overview

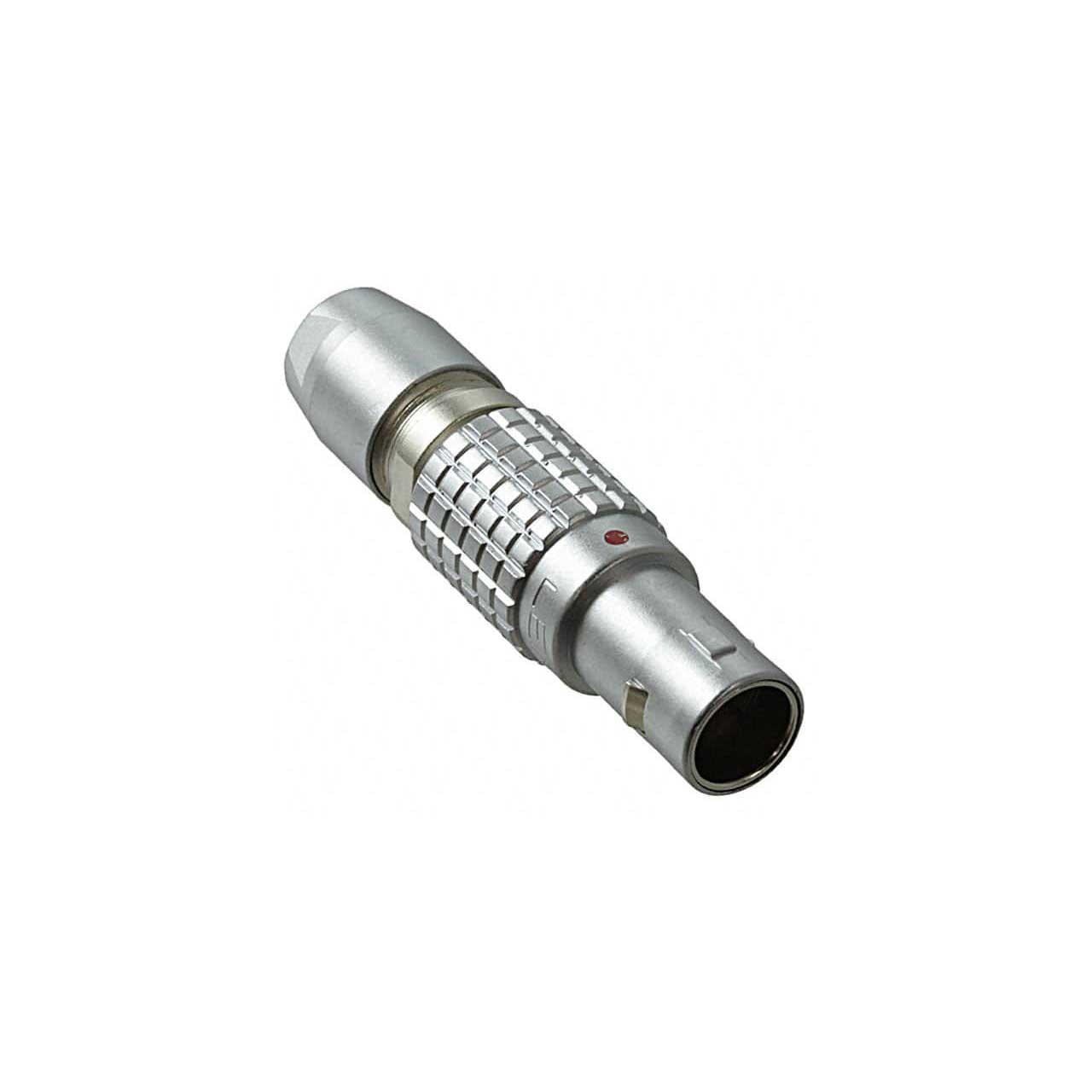

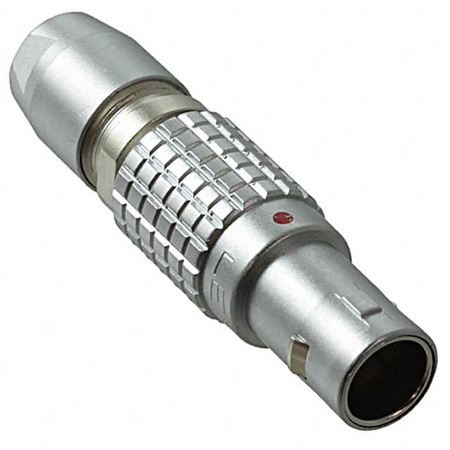

Lemo FHG.1B.310.CLAD52Z is a 10 Position right angle plug male cable collet circular push pull connector.

  • Specifications:

    • Connector Type: Plug, Male Pins
    • Number of Positions: 10
    • Shell Size - Insert: 310
    • Mounting Type: Free Hanging (In-Line), Right Angle
    • Termination: Solder Cup
    • Fastening Type: Push-Pull
    • Orientation: G
    • Shell Material: Brass
    • Shell Finish: Chrome
    • Contact Finish - Mating: Gold
    • Color: Silver
    • Ingress Protection: IP50 - Dust Protected
    • Material Flammability Rating: UL94 V-0
    • Features: Backshell
    • Shielding: Shielded
    • Current Rating (Amps): 2.5A
    • Operating Temperature: -55°C ~ 250°C
    • Backshell Material, Plating: Brass, Chrome
    • Cable Opening: 0.165" ~ 0.205" (4.20mm ~ 5.20mm)
    • Contact Material: Brass


  • Item Includes:

    • 1x Lemo FHG.1B.310.CLAD52Z 10 Position Right Angle Plug Male Cable Collet Circular Push Pull Connector
