    F1SCAPCSOC10 - Overview

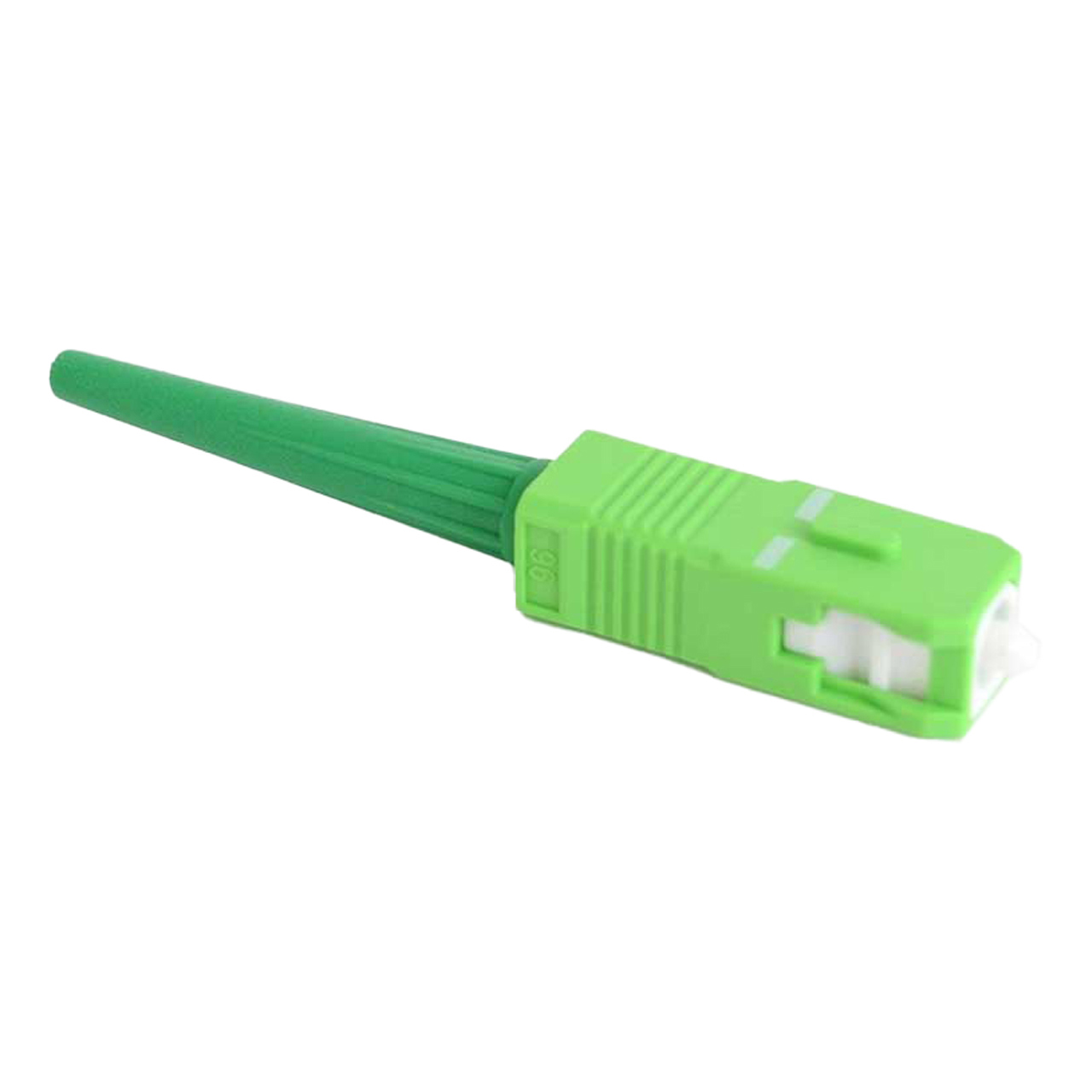

    FIS 900um Cheetah Splice-On Connector is the quickest pre-cleaved, factory terminated pigtail to prepare, splice, and install. The FIS Cheetah's 27mm splice sleeve protects your splice and is concealed by our custom strain relief boot - eliminating the need for splice trays, chips, and extra cabinet space. Precision machined connector holders allow our FIS Cheetah to be spliced with many industry leading splicers, including (but not limited to) FIS, AFL, Sumitomo, and OFS. Simply remove the cleave protector, place the Cheetah into your machined holder, and splice!

    FIS offers over 20 versions of Cheetah SOC's to accommodate all of your needs, so please contact your FIS sales rep for your next splicing job.

    The Cheetah meets or exceeds industry standards for return loss: APC: -65dBm, UPC: -55dBm and PC: -30 dBm. All ferrules are made of zirconia. Fusion splice sleeve and connector boot are included with each SOC.

    • Features:

      • Return loss: APC >65dB, UPC >55dB and MM 35dB (typical)
      • 20 styles available: SM, MM, 10Gig
      • Universal holders work with FIS, AFL, Sumitomo, and Fitel fusion splicers
      • 900um boot protects splice for easy cable management

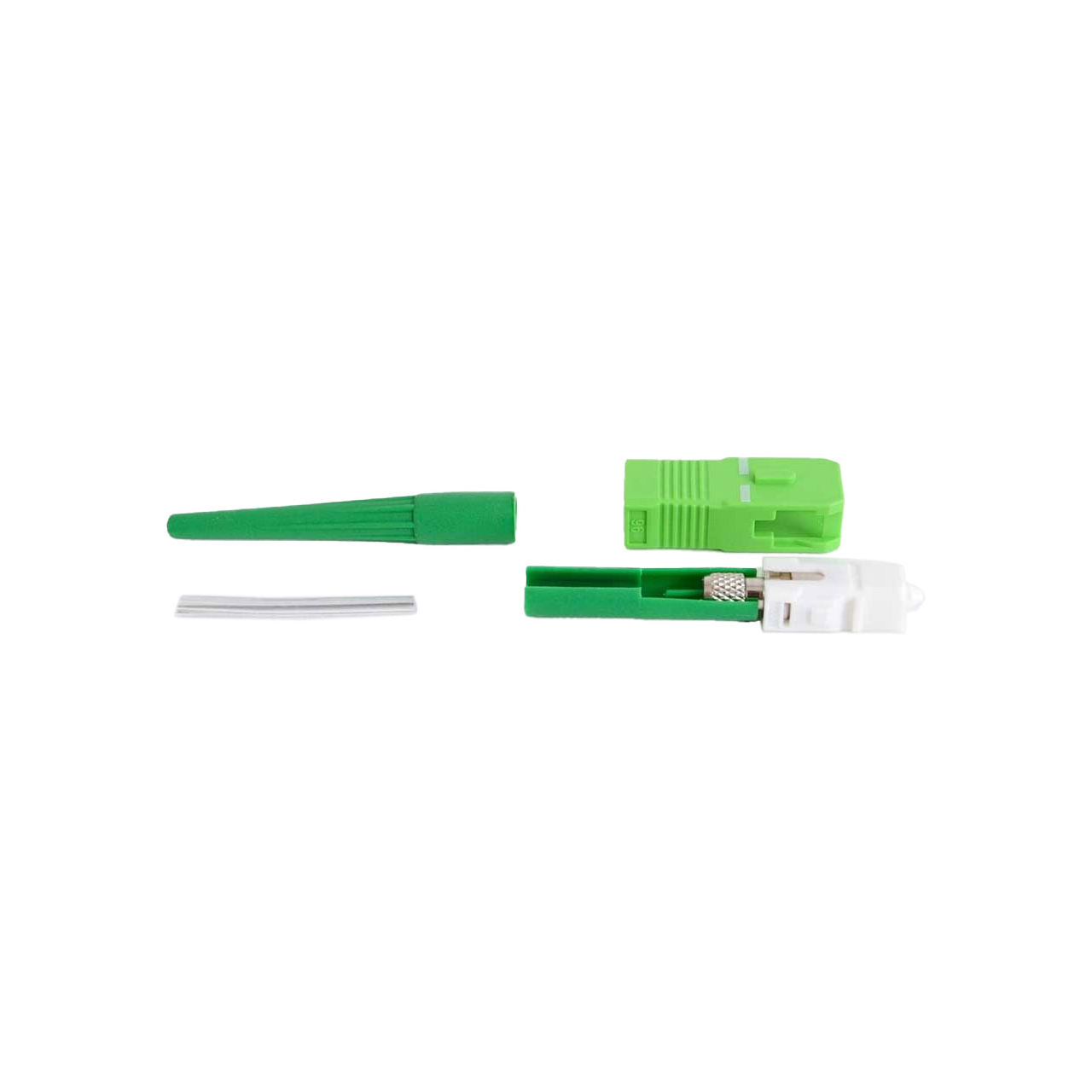

      • Includes color coded 900um buffer, boot, cleave protector and extended dust cap for easy fiber indentification
    • Specifications:

      • Type of Fiber: SMF Ultra
      • Insertion Loss (max): 0.3dB (0.15dB typical)
      • Optical Return Loss: >65dB
      • Ferrule Type: All Zirconia Pre-Polished Ferrules
      • Color Code: Green
      • Operating Temperature: -40 to 185° F
      • Industry Standards: RoHS Compliant, Telcordia GR-326-CORE Compliant
      • Cable Retention: 2.5 lbs
