Remee FOC24SBIOP 24 Fiber Indoor-Outdoor Tight Buffer 900 Micron Fiber Optic Cable - 2500 Foot

FOC24SBIOPBUB25K - Overview

• Features:

  • 24 single-mode OS2 fibers with G.657.A1 bend-insensitive fiber (BIF).
  • 900μmm tight-buffered distribution design for easy termination and installation.
  • Indoor/Outdoor plenum-rated (OFNP) construction.
  • Water-swellable aramid yarn strength members to provide tensile strength and moisture protection
  • UV-resistant Remguard plenum-rated inner and outer jackets
  • Manufactured in the USA and ETL listed


• Specifications:

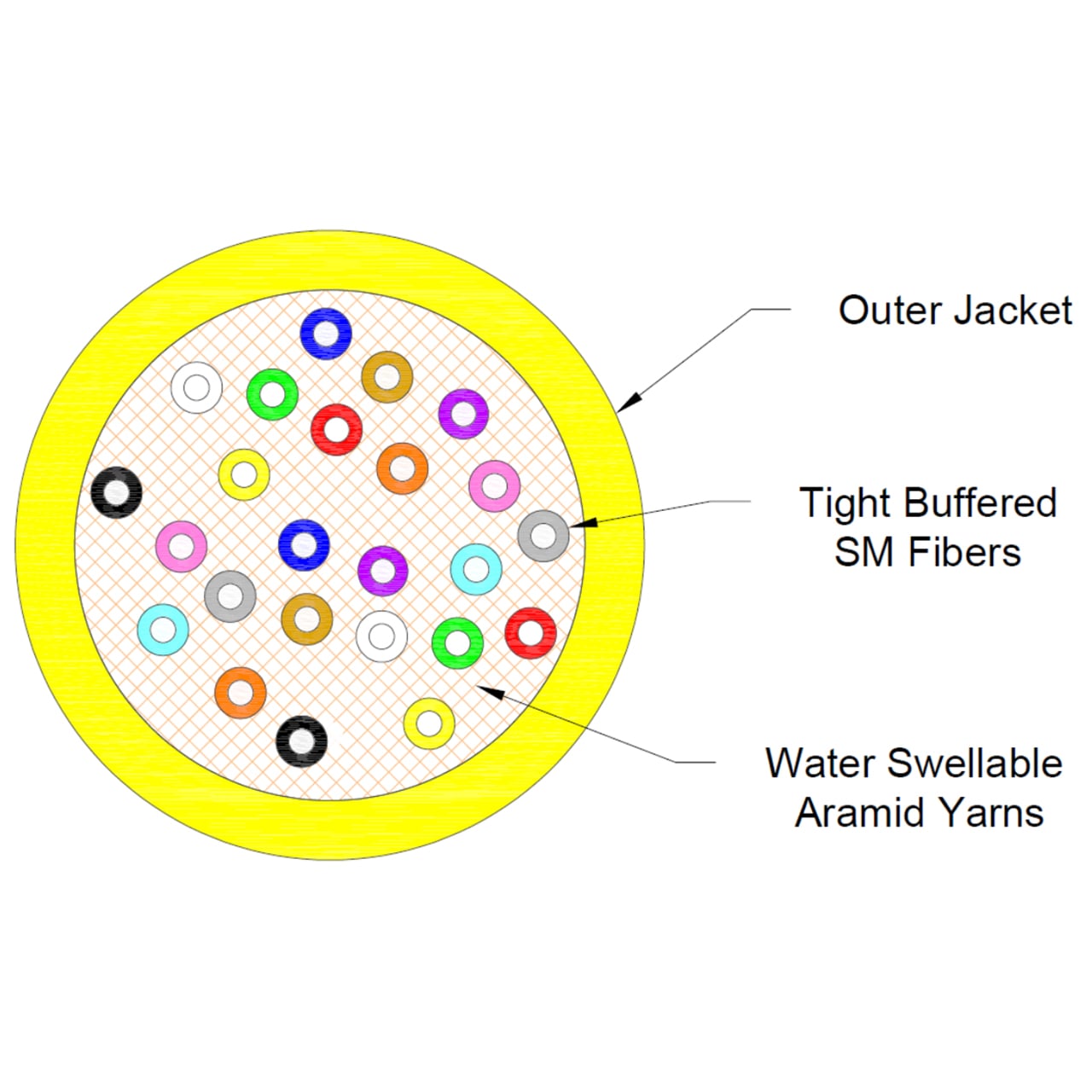

  Cable Construction Details
  • Spool Length: 2500 feet (762m)
  • Tight Buffered Fiber Dimension: 900μm, Nominal
  • Tight Buffer Color Code: As per TIA/EIA-598 standard or per customer requirement
  • Cable Strength: Water swellable aramid yarns are pulled in with tight-buffered fibers under the inner sheath
  • Inner Sheath: UV resistant Remguard plenum rated polymer
  • Inner Sheath Surface Print: REMFO 33-SERIES FIBER OPTIC CABLE 12-SM OS2 G.657.A1 BIF INDOOR/OUTDOOR
  • REMEE PRODUCTS CORP. OFNP C(ETL)US MADE IN USA
  • MM/YY (LOT#) SEQ FT
  • Armor: Aluminum interlocking armor
  • Overall Sheath: UV resistant Remguard plenum rated polymer


  • 76B Fiber Characteristics
  • Fiber Type: SM
  • Maximum Attenuation @ 1310/1550nm: 0.40/0.30 dB/km
  • Cladding Diameter: 125.0 ± 0.7μm
  • Maximum Core/Clad Concentricity Error: 0.5μm
  • Maximum Cladding Non-circularity: 0.7μm
  • Primary Coating Diameter: 242 ± 7μm
  • Cabled Cutoff Wavelength: <1260nm
  • Mode Field Diameter:
    - 9.0 ± 0.4μm @1310nm
    - 10.1 ± 0.5μm @1550nm
  • Temperature Dependence: ≤0.05dB/km
  • Zero Dispersion Slope: ≤ 0.092ps/nm²-km
  • Attenuation with Bending 1 Turn on a Mandrel Radius of 10mm @ 1550/1625nm: ≤ 0.75/1.5dB
  • Attenuation with Bending 10 Turns on a Mandrel Radius of 15mm @ 1550/1625nm: ≤ 0.25/1.0dB
  • Maximum PMD Link Design Value: 0.06ps/km
  • Group Refractive Index @ 1310/1550nm: 1.4676/1.468
  • Proof Test: 100kpsi

    Mechanical & Environmental Performance
  • Maximum Tensile Load (Without Armor):
    - Installation: 2700N/600lbs
    - Long Term: 600N/135lbs
  • Maximum Tensile Load (With Armor): 600N/150lbs
  • Crush Resistance:
    - Without Armor: 100N/cm
    - With Armor: 1000N/cm
  • Impact Resistance(min.): 25 Impacts
  • Flexing ± 90°(min.): 25 Cycles
  • Minimum Bending Radius:
    - Loaded: 20 x Diameter
    - Unloaded: 10 x Diameter


• Item Includes:

  • 1x Remee FOC24SBIOP 24 Fiber Indoor-Outdoor Tight Buffer 900 Micron Fiber Optic Cable - 2500 Foot


• Warranty:

  • 1-Year Limited Warranty
