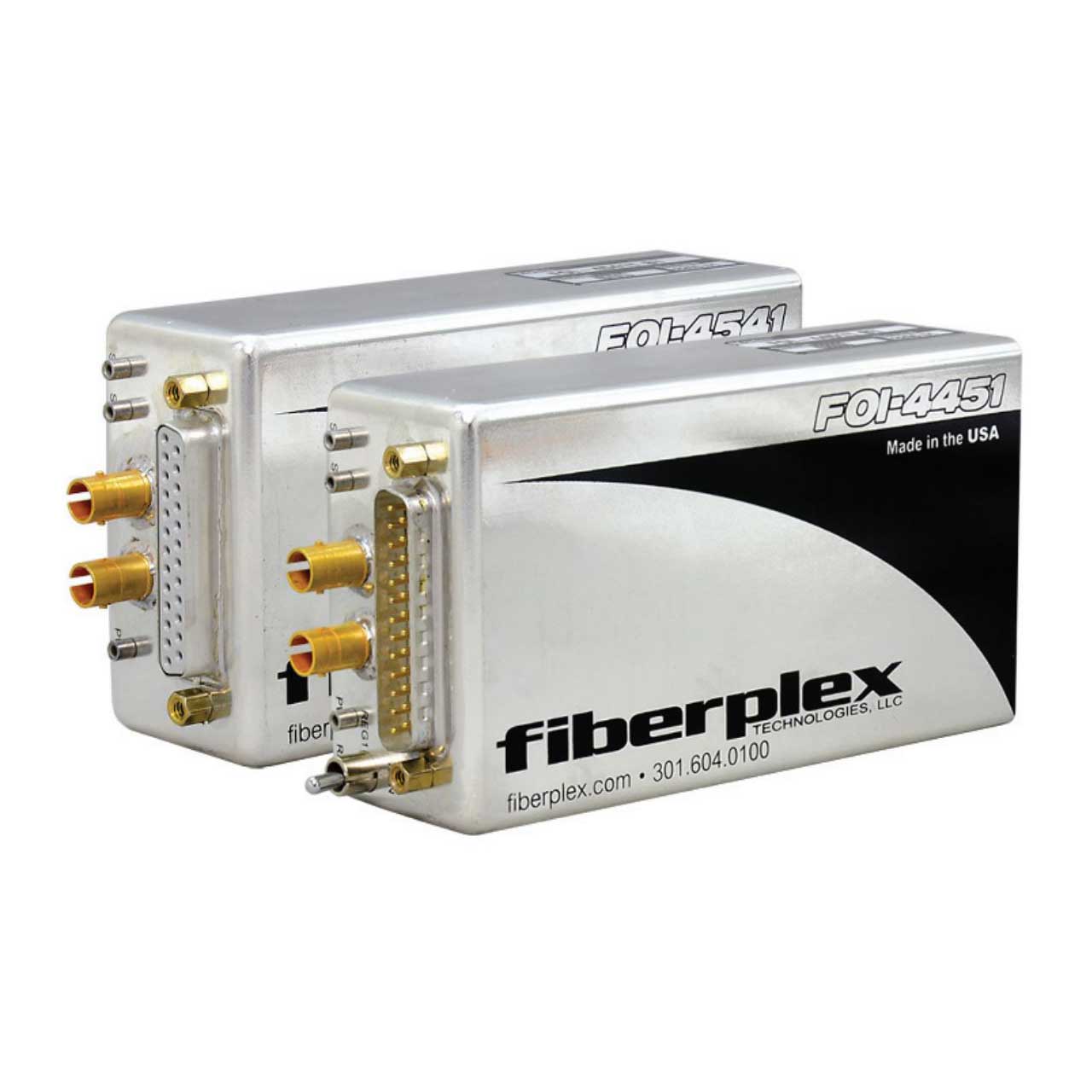

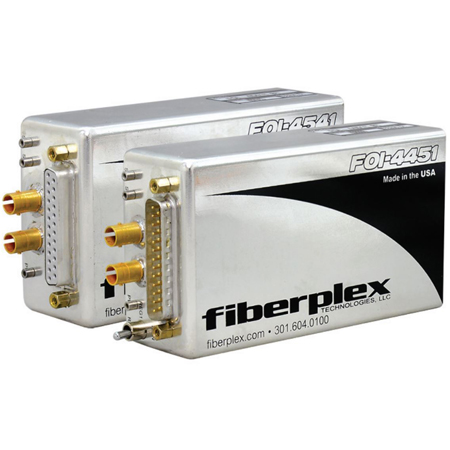

Fiberplex FOI-4541-S-ST Isolator for EIA-530/RS-422 for Connection to DTE - 6 Mbps - Singlemode ST Optics

ITEM #: FOI-4541-S-ST MFG #: FOI-4541-S-ST

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,999.20

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    FOI-4541-S-ST - Overview

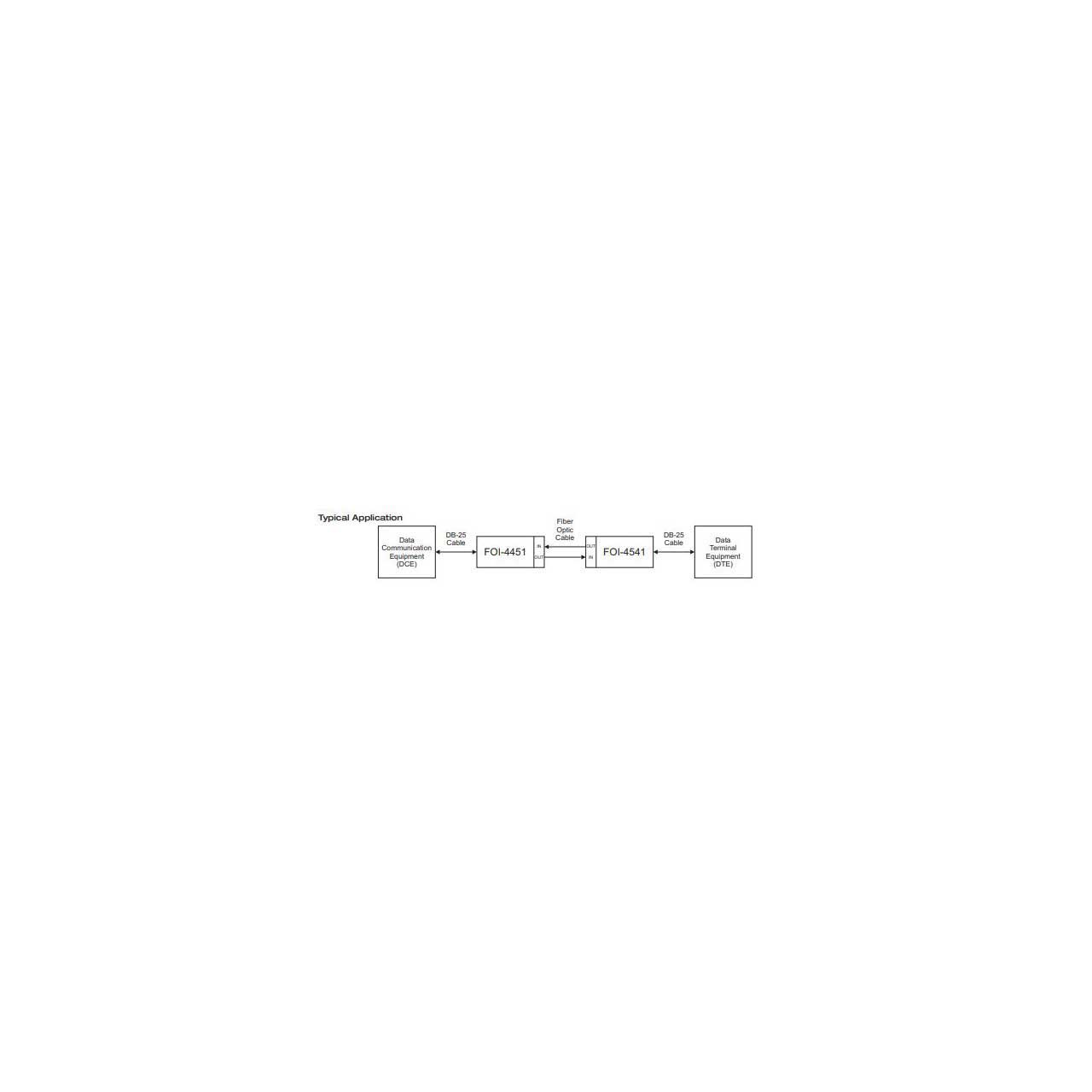

    The FOI-4451 and FOI-4541 (sold separately) both provide complete electrical isolation for RS-422 communications. The units are transparent to all handshaking protocols and can accept data and clock signals up to a maximum rate of 6.144 Mbps. A regeneration switch on the FOI-4451 allows users to toggle between synchronous applications that require Send Timing (ST) and asynchronous or synchronous applications that require Terminal Timing (TT). The units can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions. FiberPlex recommends "T" units for high security applications because they have been TEMPEST tested and approved. In addition, fiber optic cable offers much longer transmission distances than traditional RS-422 cabling. Multimode optics on the units can extend the distance to 2km, while singlemode optics can further extend the distance to 20km. A typical link consists of an FOI-4451 at the Data Communication Equipment (DCE) and an FOI-4541 at the Data Terminal Equipment (DTE) with a duplex fiber optic cable between them as shown under "TYPICAL APPLICATION"

    Please note: Units sold separately.

    • Features:

      • Data Rate: DC to 6.144 Mbps.
      • Compatible with:: - TIA/EIA-530 (RS-530), - MIL-STD-188-114A, balanced type 1 and type 2, - FED STD 1030A.
      • Supports tail circuit and null modem functions for DCE to DCE or DTE to DTE communications.
      • Requires two of the same FOI units.
      • An alternate interface (V.35 or RS-232) may be installed at the opposite end, allowing the user
      • to create a link between two electrically incompatible interfaces without requiring a separate interface converter. For more information, please see the "OPTICAL COMPATIBILITY" table.
