Fiberplex TD-1581-C Fully Compatable EIA-530 RS-422 Serial Interface with DCE

ITEM #: TD-1581-C MFG #: TD-1581-C

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,029.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    TD-1581-C - Overview

    The TD-1581-C and TD-1580-C pair together to form a powerful balanced serial data transport solution. The DB-25 connectors are pinned out to directly support an EIA-530 serial link. However due to the transparency and flexibility of the design, the TD-1580/81 can be used as 6x4 independent 6 Mbps RS-422 channels and 2x1 independent 256 Kbps RS-232 channels.

    This incredible versatility can solve a myriad of serial data communications problems. Your once limited serial links can not only be consolidated but extended to over 12 miles (20 Km) on a single fiber pair. SCADA (supervisory control and data acquisition), Telecommunications, Facility Automation and Control, even DMX Lighting control applications can all benefit from the TD-1580/81. For more advanced systems, a 'Regeneration' switch on the TD-1581 allows users to toggle between synchronous applications that require Send Timing (ST) and asynchronous or synchronous applications that require Terminal Timing (TT).

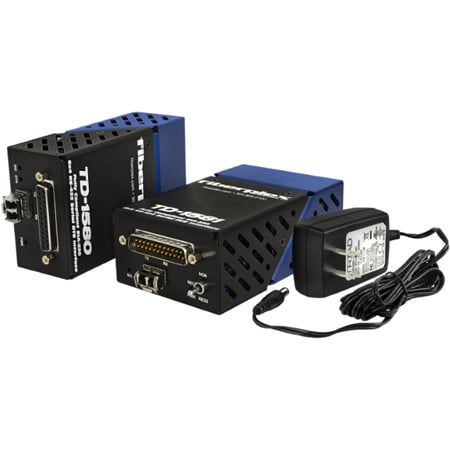

    NOTE: Item picture is just for reference. The TD-1580-C and TD-1581-C are sold separately

    • Features:

      • Compatible With:
      • TIA/EIA-530 (RS-530)
      • MIL-STD-188-114A balanced Type 1 and Type 2
      • FED STD 1030A

      • Can alternatively be used for 6 x 4 RS-422 and 1 x 2 RS-232
      • EIS-530 and RS-422 channels support data rates from DC to 6.144 Mbps
      • Can be used for up to 6 universes of DMX lighting control

        Applications
      • SCADA
      • Oil and Gas
      • Hamoe/Facility Automation
      • Telecommunications
      • Industrial Controls
      • DMX Lighting

    • Specifications:

      • External SFP Interface
      • Data Rate: 270Mbps
      • Recommended Jitter: 40Psec
      • Operating Voltage: 3.3VDC
      • Max. Current: 500mA
      • Optical Modules: SFP MSA (SFF-8431, SFF-8432, SFF-8433) compliant slot, data rate 266 - 1.25 Gpbs

        Balanced Differential Signals
      • Data Rate: DC - 6.144Mbps
      • Sampling Jitter: 0% - 23%
      • Input Load: 100Ω
      • Common-Mode Input Voltage: ±7V
      • Common-Mode Output Voltage (100Ω load): 1.8V - 3V

        Unbalanced Single-Ended Signals
      • Data Rate: DC - 120kbps
      • Sampling Jitter: 0% - 0.4%
      • Input Load: 3 - 7kΩ
      • Input Voltage Range: -25V - 25V
      • Output Voltage Range (5kΩ load): ±5V

        Power & Physical
      • Voltage Range: 7V - 32V
      • Supply Current: 625mA
      • Interface Connector: DB-25 male
      • Storage Temperature: -40°F - 185°F
      • Operating Temperature: 32°F - 122°F
      • Dimensions (HxWxD): 1.66" x 2.75" x 4.5"
      • Weight: 0.4lbs

    • Item Includes:

      • Power adapter
      • 3-position Phoenix


    California Residents:
    WARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov
