CLASSX LB LE HD - Overview

More than just Broadcast CG and Graphics Playout

FOR-A SOAR-A ClassX LiveBoard LE HD 1RU graphics workstation welcomes you with a friendly interface: each setting is easily accessible. Everything you do is lightning fast. If you can imagine it, you can do it.

What is Liveboard?
LiveBoard is a powerful solution for managing live graphics, audio, and video content. Beyond simple template playout, it enables synchronized execution of dynamic data-driven graphics and media. Powered by ClassX's advanced technologies, its high-performance engine supports multiple simultaneous broadcasts of templates from ClassX editors, enhanced by a suite of plugins. Its intuitive interface ensures efficient and effortless operation.

ClassX CG Solutions
Flexible and scalable ClassX Graphics Solutions can be integrated into any broadcast production. The extreme flexibility and scalability of ClassX CG Solutions ensure they fit seamlessly into any workflow.

LiveBoard Integrates into any Workflow
The world of broadcast graphics and productions has a multitude of workflows; ClassX CG workstations can integrate with either ClassX OEM or LiveBoard Applications into any of them.

They have a multitude of output possibilities:

- SDI in Fill + Key or internal keying, NDI, VGA, Thunderbolt
- The support for all broadcast resolutions, from PAL to 4K
- A multitude of supported SDI video output cards: BlackMagic DeckLink, Bluefish 444, AJA
- Picture-in-Picture on up to 10 live input sources, among: SDI,NDI, Spout, streaming from web
- Multiple graphics channels from one workstation: 1 gfx channel, 2 gfx channels.. up to 4 SDI fill + key feeds playing out different graphics from one ClassX CG Workstation
- The possibility to separate template and project editing from the graphics playout machines, easy project import and export thanks to the ProjectPacker feature
- TCP/IP, GPI, serial, switcher or human (there is a way to control every single aspect of broadcast graphics remotely or directly)
- Easy to use, reduced learning time
- Optimized software exploiting hardware correctly

ClassX DataSource
Import methods: from file, stream, URL, Datasource, Automation, TCP/IP Command, from scripting command or synthetically generat-ed from script. Files and data-sources that are automatically imported into the graphic templates can be of any of the following types:

- Manual (or data setting from external application, e.g. SportsGraphics, Automation, MOS etc..)
- MS Excel (.xls, .xlsx)
- Comma Separated Values (.csv)
- RSS feed (UTF-8)
- Text (.txt)
- Database queries (MYSQL, SQLSERVER, MSACCESS, ORACLE SQL

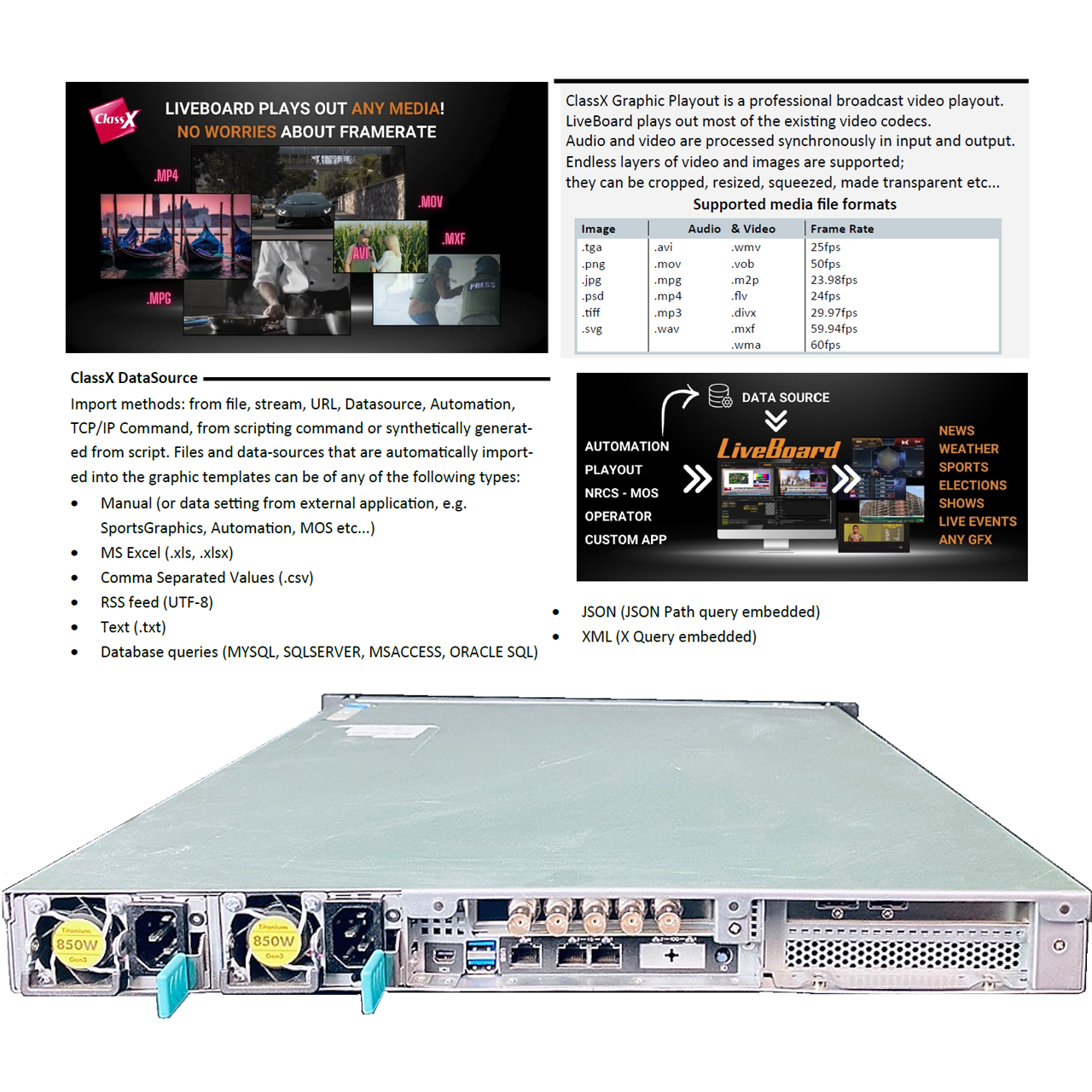

ClassX Graphic Playout is a professional broadcast video playout. LiveBoard plays out most of the existing video codecs. Audio and video are processed synchronously in input and output. Endless layers of video and images are supported; they can be cropped, resized, squeezed, made transparent etc.

ClassX CG Solutions
LiveBoard Powerful, multilayer, multichannel, reliable and incredibly easy to use Live titling and media playout the way you expect it. LiveBoard is the choice of thousands of professionals around the world who all have in common the same need: sending on air real-time graphics and media contents in broadcast quality.

ClassX CG Solutions

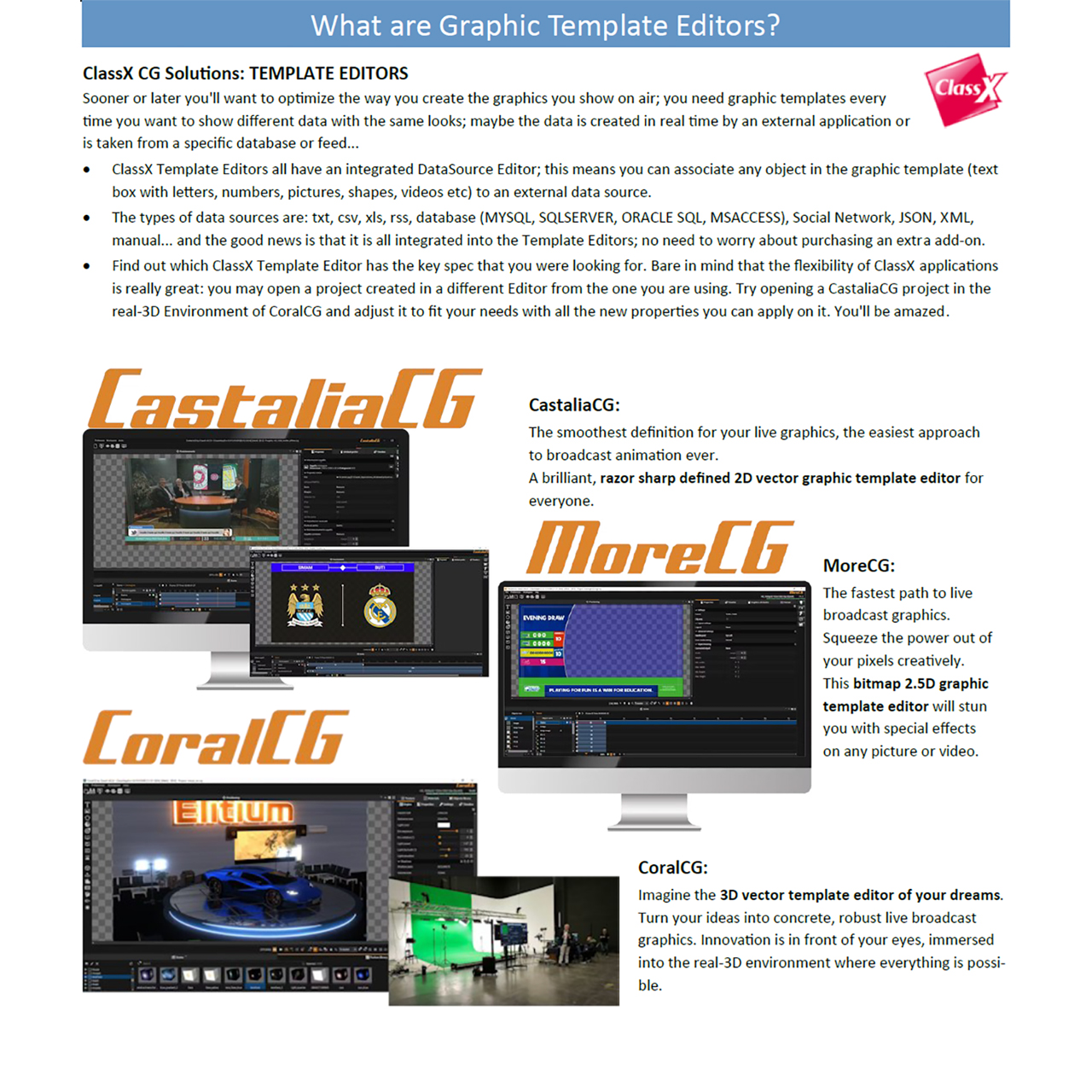

TEMPLATE EDITORS Sooner or later you'll want to optimize the way you create the graphics you show on air; you need graphic templates every time you want to show different data with the same looks; maybe the data is created in real time by an external application or is taken from a specific database or feed.

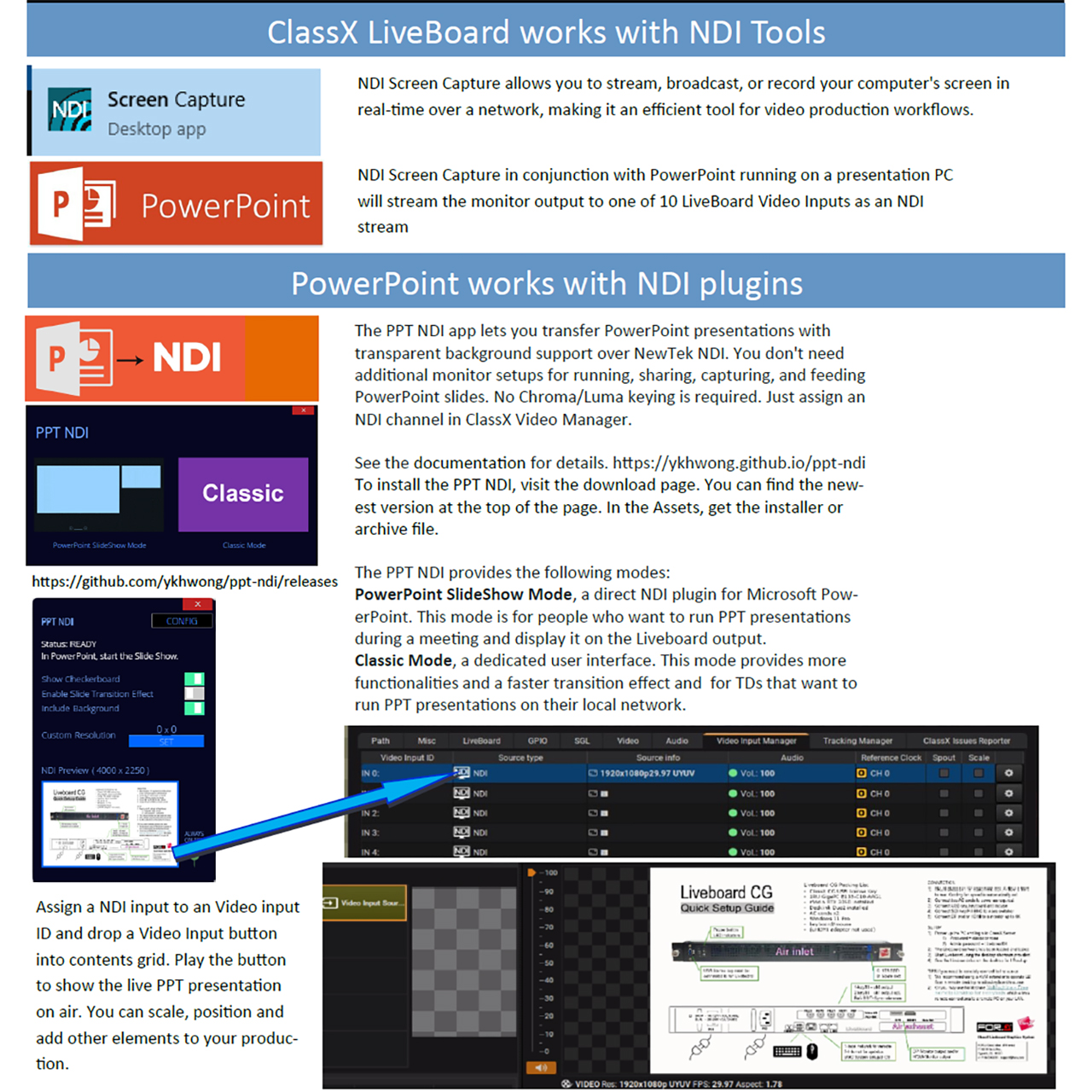

ClassX LiveBoard works with NDI Tools
NDI Screen Capture allows you to stream, broadcast, or record your computer's screen in real-time over a network, making it an efficient tool for video production workflows. NDI Screen Capture in conjunction with PowerPoint running on a presentation PC will stream the monitor output to one of 10 LiveBoard Video Inputs as an NDI stream.

  • Features:

    • Full Set of Plugins: Chart,Clock,Images, Timer, Media, Text, Capture, Shape, Video Input, Ticker
    • ClassX Template Support From: CastaliaCG, MoreCG, CoralCG, play after preview, Data source manegment
    • Basic Scripting Actions on FrameMarkers: A wide range of commands triggered in FrameMarker
    • Full Remote TCP/IP Control by Automation: Load projects, modify and set actions without operator
    • Basic Remote TCP/IP LBControl: Using LBC commands for triggering playout of loaded content
    • Video Input Manager: Manage 10 video inputs any resolution and frame rate. Inputs from streaming media, NDI, Web browser, Direct show
    • SDI Input and FX Panel on Video Input Manager: PIP option allows SDI input, FX panel for color correction, chromakey, shaders and more effects

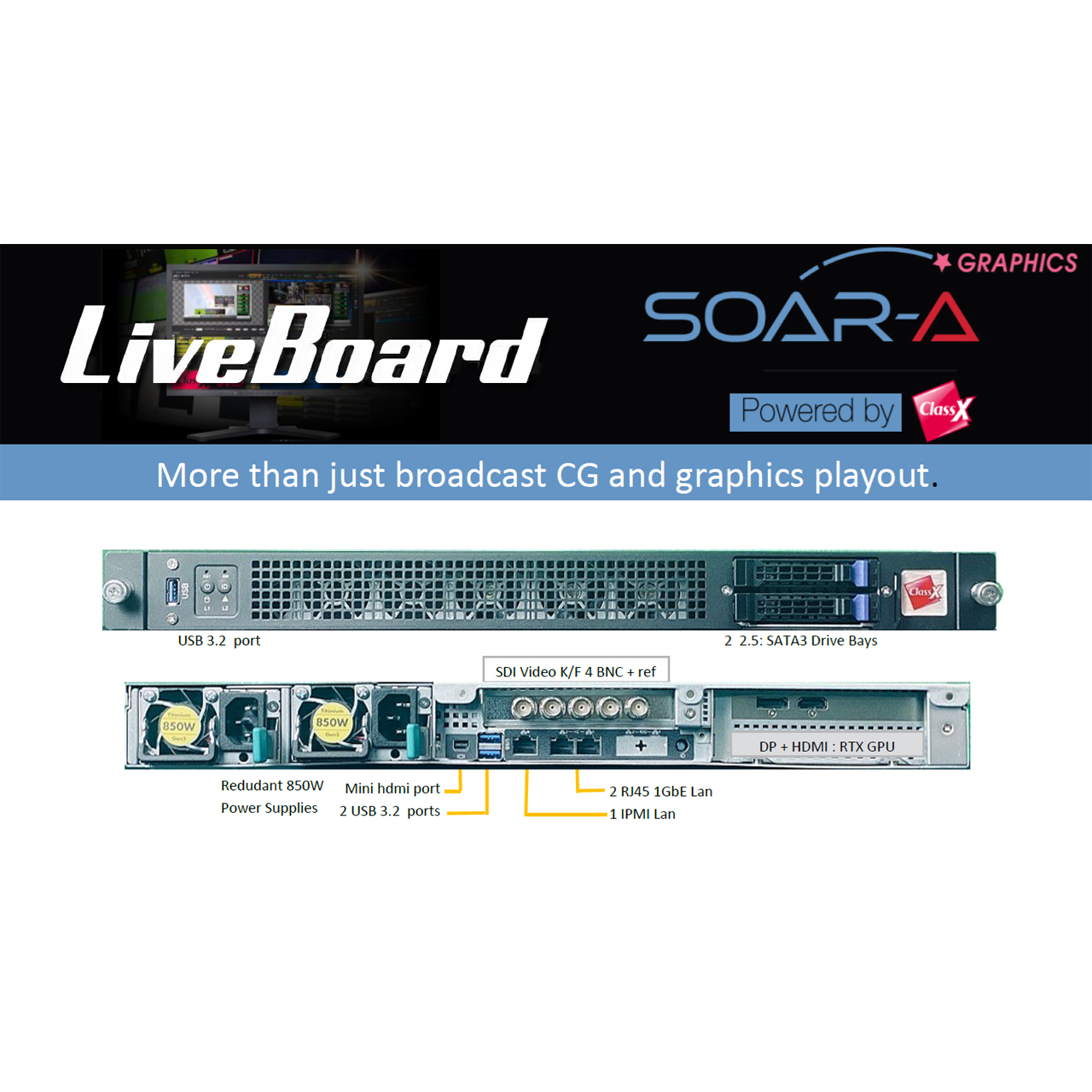

  • Specifications:

    • Intel core CPU
    • Dual NIC
    • 4x SDI I/O's with reference input
    • 2x 2.5 SATA3 drive bays
    • 3x USB 3.2 ports
    • 850W redundant power supplies
    • 1x Mini HDMI port
    • 2x RJ45 1GbE Lan ports
    • 1x IPMI LAN port

  • Item Includes:

    • 1x FOR-A ClassX LB LE HD LiveBoard LE 1RU Turnkey 2-Channel HD/3G SOAR-A Live Graphics Server Workstation - Redundant PS
    • 3 years of CMA
