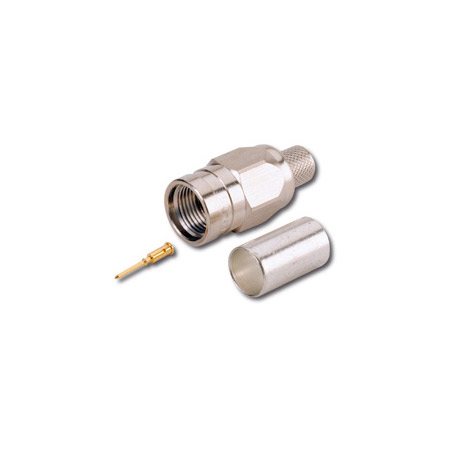

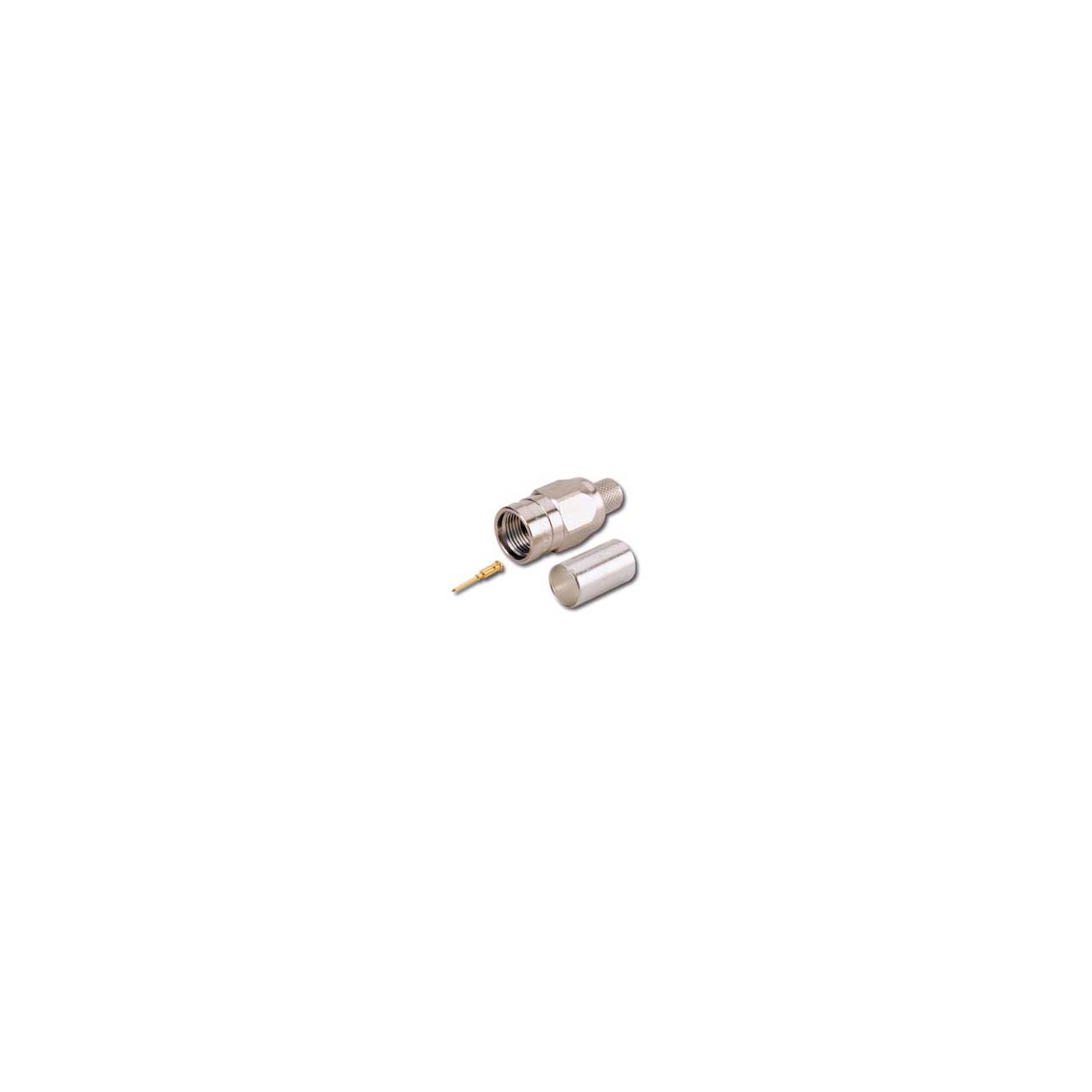

Canare FP-C5 F Connector for Canare V3-5C V4-5C and V5-5C Cable

ITEM #: FP-C5 MFG #: FP-C5

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$3.60

Our Price:

$3.55

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


FP-C5 - Overview

Canare true 75-Ohm FP-C series 3-Piece Crimp F connectors are widely recognized as the world standard for both analog and digital video formats with outstanding electrical and mechanical performance. Exceeding 3.0Gbps HD-SDI requirements specified in SMPTE424M. The highest quality F Connector on the market. A lock mechanism improves reliability by preventing shifting or detaching of the center pin.

The tools and cable stripper required for the FP-C series are the same used for Canare BNC crimp plugs which helps save on tooling costs. VSWR of 1.1 or less up to 2GHz. Compatible with broadcast satellite (BS) and communications satellite (CS) signals.

  • Features:

    • True 75 ohm construction Crimp Pin & Sleeve DC to 2.0 GHz >26dB Return Loss (<1.1 VSWR) Use with Solid or Stranded Center 75 ohm Coax Elongated Body for better finger grip Superior cable pull strength Gold plated center pins 'snap lock' in place Easy Assembly using Canare Strip & Crimp Tools

  • Applications

    :

    • Digital Broadband Satellite System RF Equipment Cable Modems Satellite Headends TELCOM
