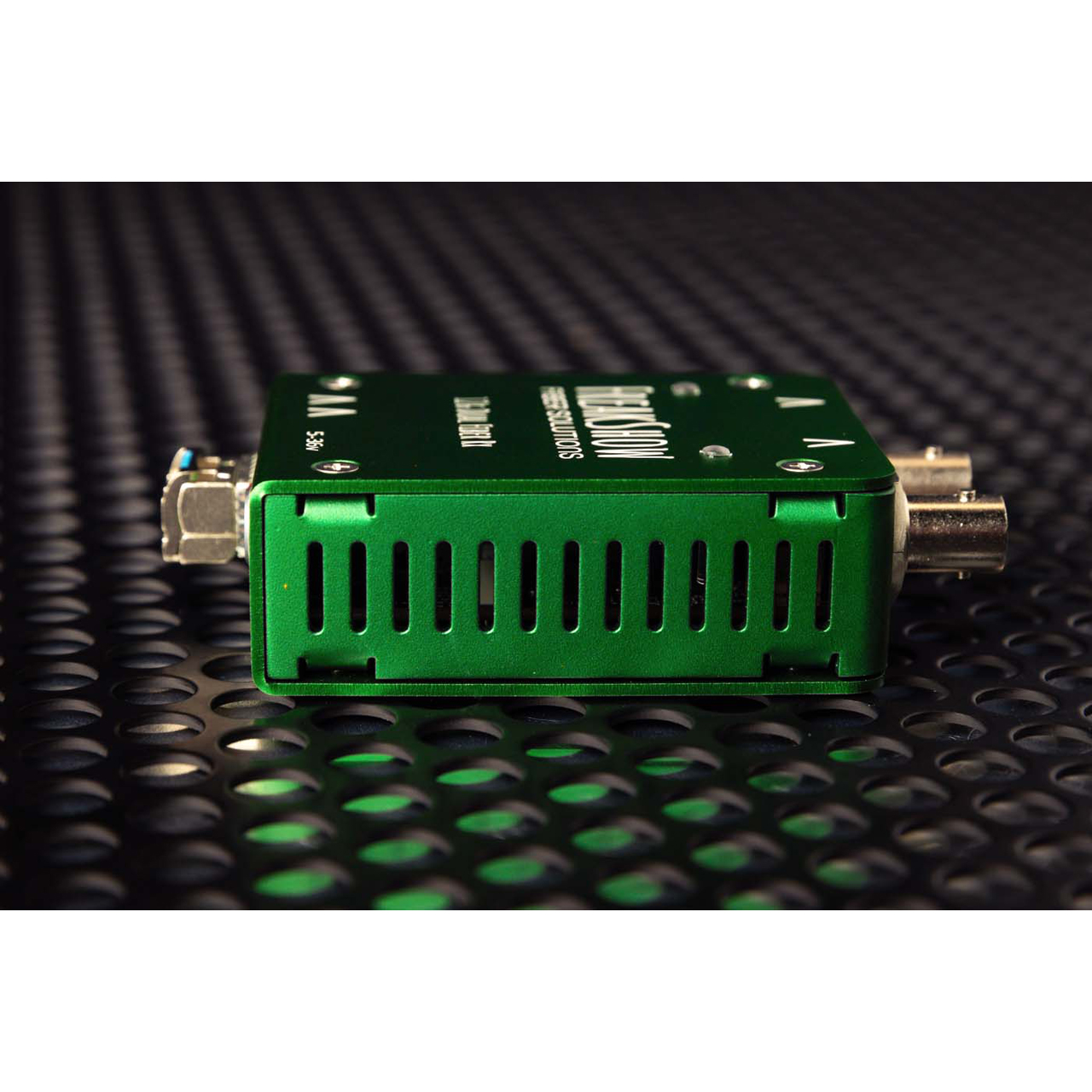

Freakshow HD FBTX-L 2-Channel 12G-SDI over Duplex LC Singlemode Fiber Transmitter - Locking LEMO Power Connector

ITEM #: FREAKS-FBTX-L MFG #: FBTX-L

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$1,150.00

Availability: In Stock
iAvailability Description Popup


    FBTX-L - Overview

    Need super long runs of uncompressed video of up to 12G, Freakshows palm sized powerhouse FBTX-L can really go the extra mile, or extra 6.2 miles to be precise! The FBTX-L is rugged enough for the most demanding location shoots, and is perfect for broadcast or film studio infrastructure, stadium installs, multistage film shoots, military bases, or large house of worship setups. With an ultra-wide power range of 5-36VDC, the FBTX-L allows for a multitude of install and configuration options. The FBTX-L is an SD to 12G-SDI dual SDI to Fiber Transmitter, designed to send two SDI signals up to 12Gbps over single mode fiber (SMF) on an LC connector, as defined in ST297, ST2081, ST2082, ST424, ST292, ST259, DVB-ASI.

    • Features:

      • Hot-pluggable
      • Low Power Consumption
      • Pb-free and RoHS compliant

    • Specifications:

      • SDI Inputs

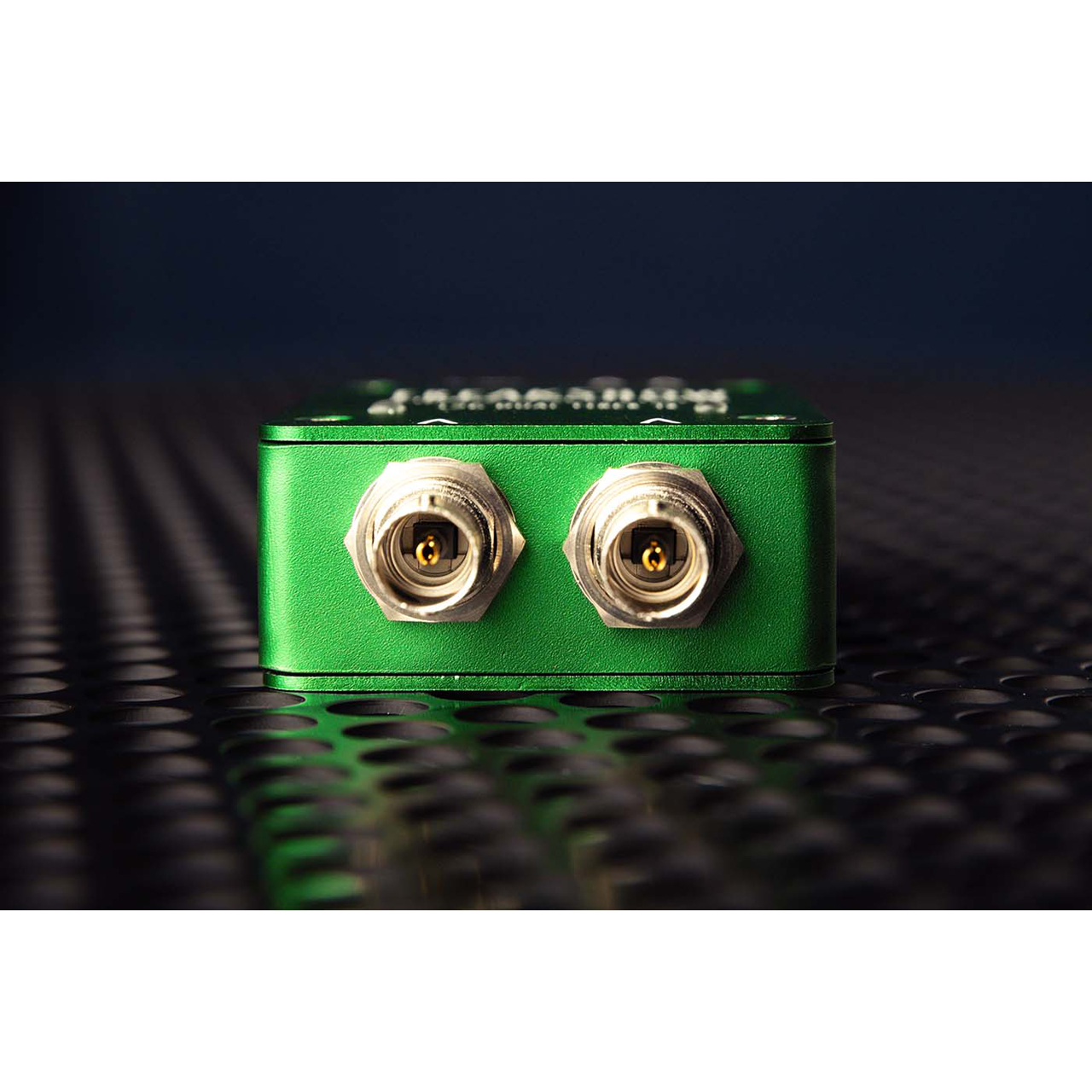

      • 2x re-clocked SDI video on 75 Ohm BNC connector (two independent channels)
      • SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
      • Multi-rate re-clocking: 12G/ 6G/ 3G/ 1.5G/ 270Mb auto-selectable
      • Input Return Loss: -8dB at 12G, -9dB at 6G, -13dB at 3G, -18dB HD/SD
      • Automatic cable EQ 245m @ 1.5Gbit/s, 145m @ 3Gbit/s (Belden 1694A cable) 85m @ 12Gbit/s, 6Gbit/s (Belden 4794R cable)

        Optical Outputs

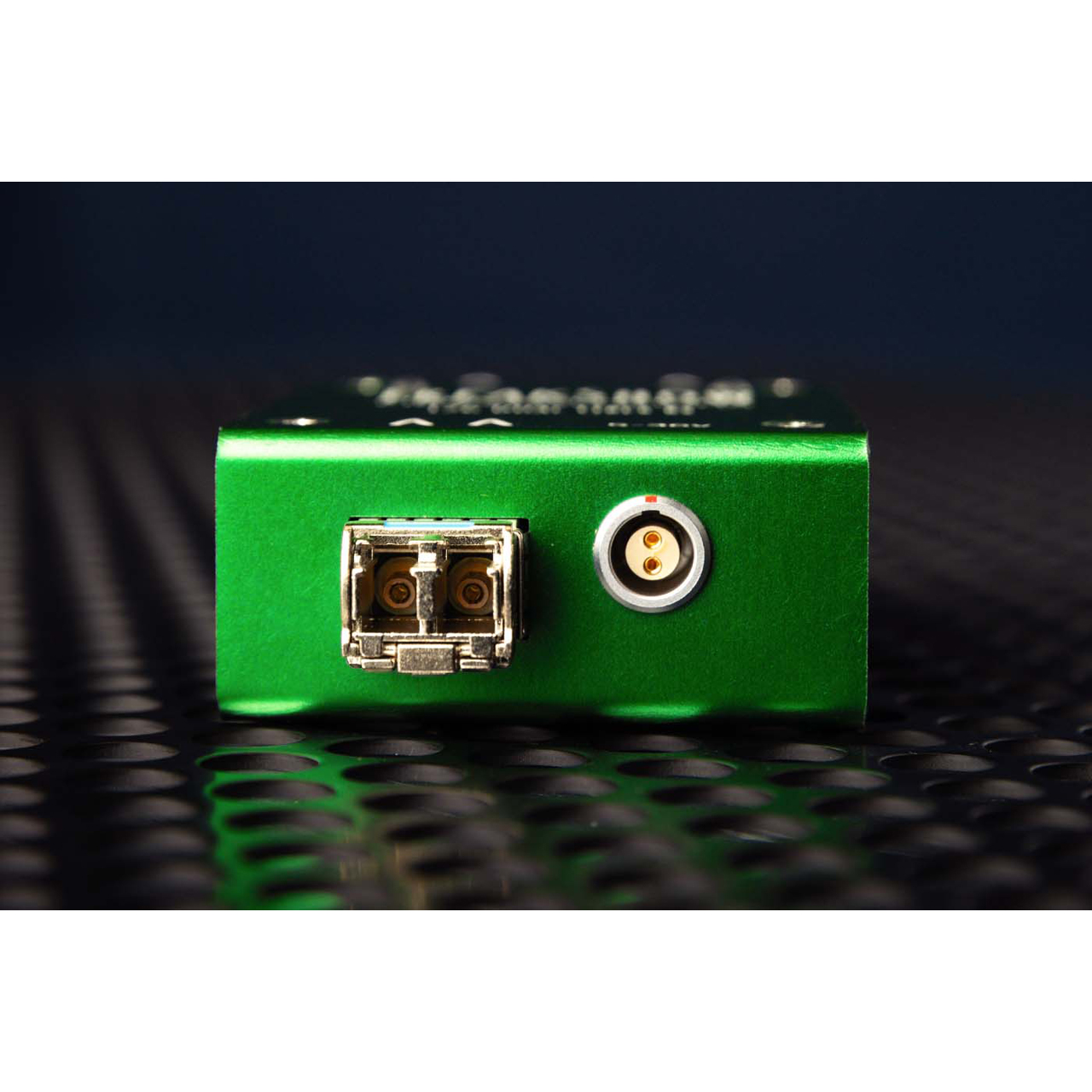

      • 2x single mode fiber-optic outputs (one for each channel) using LC connections
      • ST297, ST2081, ST2082, ST424, ST292, ST259, DVB- ASI compliant
      • Supports video for SD-SDI, HD- SDI, 3G-SDI, 6G-SDI, and 12G
      • Wavelength: 1310nm (each channel)
      • Optical power: -5.5dBm...0.5dBm (each channel)
      • Max. distance: approx. 6.2 Miles (10km) @ 12Gbit/s (Single-mode)

        Power
      • Input Range: 5-36VDC
      • Pin Locking LEMO

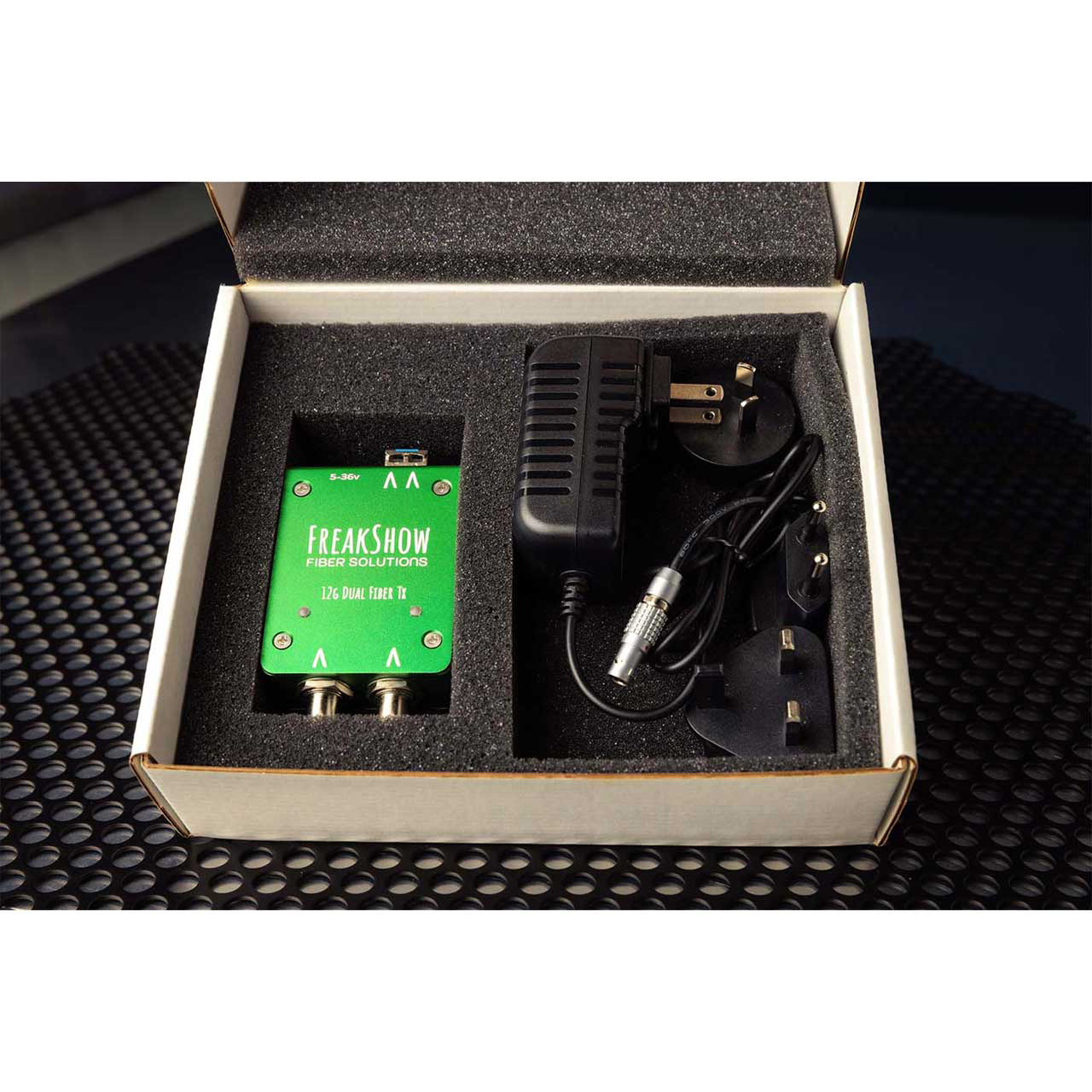

    • Item Includes:

      • 1x Freakshow HD FBTX-L
      • 1x AC Power Supply
