The Gefen DisplayPort EDID Detective (GF-EDD-DP) keeps your workstations and AV systems talking by capturing and storing display EDID information, then maintaining stable communication even when displays are powered off, switched, or routed through complex systems. Fully compliant with DisplayPort 1.4 and HDCP 2.3/2.2/1.x, it maintains reliable communication up to 8K@30Hz and 4K@60Hz with 32.4Gbps bandwidth (HBR3). Supports HDR10, HDR10+, Dolby Vision, and HLG video formats, plus immersive audio including Dolby Atmos and DTS:X. Features five factory-loaded Gefen EDID profiles and three user-programmable memory banks via USB-C for ultimate flexibility. Auxiliary channel re-clocking and active HPD/Link Training eliminate blank screens, mismatched resolutions, and signal loss. Compact metal design ideal for field deployment or rack installations. Write-enable switch protects stored EDIDs from accidental overwriting in critical workflows.
8K & 4K Resolution Support
Maintains reliable DisplayPort 1.4 communication up to 8K@30Hz and 4K@60Hz with 32.4Gbps bandwidth (HBR3). Fully compliant with HDCP 2.3/2.2/1.x standards, ensuring reliable interoperability across modern displays and sources.
Advanced EDID Management
Includes five factory-loaded Gefen EDID profiles optimized for common display configurations, plus three user-programmable memory banks. Quickly adapt to unique system setups or troubleshooting scenarios without reprogramming every time you switch displays.
Active Signal Integrity
Auxiliary channel re-clocking and active HPD (Hot Plug Detect)/Link Training maintain proper handshaking even when the display is disconnected, eliminating intermittent signal loss, flicker, or blank screens during system reconfiguration.
Premium Format Preservation
Supports HDR10, HDR10+, Dolby Vision, and HLG video formats while preserving immersive audio including Dolby Atmos and DTS:X. Ensures your high-end content maintains full fidelity through complex routing and switching scenarios.
USB-C Programmability
Easy EDID programming, firmware updates, and field service access via USB-C port. The USB-C connection enables flexible EDID management and keeps the unit adaptable to evolving AV systems.
Secure Configuration Protection

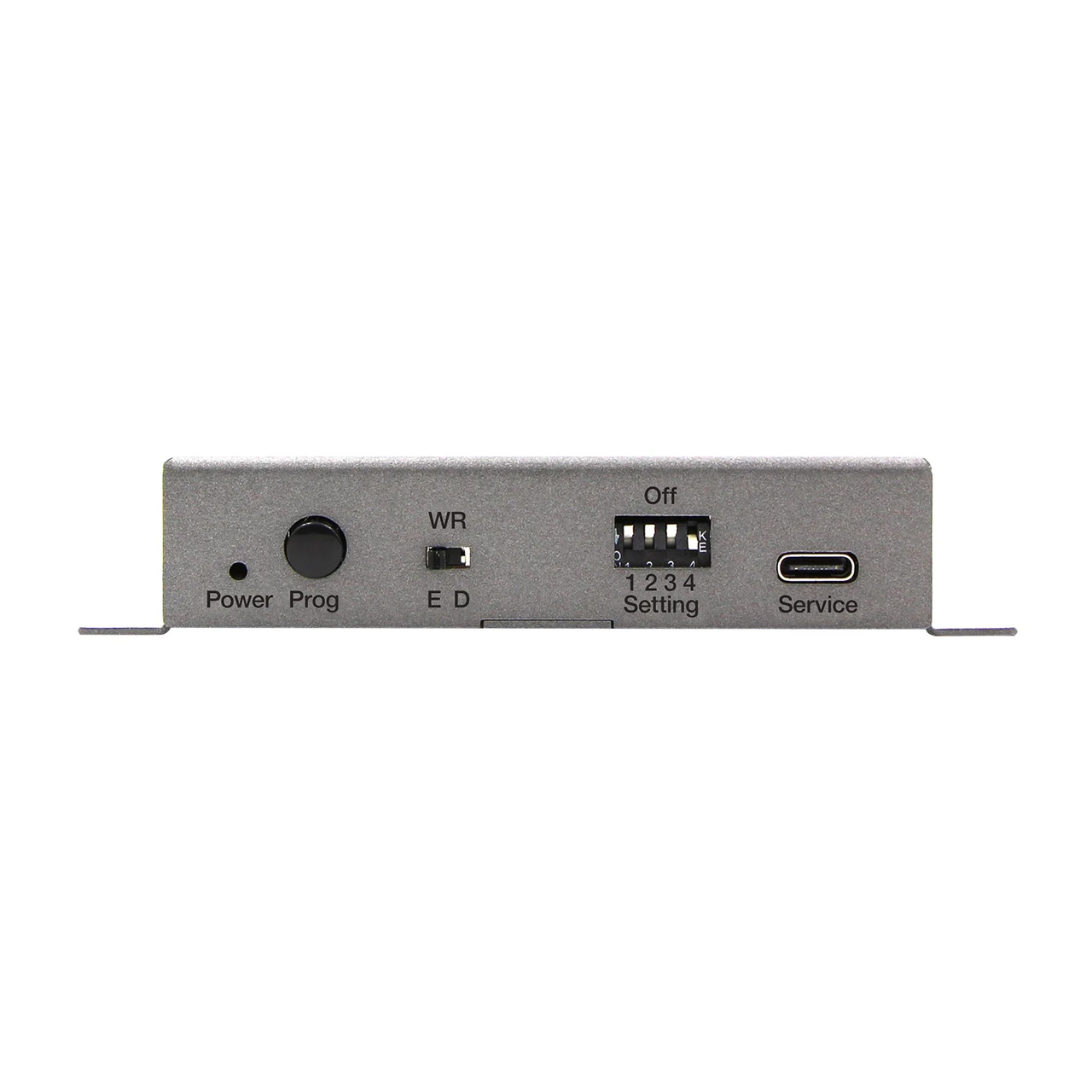

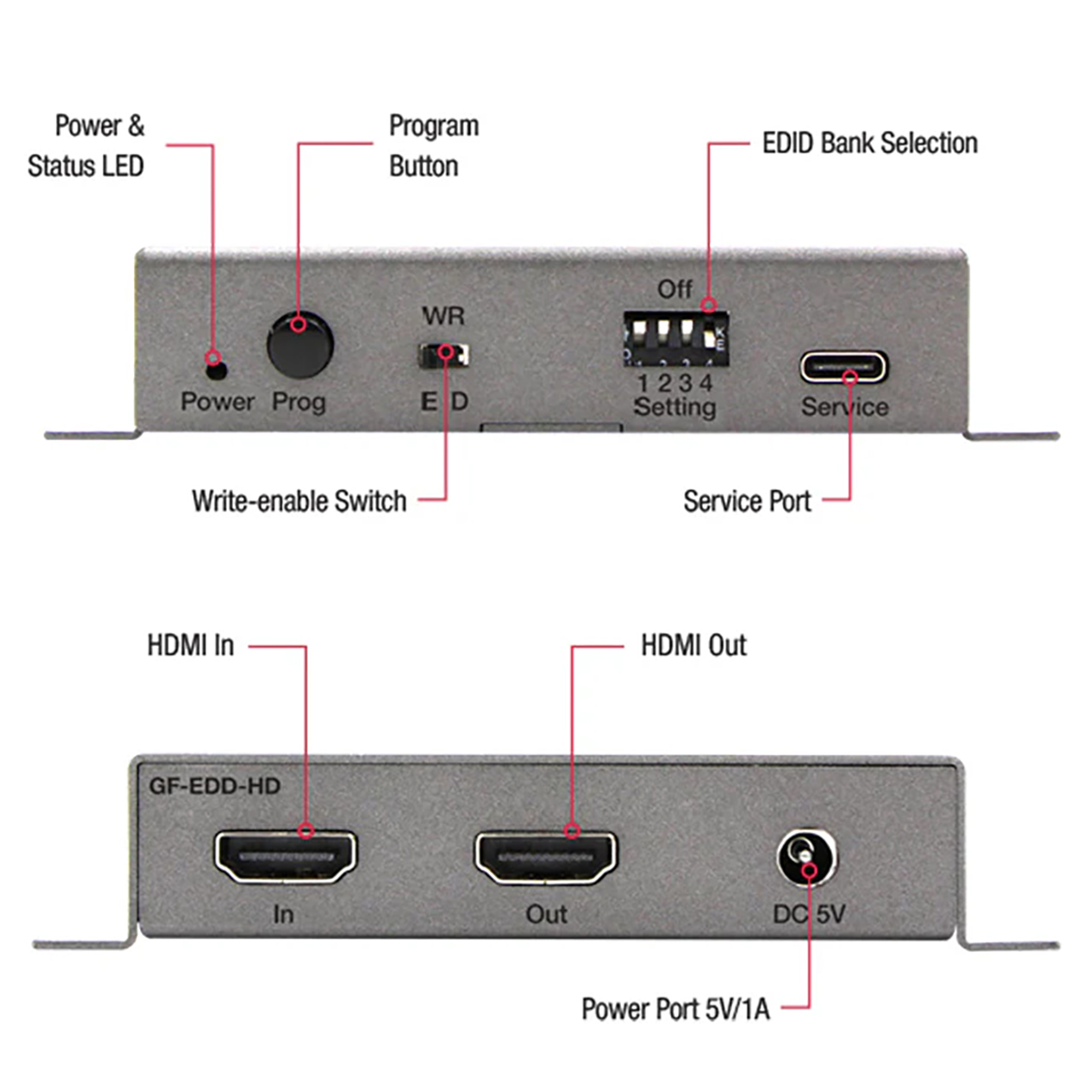

Two-position write-enable switch protects stored EDIDs from accidental overwriting during operation. Once configured for critical installations, lock settings to ensure reliable, repeatable performance in critical workflows.
Field-Ready Design

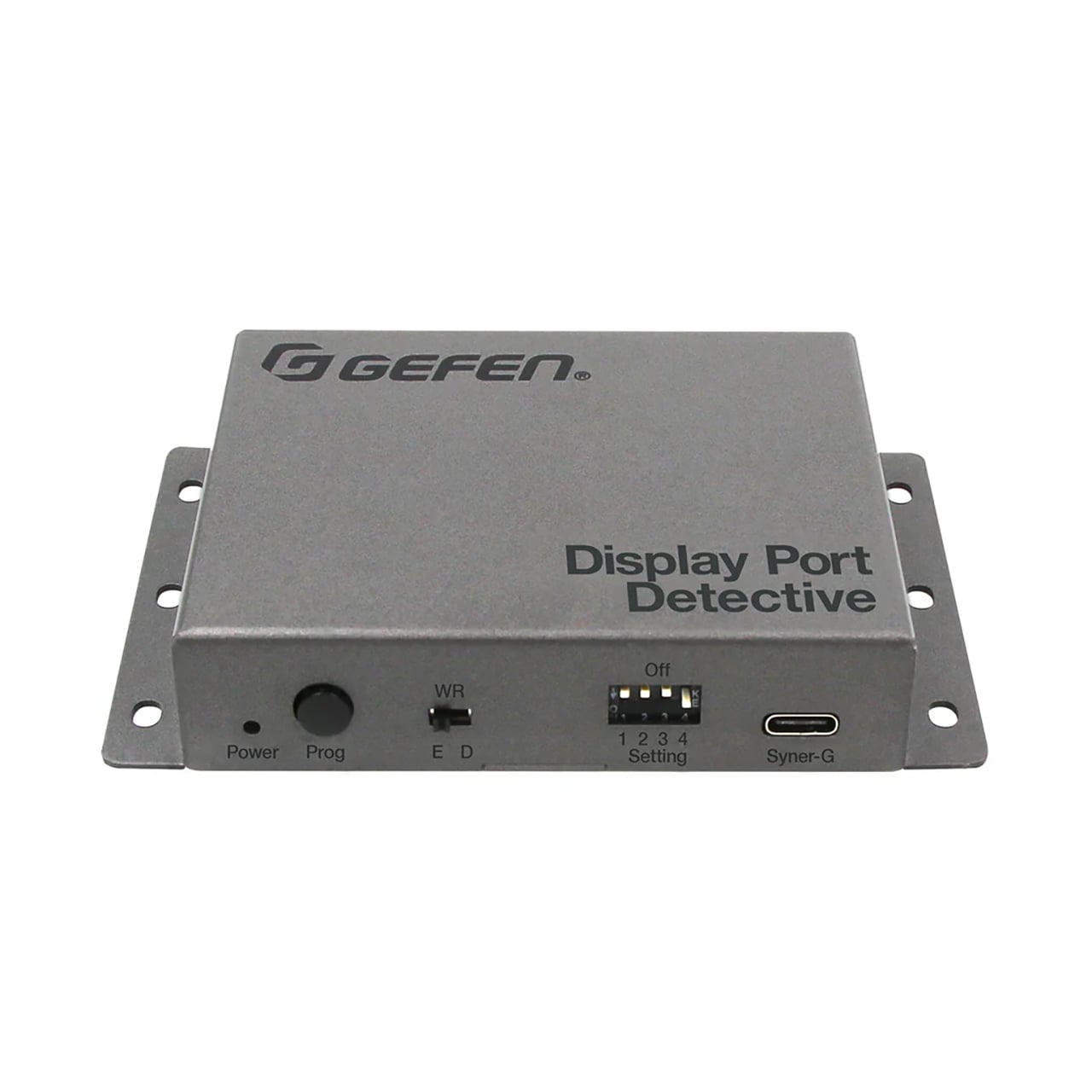

Compact metal enclosure with surface-mount capability fits seamlessly into rack installations or field deployments. Bi-color LED indicators provide instant visual confirmation of power, HPD status, and active EDID bank selection.
How It Works:

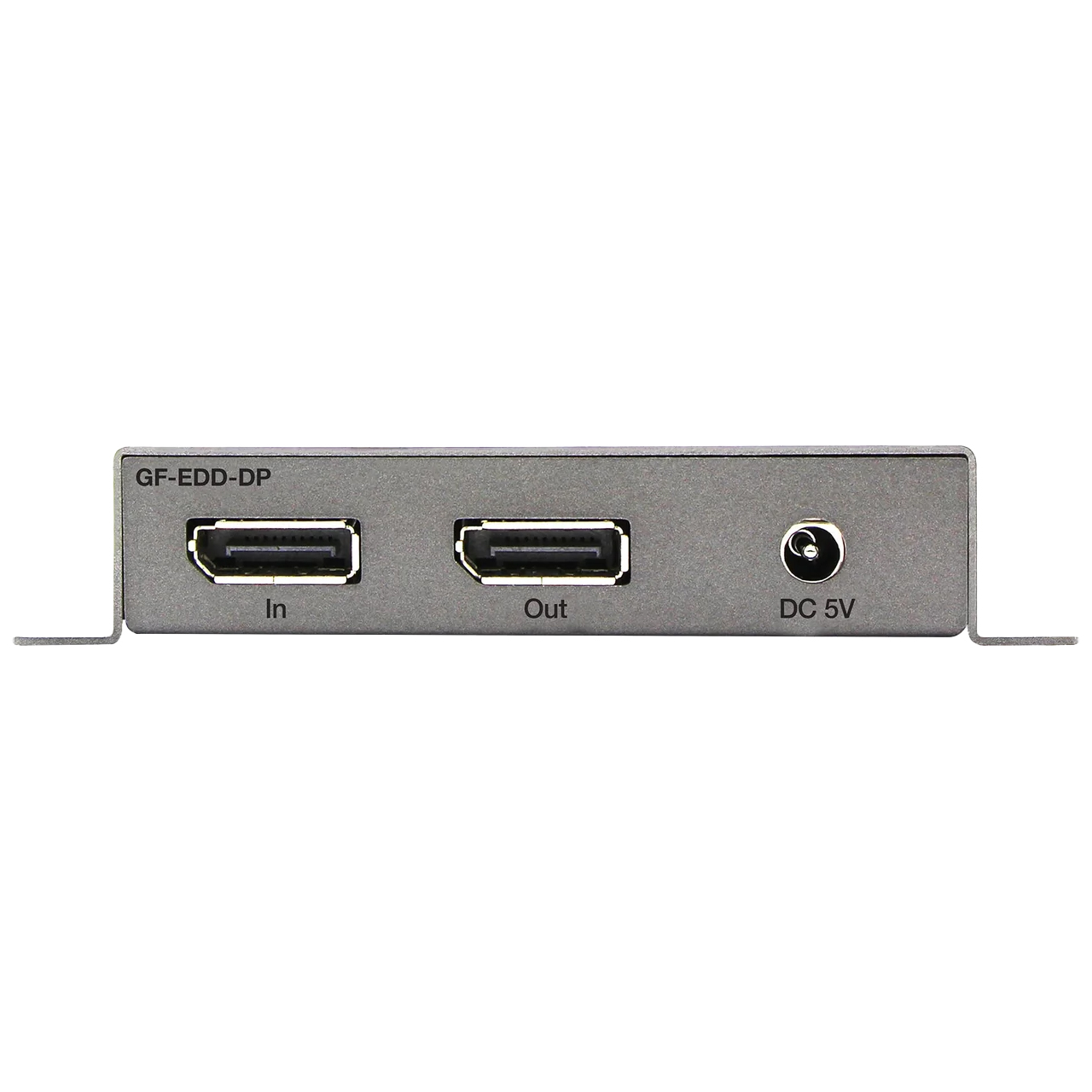

• Setup - Connect the DisplayPort Detective inline between your source device and display using standard DisplayPort cables.
• Operation - Once programmed, the Detective maintains continuous EDID communication with your source, even when the display is powered off, switched away, or disconnected.
• Customization - Select from five factory EDID profiles using the 4-position DIP switch for instant compatibility with common display types.
Ideal for.
• Maintaining reliable display communication in professional workstations and advanced AV systems
• Scenarios where displays are often powered off, switched, or routed through complex matrices
• Environments requiring consistent, high-resolution video and advanced audio performance up to 8K@30Hz and immersive formats like Dolby Atmos and DTS:X
• Quick troubleshooting and adaptation to unique installations via programmable EDID profiles
• Professional AV systems with frequent switching between sources and displays or routing through complex systems
• Applications where displays are powered off, switched away, or routed through complex systems, yet sources must always recognize correct display settings
