The Glensound Beatrice LH4 uses Audinate's Ultimo Chipset, which can receive 4 incoming audio channels, each at 48kHz. However, this chipset can only receive these 4 audio channels from a maximum of 2 network locations (2 different devices). This is common with any manufacturer that uses this chipset.
The Glensound Beatrice LH4 provides audio signal present and call indication via a bright LED 'lighthouse' tower, providing 360 degrees of visual signalling.
The Beatrice LH4 is ideal for providing cue/ on air indication to presenters and hosts using the standard Dante/AES67 network. The bright lighthouse LED tower can be set to illuminate on receipt of either an audio signal or a Beatrice 20kHz call signal from any of its 4 network audio inputs. Different colors/ brightness can be set by the user to be associated with each channel.
To make it easy to send audible instructions to the users an internal speaker and balanced XLR audio output are also included that through the configuration menu can pass audio from the Dante/AES67 network if required.

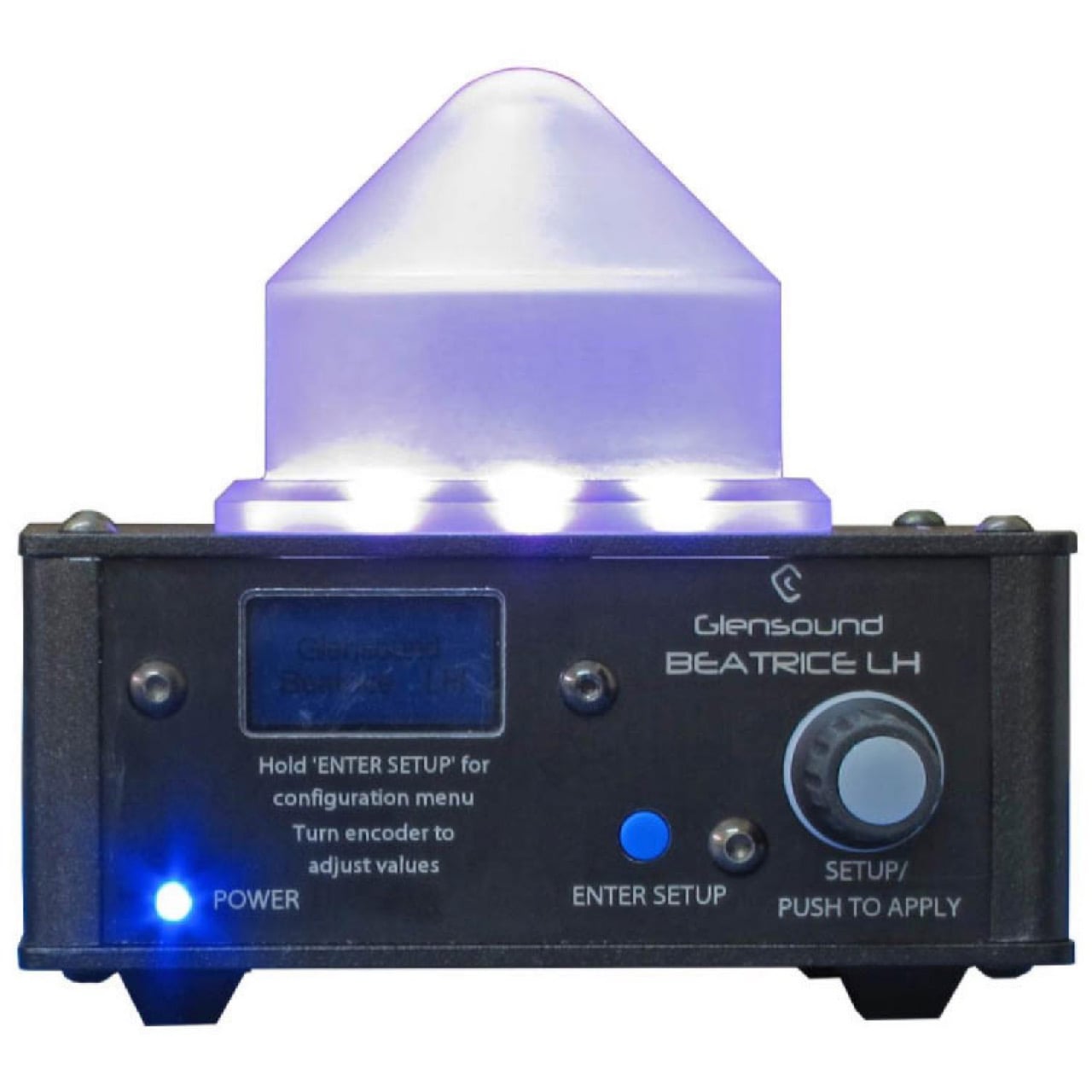

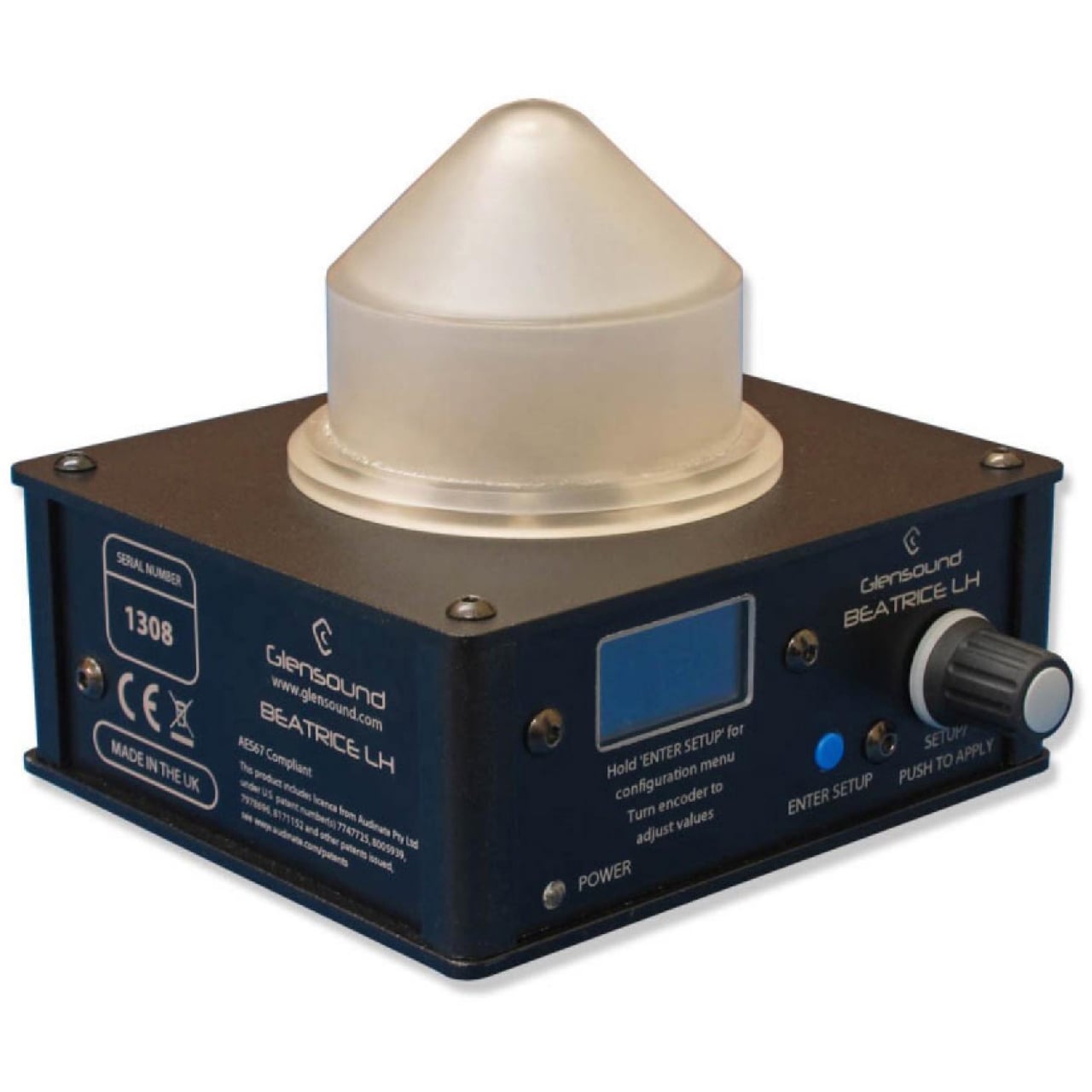

The Beatrice LH4 is in a compact unit with a bright lighthouse tower for signalling. There is an onboard configuration screen and it is PoE powered.
Trigger On Audio (Solid color)
Each of the 4 channels can be set individually to turn on the Lighthouse LEDs when they receive an audio signal. The length of time that the Lighthouse LEDs stay illuminated after the audio signal drops below its triggering threshold is user configurable.
Trigger On Call (Flash)
Each of the 4 channels can be set individually to flash the Lighthouse LEDs when they receive a Beatrice Call signal. The length of time that the Lighthouse LEDs continue to flash after the call signal has been received is user configurable.
Choice of Colors
Each channel can have its own Lighthouse LED illumination color set by the user from any of the following colors: Red, Green, Blue, Yellow, Purple or Orange.
Two Brightness Levels
To allow the LH4 to work well in your environment there are two preset brightness levels allowing it to be seen in natural daylight and a studio setting.
