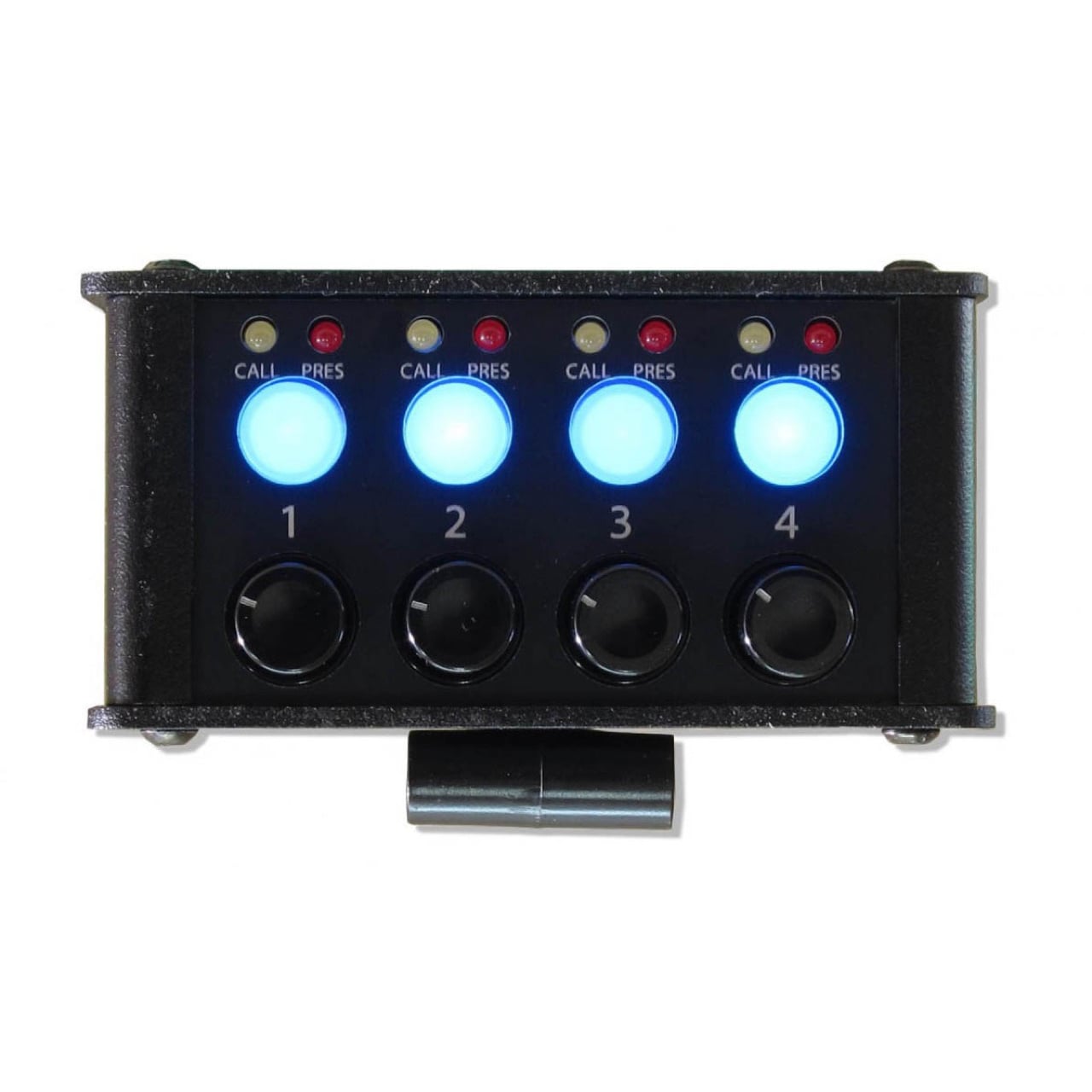

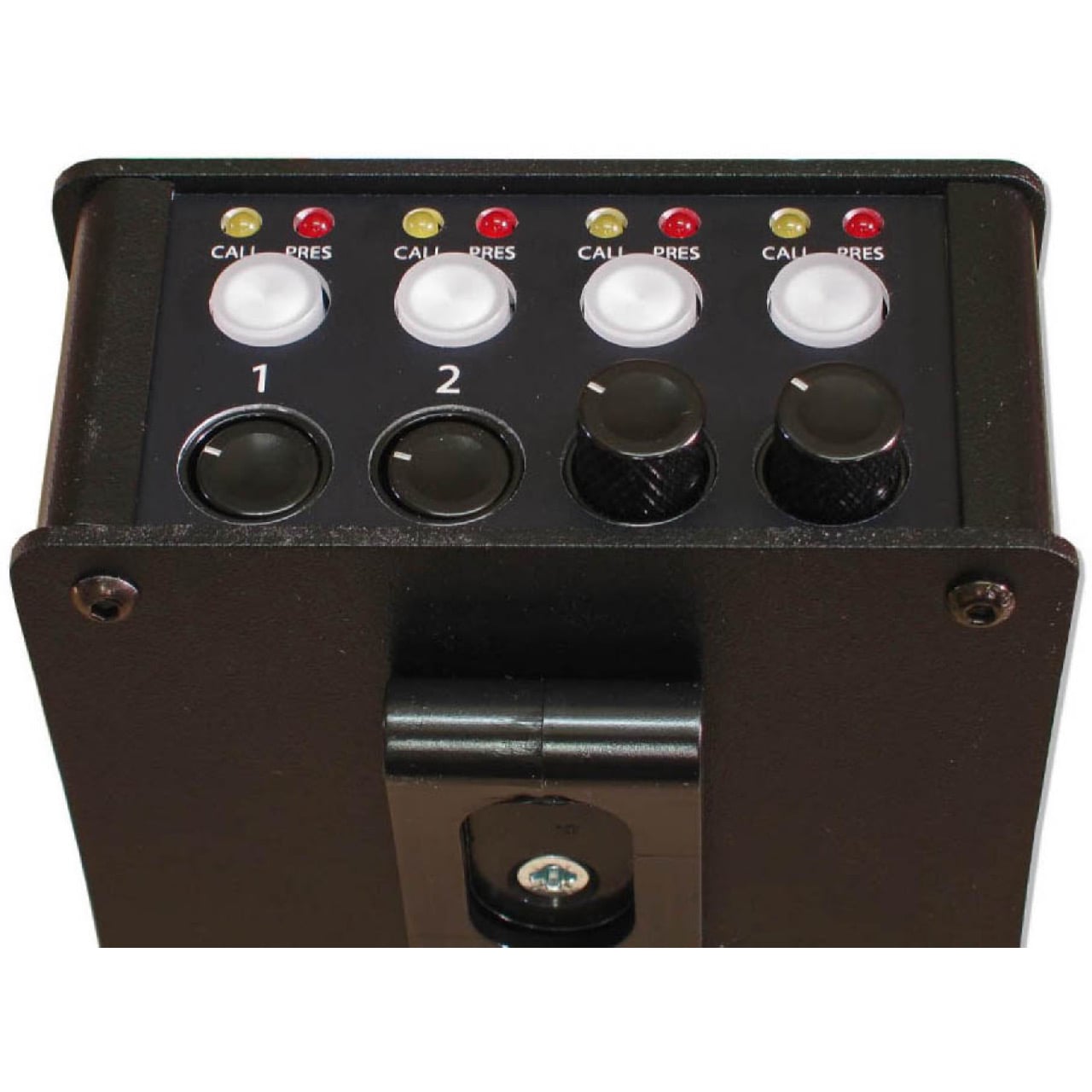

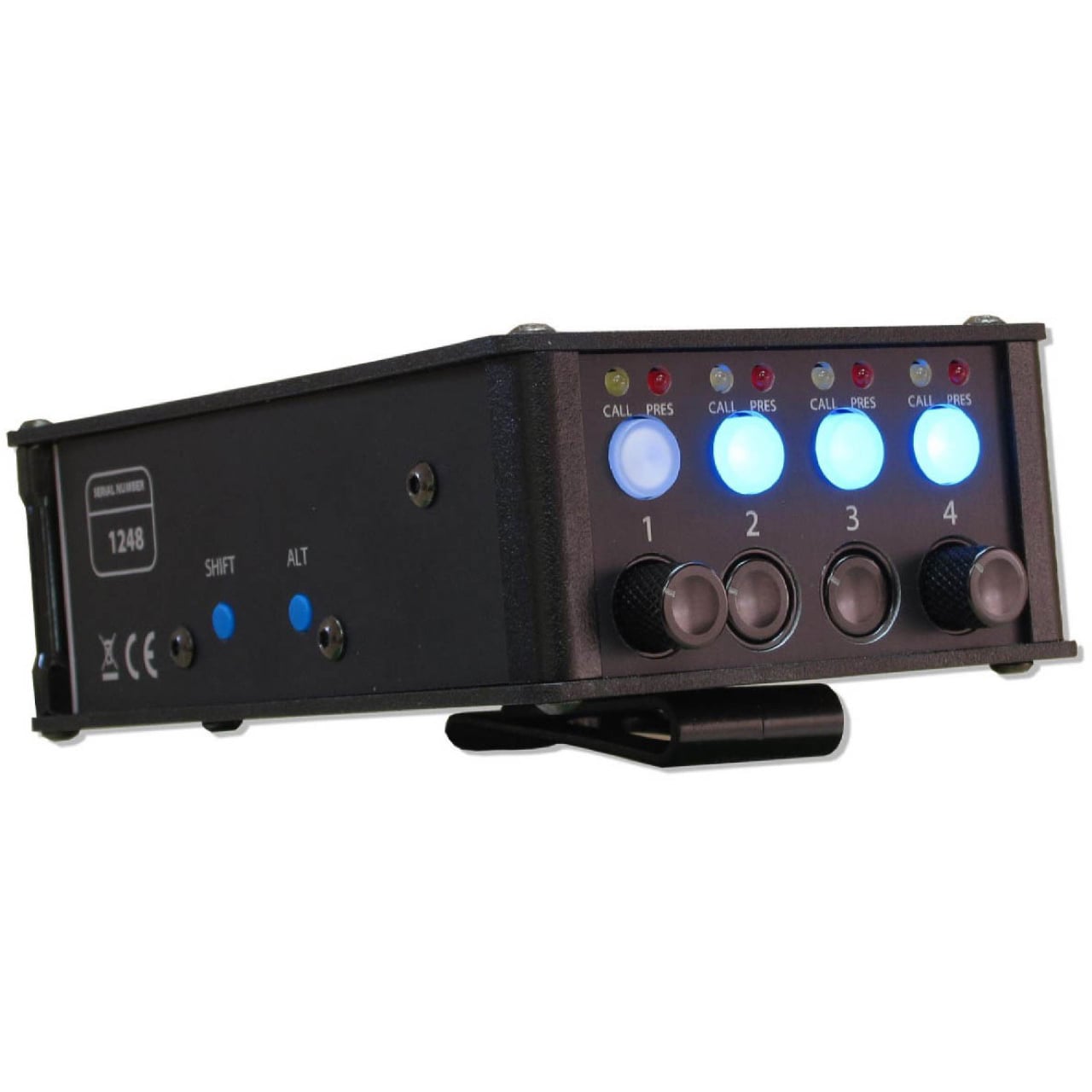

The Beatrice B4+/4M is Glensound's first Broadway design unit, with 4x FW & 4x IFBs to the Dante/AES67 Network. The B4+ can receive audio from four completely separate network locations. The B4+ design is ultra-compact to keep the unit as unobtrusive as possible.
Four separate talk buttons route the microphone input to either of the 4 network outputs. The button operation can be configured as momentary, latching, or intelligent. A double tap on any of the talk buttons will produce a 'call' signal alert that will be received by another Beatrice unit. An LED indicates an incoming call alert, which will also produce an audio indication on the headphones. Each input has a separate level control adjustment and a signal present indicator.
The Beatrice B4+ has remote control functions via GlenController. Monitoring, setup and control are all available via remote control.
Ultra Compact Box
The B4+ has been designed to be as small and compact as possible. A rugged aluminium case with tough pillar supports means that although it is very small, it is also very strong, to cope with the life of a portable unit.
Listen To Four Separate Network Locations
As the Beatrice B4+ is an Audinate Broadway design, it is possible to talk to four separate locations on the network. It also means that you could operate over 100 Beatrice B4+ devices on the same network.
Four Direct Talkback Buttons
Four separate talk buttons route the microphone input to either of the 4 network outputs. The button operation can be configured as momentary (PTT), latching, or the Glensound intelligent mode.
Built In Call Function
A double tap of any talk button will produce a ‘call’ signal alert that will be received by another Beatrice unit. This can be disabled. An LED indicates an incoming call alert, which will also produce an audio indication on the headphones.
Separate Level Adjust For The Four Inputs
Each input has a separate control to adjust the headphone level, so each of the four inputs can be quickly set at a different level. The pots are spring-recessed, so when not in use they can be pushed into the unit to further reduce the unit dimensions and reduce the chance of any unwanted knocks. Each input can be panned left/right. There is a signal-present LED on each input to identify the incoming audio source.
Remote Control
The Beatrice B4+ can be controlled across the network using Glensound’s Windows 11 remote app GlenController. The unit can be monitored with a real-time PPM meter, have settings changed, and remotely control button operation and input gain control. Channel labels can be taken from the Dante network or set separately.
