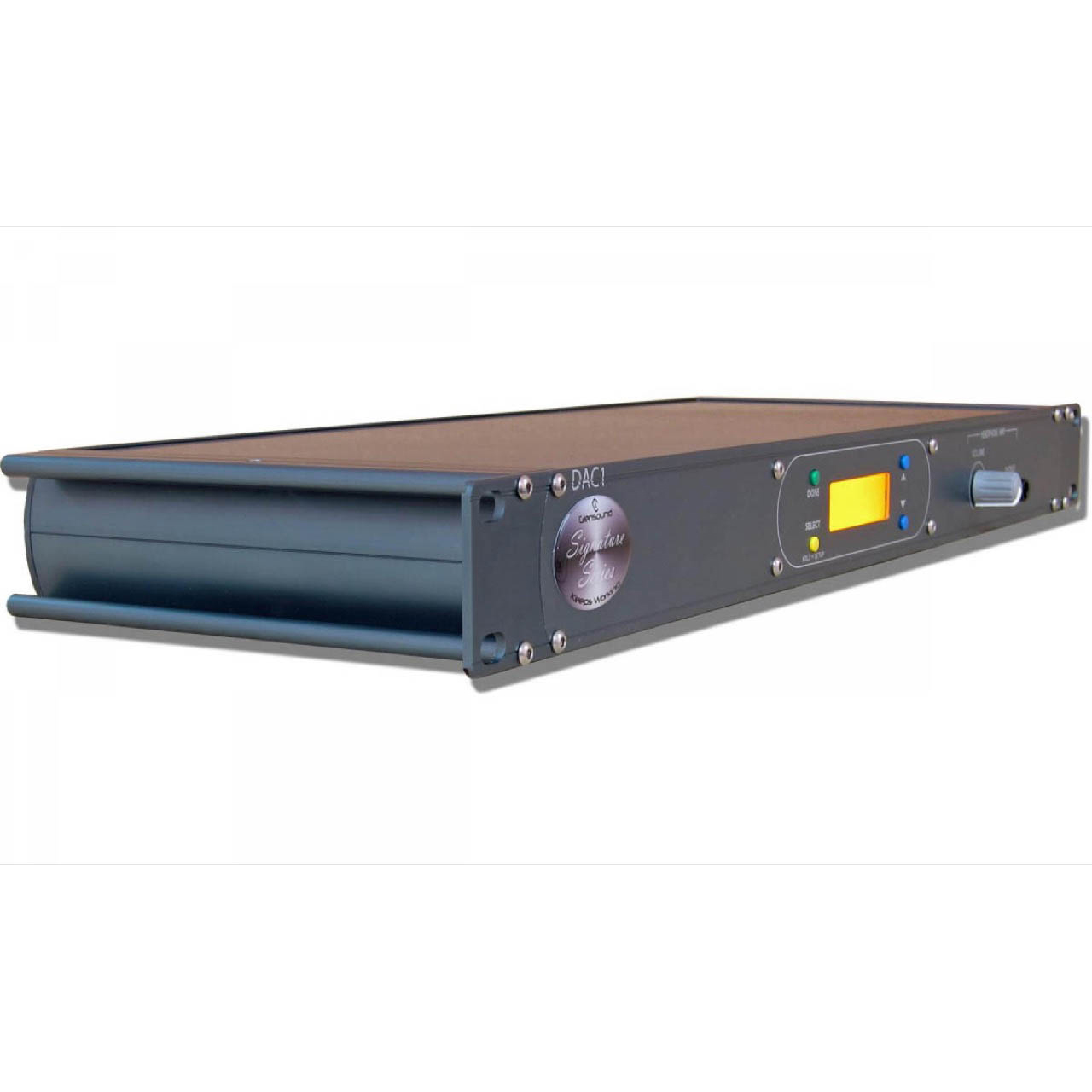

Glensound Signature DAC 1 1RU Stereo Digital to Analog Converter

DAC 1 - Overview

Maximum Resilience Broadcast Audio!

• Features:

  • Modern high quality Digital to Analog audio converter

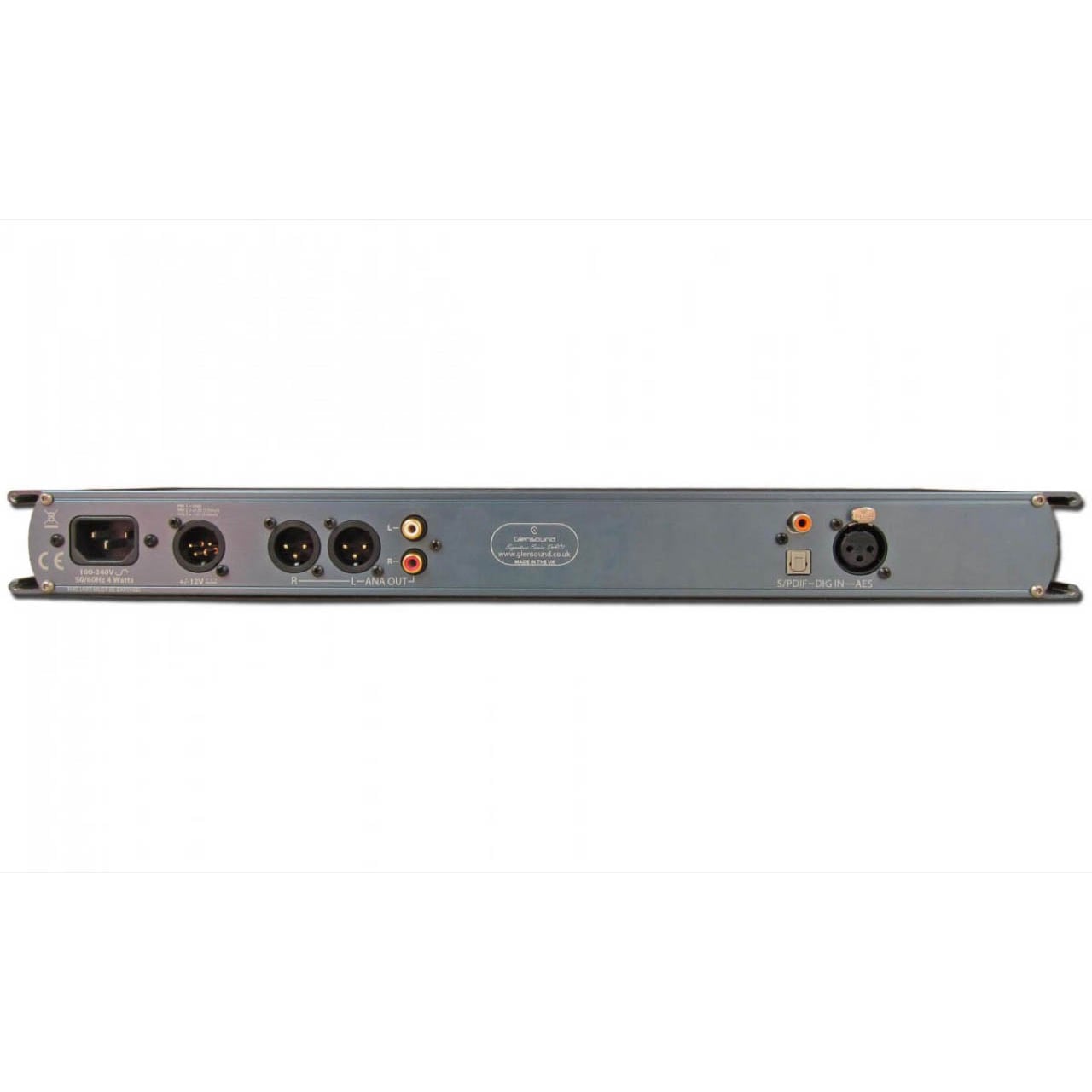

  • Analog output on 2x 3-pin XLR plugs
  • Analog output also available on 2x RCA phono sockets
  • Digital input available on 1x AES on 3-pin XLR socket
  • Digital input also available on 1x S/PDIF on a phono socket
  • Digital input also available on optical TOSLINK

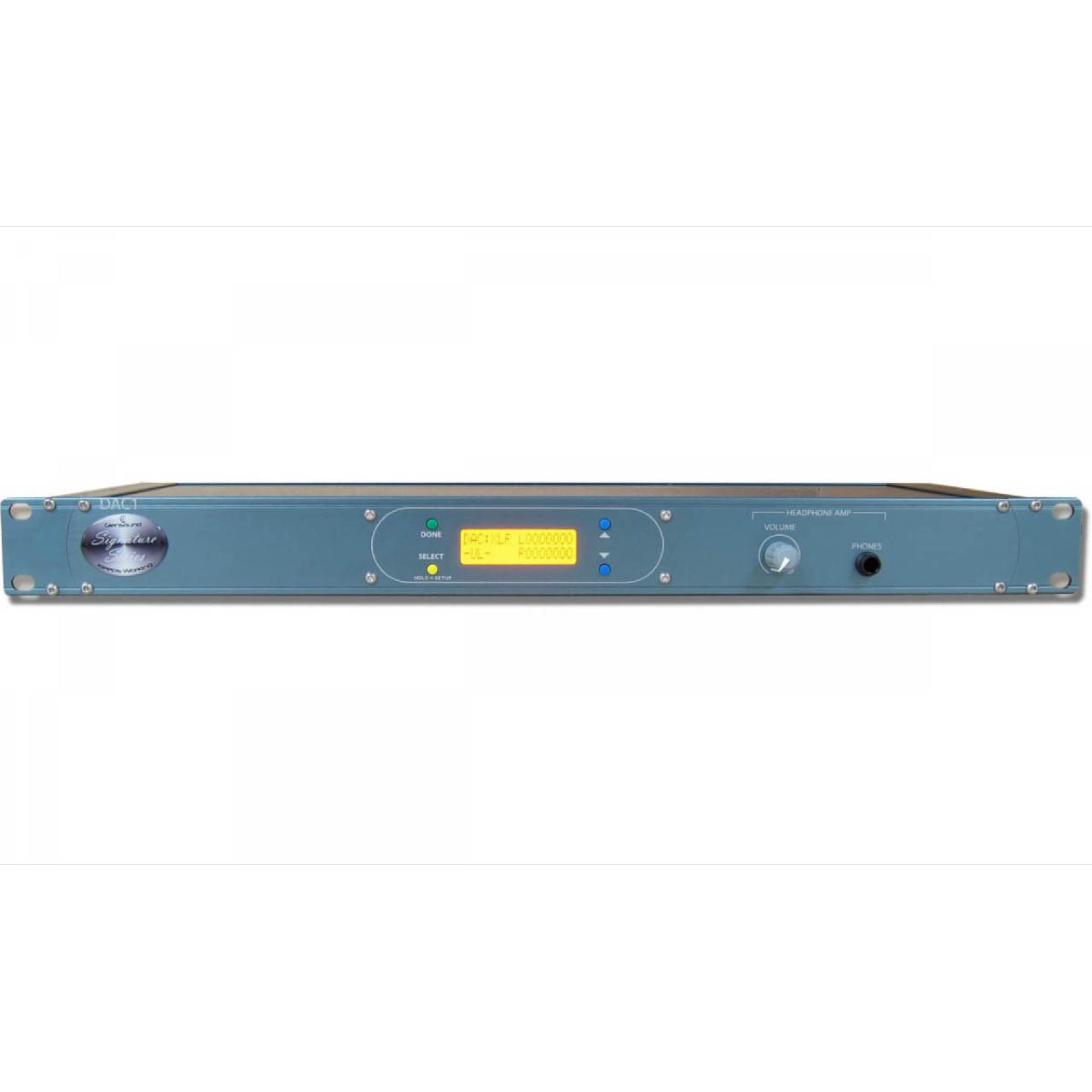

  • Front panel headphone connection for monitoring
  • Front panel display for easy setup
  • Mains powered and external DC
  • Sample frequency up to 192k


• Specifications:

  Audio
  • Digital Outputs:
    - Sample Frequency Rates: 44.1kHz - 192kHz
    - Resolution: Up to 24-Bit
    - 0dBFs Equivalents: +18dBu, +12dBu, +6dBu, 0dBu
  • Physical Outputs - AES/EBU Balanced XLR:
    - S/PDIF RCA Phono
    - TOSlink optical
  • Analog Outputs:
    - Output Impedance: 110Ω
    - Balanced Output Connectors: Neutrik XLR 3-pin plugs
    - Unbalanced Output Connectors: Gold Plated RCA Phono sockets
    - Noise: -108dBFs
    - Frequency Response: >-0.5dB 15Hz - 22kHz @48k sampling
    - THD + Noise: 0.001% @ 1kHz
  • Headphone Output:
    - Output Gain Range: +10dB to Off
    - Headphone Impedance: 100Ω - 1000Ω
    - Maximum Output Level: +18dB into 600Ω

    Power
  • Mains Input: Filtered IEC, 100V - 240VAC, 47Hz - 63Hz
  • Internal Mains Fuse: 20mm 1A Anti Surge
  • DC Input: 4-pin Neutrik XLR plug ±12V
  • DC Consumption: +12V 200mA, -12V 100mA
  • AC Consumption: 4W

    Physical
  • Size (LxDxH): 17.52" x 6.42" x 1.73" (445mm x 163mm x 44mm) no rack ears, 19" (482mm)(1RU) with rack ears
  • Weight: 2.97lbs (1.35kg)
  • Shipping Weight: 6.17lbs (2.8kg)


• Item Includes:

  • 1x Mains Lead
  • 4x Rack Bolts
  • 4x Feet
  • 1x Handbook


• Warranty:

  • 2 Year Warranty
