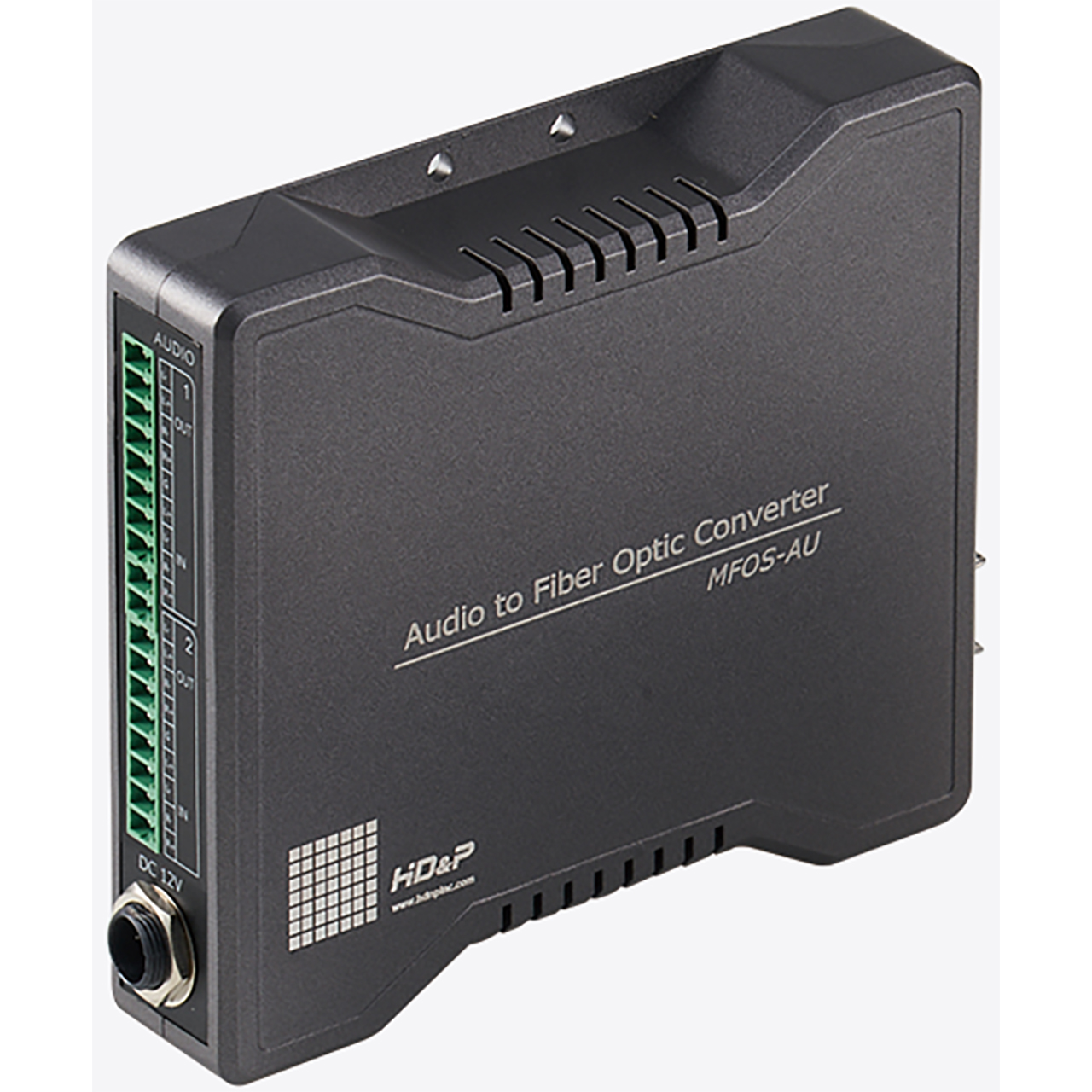

HD&P MFOS-AU 2-Channel 3G-SDI Bi-Directional Audio-over-Fiber Extender Set - 2x MFOS-AU & LC SFP Module Included

MFOS-AU - Overview

• Features:

  • 2-channel bi-directional balanced stereo audio
  • More than 20km transmission distance (single mode fiber)
  • Operation status indication LED
  • LC optical connector
  • Latch locking power connector
  • Package with mounting flanges for rack mountable
  • 12VDC, 1A (supports 7-16VDC input range)


• Specifications:

  Audio
  • Bandwidth 20Hz to 20kHz
  • Sample rate 24bit / 48KHz
  • Electrical Connector:
    - 2x Audio input: 5P terminal block
    - 2x Audio output: 5P terminal block

    Optical
  • Wavelength: 1470 / 1490nm
  • Distance (Typ.): 20km (Single mode fiber)
  • Fiber Type: Single mode
  • Optical Connector: 1x SFP: 2x LC/PC Connector

    General
  • Power Supply: DC 12V, 1A (supports 7 - 16VDC input rage)
  • Electrical Connector: Mini XLR 4pin, male
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage Temperature: -4° to 158°F (-20° to 70°C)
  • Humidity: 0 to 95% RH, non-condensing
  • Dimensions (WxDxH): 4.92 x 4.33 x 1.16" (125 x 110 x 29.5mm)


• Item Includes:

  • 2x MFOS-AU
  • 2x DC12V Power supply, 1A Adapters
  • 2x Mounting flanges


• Warranty:

  • 3 year warranty
