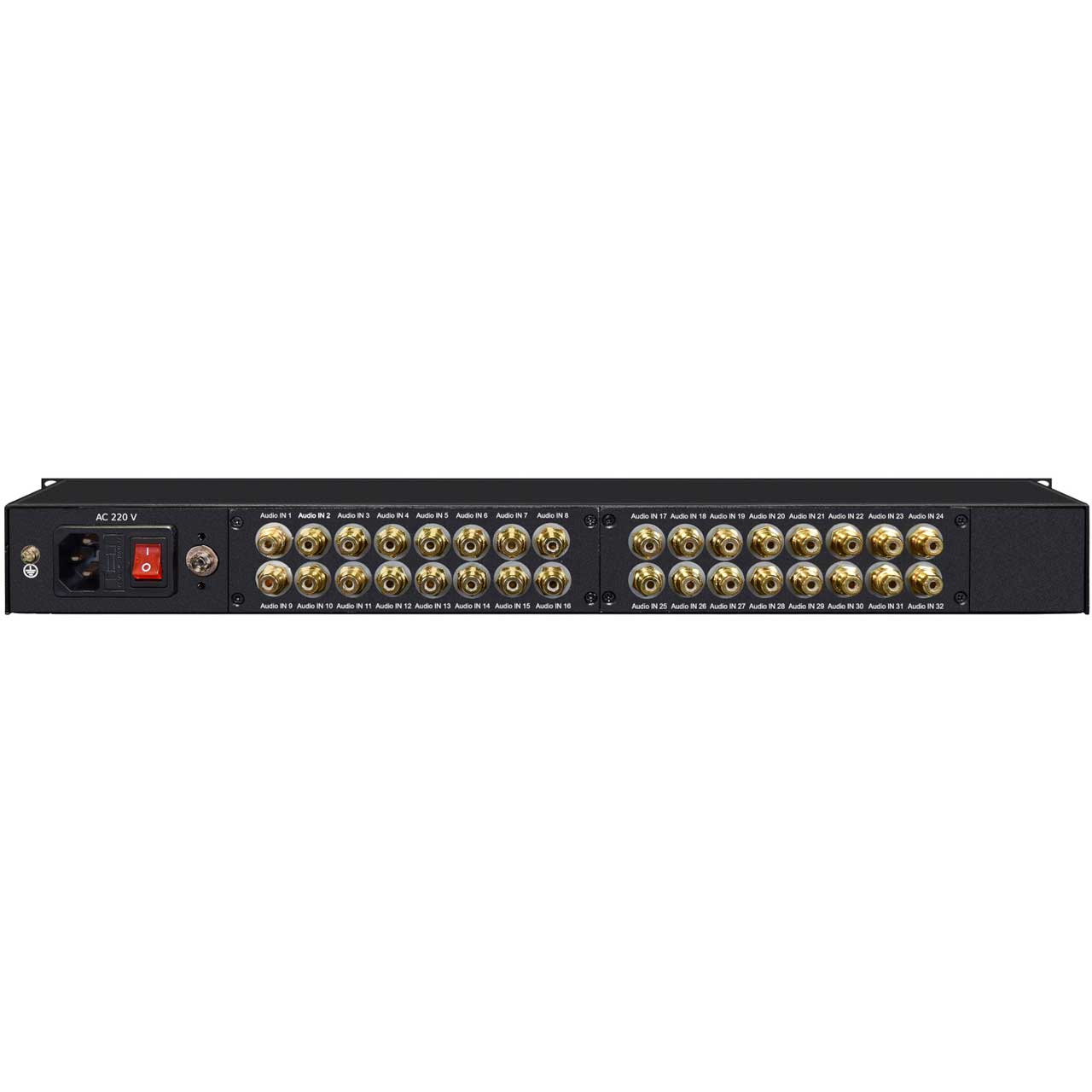

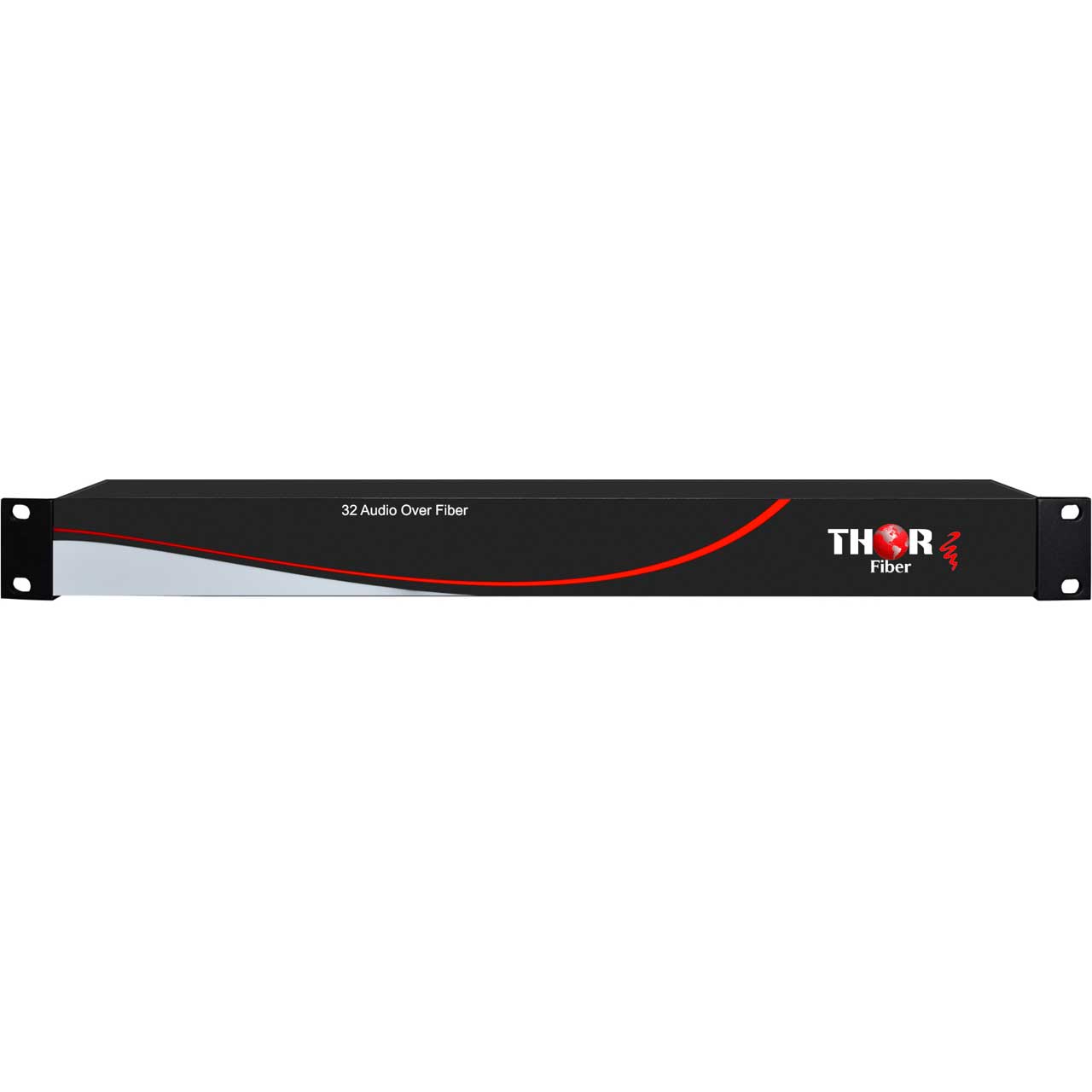

Thor Fiber F-32A-RCA-TXRX 32 Audio Fiber Optic Transmitter/Receiver Kit - 20Km Single Mode Fiber - 3000 Feet Multimode


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    F-32A-RCA-TXRX - Overview

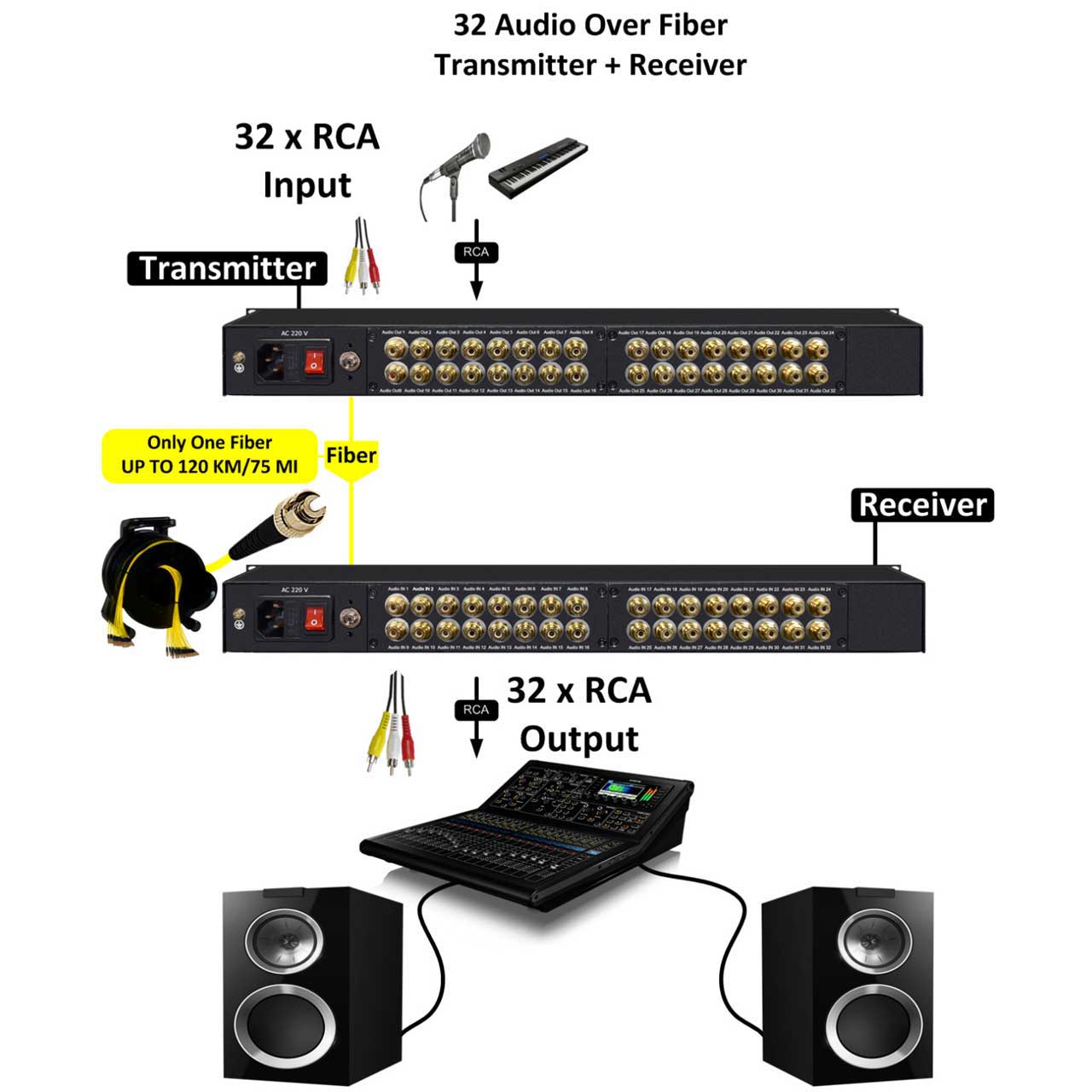

    The Thor Fiber F-32A-RCA-TXRX RCA audio over fiber unit is able to send Line Level audio over fiber simply and easily over long distances without using traditional copper wiring. The units vary in size based on the amount of audio's for transmit and receive, from a compact form factor that can be easily bolted down, up to a rackmount 1RU unit for easy access in a rack. The kits are sold in pairs, transmitter and receiver; and can utilize both Singlemode or Multimode fiber. Using fiber allows the audio signals to be sent over a long distances without losing any quality in the audio signal. The kit is 24-bit digitally encoded broadcast quality audio over one multi-mode or single-mode optical fiber. The fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Concerts, Theater, Churches, Stadiums, Theme Parks, Broadcast/Studio, Intercom, CCTV audio and Professional AV applications. Standard fiber connectors are ST/PC. Basic units support up to 20Km of single mode / 3000 multimode fiber. The front panel LED indicators make it known when hot swapping, or switching audio paths if they are already connected and ready to go.

    • Features:

      • Transmit 2-32 Channels of Stereo Audio over one optical Fiber.
      • Frequency Response from 10 Hz to 29kHz @±3dB.
      • LED indicators.
      • Supports hot swapping and hot plugging.
      • 24-Bit Digitally Encoded Audio
      • Point-to-Point or Daisy-Chain connection
      • Multimode Fiber transmits up to 4km without Optical Attenuation
      • No EMI, RFI, Cross Talk or Video Distortion and no ground loops
    • Specifications:

      • Audio Connector: RCA
      • Optical Fiber: Single mode / Multimode, ST, Simplex
      • Extend Distance : 0-20km over SM / 0-4km over MM
      • Power Supply: AC85-260V/DC 5V2A
      • Power Consumption: 4W
      • Working Environment: Working Temperature: -20°C to 55°C; Relative Humidity: 0 ~ 95% (no cold condensation)
