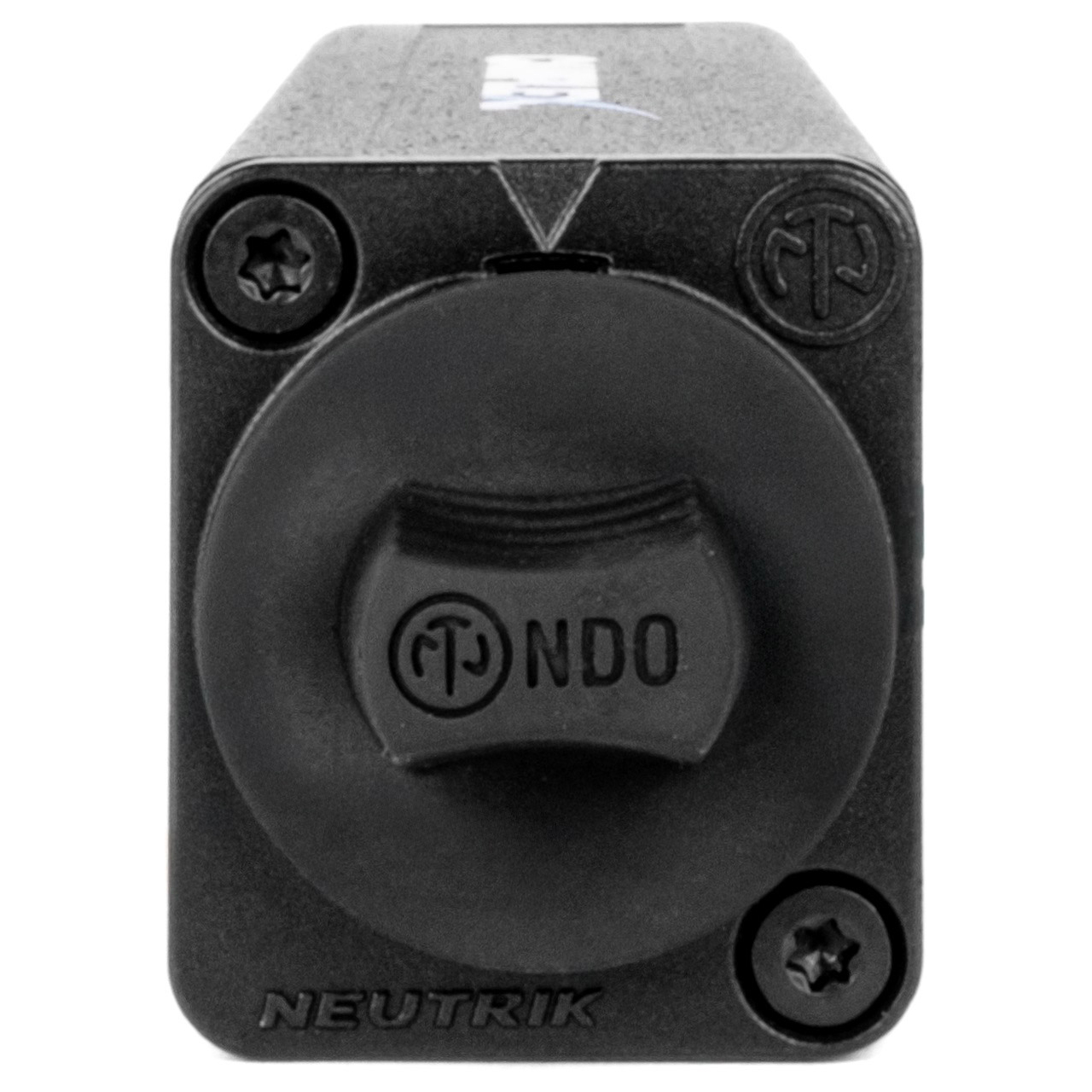

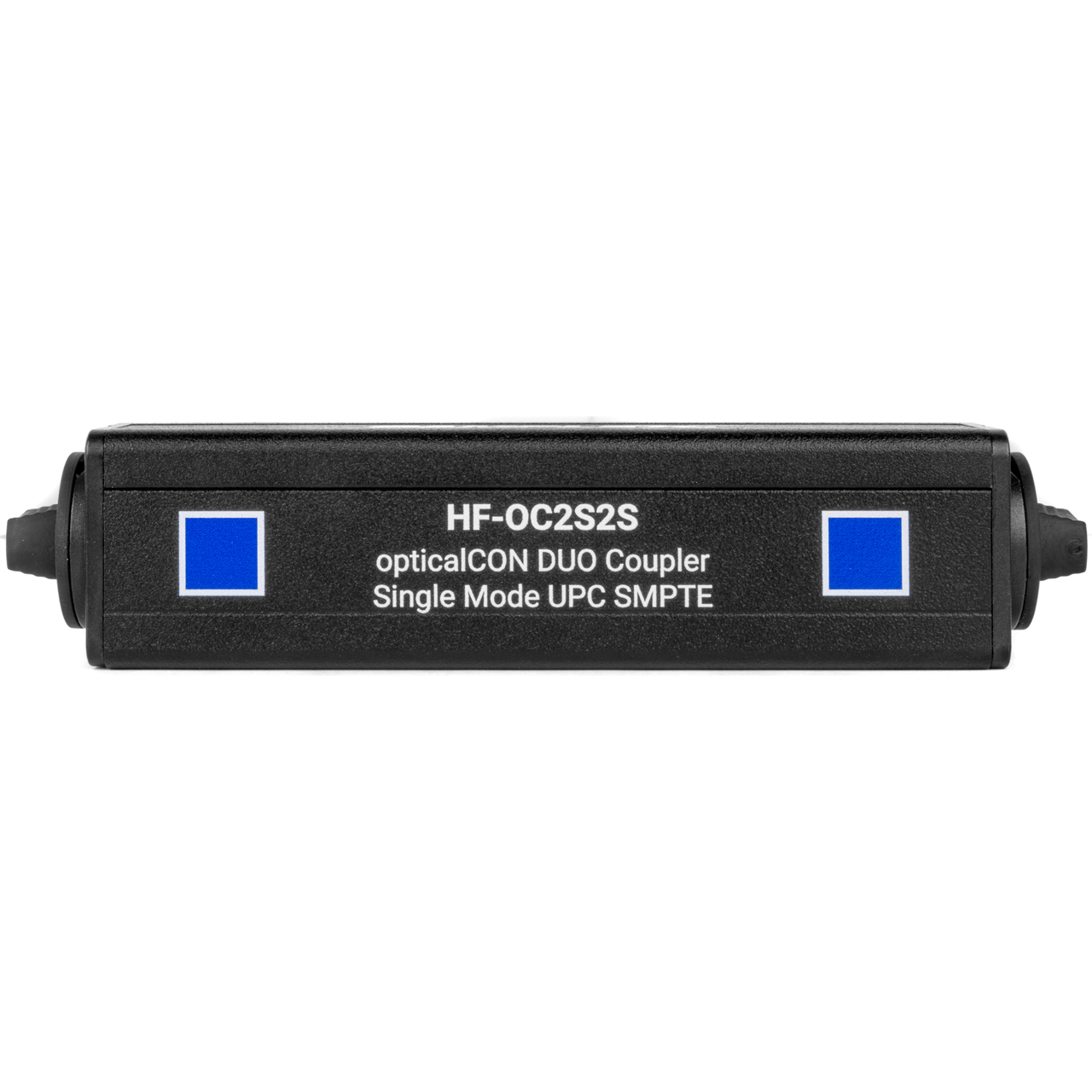

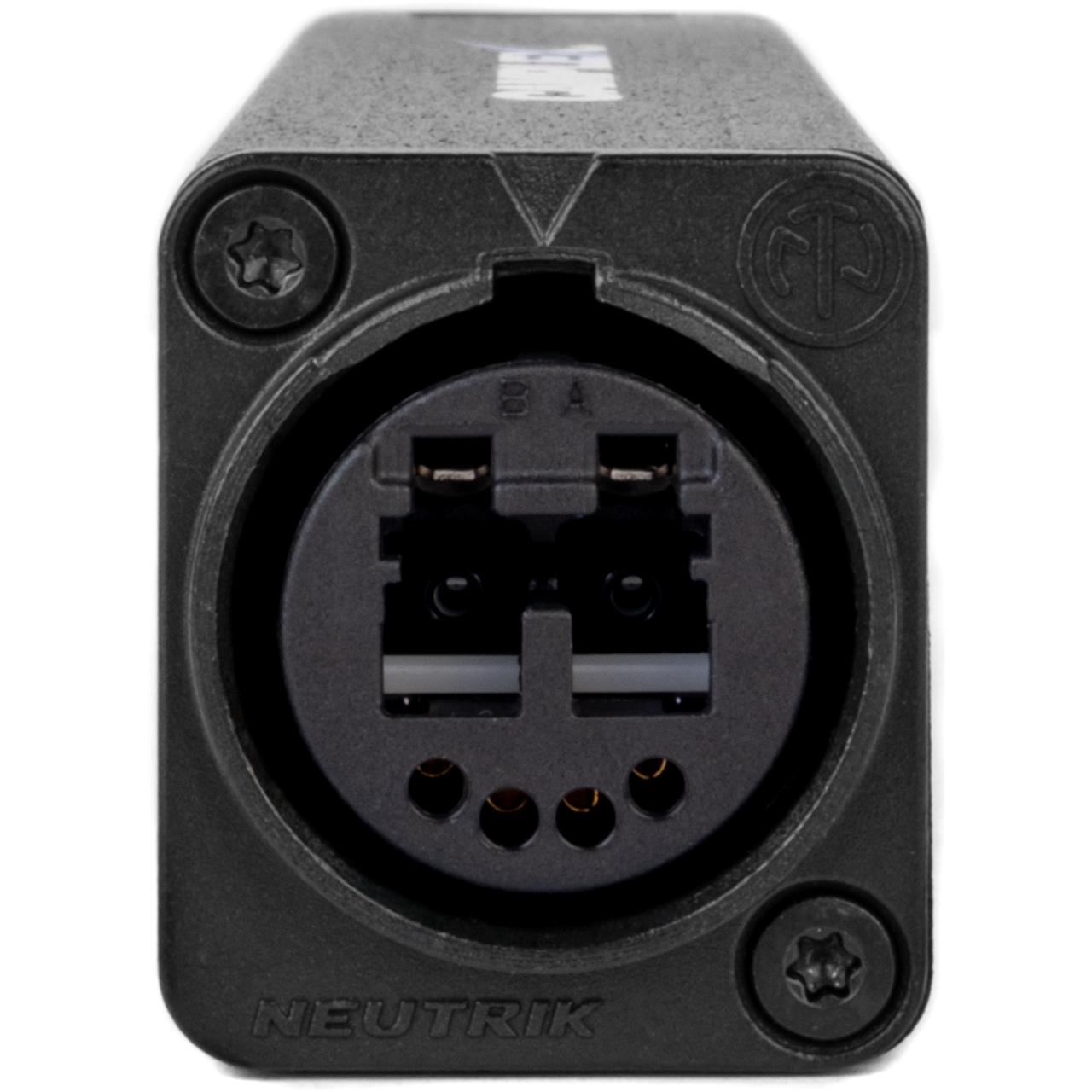

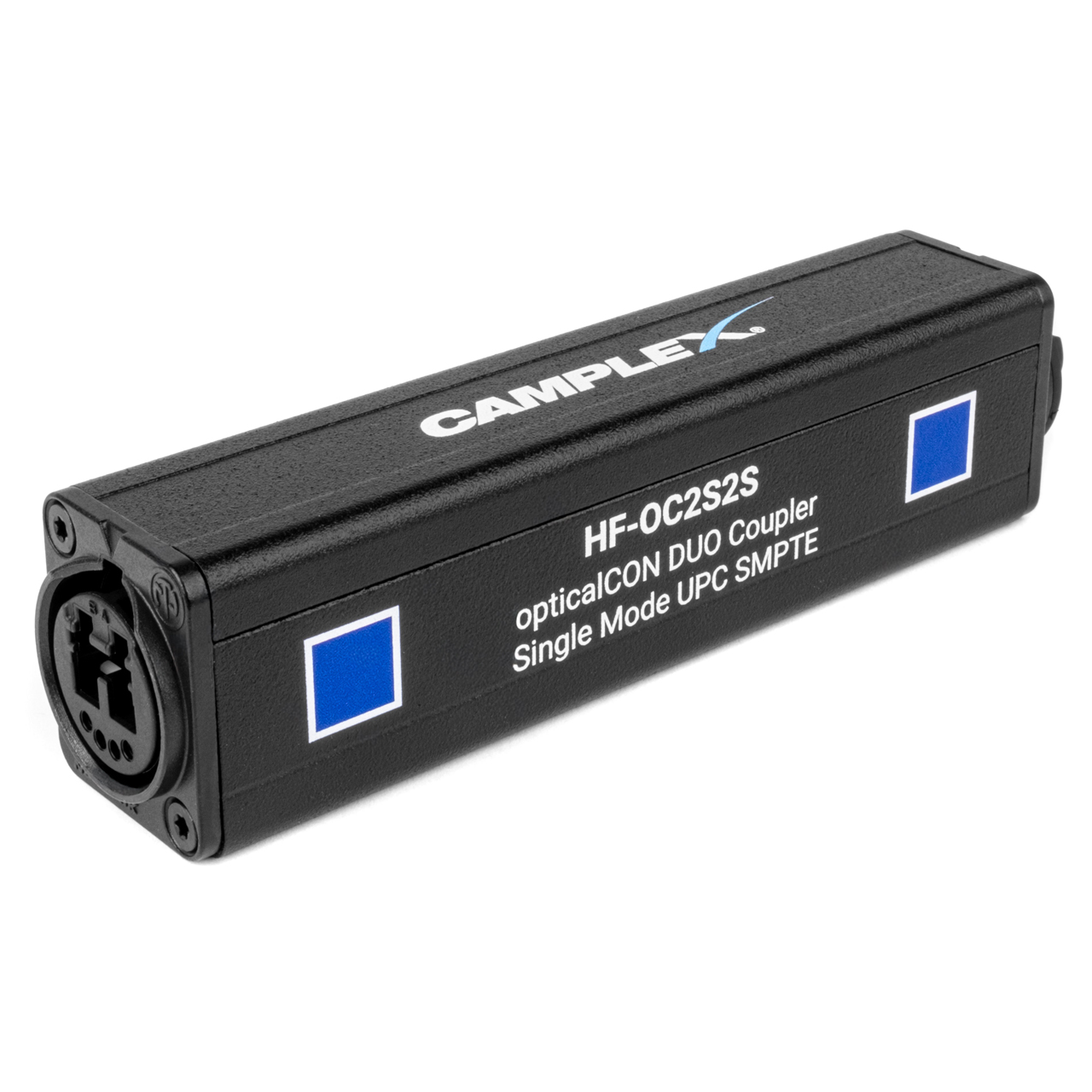

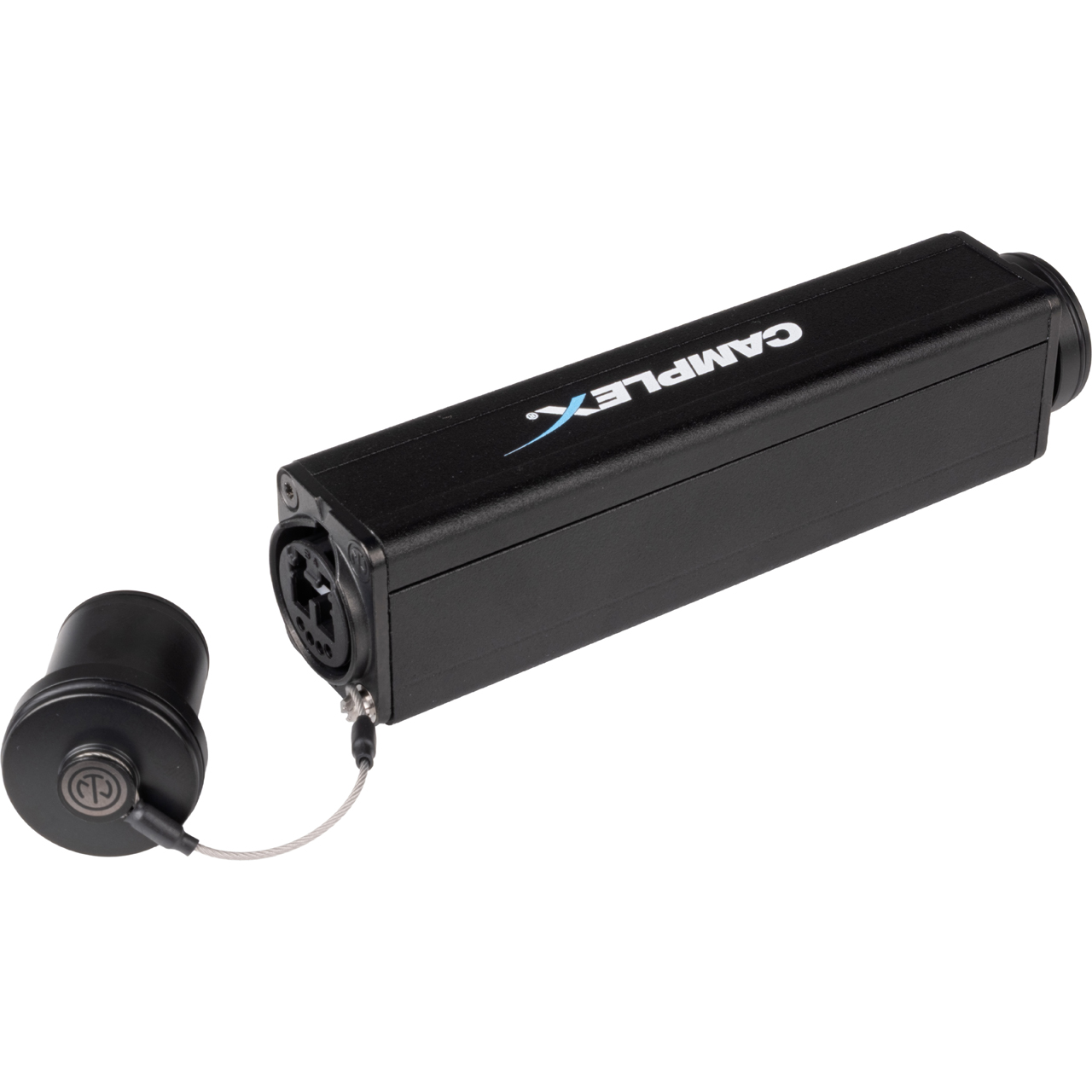

Camplex Inline Coupler - opticalCON DUO to DUO - SMPTE UPC Single Mode

HF-OC2S2S - Overview

• Features:

  • Inline opticalCON Coupler with Minimal Loss
  • Durable Black Powder-Coated Aluminum Housing


• Specifications:

  General
  • Dimensions: 5.44 x 1.13 x 1.63 inches
  • Weight: 5.9 oz

    Electrical
  • Contact resistance: < 7 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)
  • Rated voltage: < 50 V (1)

    Mechanical
  • Insertion force: < 45 N
  • Withdrawal force: < 45 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Push-Pull

    Material
  • Contact plating: 0.2 µm Au over 2 µm Ni
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
  • Shell: AlMgSi 0.5, black plated
  • Split sleeve: ceramics

    Optical
  • Insertion loss: < 0.5 dB / connection


• Warranty:

  • 1 Year
