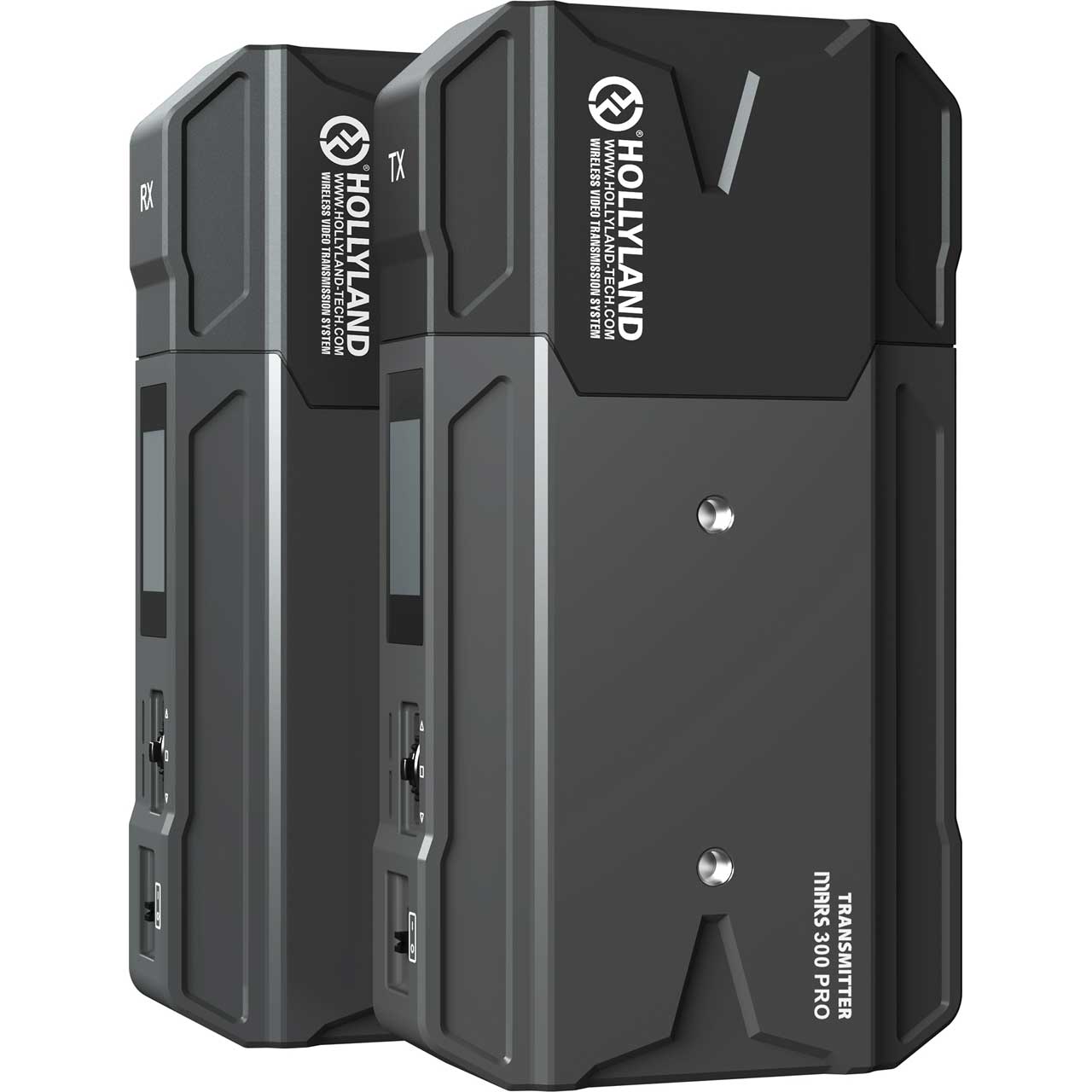

Hollyland MARS 300 PRO 328 Foot HDMI HD-SDI/3G-SDI Wireless Video Transmitter/Receiver Set - Standard

ITEM #: HL-M300-PRO-STD MFG #: HL-M300-PRO STD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    HL-M300-PRO STD - Overview

    Hollyland Mars 300 PRO Standard uses the latest coding, decoding, and 5G wireless transmission technology. It can achieve ultra-low latency wireless video transmission. It has a transmission range over 328ft with a clean line of sight (LOS) when the transmitter is connected to 1 receiver. The transmitter can connect with 1 receiver and 2 APPs Monitoring (Or 1 Transmitter connects to 3 APPs Monitoring Without RX). And Both transmitter and receiver are equipped with L-series battery plates and also can powered by USB type C.

    Built-In Antennas
    Built-In Antennas for Easy Setups, Efficient Shooting, and Different Shooting Applications.

    300 Foot Transmission Range With 0.1S Minimum Latency
    Up to 300ft Hassle-Free and Reliable Range for Wireless Video and Audio Transmission. 0.1S Lowest Achievable Latency for Real-Time Monitoring.

    Thumbwheel Switch Menu
    Better Using Experience with the Multi-Functional Clickable Thumbwheel Switch.

    Multiple Power Options
    Supports 5-12V Wide Voltage Power Supply, Including Various. L-Series Batteries, Different Power Banks, and Type-C (5V/2A) Charging.

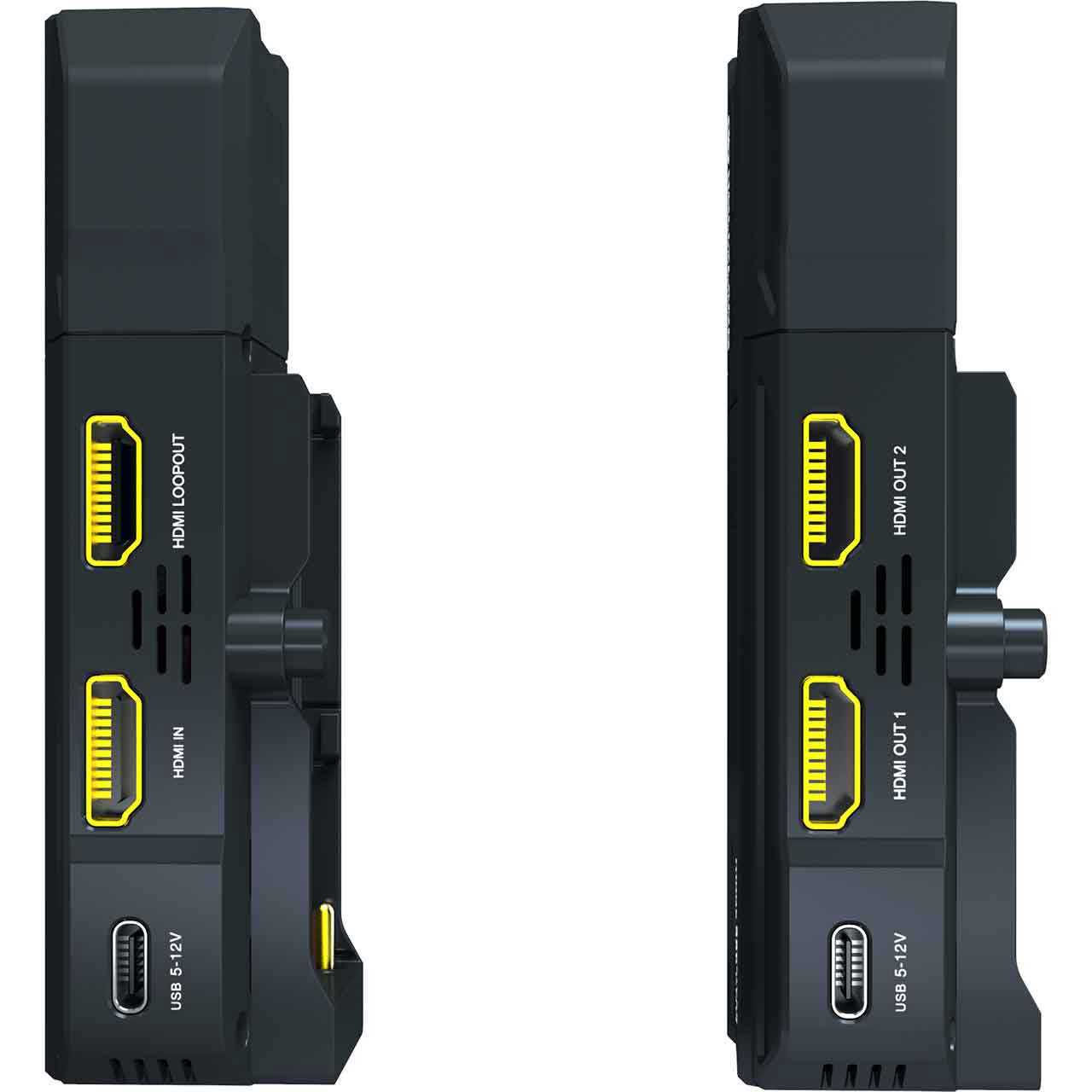

    HDMI In & Loopout
    HDMI Input and loopout on TX, and Dual HDMI Outputs on RX.

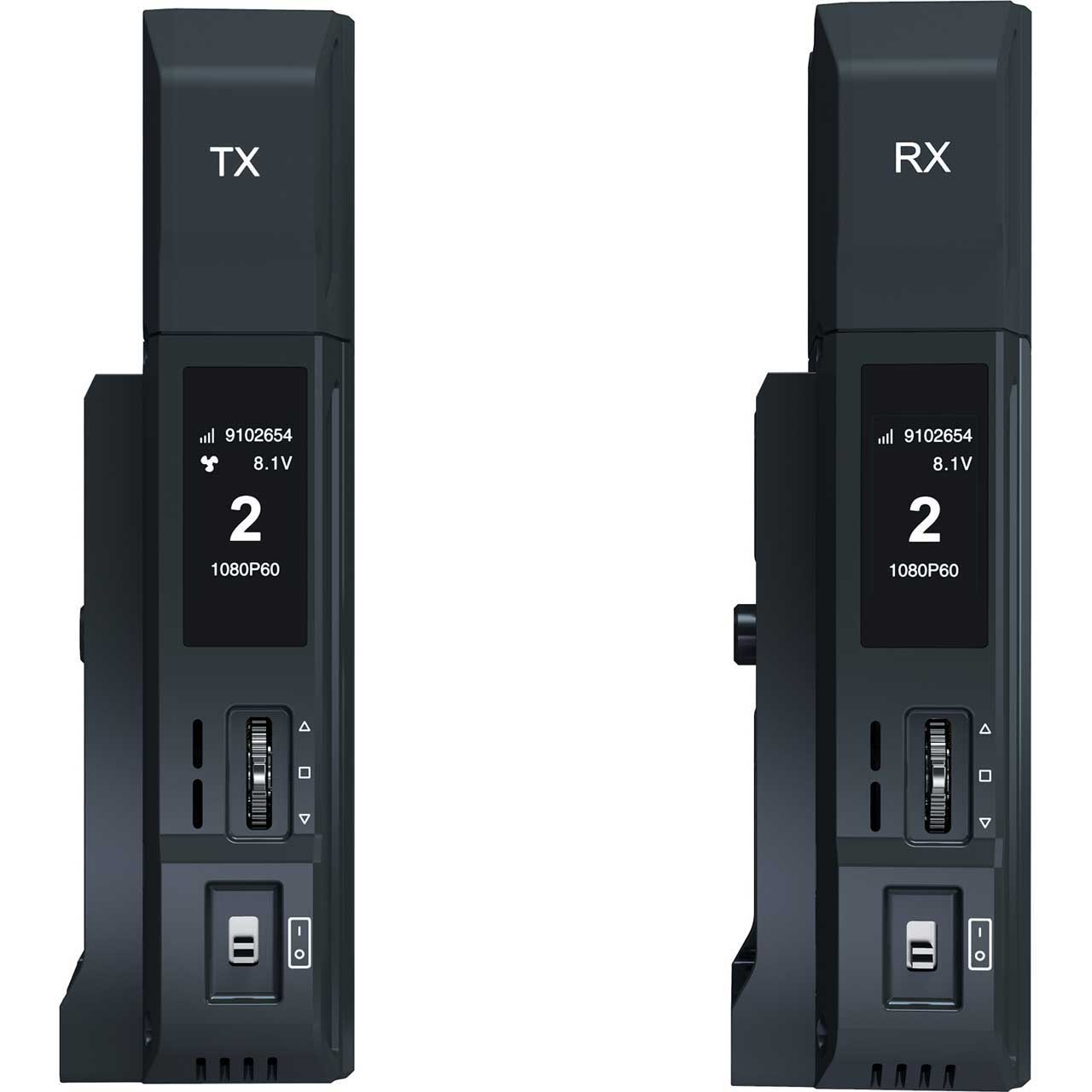

    Side OLED
    Side OLED Provides Easy Access to Power Status, Channel Scan, and Other. OLED Display Information for Both Vertical or Horizontal Installation Methods.

    Real-Time APP Monitoring
    Supports up to 3 Phones / Tablets Real-Time Monitoring with Pro Monitor Features, such as Waveform, Focus Peaking, Zebra, ZOOM, 3D Luts, etc.

    Firmware Update & Channel Scan On APP
    Easy and Quick Firmware Update & Channel Scan on the HollyView APP.

    • Features:

      • Wheel button on the side, one-button rolling adjustment
      • OLED screen display on the side
      • 328ft transmission range (LOS)
      • Latency about 0.1s
      • HDMI input & HDMI loop out at TX, dual HDMI output at RX supports USB Type-C power supply
      • 1 transmitter supports up to 1 receiver and 2 APPs monitoring (or 1 transmitter supports up to 3 APPs monitoring without RX)
      • Supports smart channel selection
      • Supports APP firmware upgrade

    • Specifications:

      • Wireless
      • Wireless Range: 328' (100m)(Line-of-Sight)
      • Channel Bandwidth: 20MHz
      • Frequency Range: 5GHz
      • Latency About: 0.1 sec
      • RF Power: ≤ 21dBm
      • RF Sensitivity: -80dBm
      • Wi-Fi: Yes

        Interfaces
      • Transmitter Antenna Ports: No
      • Receiver Antenna Ports: No
      • Transmitter Video Connectors:
        - 1x HDMI Input
        - 1x HDMI Loop out
      • Receiver Video Connectors: 2x HDMI Output
      • Transmitter Other I/O: 1x USB Type-C
      • Receiver Other I/O: 1x USB Type-C
      • Embedded Audio: HDMI

        Video Format HDMI
      • 1080p at 23.98, 24, 25, 29.97, 30, 50,59.94, 60 fps
      • 1080i at 50, 59.94, 60 fps
      • 720p at 50, 59.94, 60 fps
      • 576p at 50 fps
      • 480p at 60 fps

        Display
      • Transmitter Panel Type: OLED
      • Receiver Panel Type: OLED

        Power

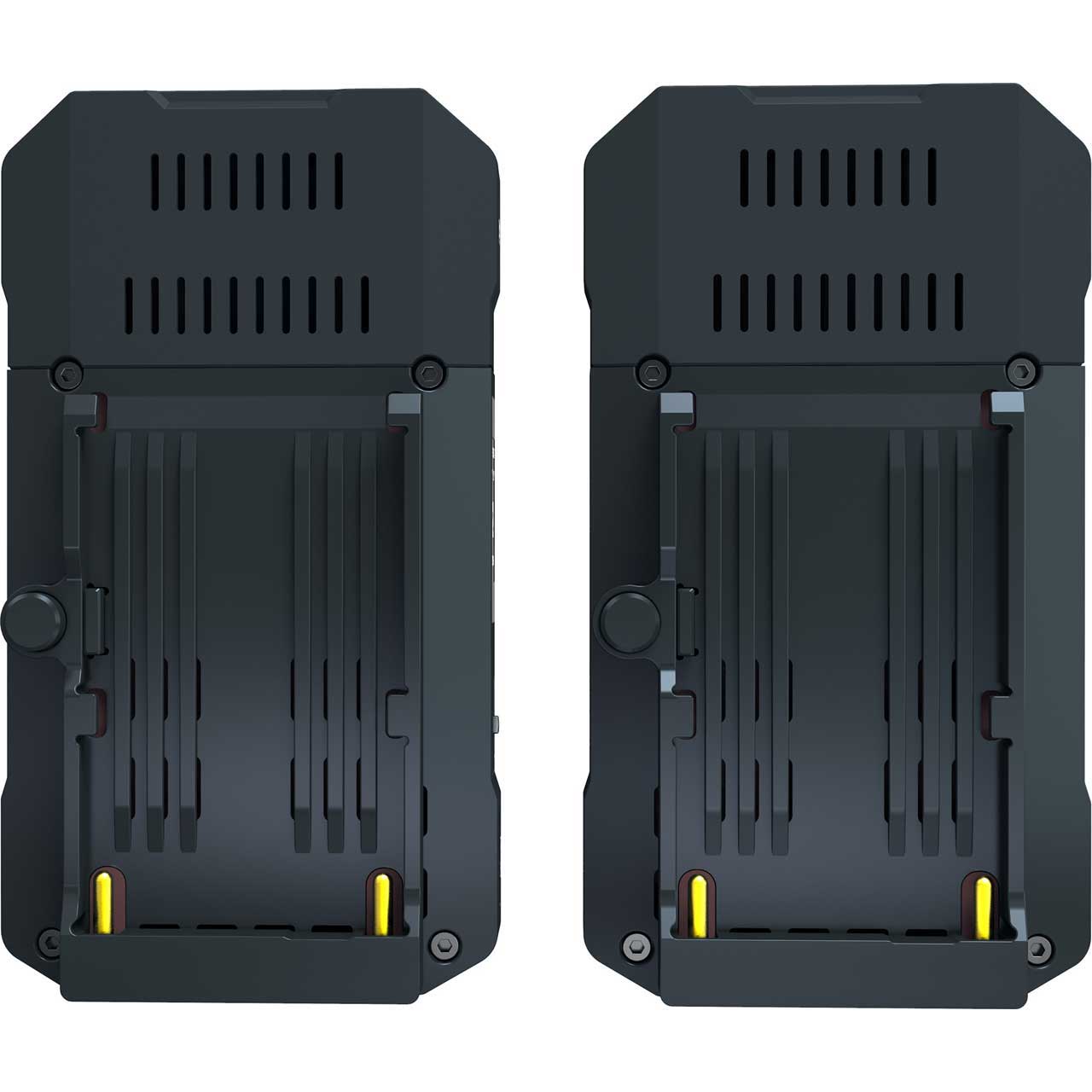

      • Transmitter Battery Support: 1x Sony L-Series/NP-F Type
      • Receiver Battery Support: 1x Sony L-Series/NP-F Type
      • Transmitter Power Connector: Barrel (5 to 12V DC) Input
      • Receiver Power Connector: Barrel (5 to 12V DC) Input
      • Transmitter Power Consumption Device: (11W)
      • Receiver Power Consumption Device: (4W)

        General
      • Transmitter Mounting: 1x 1/4"-20 Female
      • Receiver Mounting: 1x 1/4"-20 Female
      • Materials: Metal & Plastic
      • Transmitter Dimensions: 4.33" x 2.40" x 0.83"
      • Receiver Dimensions: 4.33" x 2.40" x 0.83"
      • Transmitter Weight: 0.3lbs
      • Receiver Weight: 0.3lbs
      • Package Weight: 1.43lbs
      • Box Dimensions (LxWxH): 7.1" x 5.5" x 2.9"

    • Item Includes:

      • 1x Transmitter
      • 1x Receiver
      • 1x User Guide
      • 1x Cold Shoe
      • 1x Expansion Accessory
      • 1x USB Type-A to Type-C data cable

    • GTIN:

      0191460001277
