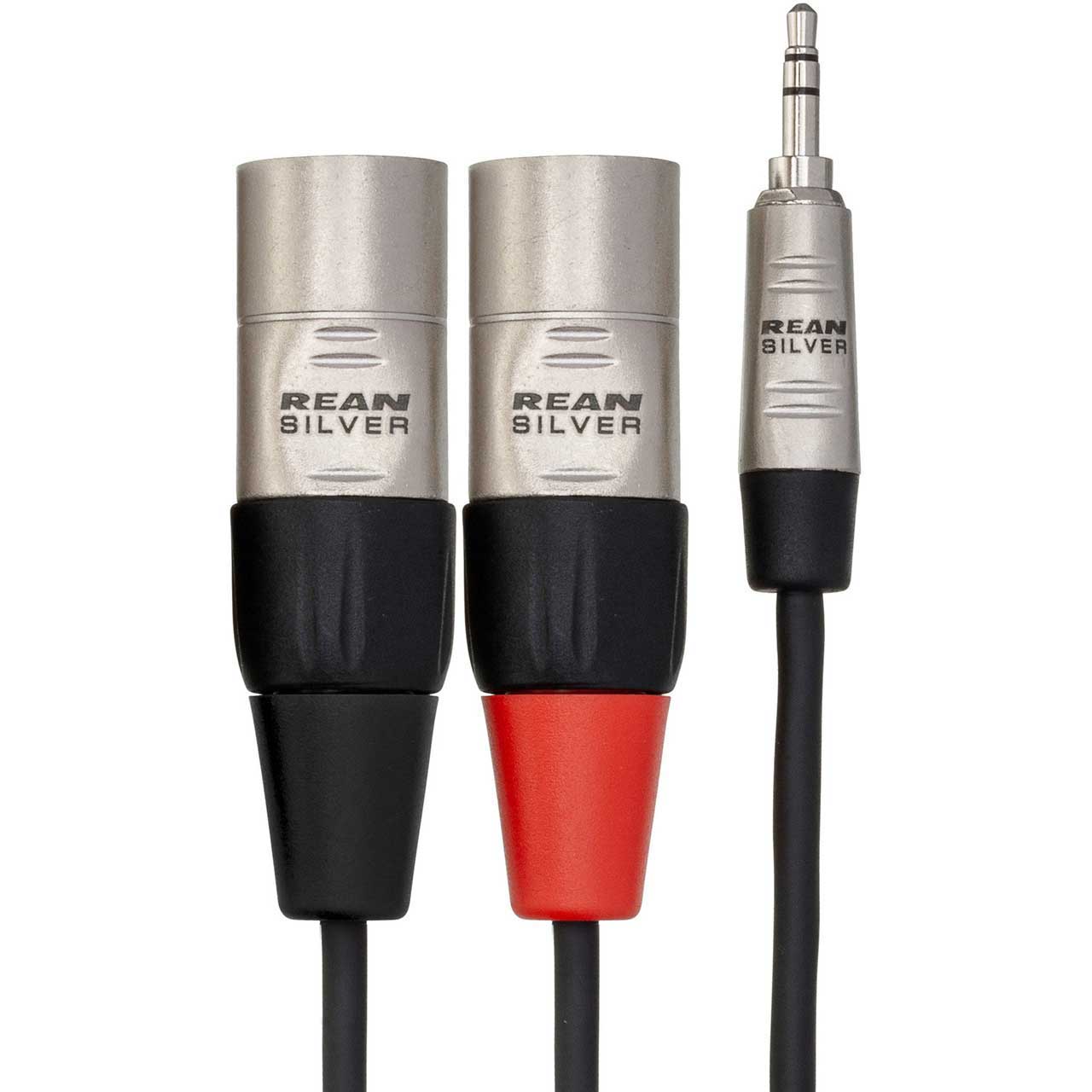

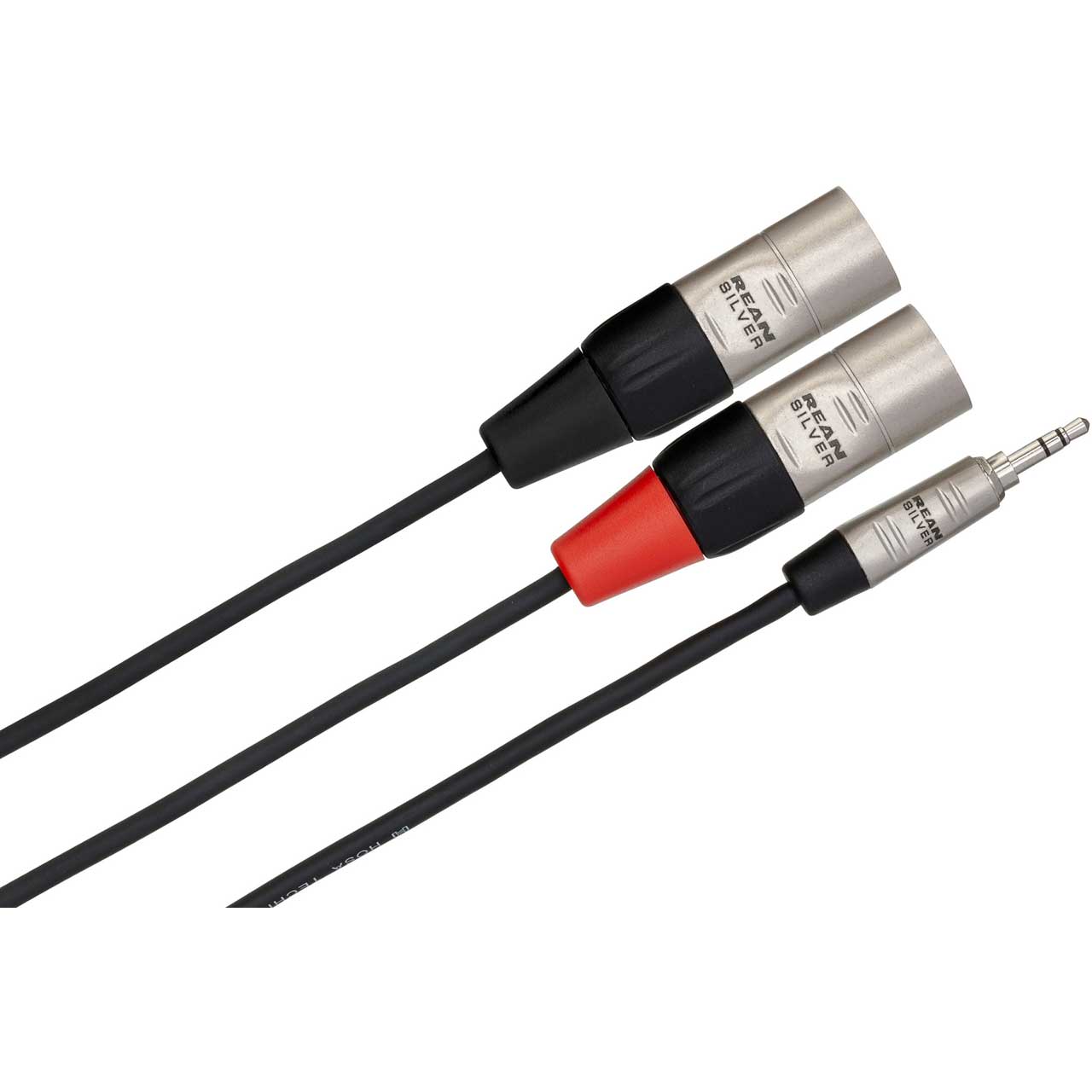

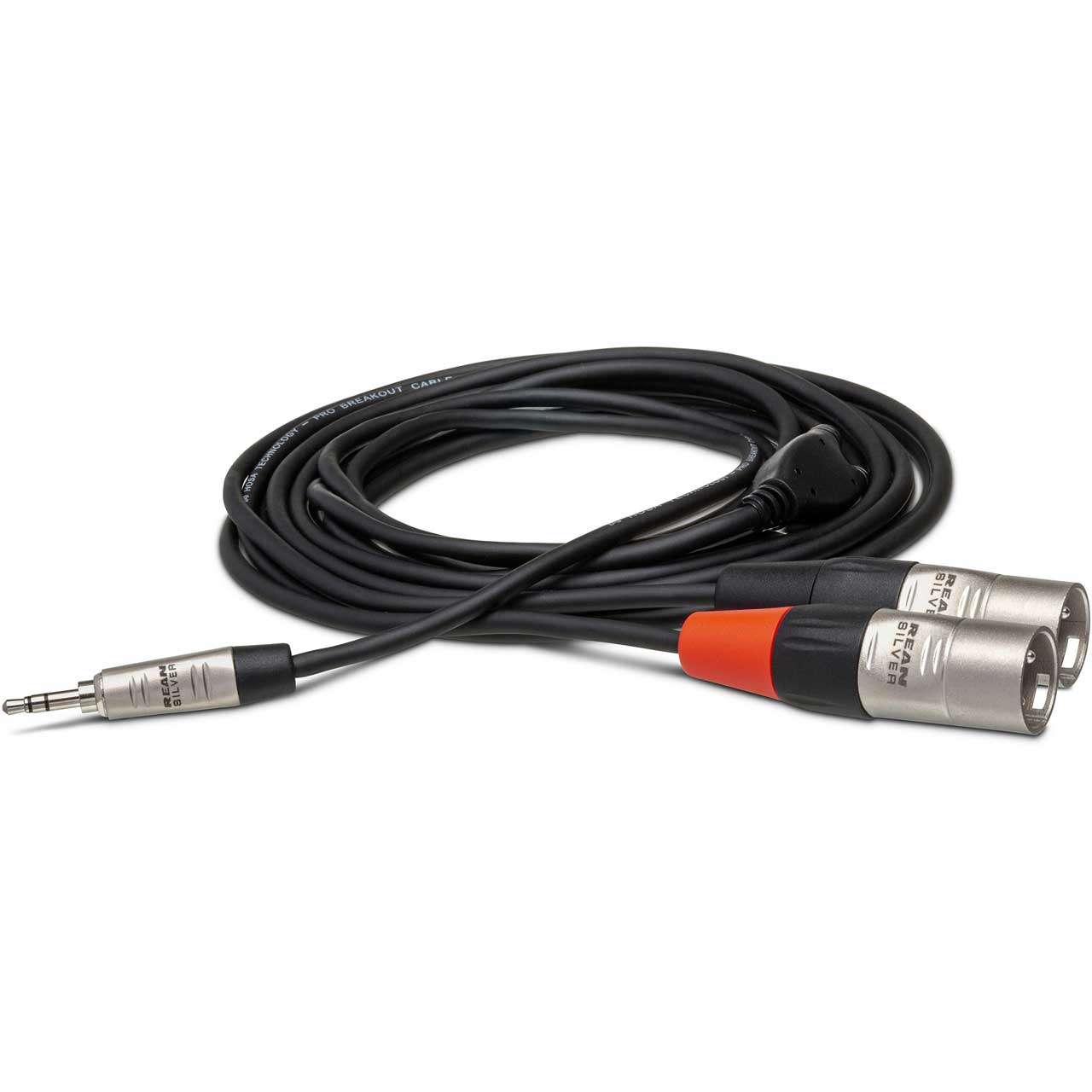

Hosa HMX-006Y Pro Stereo Breakout REAN 3.5 mm TRS to Dual XLR3M - 6 Foot

HMX-006Y - Overview

• Features:

  • Nickel-plated REAN® connectors for efficient signal transfer and durability
  • 24 AWG Oxygen-Free Copper (OFC) conductors for enhanced signal clarity
  • 90% OFC spiral shields for a higher signal to noise ratio


• Specifications:

  • Single Connector: REAN 3.5 mm TRS
  • Dual Connectors: REAN XLR3M
  • Conductors: 24 AWG OFC
  • Shield: 90% OFC Spiral
  • Conductor DC Resistance: ≤ 80 mΩ/m - 20°C
  • Screen DC Resistance: ≤ 40 mΩ/m - 20°C
  • Insulation Resistance: > 1 GΩ/km - 20°C, 500 VDC
  • Capacitance Conductor to Conductor: ≤ 80 pF/m - 1 KHz
  • Capacitance Conductor to Screen: ≤ 140 pF/m - 1 KHz
  • Test Voltage Conductor to Conductor: 500 V eff - 50 Hz, 1 Minute
  • Test Voltage Conductor/Screen: 1,000 V eff - 50 Hz, 1 Minute


• Warranty:

  • Lifetime


• GTIN:

  0728736058323
