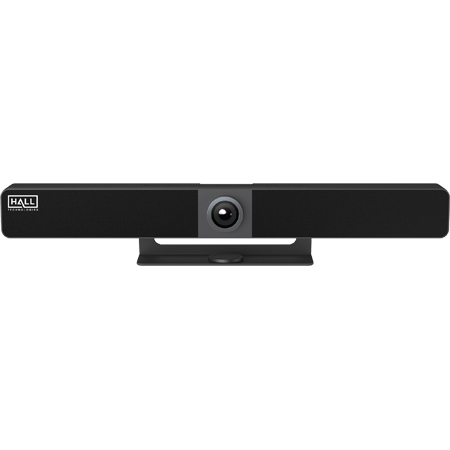

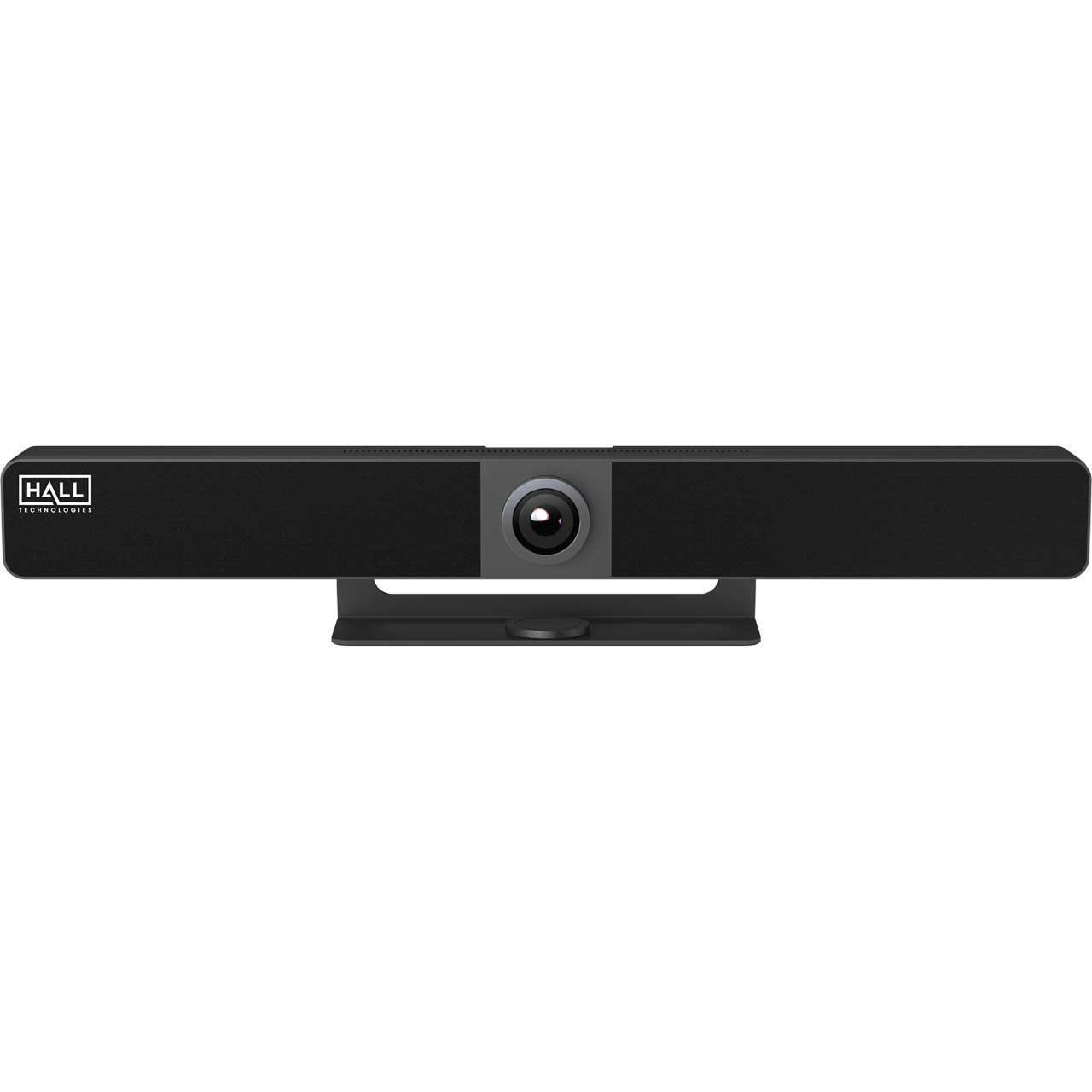

Hall Technologies HT-CALIPSO All-in-one Collaboration Videobar with Ultra-wide Angle 4K AI Camera / Mic & Speaker

ITEM #: HRT-HT-CALIPSO MFG #: HT-CALIPSO

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,749.99

Our Price:

$1,662.49

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    HT-CALIPSO - Overview

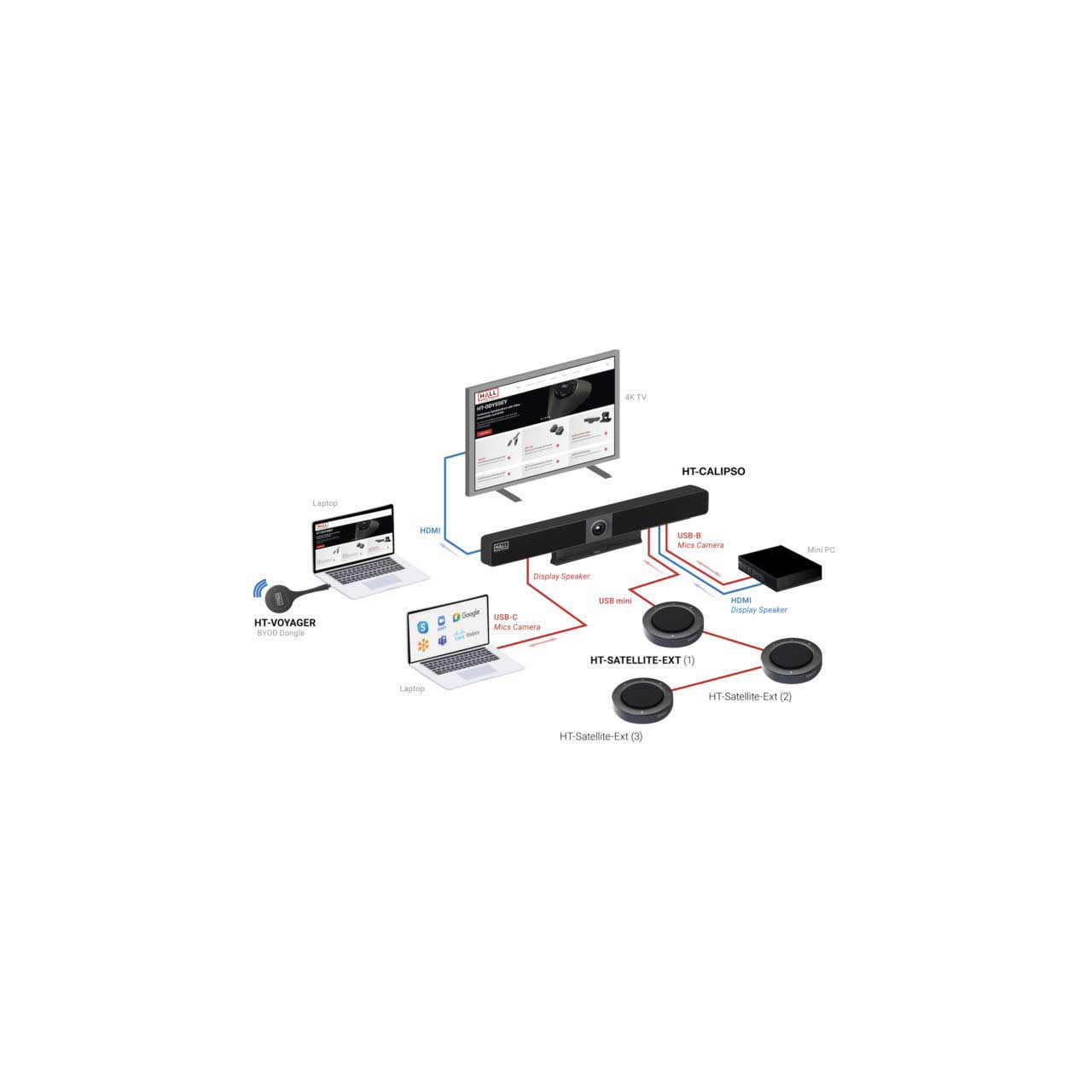

    The Hall Technologies HT-CALIPSO is an all-in-one meeting collaboration video bar with an ultra-wide angle 4K AI camera, microphone and speaker features and wireless screen presentation capability. It includes a built-in Wi-Fi module and offers multiple connection options, including AirPlay, Miracast, Smart View, HT-Voyager and physical HDMI and USB-C ports. Connecting to the HT-CALIPSO using any of these methods can project the video from the connected device to the connected display.

    The HT-CALIPSO includes multiple features such as camera auto tracking, speaker tracking, presenter tracking, Guide Screen, and OSD display. It is ideal for applications in huddle, small, and medium-sized rooms.

    • Features:

      • mart video conference collaboration bar with an all-in-one solution of video, speakers, microphone, and camera.
      • Wired screen presentation via USB-C (with DisplayPort) and HDMI.
      • Wireless BYOD via AirPlay, Miracast, and HT-Voyager (sold separately).
      • Wide angle 4K video camera with 120° FOV.
      • 4 x MEMS (micro-electromechanical system) digital microphone arrays with a range of 16~26 feet (5~8 meters) and an angle of 180°.
      • 2 x 5W Stereo full range speakers with passive radiator bass enhancement.
      • Includes AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control), ANS (Automatic Noise Suppression) and full duplex mode communication to make all participants feel like they are in the same room.
      • Built-in AI technology on the camera allowing for Auto Framing, Speaker Tracking, and Presenter Tracking.
      • Simple plug and play UCC with excellent compatibility for OS and UC applications (Zoom, Teams, Webex, etc.)
      • Provides flexible control options using Web GUI, the included Remote Controller, and using API commands.
      • Built-in Wi-Fi for wireless video casting.

    • Specifications:

      • Audio And Video

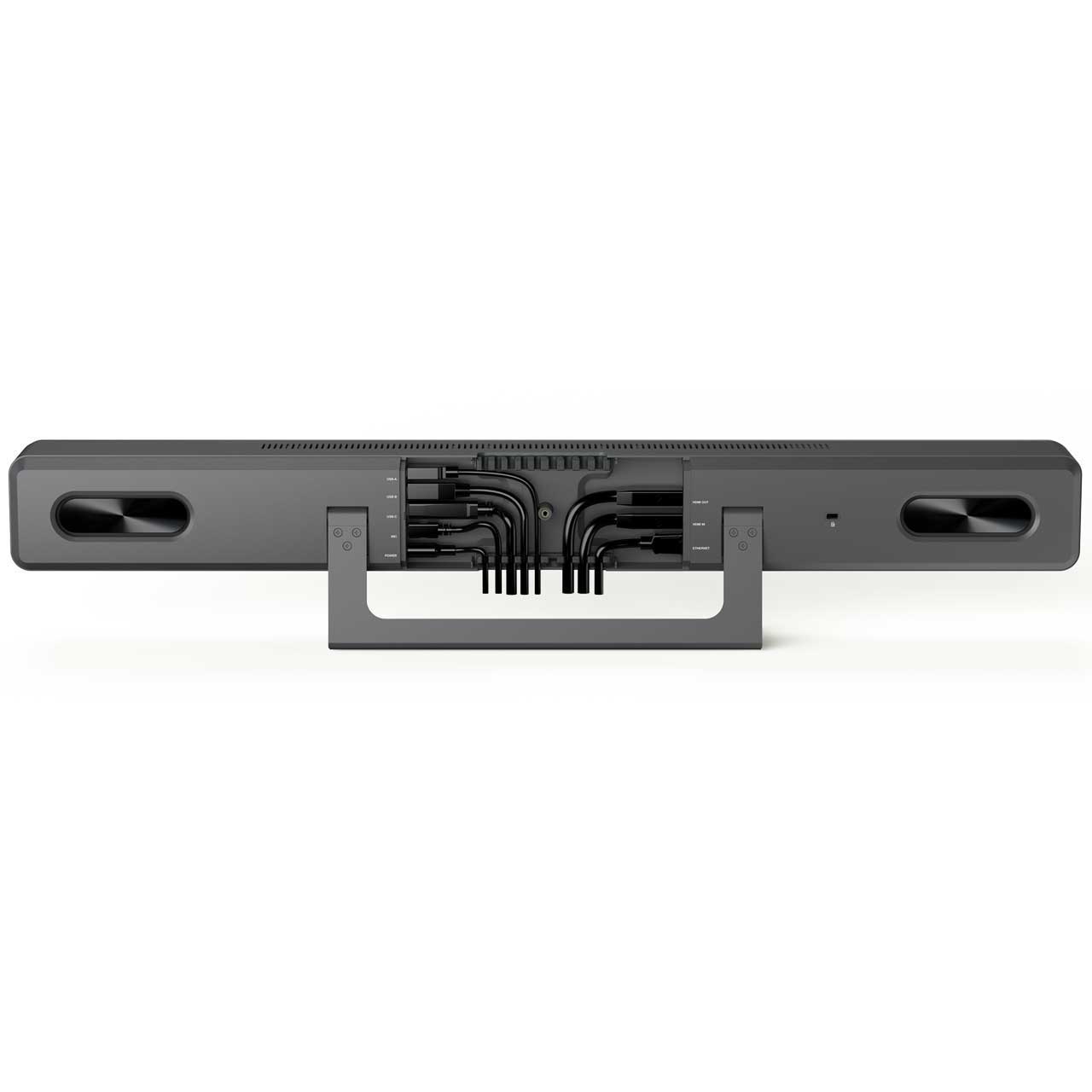

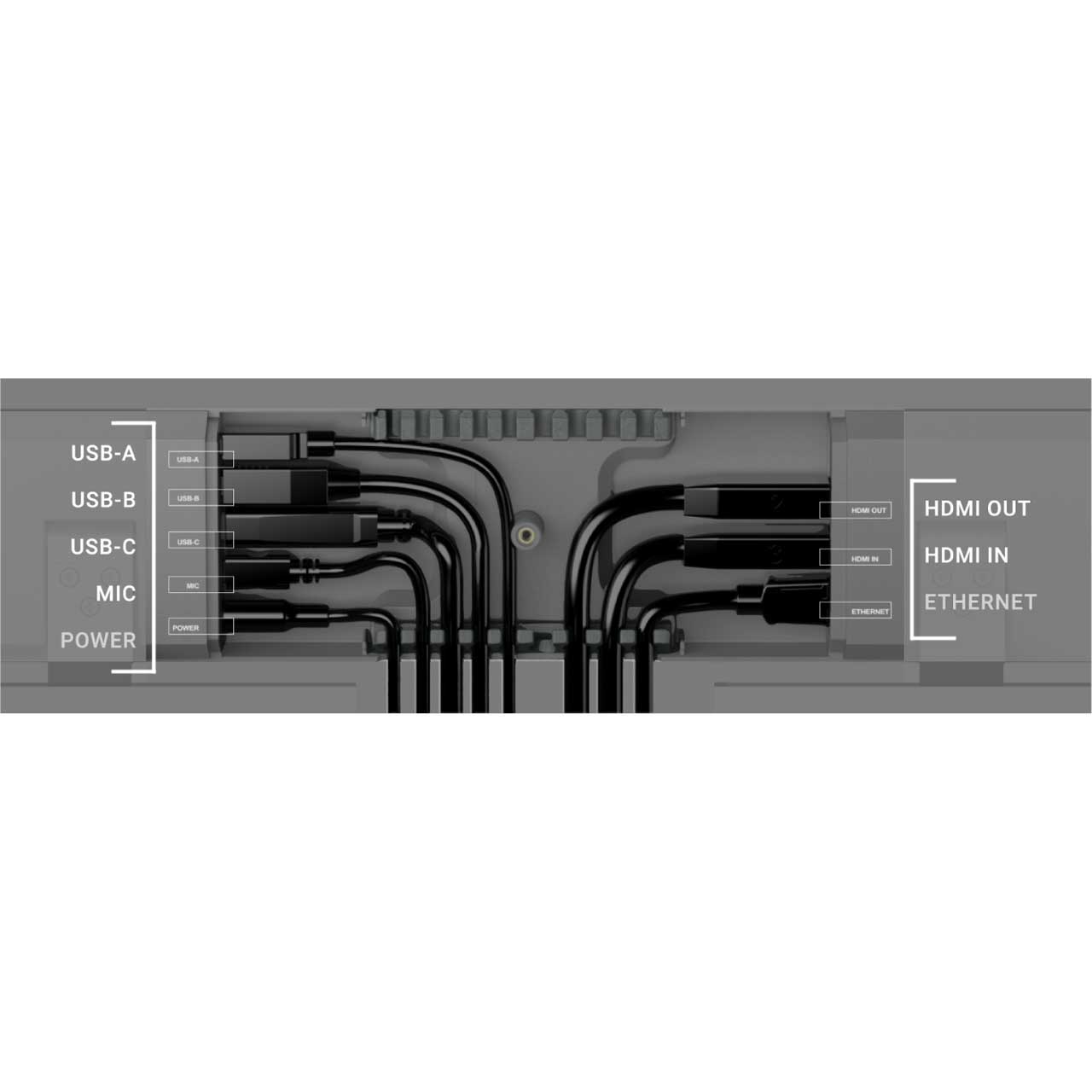

      • Interface: 1 x HDMI in, 1 x HDMI out, 1 x U-SB C, 1 x -USBB, 1 x USB-A, 1 x Mic, 1 x RJ45, 1 x DC
      • Video Resolutions: 3840x2160@30Hz 8bit 4:4:4 (Max)
      • Output Video Encoding: MJPEG/YUY2/H.264/H.265 / UVC 1.1

        Camera And Sensor
      • Lens: Fixed Focus
      • Sensor: 1/2.5",CMOS,Effective Pixek:8.0M
      • White Balance: Auto
      • Backlight Compensation: Auto
      • Digital Noise Reduction: 2D, 3D Digital Noise Reduction Supported
      • Viewing Angle: FOV: 120°
      • ePTZ: Supported / 5 x Digital Zoom
      • HDR: Supported
      • Tracking Mode: Auto Framing / Speaker Tracking / Presenter Tracking

        Speakerphone
      • Microphone: 4 x Linear microphone arrays with echo cancellation
      • Pickup Range:5m/16.4ft~8m/26.2ft
      • Speaker: 2 x 5 W

        Communication & Control
      • HDMI: HDMI 2.0, HDCP 2.2
      • USB: USB-C: USB 3.0 host (60W max charging)
      • USB-A: USB 3.0 device US- B B: USB 3.0 host
      • USB Protocol: UAC, UVC, USB HID
      • Ethernet: 1 x RJ-45
      • WLAN: IEEE 802.11 a/b/g/n/ac
      • Control Method: Web UI, Bluetooth Remote Controller

        General
      • Operating Temprature: 32°F to 104°F, 10% to 90%, non-condensing
      • Storage Temperature: 4°F to 140°F, 10% to 90%, non-condensing
      • MTBF: >30000h
      • Power Supply: DC 24V 5A
      • Power Consumption: 100W
      • Dimension (Width x Height x Depth): 27.56" x 4.99" x 3.54" (with Bracket)
      • Net Weight: 5.324lbs (with Bracket)
      • Gross Weight: 13.68lbs

    • Item Includes:

      • 1x Video Bar
      • 1x DC 24V Power Adapter
      • 1x Remote Controller
      • 1x Magnetic Lens Cap
      • 1x Wall-mounted Bracket
      • 1x Wall Hanging Bracket
      • 4x Expansion Screws
      • 4x Mounting Screws
