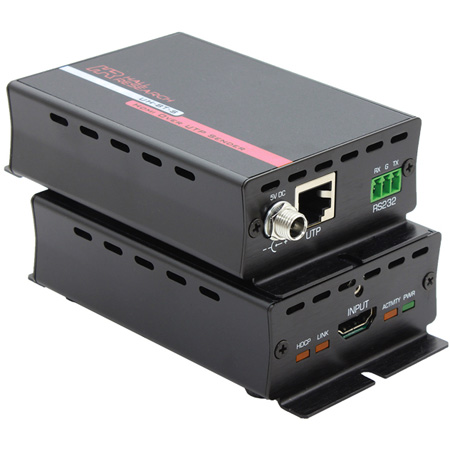

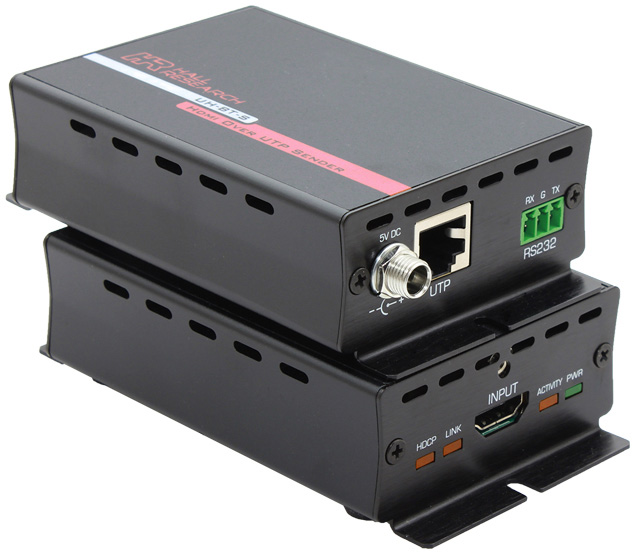

Hall Technologies UH-BT-S HDMI Over UTP Extender with HDBaseT Class B (HDBaseT-Lite) Sender

ITEM #: HRT-UH-BT-S MFG #: UH-BT-S

free ship

List Price:

$260.15

Our Price:

$247.14

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    UH-BT-S - Overview

    The Hall Technologies UH-BT and UH-BTX (UH-BT-S)are a family of HDBaseT™ compliant Senders and Receivers used to extend uncompressed HDMI video and RS-232 control signals up to 230 ft (-BT models) or 328 ft (-BTX models) over a single CAT5e/CAT6 UTP cable.

    The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD.

    Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.

    Note:
    The UH-BT and UH-BTX Senders and Receivers are compatible with each other; however the maximum distance achievable is dictated by the lower of the two - 230 ft / 70 m.

    • Features:

      • Extends HDMI (or DVI) + RS-232 over a single CAT5e/CAT6 UTP cable up to 230/328 ft (70/100 m) depending on Model
      • Optional Long Reach mode (BTX Only) to extend 1080p up to 492 ft / 150 m.
      • Utilizes HDBaseT™ Class B (HDBaseT-LiteT) extension technology
      • Can connect to all HDBaseT™ and HDBaseT-Lite™ compliant products
      • Full HD support for 1080p deep color, 3D, and 4K UHD
      • HDCP Compliant with pass-thru EDID from display back to source
      • CEC pass-thru for simplified control among compatible devices
      • Uncompressed digital video extension guarantees 100% fidelity
      • Reliable, trouble free operation
      • Plug and Play - no user configuration required
      • Sturdy, compact metal enclosure with mounting provisions
      • Compatible with Locking HDMI connectors
      • Universal Power Supplies with Locking connectors
      • Designed and manufactured in USA

    • Specifications:

      • Max Distance: 230 ft (70m)
      • Video Standards:
        DVI (single link)
        HDMI 1.4 video specifications including 4K UHD, 12 bit color depth and 3D video support
        HDCP 1.4
      • Connectors: UH-BT-S
        1x HDMI Input
        1x 3-pin RS-232 screw terminal
        1x UTP Output
        1x 2.0 mm Locking DC Power Jack input
      • Video Resolutions:
        DVI signal VGA (640x480) thru WUXGA (1920x1200)
        HDTV signal 480i through 4K @30 Hz 4:4:4 or 4K @60 Hz 4:2:0 UHD
      • Audio: All HDMI Embedded Audio
      • RS-232: 1x RX, TX and GND on Terminal Strip. Supports all common baud rates including 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200
      • DDC: Pass-Thru DDC for reading EDID directly from remotely connected display + HDCP handshake
      • CEC: Pass-Thru Consumer Electronics Control (CEC) for compatible devices
      • Power Supply: 100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2.0 A, regulated
      • Storage Temp: -40°F - 158°F (-40°C - 70°C)
      • Operating Temp: 32°F - 104°F (0°C - 40°C)
      • Humidity: 10% - 90%, non-condensing
      • Typical DC Current Draw: 5 VDC, 2.0 A Power Supply
      • Sender: 2.25W max
      • Receiver: 4.25W max
      • Cooling: Convection
      • Enclosure: Metal (Steel ends, Aluminum extrusion)
      • Dimensions (HxWxD): 1.18" x 2.75" x 3.85" (30mm x 70mm x 98mm) (Depth excludes connectors)
      • Product Weight: 0.75lbs (0.35kg)
      • Shipping Weight: 1.5lbs (0.70kg)
      • Safety: CE
      • EMI/EMC: CE, FCC Class A
      • MTBF: 90,000 hours (estimate)

    • Item Includes:

      • 1x UH-BT-S
      • 1x 3-pin Screw Terminal Connector
      • 1x Universal Power Supply - 5 VDC @ 2A
      • 1x User's Manual

    • Warranty:

      • 3 Year Parts and Labor Warranty

    • GTIN:

      0608415712060
