HUT-BS-G1-SPR-ST2XXA - Overview

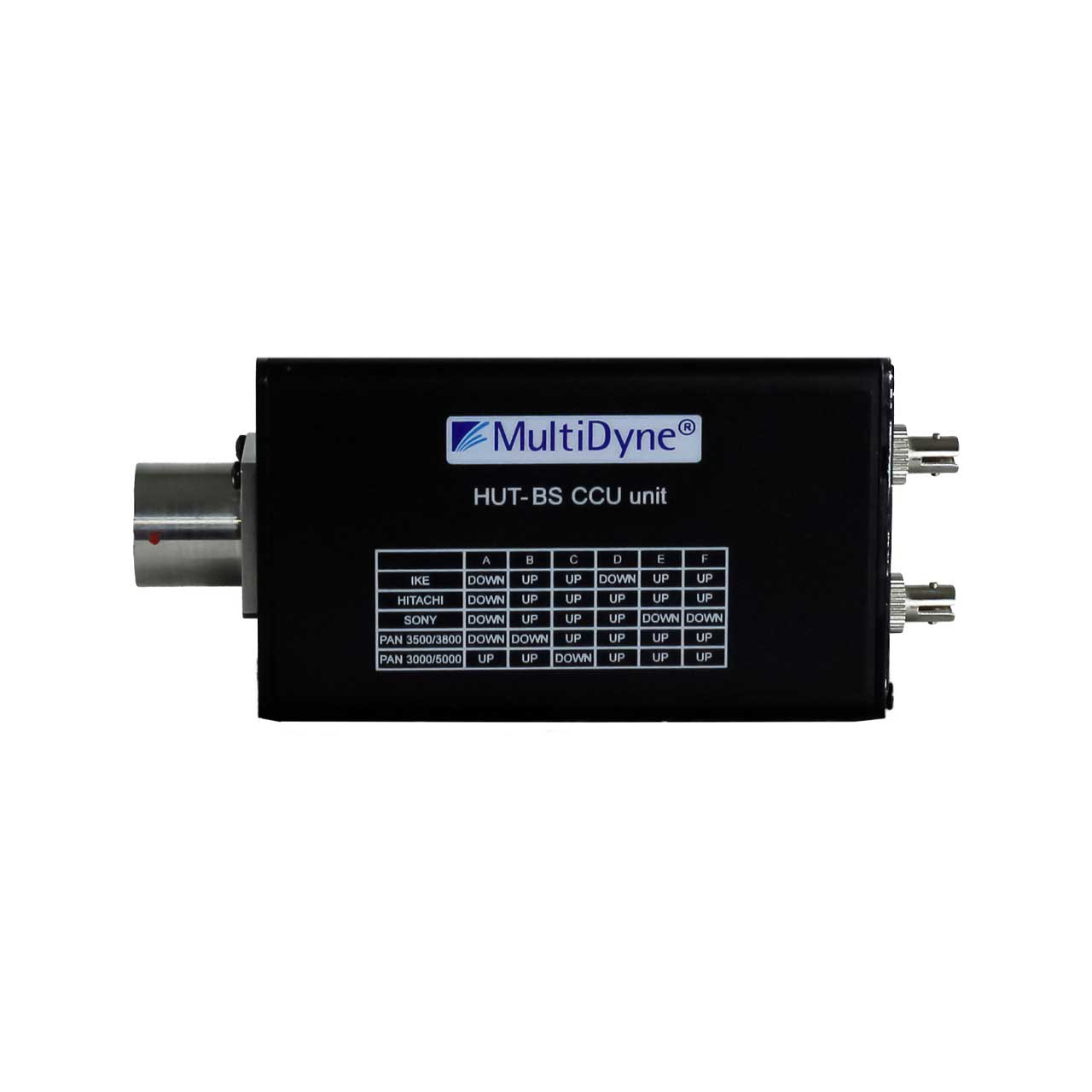

The Multidyne HUT-BS-G1-SPR-ST2XXA is a portable HUT Base/CCU Adapter. It features a SMPTE-304M socket front receptable, and 2x rear singlemode fibers (ST connectors). For Grass Valley cameras only.

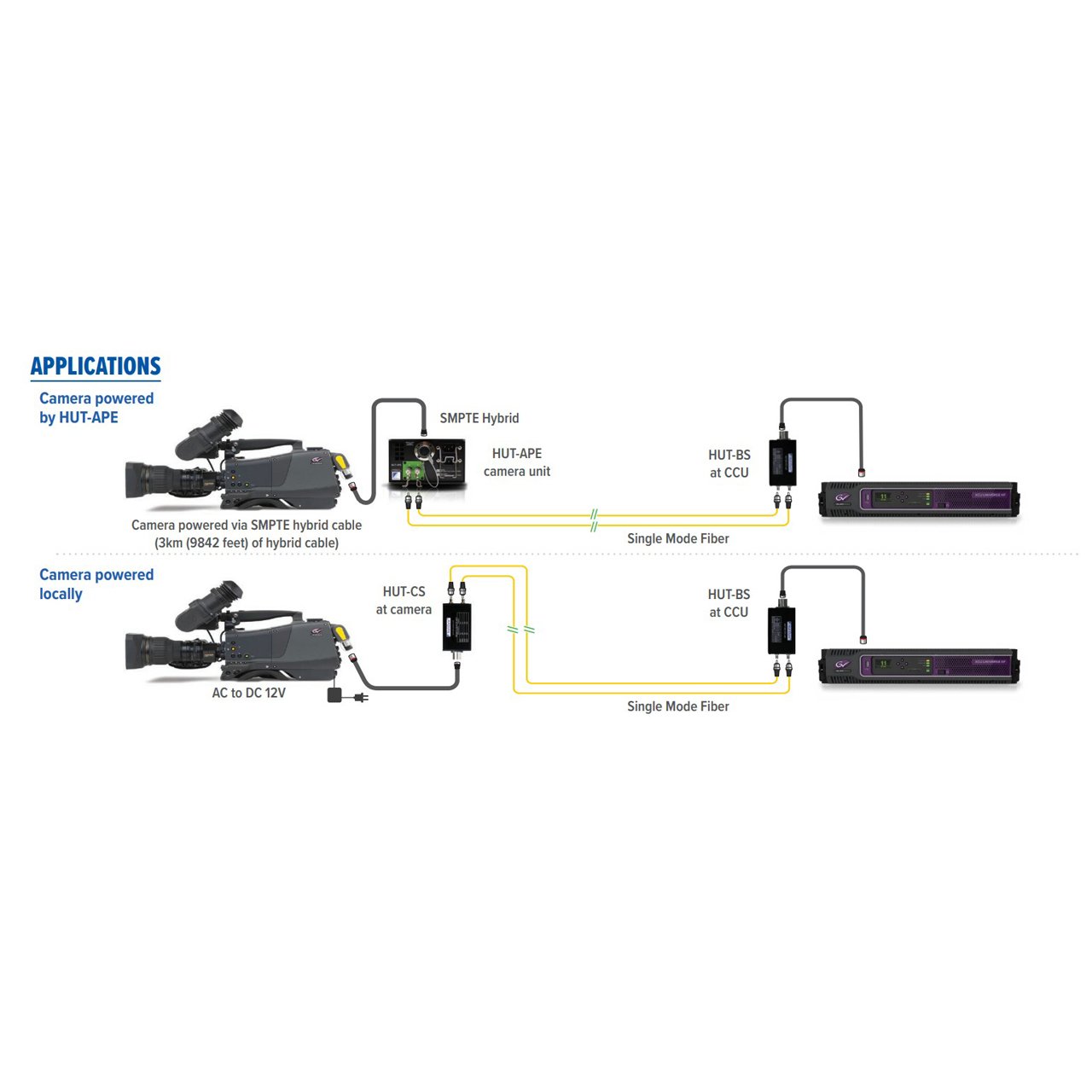

The HUT-APE system frees camera chains from the limitations of hybrid copper and fiber cabling permitting cameras to be separated from their CCUs by distances of over 10km using inexpensive, conventional single mode fiber. This has many advantages over SMPTE hybrid cable including: Eliminating RF, EMI and grounding issues, Faster set and strike times saves time and money, Reduced weight makes for lighter OB trucks, B-units and cable shipments.

The plug and play system allows camera chains to connect via a facility's fiber infrastructure or on tactical fiber cable in the field using industry-standard connectors, such as STs, LCs, SCs, or OpticalCON.
The HUT system works by "spoofing" (or "tricking") the camera and CCU into seeing a physical copper connection between them when connected only by single mode fiber cable.

Applications Include:
- Remote Broadcasting
- Sports Production
- Shared Control Rooms
- Campus Facilities
- Arenas and Stadiums

  • Features:

    • SMPTE 304M Standard
    • Operate Cameras on Plain Single Mode Fiber
    • Take Advantage of Installed Fiber Backbones
    • Extend Distance Without Sacrificing Performance
    • Plug & Play Operation with Automatic Camera Recognition
    • Carry Less Hybrid Cable
    • Choice of Optical Connectors
    • Can Provide Power for Cameras Up to 3km
    • Supports Camera Chains from Sony, Grass Valley, Panasonic,
    • and more
    • Works with Optional Optical Repeater/ Remapper FiberSaver
    • Standard Remote Camera Shut-Off
    • Rugged Design
    • Designed and Manufactured in the USA

  • Specifications:

    • Electrical: IEC 320 (3-pin)
    • Hybrid Optical: SMPTE 304M
    • Optical only: ST/UPC, SC/UPC, SC/APC, LC/UPC, OpticalCON, MX
    • Fiber Type: SingleMode
    • Input Voltage: 95-250 VAC/5.0-2.0A, 47-63Hz
    • Output Max Load: Up to 300W
    • Standby Power Consumption: <10W (no SMPTE Output Connection)
    • Temperature Range: -40C to +70C
    • Humidity Range: 0 to 95% RH
    • Dimensions: 3.456" x 5.740" x 11.269"
    • Weight: 7 lbs.

  • Item Includes:

    • 1x Multidyne HUT-BS-G1-SPR-ST2XXA HUT Base/CCU adapter
