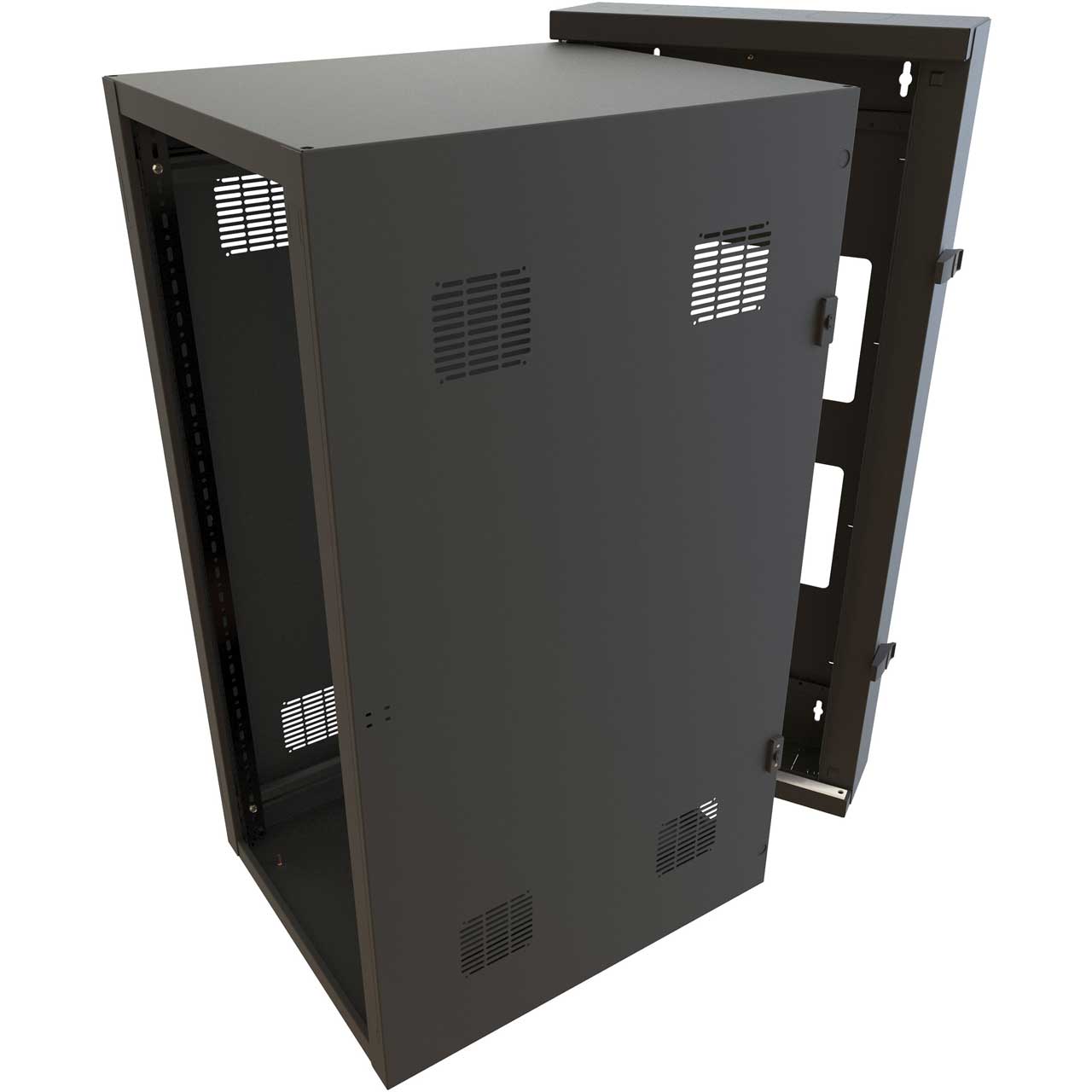

Hammond HWC2427U35BK 27RU 24 Inch Width 35D Swing Wall Cabinet for HWC Series

HWC2427U35BK - Overview

• Features:

  • Available in three (3) heights, two (2) widths and two (2) depths.
  • Optional locking doors are constructed in 16-gauge steel. The doors install in minutes and are available in vented, tinted window and solid.
  • The main body is constructed in 16-gauge welded steel and includes four (4) vents for optional fans on the sides of the cabinet.
  • Main body can be installed to swing from left-to-right or right-to-left.
  • Includes one (1) pair of adjustable depth 10-32 tapped EIA compliant mounting rack rails. Thirty (30) inch wide mounting rails include cutouts for optional 1U 19" accessories, such as cable management or power bars. 10-32 tapped rails are easy to remove on-site and replace with square hole rails (sold separately) if needed.
  • Includes starter pack of SCREW1032-50 screws.
  • Heavy duty rear bracket is constructed in 14-gauge welded steel and features a spring-hinge pin for easy installation and removal.
  • 2.50" and 2.00" conduit knockouts are located on the side.
  • 3.00" 2.00" 1.38" and 1.12" conduit knockouts are located on the top and bottom.
  • Fan knockouts/cable access located on the top and bottom.
  • Numerous cable management mounting points included.
  • Heavy duty keyhole for wall mounting.
  • Large openings in rear for cable access.
  • Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit sold separately.
  • UL Listed 2416 load rated for up to 350 lbs (158 kg). Static Load tested to 1,400 lbs (635 kg).
  • Rugged sand-textured black powder paint which reduces fingerprints and marks.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements, when door installed.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.


• Specifications:

  • Size H x W x D: 54.06 in x 24.68 in x 34.78 in
  • Shipping Weight: 184 lbs (83.46 kg)
  • Rack Units: 27
  • Rack Type: Wall Mount
  • Paint Color: Black
  • Rail Type: Tapped 10-32


• Item Includes:

  • 1x Hammond HWC2427RU35BK 27RU 24 Inch Width 35D Swing Wall Cabinet


• GTIN:

  0623980820187
