Ideal 92-212 RG-11 Plenum F-Type Compression Connectors - Pack of 10

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

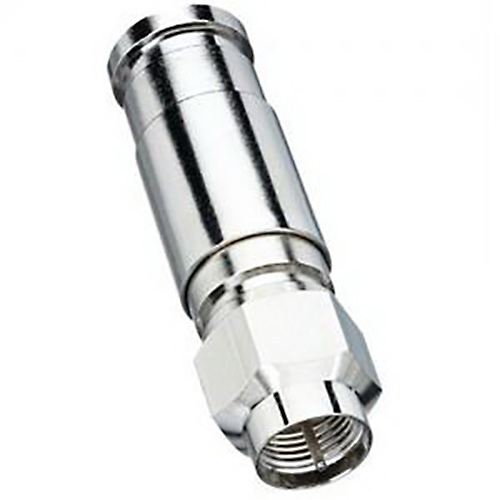

    Ideal 92-212 RG-11 Plenum F-Type Compression Connectors - Pack of 10

    Manufacturer: Ideal Industries Inc.

    Item #: IDL-92-212   •   MFG #: 92-212




    Our Price:$74.34

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Installing one-piece compression RG-11 Plenum F connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job. The 92-212 comes in a pack of 10.

      With the patented InSITE Technology feature, now standard on all IDEAL RG-11 compression connectors, field termination of these blind entry connectors is simpler, faster, and now provides a higher performance connection for all video based applications.

      The InSITE window is a 360° clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin before the connector is compressed.

      All IDEAL compression connectors require a ¼" x ¼" industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork - a confident connection every time.


      • Features

        • Designed for use in cable and satellite TV trunk/feeder installations
        • WeatherProof - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
        • Compresses in 30-793 tool without tool adjustment or adapters
        • Return loss: >25dB up to 1 GHz
        • All brass, with nickel plated bodies
        • Fixed pin won't come lose or pop out of the connector
        • Designed for optimal performance on 75Ω coaxial cables
        • Frequency range: 0 MHz to 3 GHz
        • >40 pounds cable retention on all models
        • 7/16" nut diameter with 3/8-32 thread

      • Specifications

        • Connector Model: 11PLFIS
        • Features InSITE technology
        • Accepts RG-11 Plenum coax cables
        • Center conductor range: 18-14 AWG Solid (.062" - .066")
        • Dielectric diameter range: .270" - .280"
        • Outer jacket diameter range: .340" - .356"
        • Recommended compression tool: 30-793 OmniSeal PRO XL
