Amphenol 222126 F Type Straight Crimp Plug for RG-180 RG-180 RG195 and B1855A

ITEM #: AMPH-222126 MFG #: 222126

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

222126 - Overview

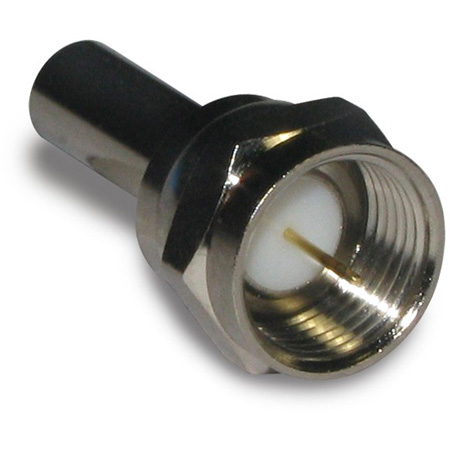

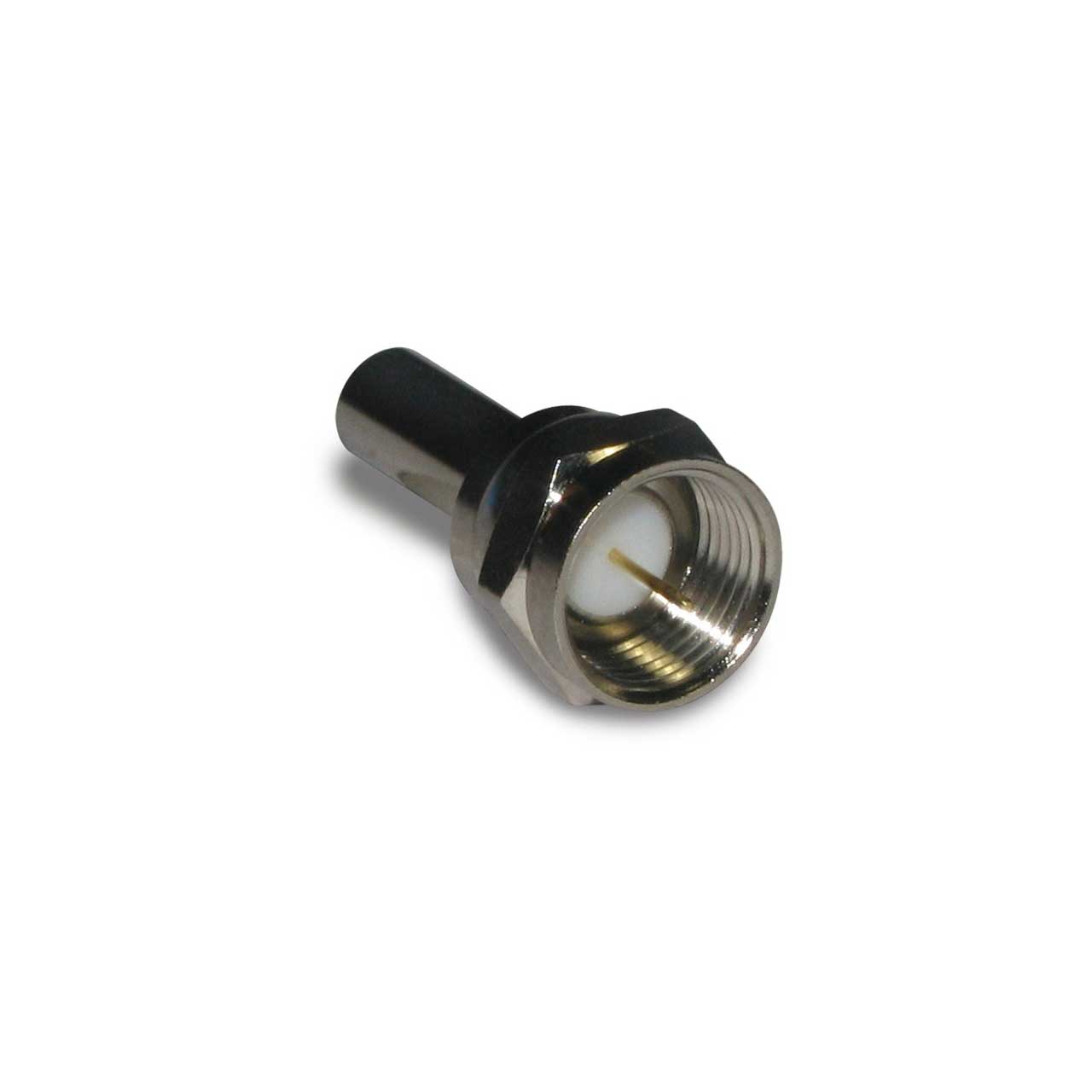

Amphenol 222126 is an 75 Ohm F Type Straight Crimp Plug for RG-180, RG-195, B1855A, B8218 cables. Other cables also specified are Belden 1855A, Belden 1865A, RG-122, RG-180, RG-180A, RG-180B, RG-195.

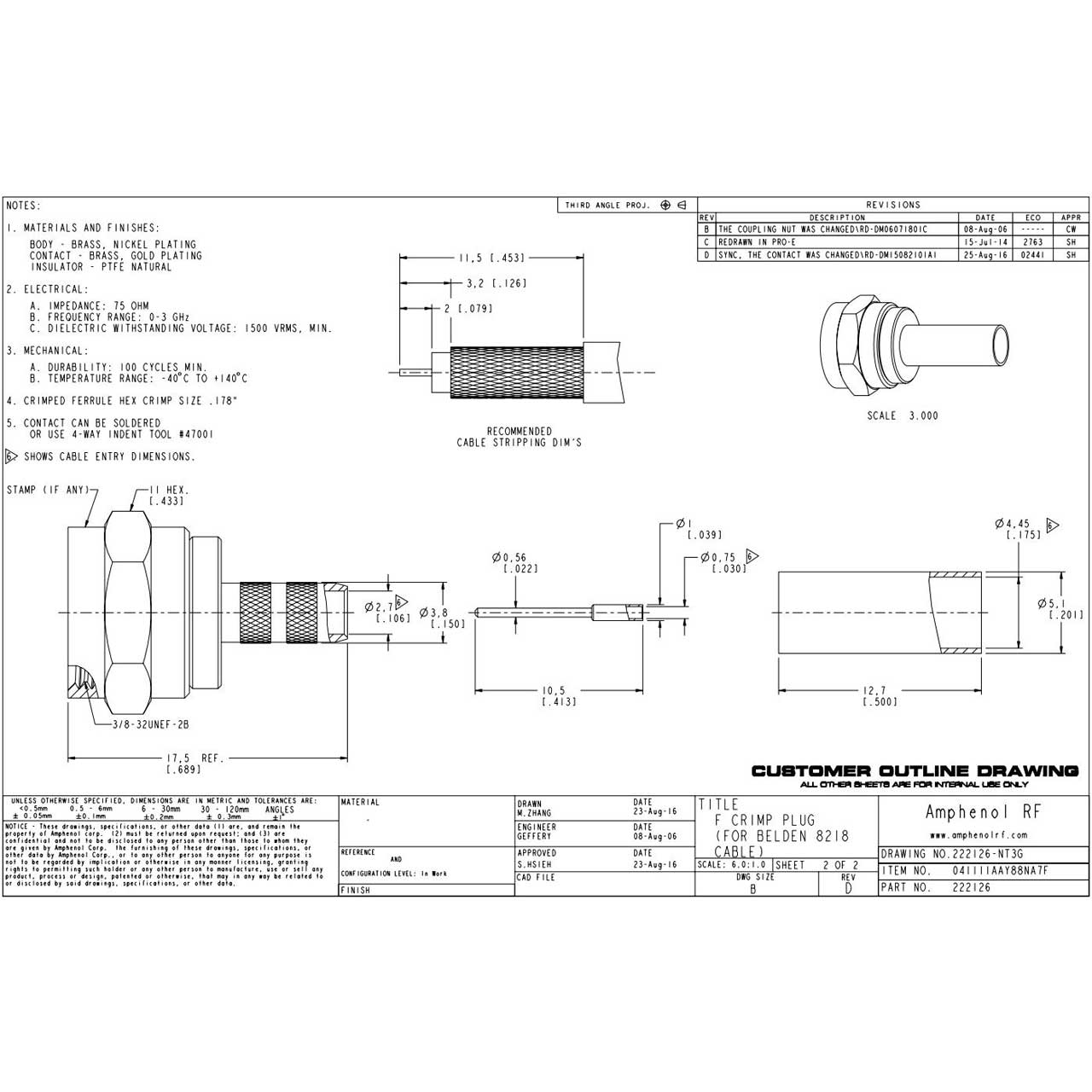

Please Note: Contact can be soldered or use Amphenol 4-way indent tool #47001.

Ferrule can be crimped .178" Hex cavity needed on die.

  • Specifications:

    • Brand Amphenol Connex
    • Gender Plug
    • Orientation Straight
    • Termination Style Cable - Crimp
    • Impedance (Ohms) 75
    • Body Finish Nickel
    • Body Material Brass
    • Contact Finish Gold
    • Contact Material Brass
    • Contact Termination Style Crimp
    • Insulator Material PTFE
    • Cable Group K3
    • Cable Type Belden 1855A, Belden 1865A, RG-122, RG-180, RG-180A, RG-180B, RG-195
    • Coupling Mechanism Threaded
    • Max Frequency (GHz) 2
    • Polarity Standard
    • Thread Direction Standard
    • Min. Temp. (Celsius) -65
    • Max. Temp. (Celsius) 165
    • Mating Cycles 500
    • Weight (Grams) 4.5
    • Package Type BAG
