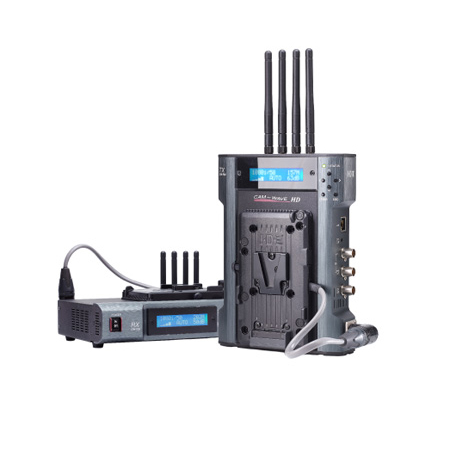

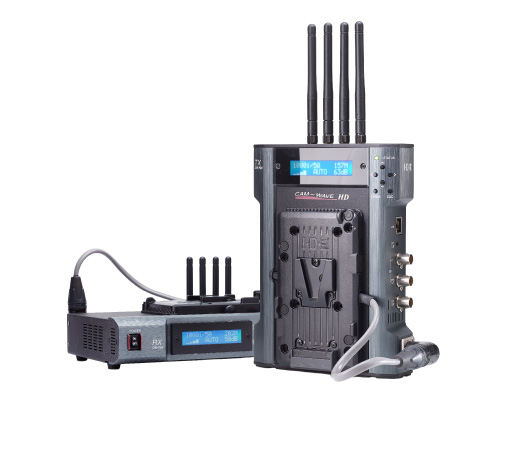

IDX CW-F25 H.264 Wireless 3G-SDI/HD-SDI Video System

Manufacturer: IDX System Technology

Item #: IDX-CW-F25   •   MFG #: CW-F25




Our Price:$7,765.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.


Share!





Designed for on air video contribution, the new CW-F25 wireless HD-SDI transmission system offers superior image quality transmitting H.264 High Profile video at up to 25Mbps. Adaptive variable bit rate prevents sudden disconnection and range is enhanced by the use of beam forming technology operating over 4 x 4MIMO channels. Supported across the link are return video, intercom, tally, RS422 remote and Ethernet I/O giving the remote camera operator the features of a wired link in a license free product.

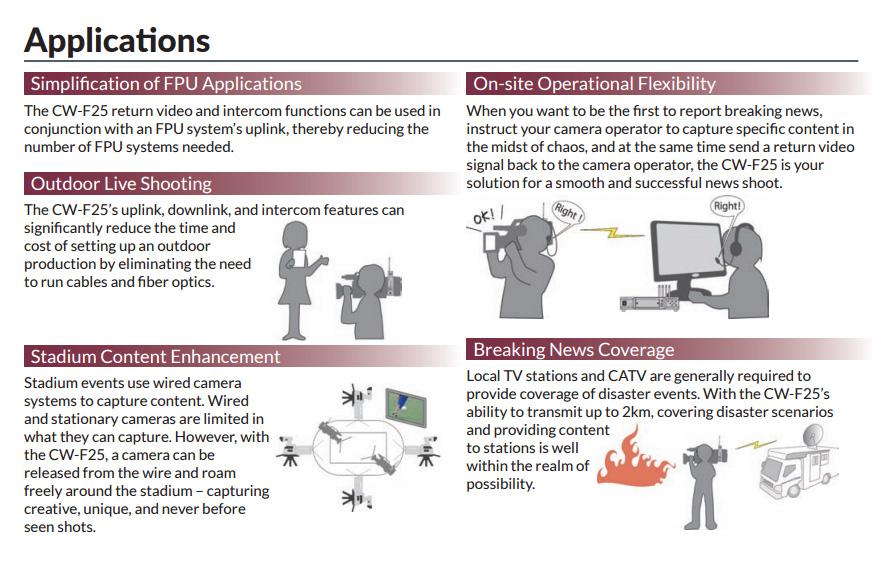

APPLICATIONS

Simplification of FPU Applications
The CW-F25 return video and intercom functions can be used in conjunction with an FPU system's uplink, thereby reducing the number of FPU systems needed.

Outdoor Live Shooting
The CW-F25's uplink, downlink, and intercom features can significantly reduce the time and cost of setting up an outdoor production by eliminating the need to run cables and fiber optics.

On-site Operational Flexibility
When you want to be the first to report breaking news, instruct your camera operator to capture specific content in the midst of chaos, and at the same time, send a return video signal back to the camera operator. The CW-F25 is your solution for a smooth and successful news shoot.

Breaking News Coverage
Local TV stations and CATV are generally required to provide coverage of disaster events. With the CW-F25's ability to transmit up to 2km, covering disaster scenarios and providing content to stations is well within the realm of possibility.

Stadium Content Enhanced
Stadium events use wired camera systems to capture content. Wired and stationary cameras are limited in what they can capture. However, with the CW-F25, a camera can be released from the wire and roam freely around the stadium - capturing creative, unique, and never before seen shots.


  • Features

    • Transmits video and audio up to 6,561ft / 2000m max. free-line-of-sight
    • High Quality Video 3G-SDI /HD SDI over H.264 compression at up to 25Mbps transmission rate
    • Adaptive Variable Bit Rate Control to provide a robust link at the highest sustainable video quality
    • Beamforming Technology makes a directional beam between the transmitter and receiver limiting interference from other 5GHz users and providing a strong stable link.
    • DFS (Dynamic Frequency Selection) provides auto selection from 9 channels in total.

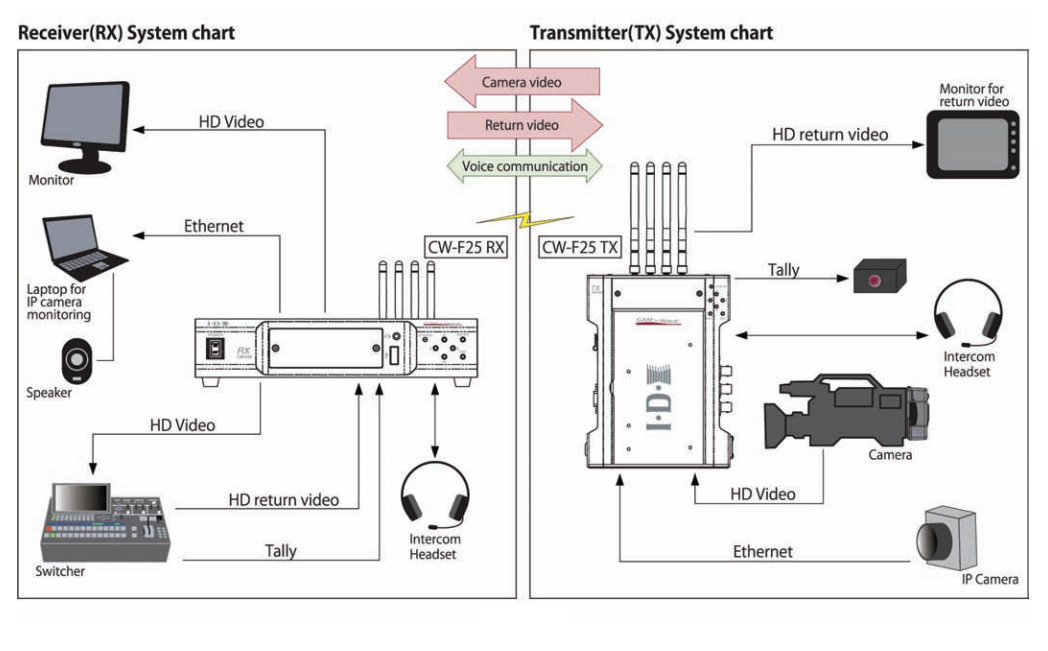

    • Bidirectional Signal and Data Transmission supporting return video, intercom, tally and RS422 control data
    • Wireless LAN Bridge Ethernet I/O at both Tx and Rx making a wireless bridge to support an IP camera feed, remote controller or other data link
    • 4 channels of high quality embedded PCM audio
    • License free operation, fully certified for use in Europe

  • Specifications

    • Frequency: 5.190 GHz band IEEE 802.11n
    • Freq. Selection: 4 selectable channels & DFS (DFS Auto Indoor & DFS Auto Outdoor)
    • Frequency Bandwidth: 40MHz per channel
    • Encryption: WPA2-PSK (AES)
    • Transmit Method: H.264 high profile to 25Mbps
    • Modulation: OFDM (Orthogonal Frequency Diversity Multiplexing)
    • Latency: Typically 6 frames / 250ms
    • Transmit Range: Up to 2000m/6561ft max (free-line-of-sight)
    • Video/Audio: Video: HD-SDI (SMPTE 292M); SD-SDI (SMPTE 259M-C)
    • Audio: Ch 1 & 2 SDI embedded
    • Video Formats: 3G-SDI: 1080p: 60/59.94/50
    • HD-SDI: 4:2:2 10-bit
    • 1080i: 60/59.94/50,
    • 1080p: 30/29.97/25 /24 /23.98
    • 1080PsF: 30/29.97/25/24/23.98
    • 720p: 59.94/50
    • Power Requirement: 7~17V via 4-pin XLR
    • Power Consumption: TX / RX: 15W approx.
    • Dimensions: Tx: 7.93 (H) x 6.06 (W) x 1.73 (D) inches approx.
    • Rx: 1.92 (H) x 8.38 (W) x 6.18 (D) inches approx.
    • Weight: TX: 2.5 lbs approx.
    • RX: 2.4 lbs approx.

  • Item Includes

    • 1x CW-F25 Transmitter
    • 1x CW-F25 Receiver
    • 8x Standard antenna
    • 2x Headset
    • 2x V-Plate
    • 1x V-Mount Adapter Plate

  • Warranty

    • 1 Year
