AX17 - Overview

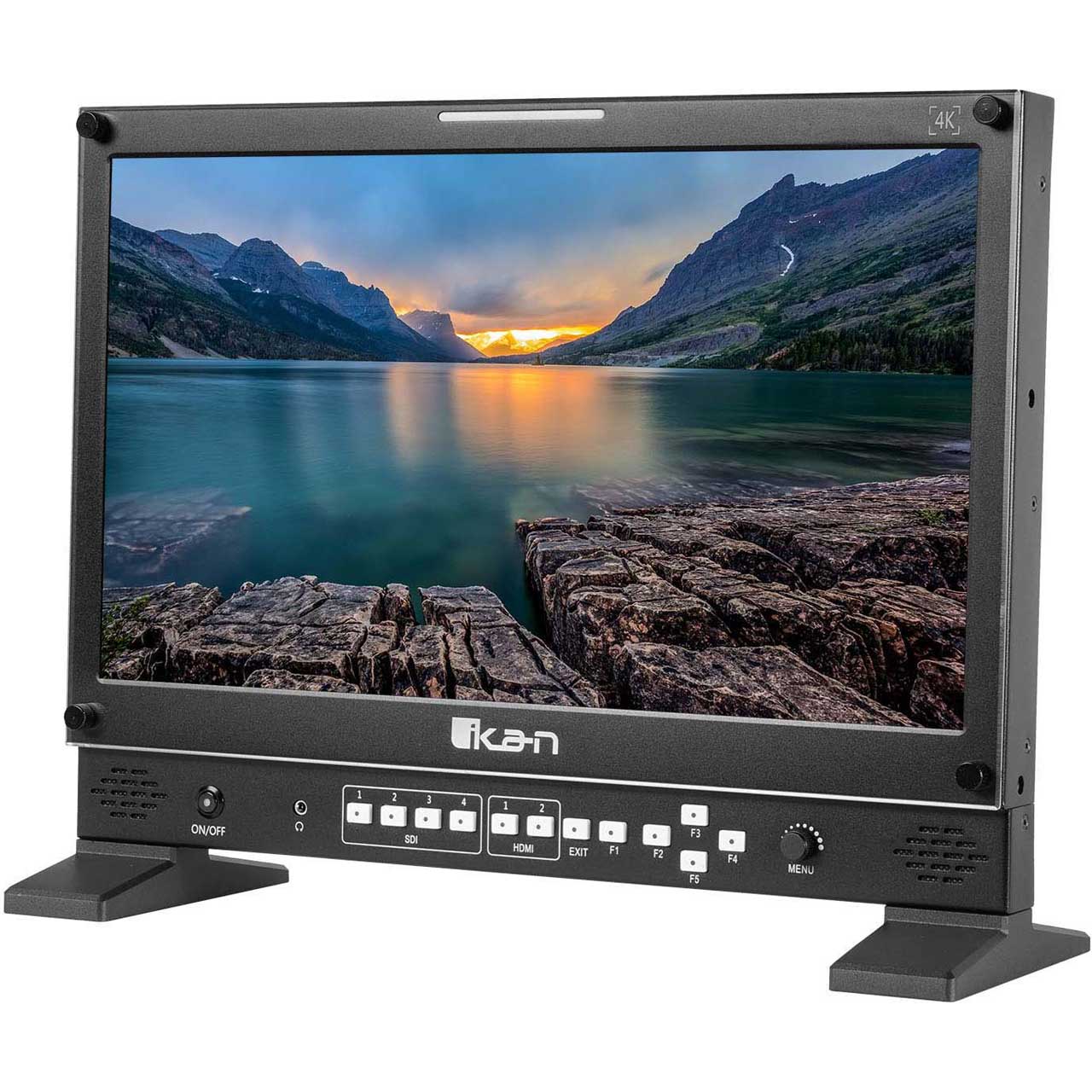

The ikan Atlas AX17 is a native 4K production monitor that features exceptional image quality at an affordable price. The 17" IPS LCD panel features great viewing angles, accurate color, and a contrast ratio of 1000:1. The AX17 features four 3G-SDI inputs and two HDMI inputs which can be used for a quad split display or dual split side by side or above and below. The 3840x2160p resolution allows you to have up to four 1080p quadrants on the screen at one time.

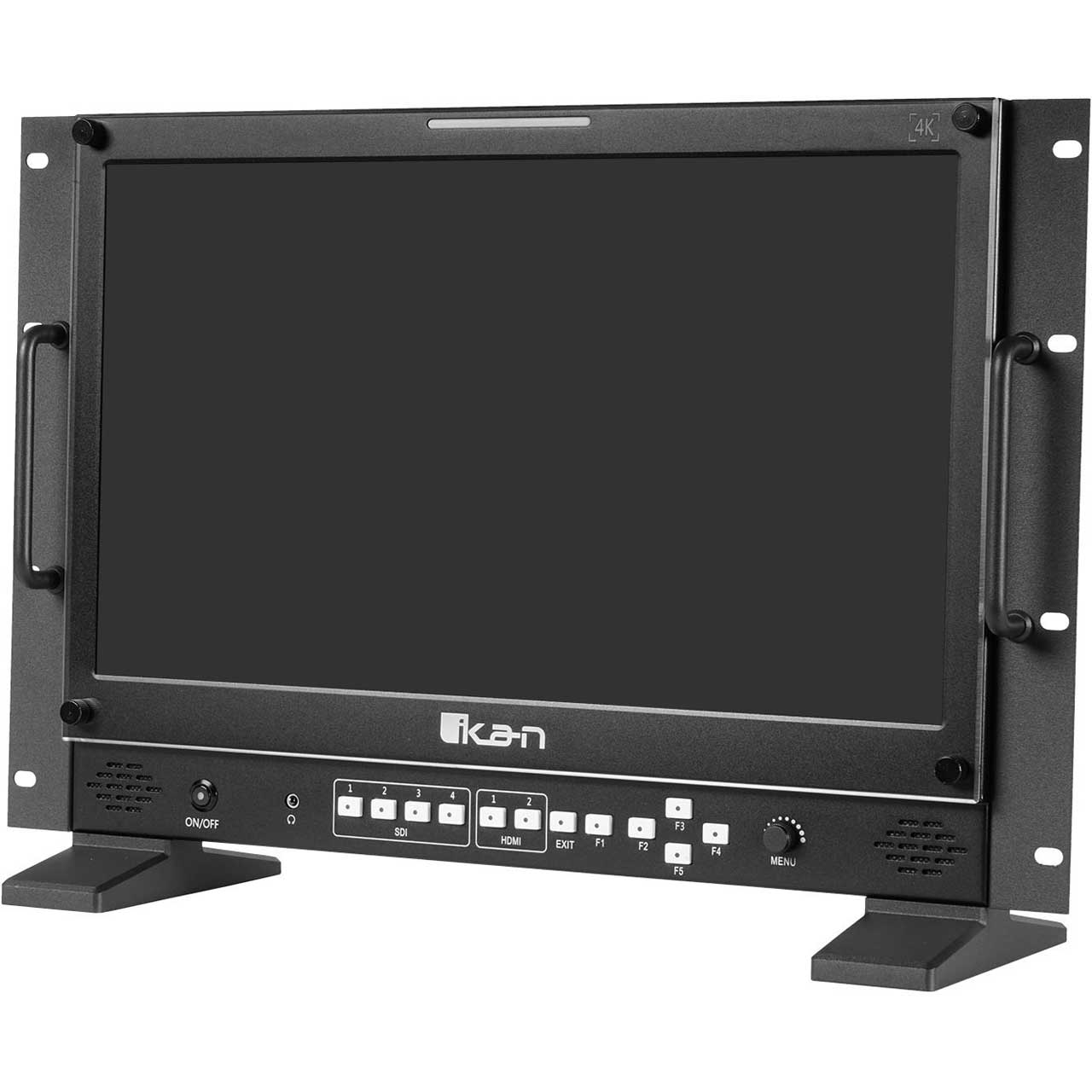

The AX17 comes with a host of accessories that allow it to be used for multiple purposes! The included light stand adapter allows it to be mounted on a 5/8" light stand. The rack mount set can be installed so the monitor fits in 8U rack mountable equipment. And it has a 100 x 100 VESA pattern for wall and ceiling mount compatibility.

  • Features:

    • 3840 x 2160 LCD
    • 4x 3G-SDI input and output
    • Quad split display
    • 4K signal HDMI support
    • Peaking, check field, center mark, safe area, under scan, ratio, horizontal and vertical flip

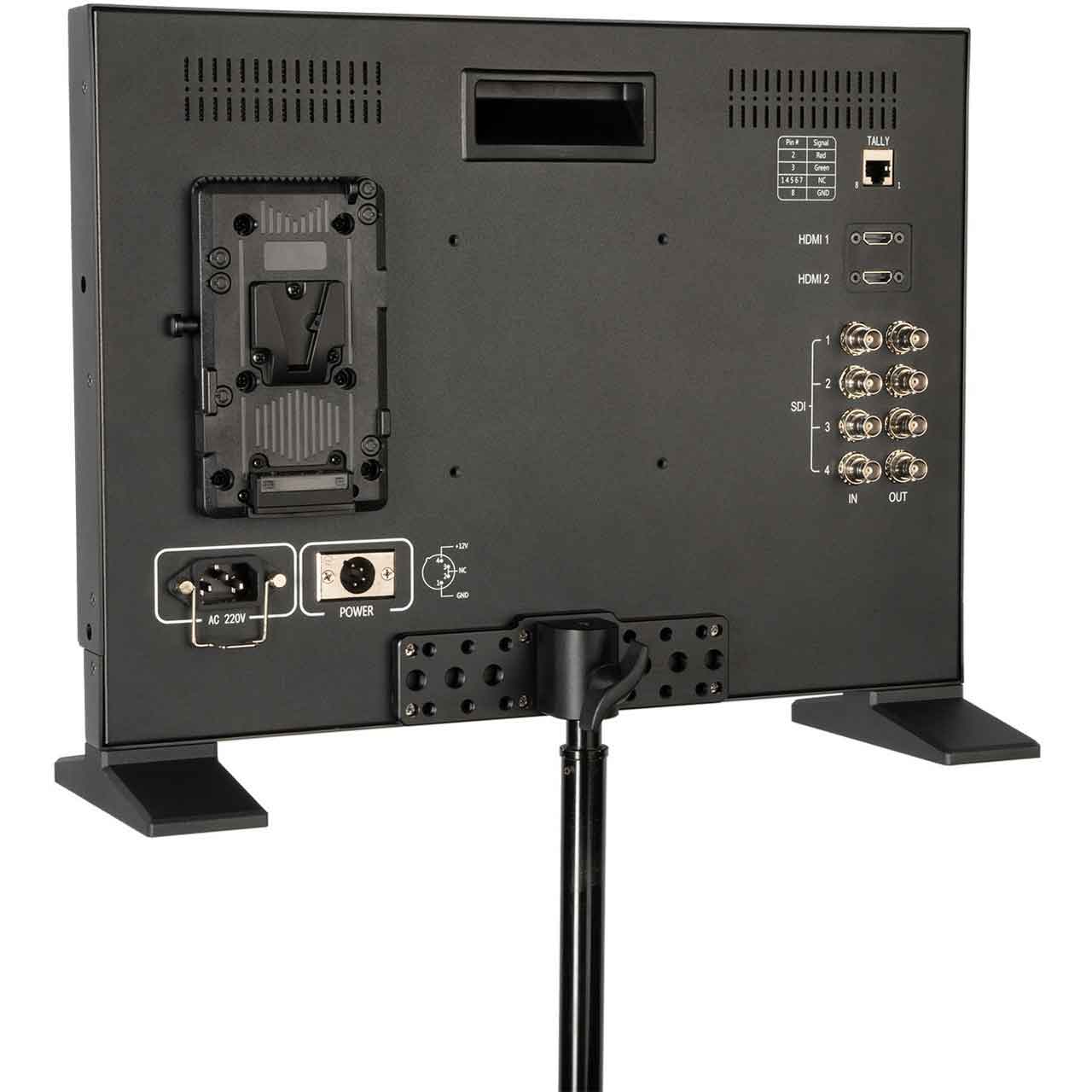

    • HDMI input, 3G-SDI input and output, 3.5mm audio output, tally input
    • V-Mount battery plate, light stand adapter, and rack mount set included
    • 100 x 100 VESA mounting

  • Specifications:

    • Shipping Weight: 19Lbs
    • Shipping Dimensions: 23.5 x 16 x 8.5"
    • Product Weight: 8.5Lbs
    • Product Dimensions: 16.5 x 13 x 3.5"
    • Supported Video Signal:
    • 3G-SDI:
      720x480i @ 59.94, 60Hz
      720*576i & 720*576p @ 50 Hz
      1280*720p @ 50, 59.94, 60 Hz
      190x1080i @ 50, 59.94, 60 Hz
      1920x1080psf @ 50, 59.94, 60 Hz
      1920x1080p @ 23.93, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
    • HDMI:
      720x480i & 720*480p @59.94, 60 Hz
      720x576i & 720*576p @ 50 Hz
      1280x720p @ 50, 59.94, 60 Hz
      1920x1080i @ 50, 59.94, 60 Hz
      1920x1080psf @ 24, 25, 29.97, 30 Hz
      1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
      3840x2160p @ 24, 25, 30, 60 Hz
      4096x2160p @ 24 Hz
    • Aspect Ratio: 16:9
    • Brightness: 400 cd/m2
    • Build Material: Aluminum
    • Color: Black
    • Contrast Ratio: 1000:1
    • Dimensions: 16.5 x 13 x 3.5"
    • Inputs: 4x 3G-SDI; 2x HDMI
    • Outputs: 4x 3G-SDI, 1x Audio Jack
    • Power Adapter: 12V 5A
    • Resolution: 3840 x 2160
    • Screen Size: 17"
    • Viewing Angle: 178° (horizontal/vertical)

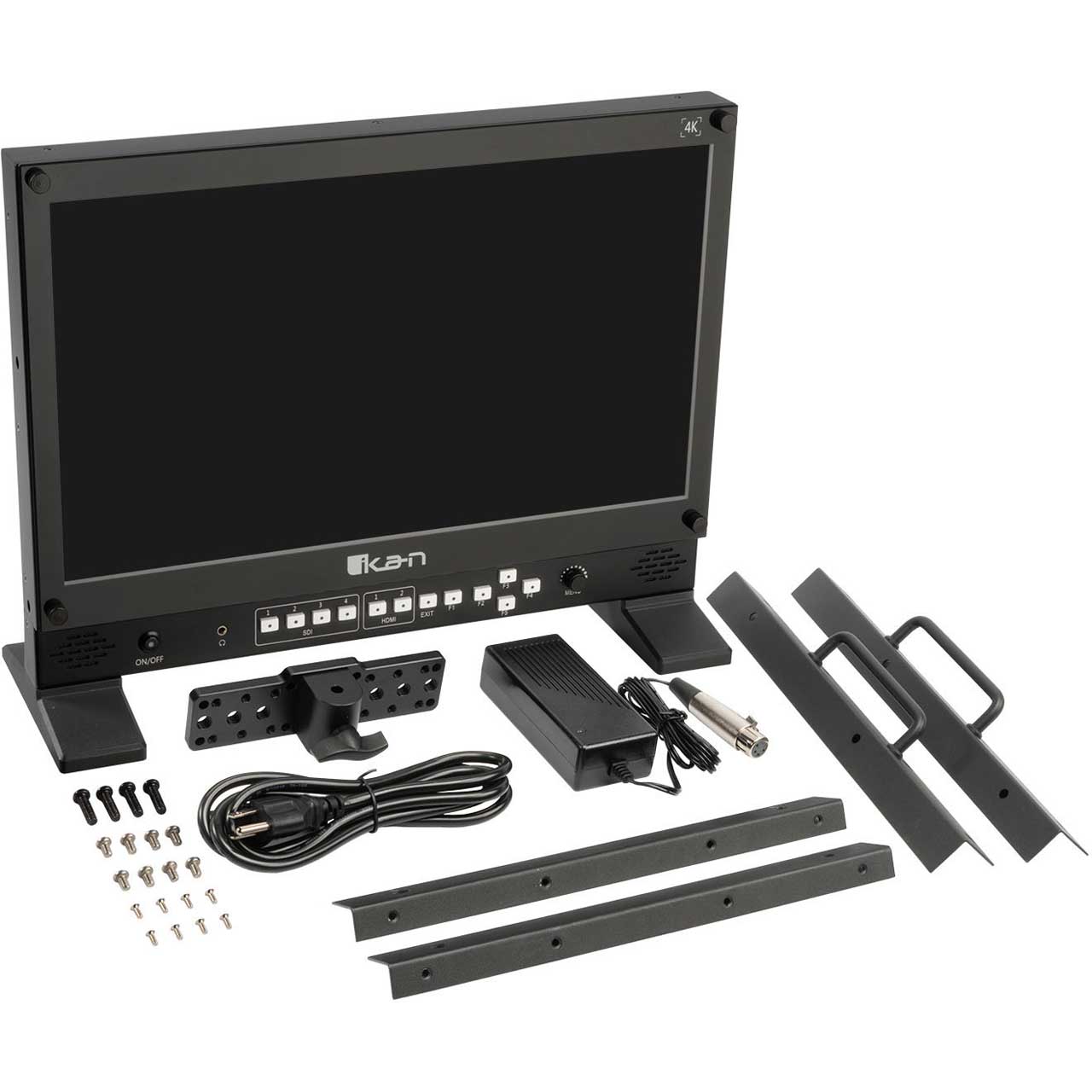

  • Item Includes:

    • 1x AX17 Monitor
    • 1x Light Stand Mount
    • 1x Power Adapter with Cord
    • 1x Rack Mount Set
