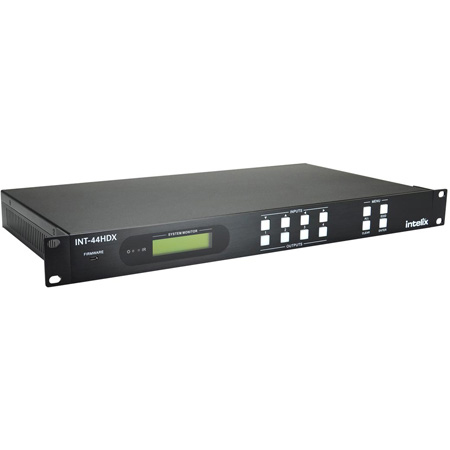

Intelix 44HDX 4x4 Matrix Switcher with HDMI and HDBaseT Ouputs
  • Intelix 44HDX 4x4 Matrix Switcher with HDMI and HDBaseT Ouputs
  • Intelix 44HDX 4x4 Matrix Switcher with HDMI and HDBaseT Ouputs
  • Intelix 44HDX 4x4 Matrix Switcher with HDMI and HDBaseT Ouputs
  • Intelix 44HDX 4x4 Matrix Switcher with HDMI and HDBaseT Ouputs
  • Intelix 44HDX 4x4 Matrix Switcher with HDMI and HDBaseT Ouputs

Questions? Ask a Markertek Expert:
800-522-2025 Email

Intelix 44HDX 4x4 Matrix Switcher with HDMI and HDBaseT Ouputs

Manufacturer: Intelix

Item #: INX-44HDX   •   MFG #: INT-44HDX



List Price:$2,860.44
Our Price:$2,574.40

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Intelix INT-44HDX is a four input by four output HDBaseT/HDMI matrix switcher with HDCP 2.2 and UHD/30 video support. The matrix features advanced EDID and HDCP handling, including the ability to turn input HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources.

    The INT-44HDX features HDBaseT twisted pair extension for each output, and simultaneous HDMI on the first two outputs, allowing the same signal to be routed to the HDMI connector and a remote destination with an HDBaseT receiver. The HDBaseT ports support up to UHD/30 HDMI video with audio, bidirectional wide-band IR, matrix control via IR, RS232 tunneling, and HDCP (1.4 and 2.2) up to 100 meters (328 feet). Each HDBaseT output port supplies power to the attached extender, eliminating the need for a power supply at the display end. Each output features analog stereo audio de-embedding and coaxial multichannel audio de-embedding for connection to amplifiers or DSPs.

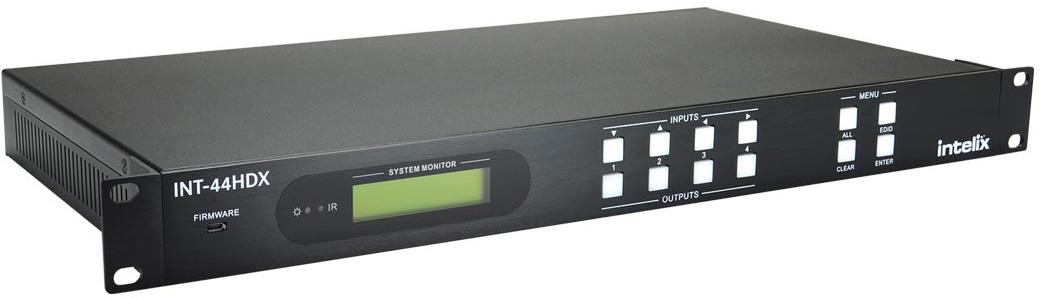

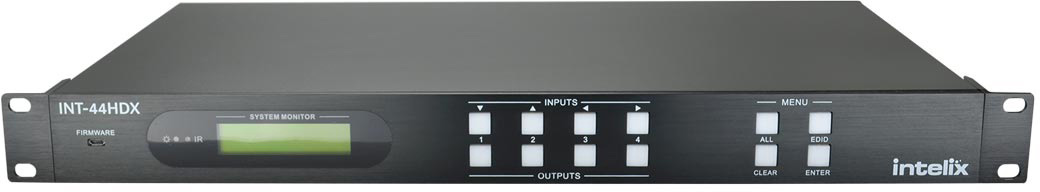

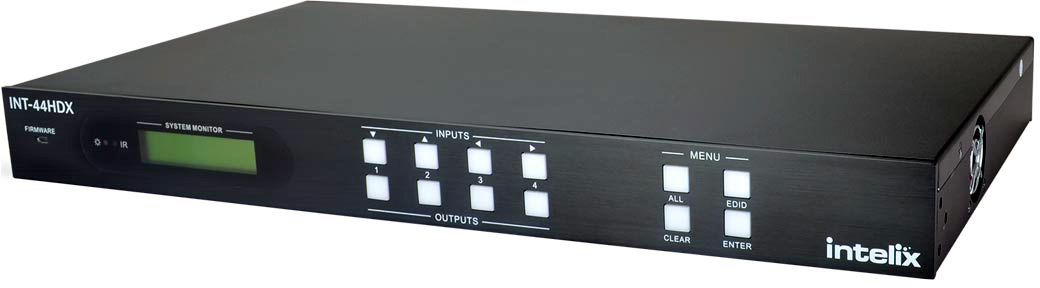

    The INT-44HDX can be controlled via front panel buttons, front panel IR, external IR, remote IR through HDBaseT extenders, RS232, and Ethernet. The matrix includes a simple IR remote control to allow IR switching. This IR remote control can be learned into universal remotes and IR based control systems. An IR All In port is provided, which allow one IR connection to control all four remote displays.

    The matrix also features a full command set for RS232 and Ethernet control with third party control systems, plus control via a web browser. RS232 commands to remote displays can either be tunneled directly to the displays or be embedded in the control stream through the matrix from both the RS232 and Ethernet control ports, which will reduce the number of serial ports required for the control system.

    Applications!
    True matrix routing and distribution of HDMI signals
    A/V routing in environments with demanding control system
    Ideal for houses of worship, corporate video conferencing,


    • Features

      • Four HDMI inputs with HDCP 2.2 support
      • Four HDBaseT with PoH, with two mirrored HDMI, outputs
      • 100 m (328 ft) maximum extender distance
      • Analog and digital audio de-embedding on each output
      • Front panel, IR, TCP/IP, and RS232 control
      • IR and RS232 routing
      • IR and RS232 tunneling over HDBaseT
      • Control page and configuration accessible from web browser (Web GUI)
      • Advanced HDCP management

    • Specifications

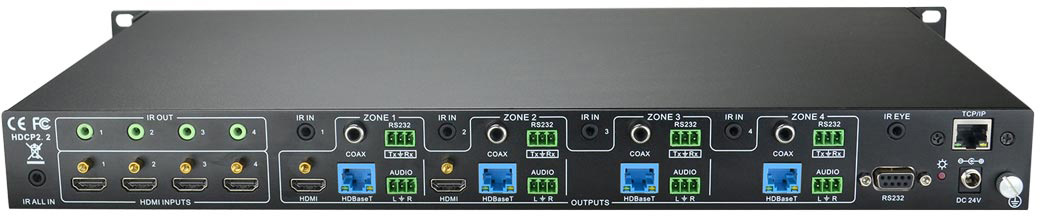

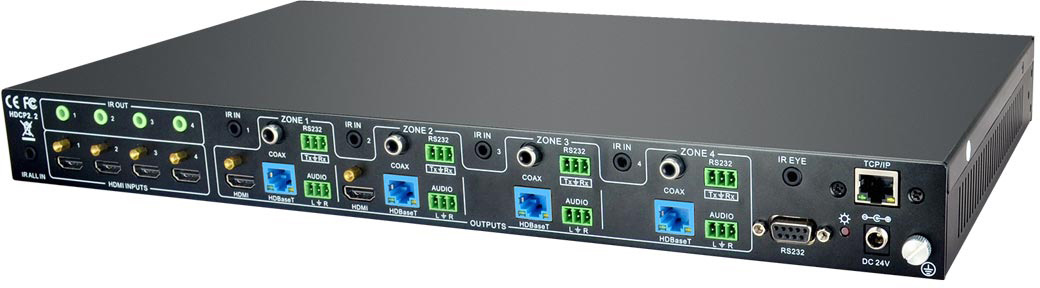

      • Input/Output Connections
      • HDMI Inputs: Four (4) HDMI Type A Receptacle
      • IR Outputs: Four (4) 3.5mm TRS
      • HDMI Outputs (Outputs 1 and 2 only): Two (2) HDMI Type A Receptacle
      • HDBaseT Outputs: Four (4) 8P8C Port (Shielded RJ45 Female)
      • Digital Audio Outputs: Four (4) RCA Connectors
      • Analog Audio Outputs: Four (4) 3-Pole/3.5mm Euroblock
      • RS232 Tunnel: Four (4) 3-Pole/3.5mm Euroblock
      • IR All In: One (1) 3.5mm TRS
      • IR Eye: One (1) 3.5mm TRS
      • TCP/IP: One (1) 8P8C Port (Shielded RJ45 Female)
      • RS232: One (1) DE9 Port Female
      • Power: One (1) 5.5 mm OD, 2.6 mm ID Threaded Barrel

        Supported Audio, Video, and Embedded Control
      • Video Resolutions SMPTE: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, UHD/30 (HDMI only)
      • Color Depth: 24, 30, 36, 48bit
      • Maximum Video Compatibility at 100 m: Deep Color 48 Bit at 1080p and 3D, UHD/30
      • Maximum Passive HDMI Cable Distance 5 m (16.4 ft)
      • Video Compliance: HDMI 1.4, HDCP 1.4 and HDCP 2.2
      • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
      • Analog Audio Pinout: Left, Ground, Right
      • Embedded RS232 Baud Rate: 2400, 4800, 9600, 19200, 38400, and 115200 baud
      • IR Carrier Frequency Range: 33-55kHz at 5 volts

        HDBaseT Signal Characteristics
      • Maximum Distance: 100 m (328ft)
      • Cable Requirements: Continuous shielded solid core Cat 5e or greater with TIA/EIA-568B crimp pattern (no couplers in-line)
      • Bandwidth: 10.2 Gbps
      • HDBaseT Chipset: VS100TX

        Device Control Parameters
      • IR Carrier Frequency Range: 33-55kHz at 5 volts
      • Ethernet: 100BaseT
      • RS232 Baud Rate: 9600 baud

        Chassis and Environmental
      • Enclosure: Painted Aluminum
      • Dimensions (H x W x D): 44 mm x 437 mm x 235 mm (1.73 in x 17.20 in x 9.25 in) - 1 RU
      • Shipping Weight: 3.95 kg (8.7 lbs.)
      • Operating Temperature: 0° to +48° C (+32° to +120° F)
      • Operating Humidity: 10% to 90%, Non-condensing
      • Storage Temperature: -20° to +70° C (+14° to +158° F)
      • Storage Humidity: 10% to 85%, Non-condensing

        Power, ESD, and Regulatory
      • Power Supply: 24V DC 1.25A or PoH (Power over HDBaseT)
      • Power over Ethernet (PoE) Compatibility: 802.3af Alternative A, 15 watts per port, 48V available at remote device
      • Power Consumption: 48 watts (max)
      • ESD Protection: 15kV air, 8kV contact
      • Product Regulatory: UL, FCC, CE, RoHS

    • Item Includes

      • Installation Guide
      • IR Remote with AAA Batteries
      • IR Eye
      • Rack Mounting Ears with Screws
      • Chassis Feet with Screws
      • US Power Cable
      • Power Supply
      • Straight-Through DE9 Male to Female RS232 Cable
      • Eight (8) 3-pole Removable Terminal Blocks

    • Warranty

      • 2 Years
