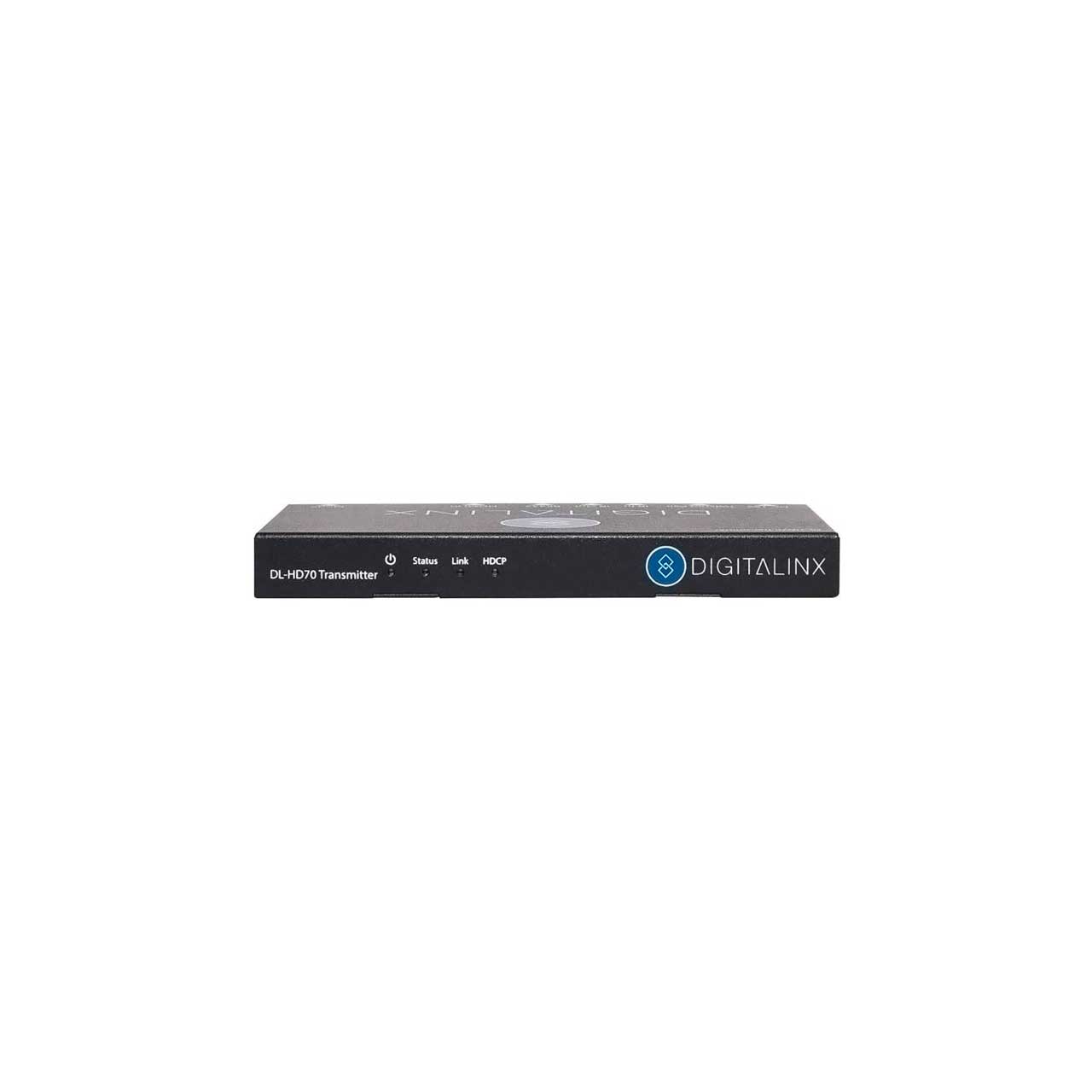

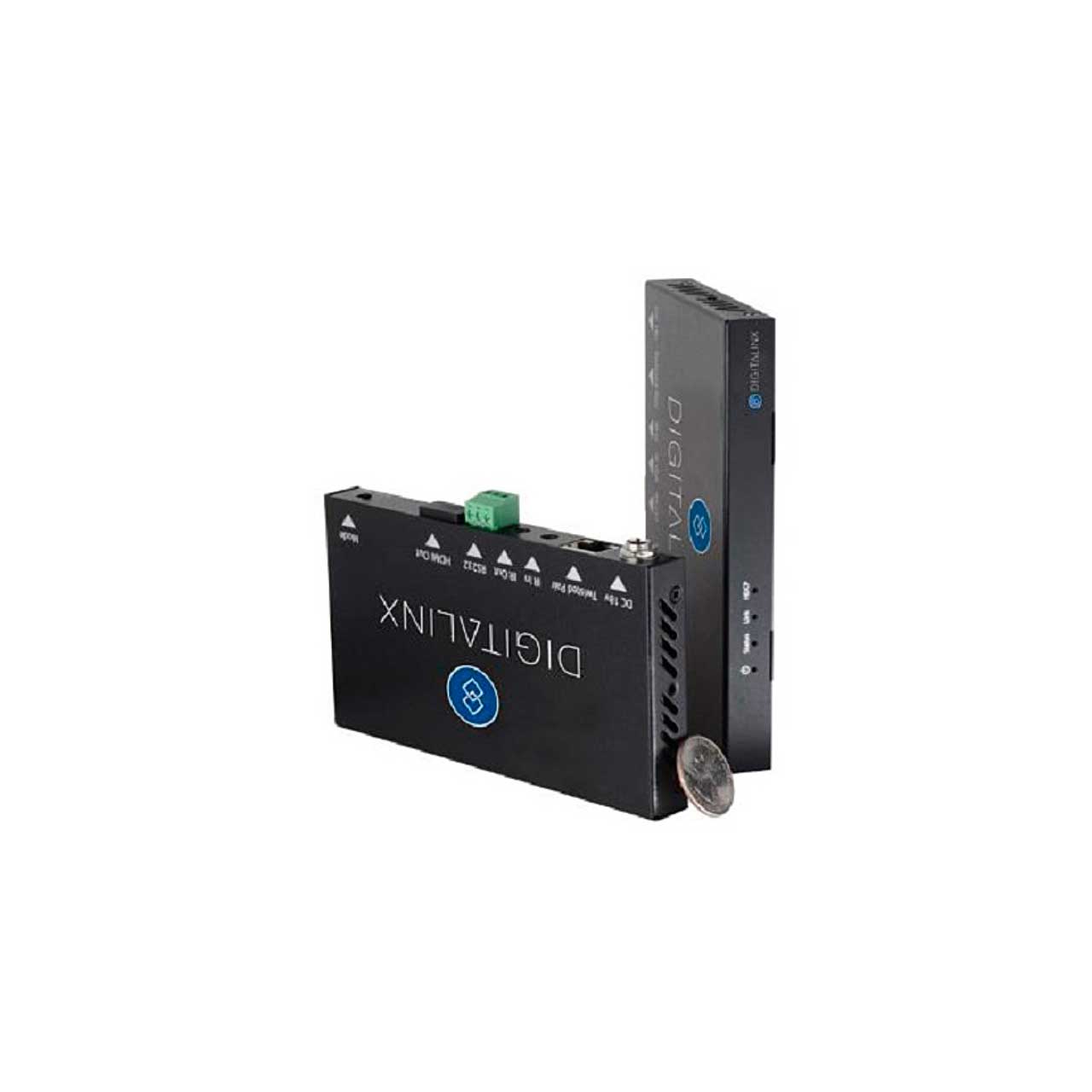

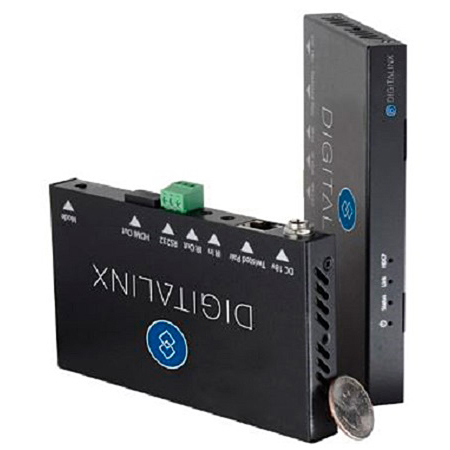

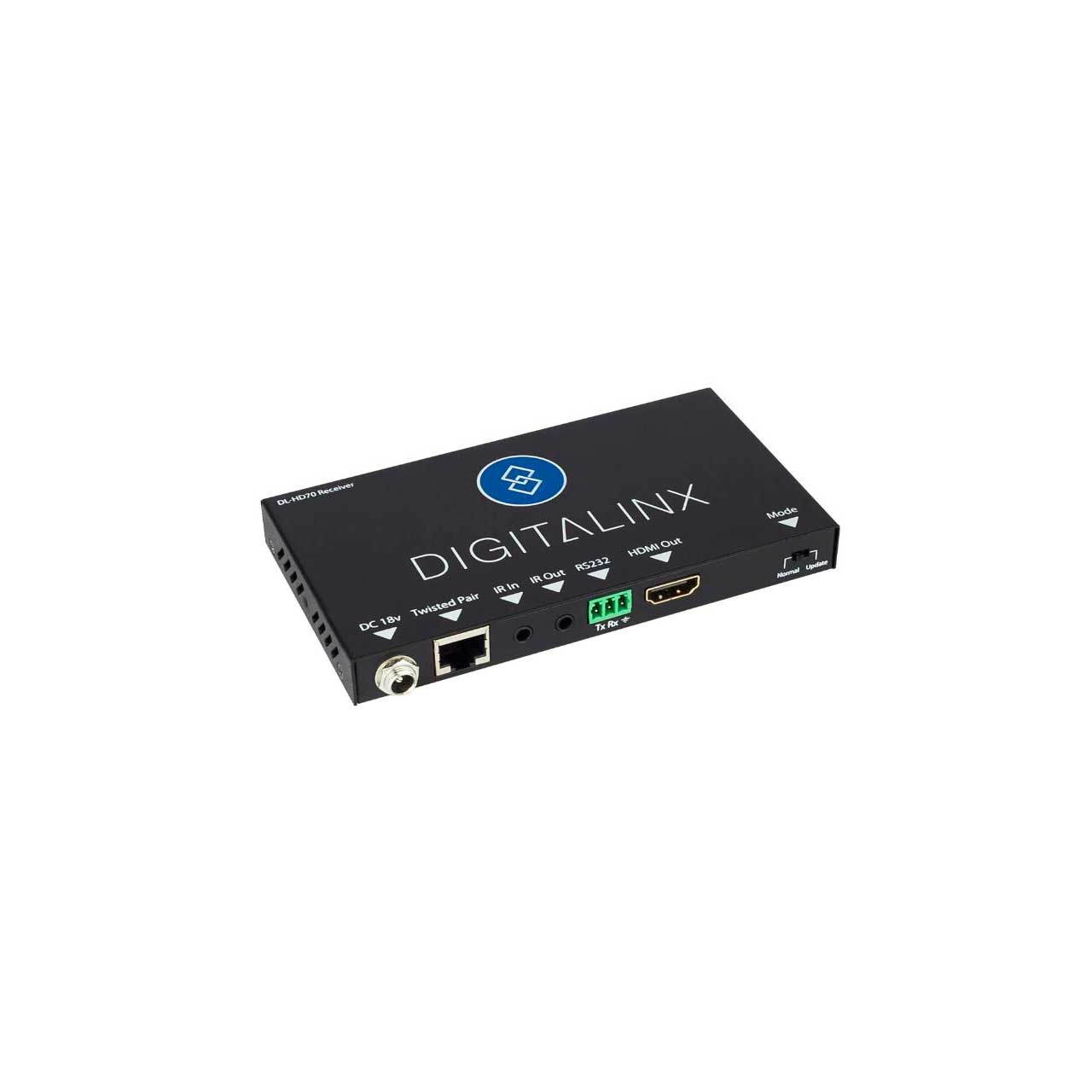

Intelix DL-HD70 HDMI Over Twisted Pair Set with Power and Control

ITEM #: INX-DL-HD70 MFG #: DL-HD70

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$428.66

Our Price:

$385.80

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    DL-HD70 - Overview

    The DigitaLinx DL-HD70 extender set transmits HDMI, bidirectional IR, and RS232 up to 70 meters away using a single twisted pair cable.

    Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.

    The DL-HD70 is sold only as a set. All accessories are included including two IR emitters, two IR receivers, and two pairs of mounting brackets with screws. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.

    APPLICATIONS:
    Uses any Cat6 or greater twisted pair cabling
    Extension of HDMI and control signals
    Limited access to power for extenders on both ends
    Ideal for Digital Signage, Home Theater, Commercial Video

    • Features:

      • HDMI transmission up to 230 feet (70m)
      • 1080p, 4Kx2K & 3D compatible
      • CEC supported
      • Built-in surge protection
      • Diagnostic LEDs
      • HDCP compliant
      • Bidirectional Wideband IR and RS232 passthrough
      • Flexible power design (use power supply at TX or RX)
      • Locking Power Connector
