The Javelin CHD-JAV4K-DE supports full 18Gbps bandwidth for 4K @ 60Hz (4:4:4), HDR, and deep-color formats while maintaining signal integrity over extended runs. The cable features detachable HDMI connectors for easier conduit pulls, along with a plenum-rated jacket for compliance with building safety codes. Ideal for conference rooms, lecture halls, digital signage, and any environment requiring reliable long-reach HDMI performance, the CHD-JAV4K-DE* delivers high-quality video with low power draw and robust installation flexibility.

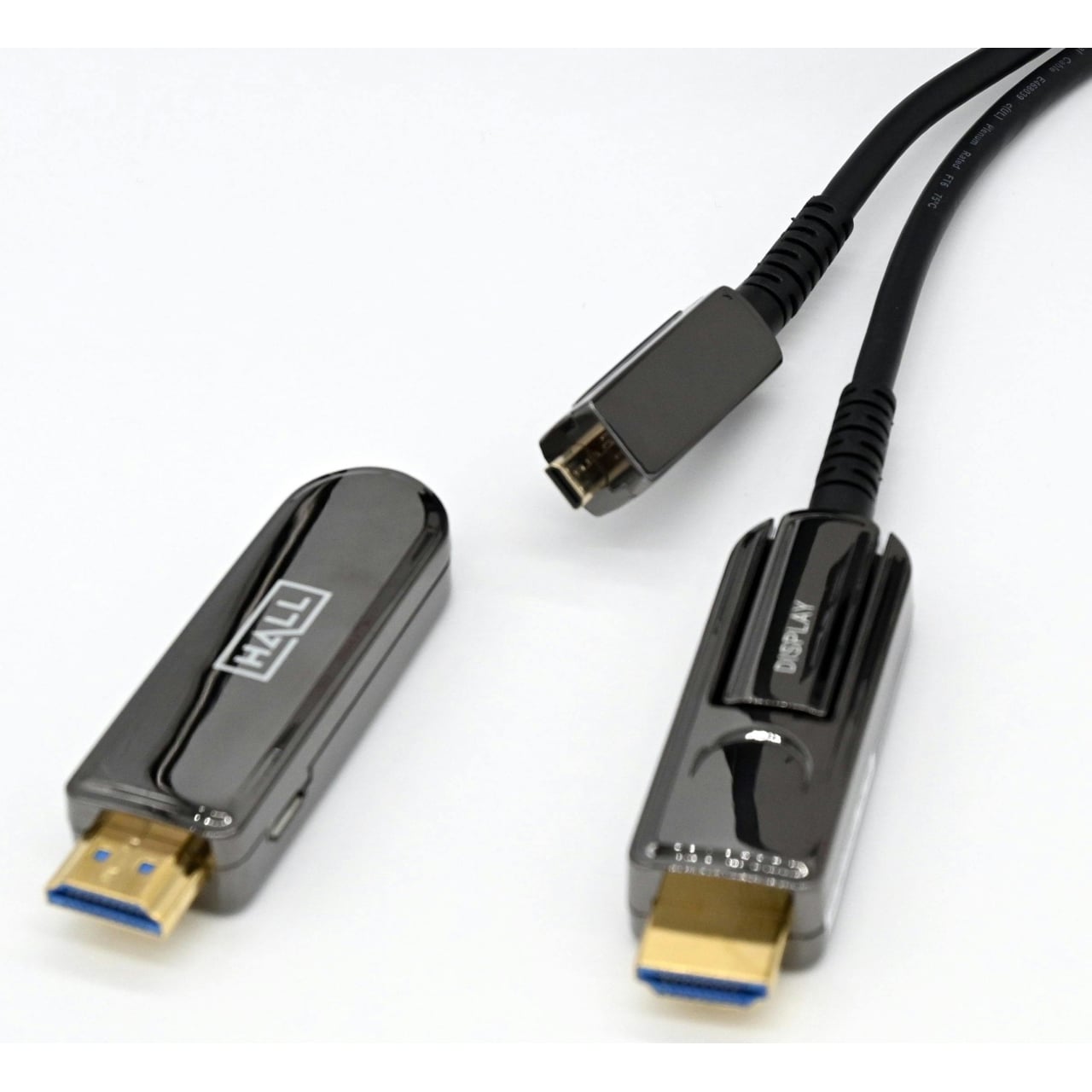

A pulling capsule with eyelet is provided in each package to aid with pulling. The capsule snaps onto the proprietary connector at the cable's end.
The plug-n-play cable requires no external power supply. Power is drawn from the 5V signal pin of the source HDMI output. The cable draws less than 0.25W of power from the source.
The Javelin 4K Plenum-rated cable can be used as a regular HDMI cable but without the worry of boosters or equalizers; being Plenum rated, also makes it possible to be used in any installation environment. Applications include home theater, conference rooms, schools, airports, hospitals, and more!
