JBL ASB6112 Compact High Power Single 12 Inch Subwoofer

ITEM #: JBL-ASB6112 MFG #: ASB6112

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,000.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ASB6112 - Overview

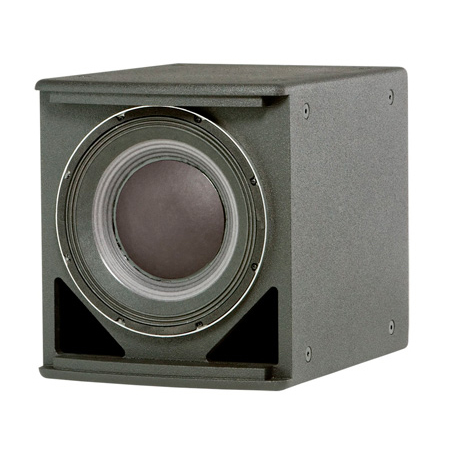

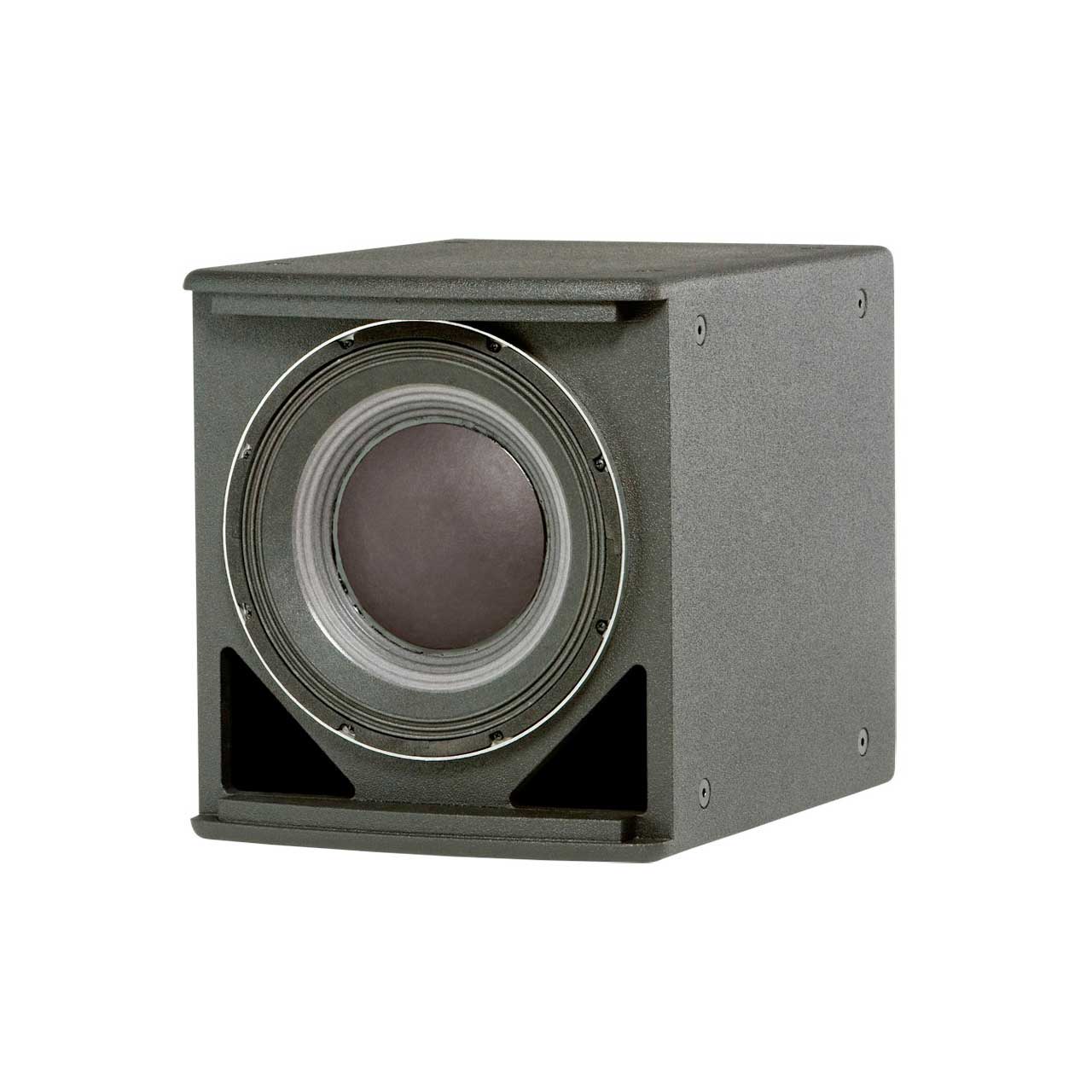

    The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL's 2263H Differential Drive dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

    The enclosure is constructed of multiply hardwood coated in JBL's rugged DuraFlex finish and is heavily
    braced to maximize low-frequency performance. The rectangular enclosure is fitted with sixteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

    The ASB6112 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

    • Features:

      • 2263H 12" Differential Drive dual voice coil dual gap, neodymium magnet transducer
      • 1000 watts continuous pink noise, 4000 watts peak power handling capacity
      • Large vent area for high output with low distortion
      • For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products

    • Specifications:

      • Frequency Range (-10 dB): 35 Hz - 1 kHz
      • Frequency Response (± 3 dB): 43 Hz - 1 kHz
      • Transducer Power Rating1: 1000 W (4000 W peak), 2 hrs.
      • Long-Term System Power Rating2: 700 W (2800 W peak), 100 hrs.
      • Maximum SPL (1m)3: 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
      • System Sensitivity4: 40 Hz - 300 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
      • Nominal Impedance: 8 ohms

    • GTIN:

      0691991011665
