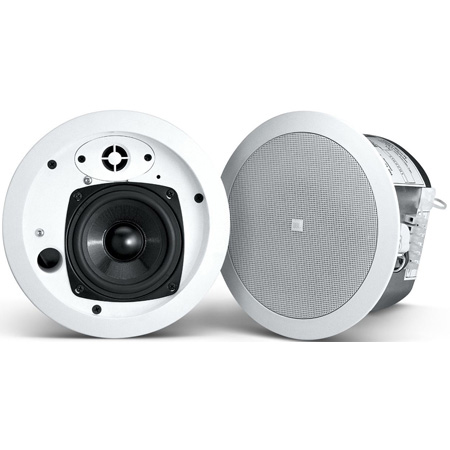

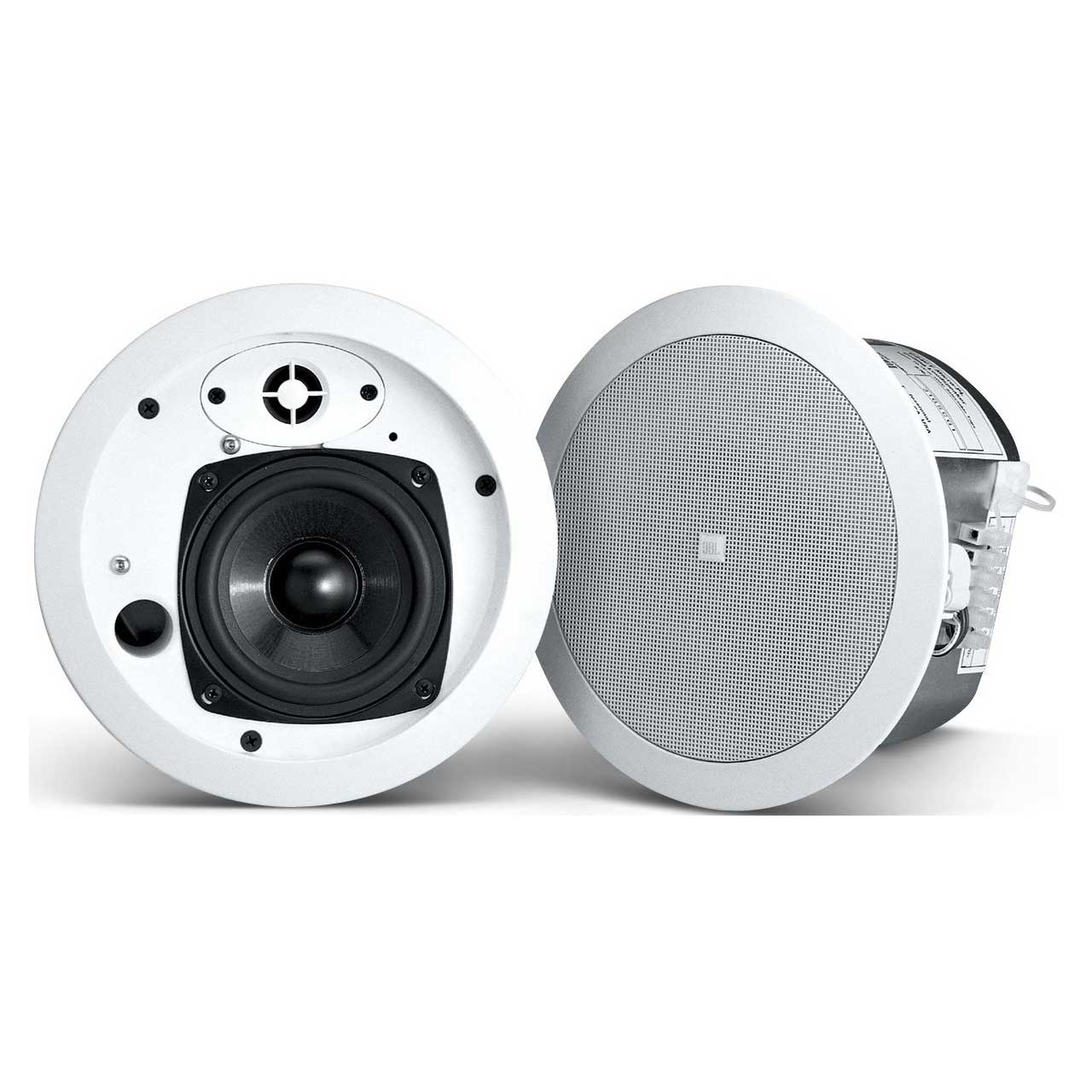

JBL C24CT Microplus Medium Output Ceiling Speaker Assembly (Pair)

ITEM #: JBL-C24CTMICROPL MFG #: C24CT MICROPLUS

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$317.40

Our Price:

$268.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    C24CT MICROPLUS - Overview

    The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems. These speakers are ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports. Low distortion, a smooth, natural frequency response, and a 25W transformer make the Control 24CT MicroPlus ideal for medium volume business music. Low frequency output can be augmented with the addition of one of the Control Contractor subwoofer models. Similar mid/high frequency voicing to other JBL Control Contractor loudspeakers allows mixing and matching of models within zones without requiring separate equalization. Installation of the Control 24CT MicroPlus is quick and easy. The loudspeaker is packaged with the backcan, grille, support backing bracket and tile rails. In addition, optional new construction brackets are available. The entire installation can be accomplished without requiring access above the ceiling. The Control 24CT MicroPlus backcan is made of formed steel and the speaker is suitable for use in air handling spaces per UL2043. An attachment loop is provided on the backcan for cabling. A seismic tab is provided as a secondary support. The Control 24CT MicroPlus trim and baffle are paintable to match any decor.

    • Features:

      • Extremely wide 150° coverage.
      • Smooth frequency response.
      • Advanced crossover network provides
      • very even coverage throughout listening area.
      • 115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround.
      • 12 mm (.5 in) polycarbonate tweeter for extended response.
      • Control 24CT MicroPlus includes 25W multi-tap transformer for 70V/100V systems.
      • Shallow 100 mm (4 in) depth.
      • Packaged with grille, backcan and tile rails for fast

    • Specifications:

      • Frequency Range (-10 dB)1: 80 Hz - 25 kHz
      • Nominal Sensitivity2: 85 dB SPL @ 1 m (3.3 ft)
      • Crossover: 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
      • Rated Maximum SPL: 99 dB @ 1 m (3.3 ft), 25W tap
      • Transformer Taps: 70V: 25W, 12W, 6W taps, 100V: 25W, 12W taps
      • Low Frequency: 115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in)
      • voice coil
      • High-Frequency: 12 mm (0.5 in) polycarbonate
      • Backcan: Formed steel
      • Baffle/Rim: Medium impact polystyrene, fire rated UL94V-O
      • Secondary Attachment Point: Included
      • Termination: Screw-down terminals, touch-proof, UL, CE and VDE rated, outside of backcan with conduit cover
      • Outside Dimensions (H x Dia): (5.3 x 7.7 in)
      • Cutout Size: (6.6 in)
      • Net Weight (ea): (5.5 lb)
      • Shipping Weight (pr): 7.6 kg (17 lb)

    • GTIN:

      0691991011863
