JBL SRX818S 18-Inch Passive Subwoofer with M20 Pole Cup - 129dB Max SPL

ITEM #: JBL-SRX818S MFG #: SRX818S

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,110.00

Our Price:

$1,689.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SRX818S - Overview

The JBL SRX818S is a single 18" subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD. Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations. JBL's patented Differential Driver Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Applications Include:
- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations

  • Features:

    • Premium JBL Transducers
    • Rugged, versatile enclosures
    • Tunings available for Crown amps and dbx signal processors
    • Fully supported in Audio Architect
    • Power Handling: 2400W Peak, 1200W Program, 600W Continuous
    • Frequency Range: 28Hz - 150Hz
    • Frequency Response: 45Hz - 150Hz
    • Max SPL: 129dB (Peak)
    • Amplification Options: Passive

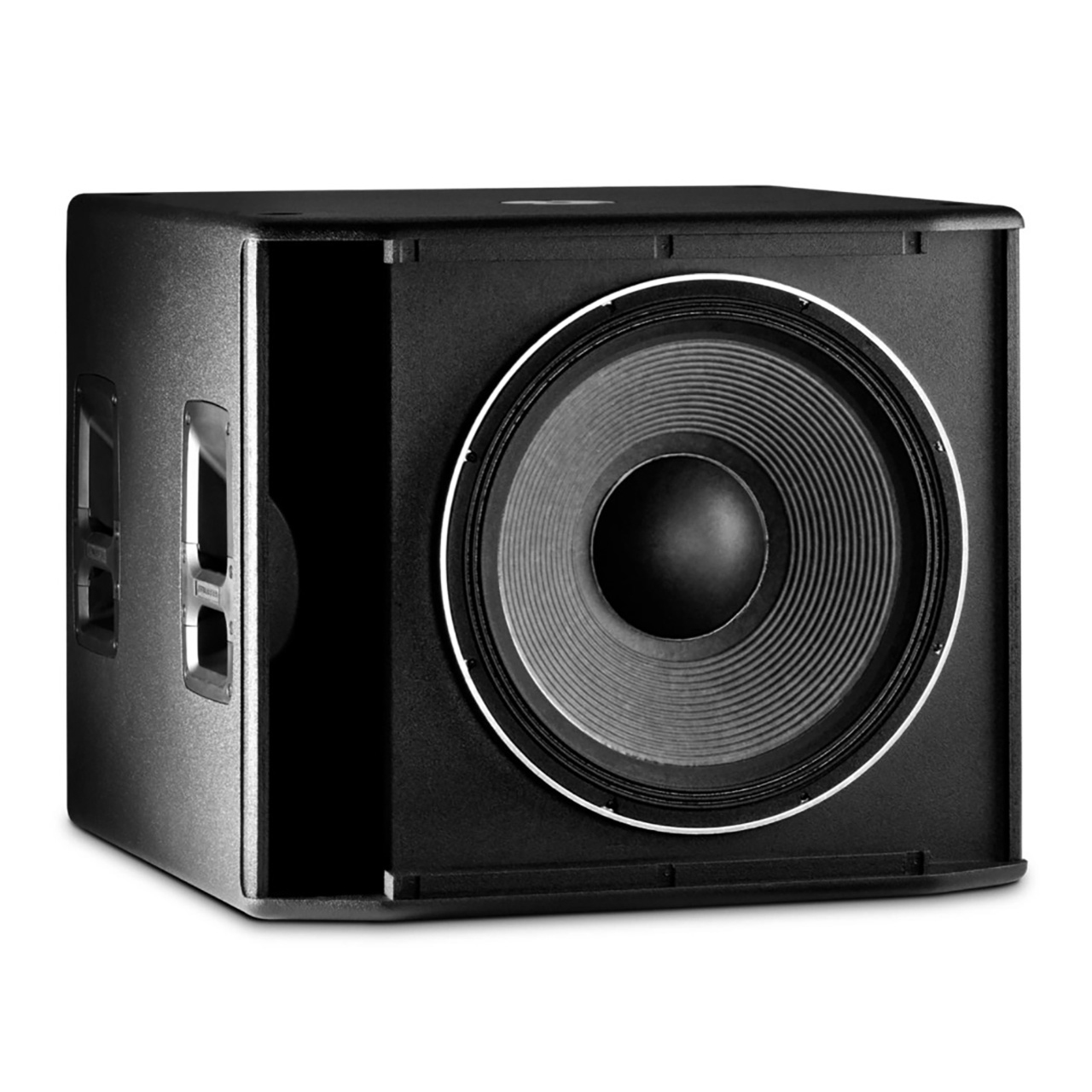

    • 2279 LF 8Ω 18" Woofer

  • Specifications:

      System
    • System Type: Passive 18", subwoofer system
    • Maximum SPL Output: 135dB
    • Frequency Range (-10dB): 28Hz - 150Hz
    • Frequency Response (-3dB): 45Hz - 150Hz

      Power
    • System Power Rating: 2400W Peak, 1200W Program, 600W Continuous
    • Nominal Impedance: 8Ω

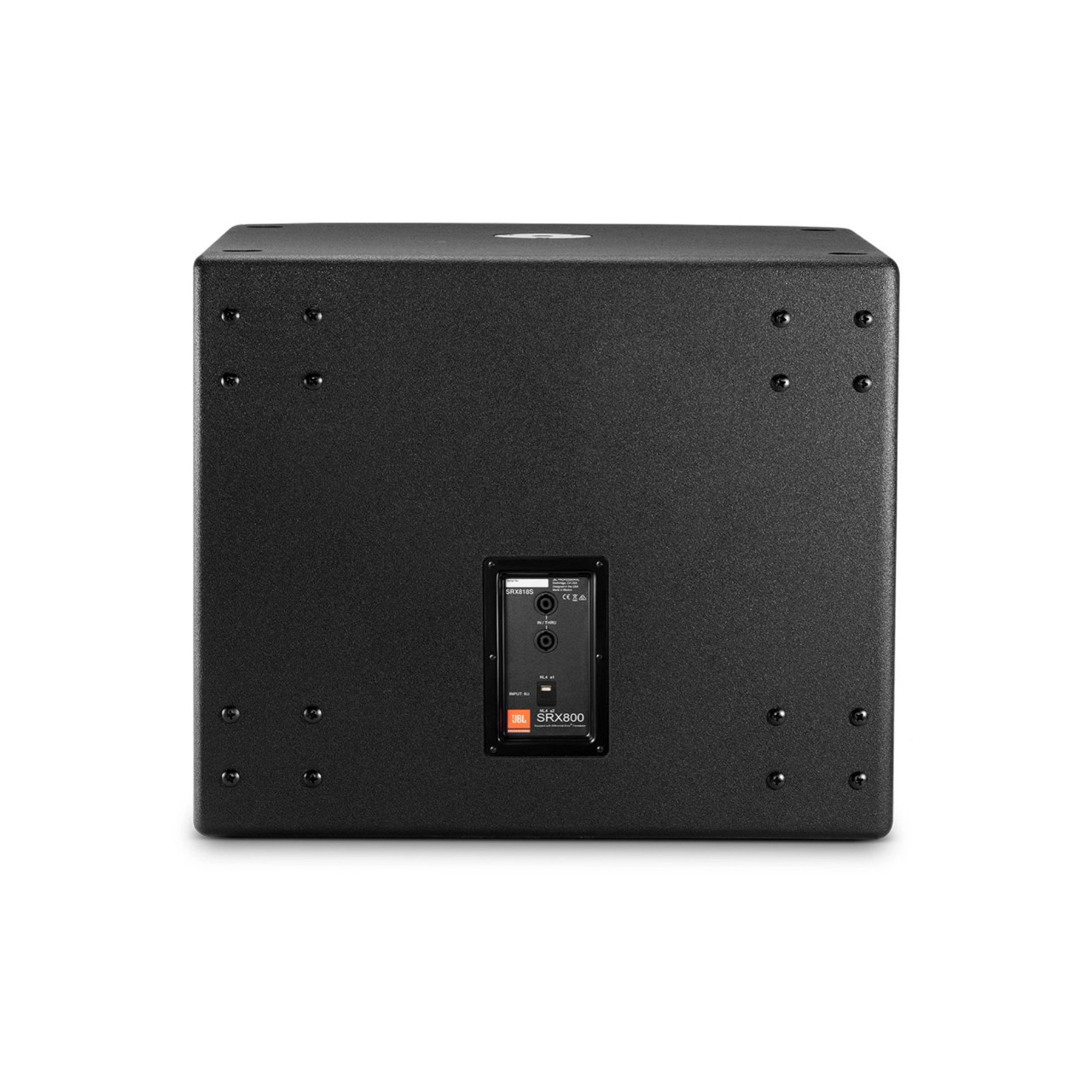

    • Connectors: NL4 Input, NL4 Loop-thru (±1 or ±2 Selectable)
    • Operational Modes: Passive

      Speaker
    • LF Driver: 2279H
    • Crossover Frequency: 80Hz

      Enclosure
    • Material: 18mm plywood
    • Suspension/Mounting: M20 Threaded Pole Mount

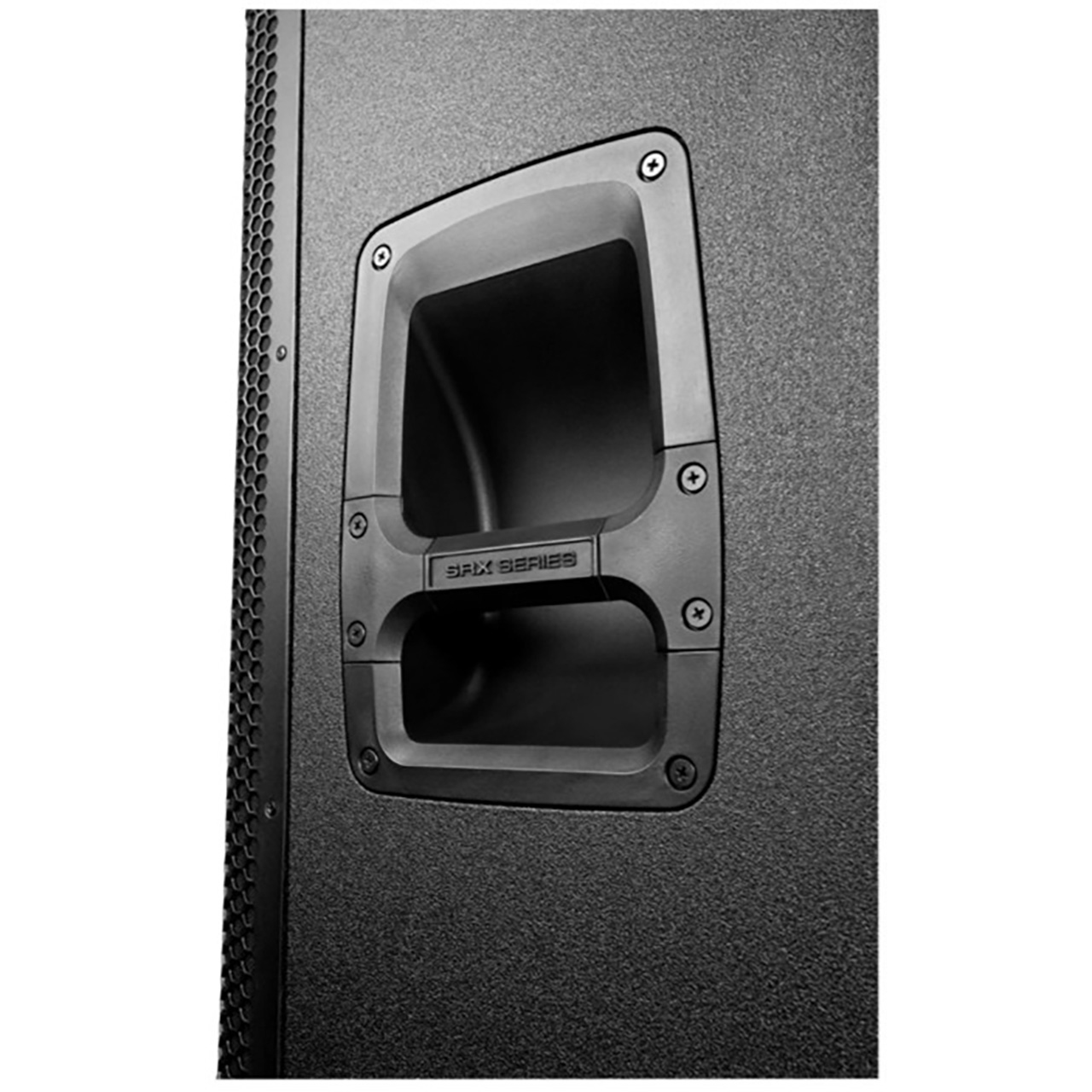

    • Handles: 4
    • Finish: Obsidian Duraflex&trade finish

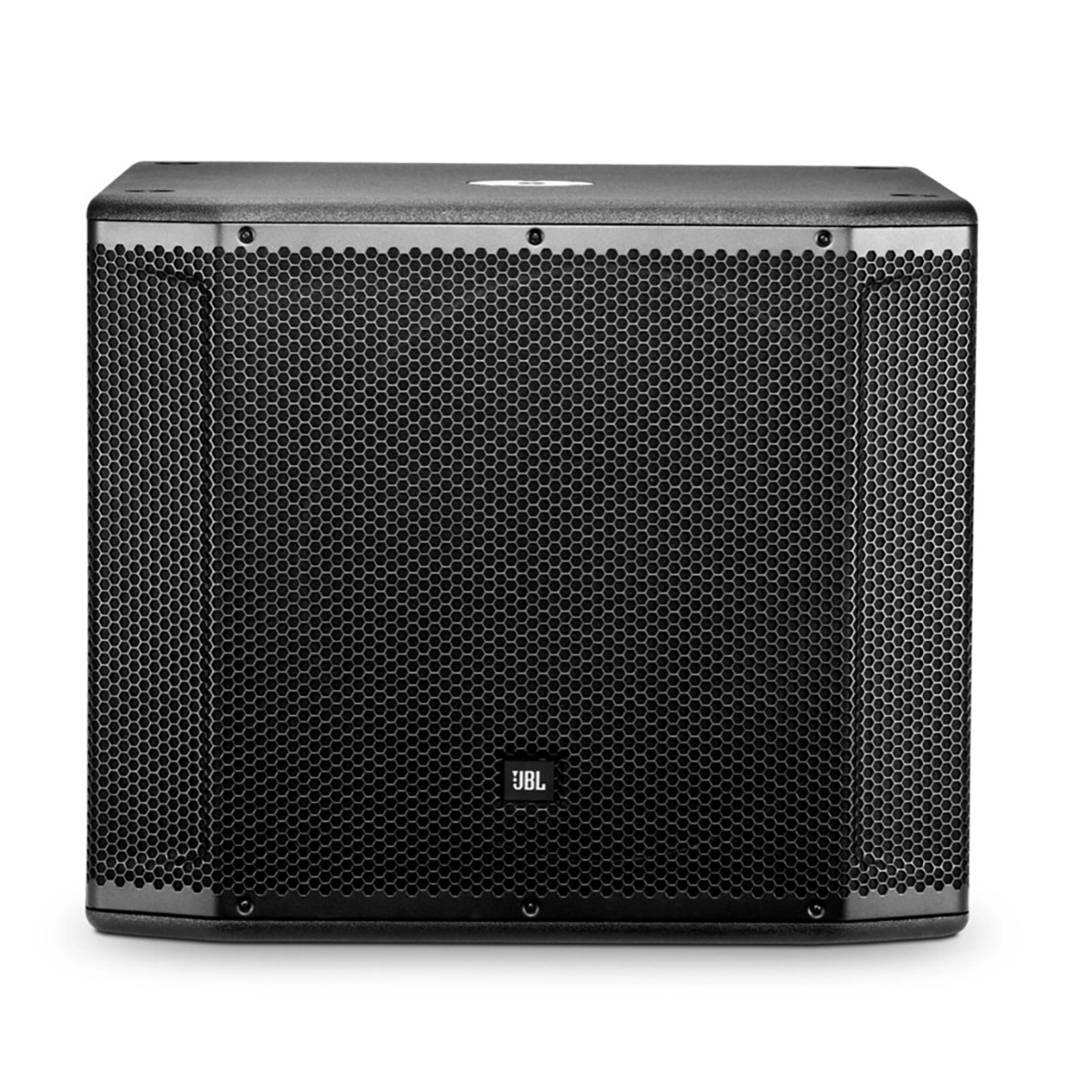

    • Grille: Powder coated, Onsidian, 14-gauge perforated steel with acoustically
    • transparent black cloth backing
    • Dimensions (LxWxH): 26.89" x 26.92" x 22.62" (683mm x 684mm x 575mm)
    • Weight: 78.0lbs (35.4kg)

  • GTIN:

    0691991001659
