Juice Goose CQ-PD1-4 Four Circuit Sequenced 80 AMP Power Distribution System with Remote Control Capability

ITEM #: JG-CQ-PD1-4 MFG #: CQ-PD1-4

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Temporarily Out of Stock
iAvailability Description Popup

    CQ-PD1-4 - Overview

    The Juice Goose CQ-PD1-4, along with the other products in the CQ Series, provides a versatile and powerful means of remotely activating AC power in a sequenced array for application to both sensitive and high amperage equipment. CQ Series products need no additional controllers. Each contains the circuitry to be activated by a simple contact closure and to perform in coordination with other CQ devices. All power down sequences are exact reversals of the power up sequences.

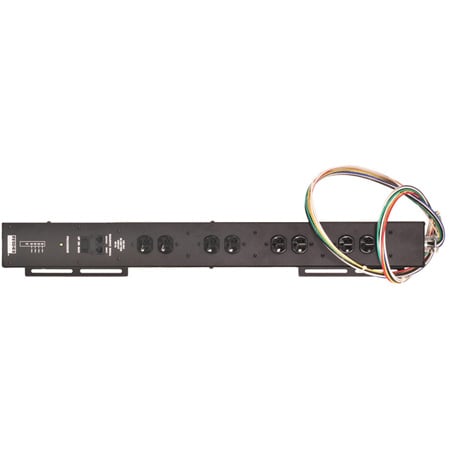

    The CQ-PD1-4 features a four foot external wire harness, including four hot leads (various colors), four neutral leads (white) and one ground lead (green) enclosed in flexible metal conduit. This unit can be easily controlled by way of 8 wire RJ-45 cable. (Consult the CQ Series Owners Manual before assembling the cable.) Each CQ has a Sequence Signal Input and Output connector on the chassis. This communication link allows any CQ device to be installed at any stage in a power sequencing system. There is no limit to the number of CQ devices that can be connected and no known distance limit between them.

    Because the sequence process is controlled with a latching contact closure the system can be activated with a custom mounted single pole switch, a relay, the control switch on the CQ device itself or a Juice Goose RC-5 key switch control accessory. It can also be activated with controllers from Crestron, AMX or other manufacturers.

    The CQ-PD1-4 is an 80 amp hardwire model featuring four sequence events, each with an individual 20 amp circuit. It can be a stand-alone, remote control module or can be included with a more extensive power sequencing system. In a typical CQ system the CQ-PD1-4 is used to control power within an amplifier rack. The multiple circuit/multiple sequence feature allows the CQ-PD1-4 to power up several amplifiers, following activation of any equalizers or other electronic signal sources that may be housed in the same rack. In this configuration the CQ-PD1-4 is connected by way of eight wire, RJ-45 cable to another CQ device which will power the "front-of-house" equipment. No time delay settings or additional equipment are required. All CQ units will automatically turn on and off in the proper sequence.

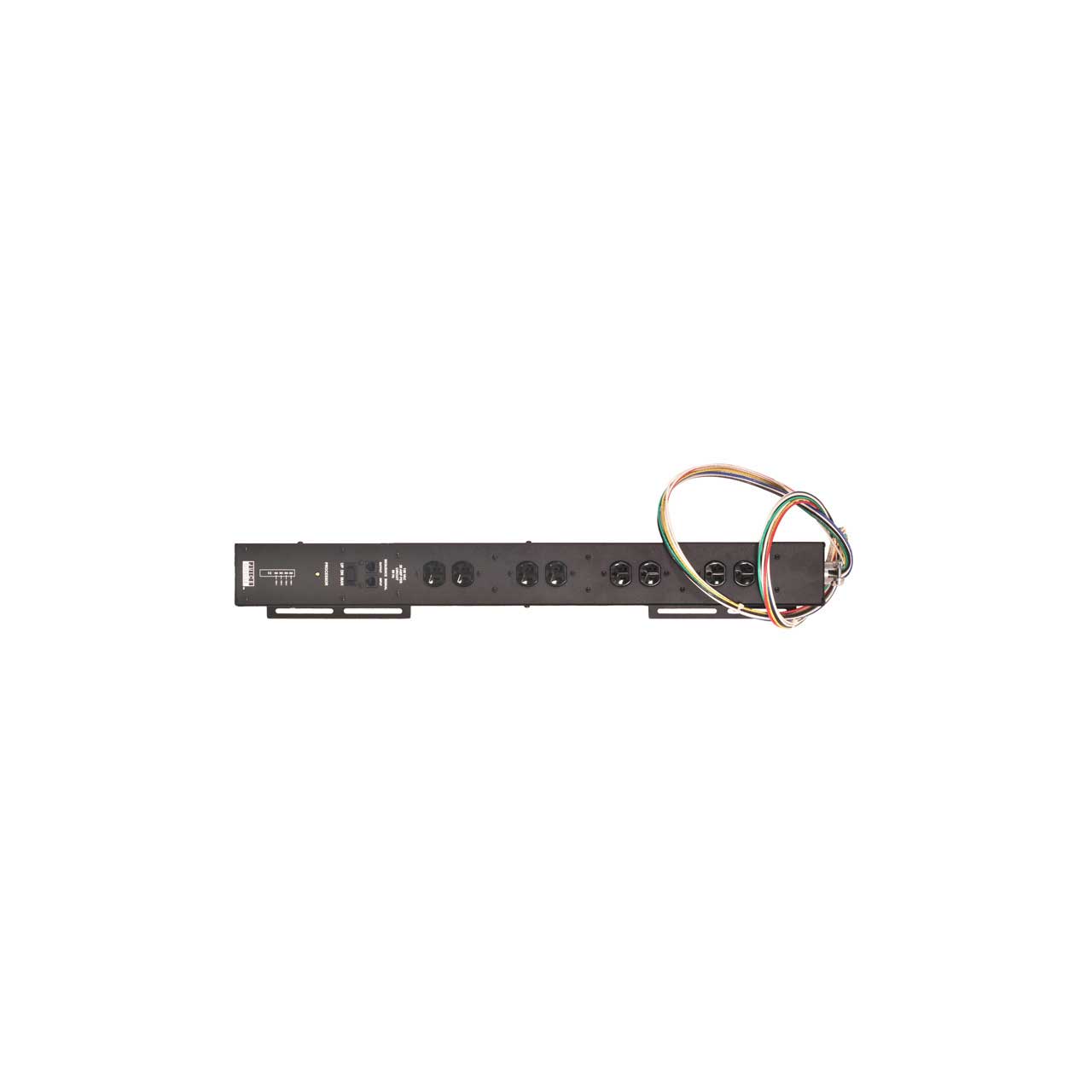

    The CQ-PD1-4 features four sequenced duplex receptacles. Each duplex has its own preset turn on and off timing. Because the CQ-PD1-4 activates its outlets in four stages it is useful as a stand-alone sequencer. The CQ-PD1-4 can be triggered by the switch on the front of the unit, by a remote contact closure or by a Juice Goose RC-5 key switch.

    Controls and Monitors

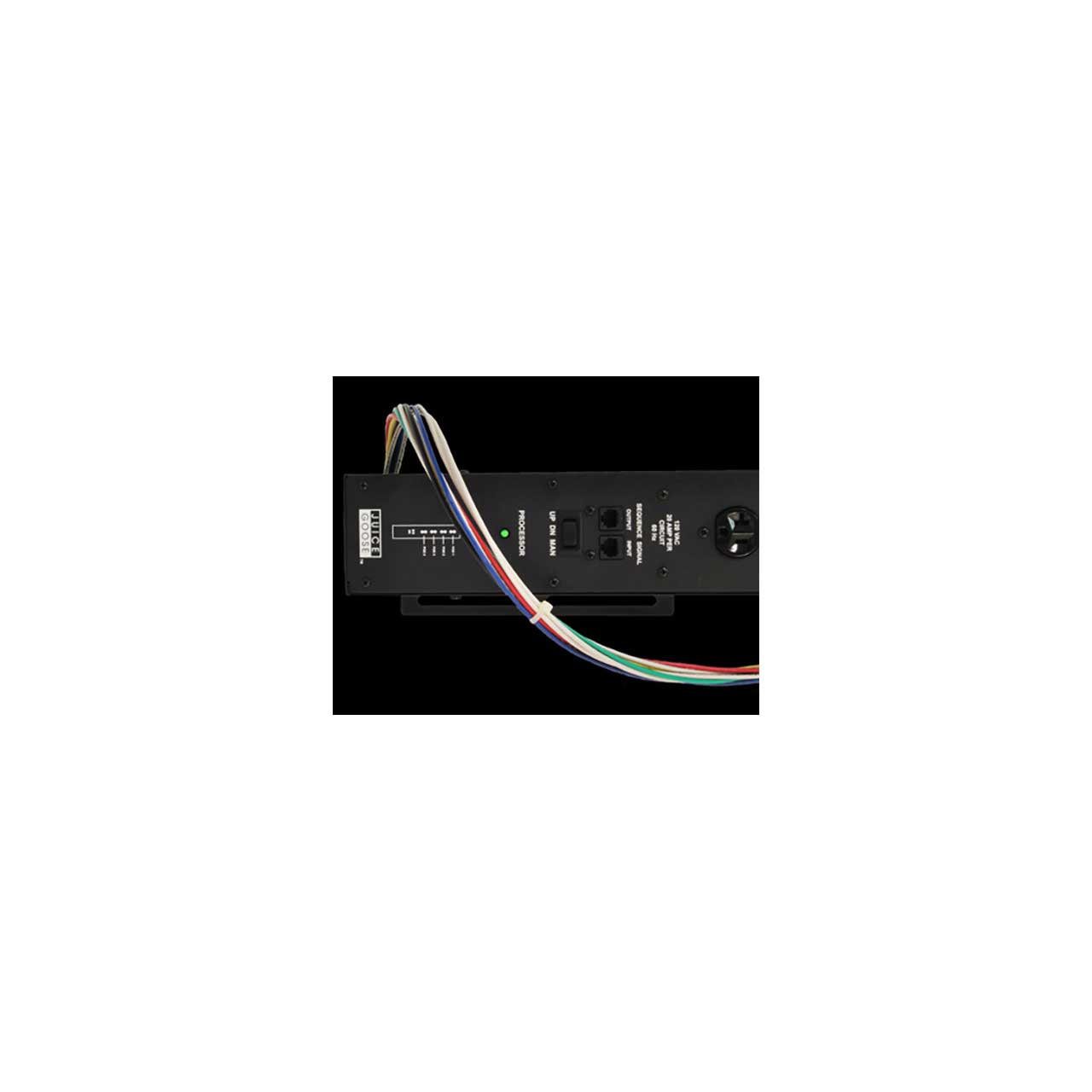

    The CQ-PD1-4 features a three position switch on the front of the chassis. This switch is active only if there is no control cable on the Sequence Signal Input connector. When active, this switch allows the unit to sequence up or sequence down and to control the sequencing of any unit connected to the Sequence Signal Output connector. This switch can also override the control circuit in the unlikely event of a fault or failure.

    Please Note: Interconnecting CQ Series devices requires eight wire, RJ-45 cable. While this is the same component used to assemble CAT5 and CAT6 cables, orientation of the connectors on the CQ Series cable is slightly different than for the CAT data networking cable. Therefore, standard CAT5 or CAT6 cables will not work with CQ Series devices.

    Please read before connecting any RJ45 cables!

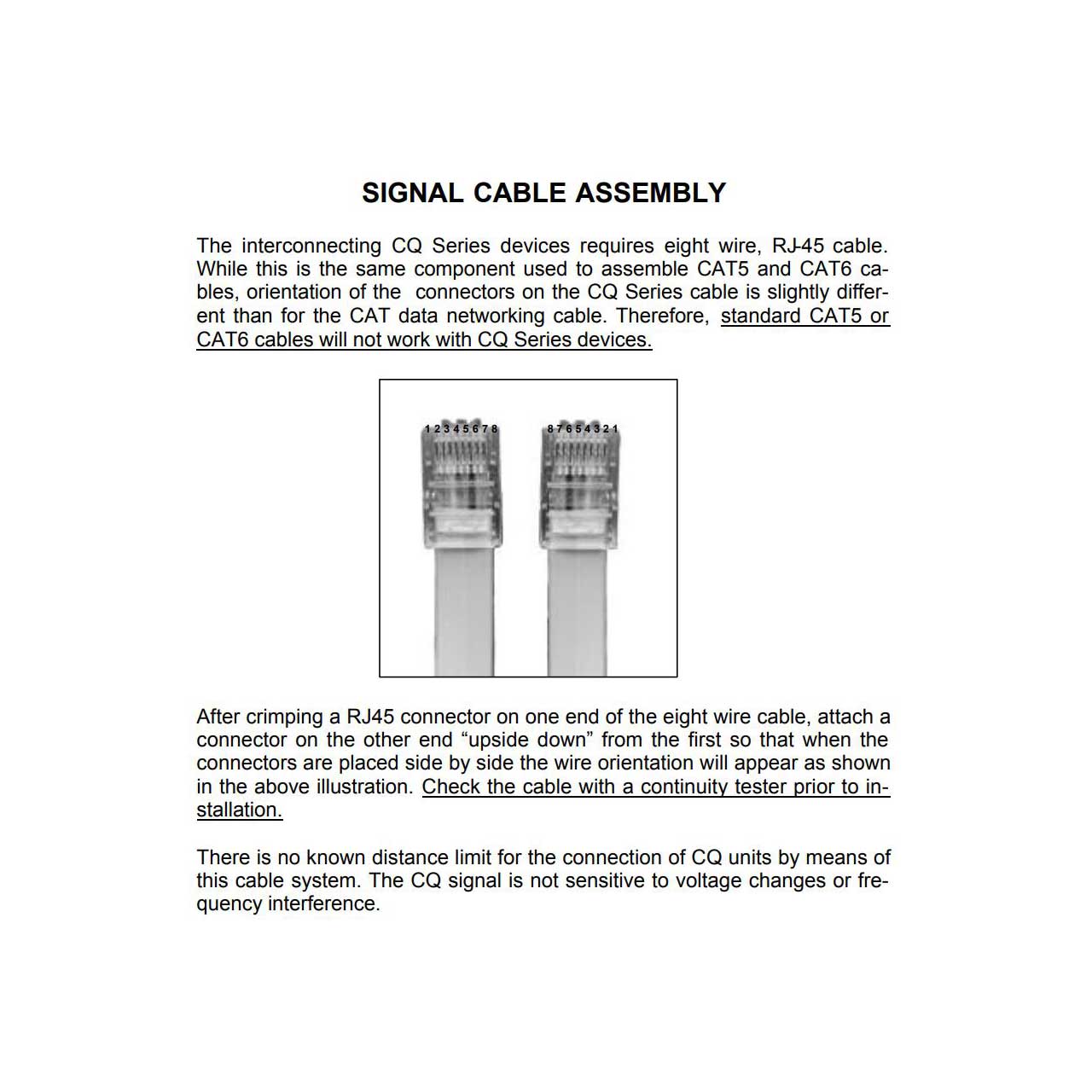

    A special crimping procedure is required for connecting RJ45 cables between devices. After crimping a RJ45 connector on one end of the eight wire cable, attach a connector on the other end "upside down" from the first so that when the connectors are placed side by side the wire orientation will appear opposite of each other (i.e 12345678 - 87654321) See illustration above. Check the cable with a continuity tester prior to installation. There is no known distance limit for the connection of CQ units by means of this cable system.

    Made in America
