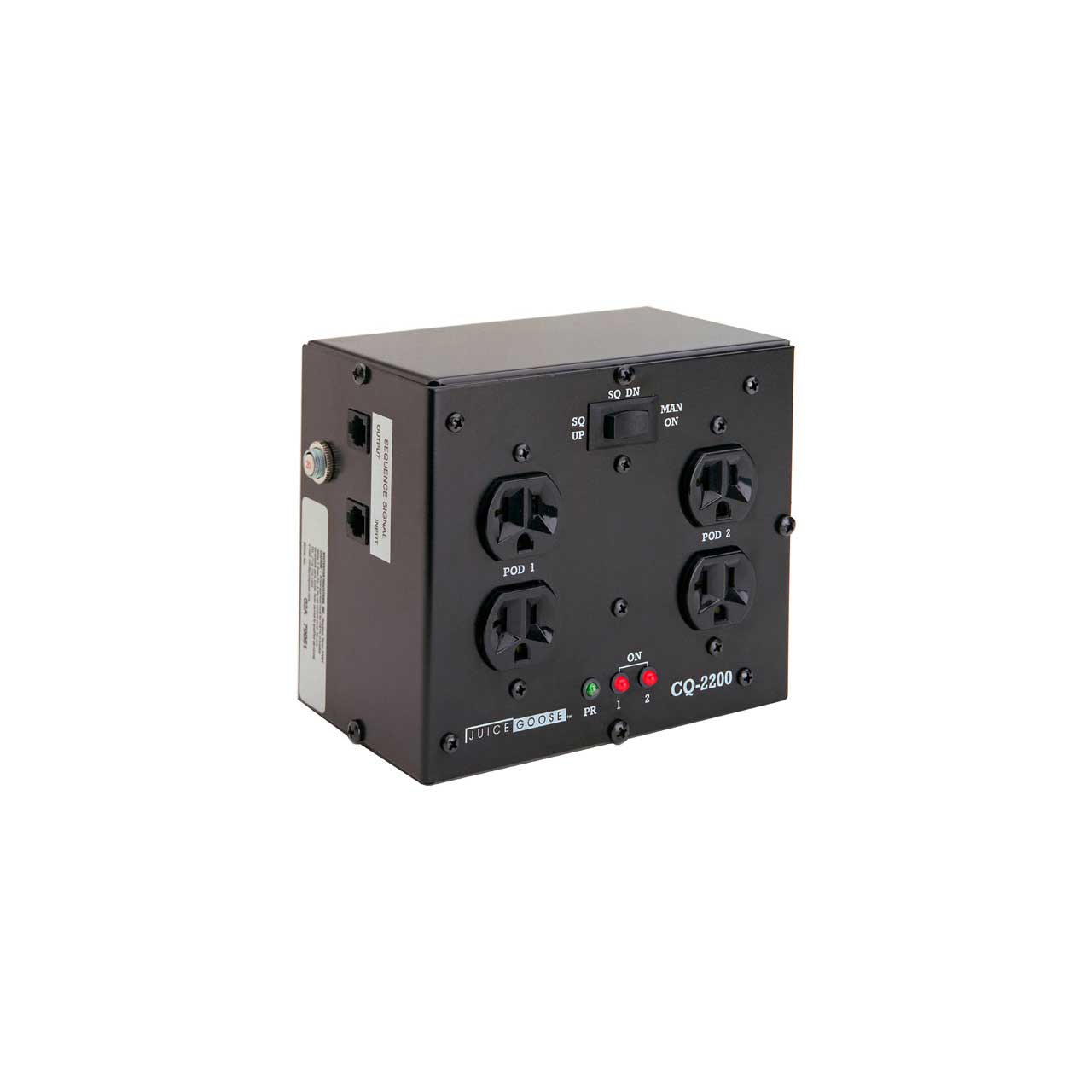

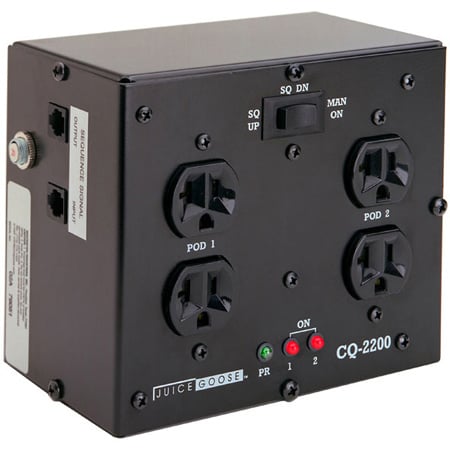

Juice Goose CQ2200 Dual Sequenced 20 AMP Power Distribution System with Remote Control Capability

ITEM #: JG-CQ2200 MFG #: CQ2200

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$349.00

Our Price:

$316.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CQ2200 - Overview

    When is more than one sequence event needed?
    Whenever it's a good idea to reduce the start-up current surge on a single circuit. That's why the CQ-2200 has 2 sequence events...and why it's so popular.

    Some amplifiers may be able to operate in tandem on a single 20 amp circuit, but would overload the circuit if turned on at the same time. The CQ-2200 stages the turn-on thereby reducing the required electric power service.

    For smaller systems the CQ-2200 can act as a stand alone sequencer, activating front end equipment on the first POD and the amplification on the second.

    Because the CQ-2200 can be controlled by a contact closure, installation is quick and requires no expensive accessories. Remote activation is very simple and convenient. So, the CQ-2200 offers several attractive features in a very economical, easy to install and easy to use package. The CQ-2200 is available in an isolated ground version (CQ-2200-IG).

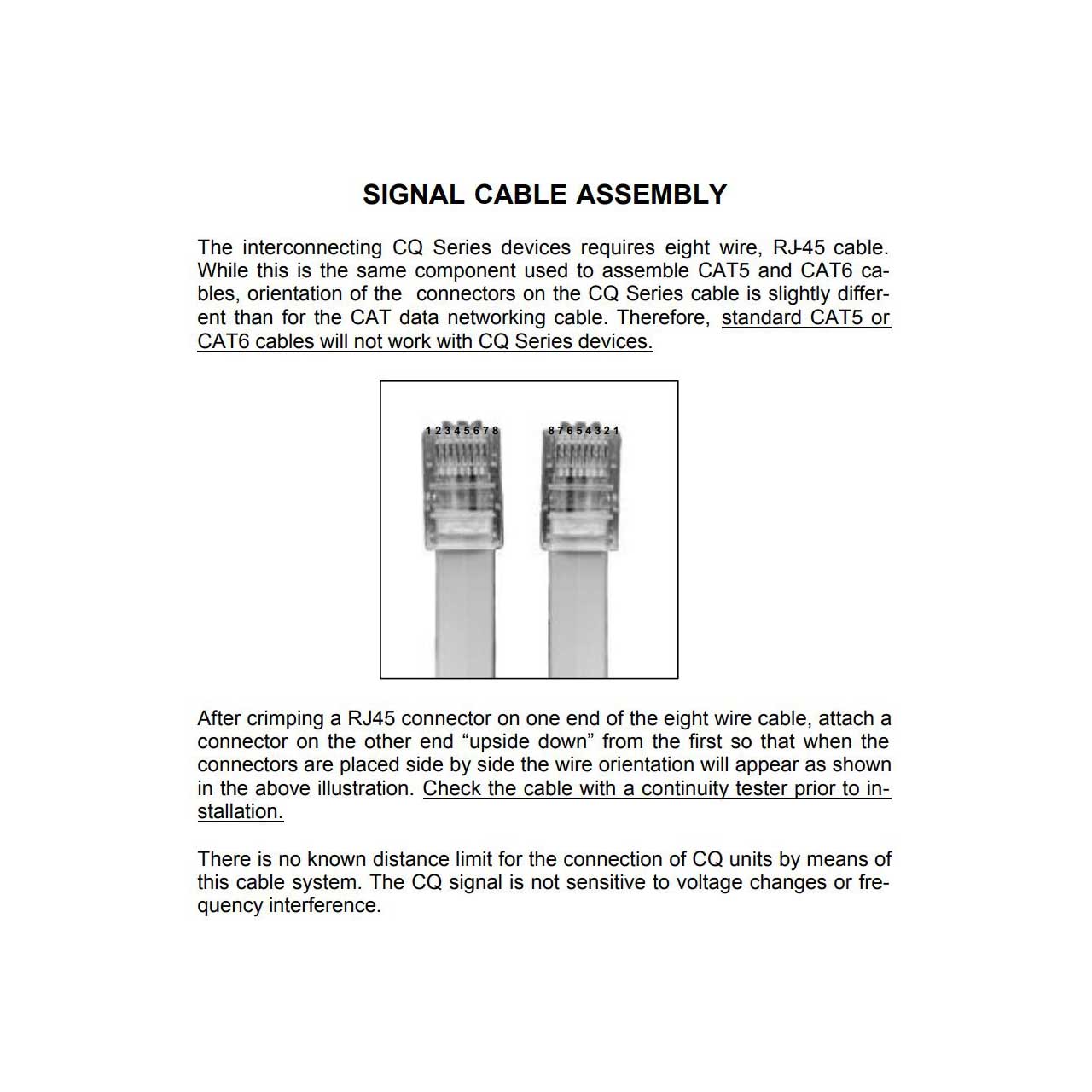

    Please Note: Interconnecting CQ Series devices requires eight wire, RJ-45 cable. While this is the same component used to assemble CAT5 and CAT6 cables, orientation of the connectors on the CQ Series cable is slightly different than for the CAT data networking cable. Therefore, standard CAT5 or CAT6 cables will not work with CQ Series devices.

    Please Note: Interconnecting CQ Series devices requires eight wire, RJ-45 cable. While this is the same component used to assemble CAT5 and CAT6 cables, orientation of the connectors on the CQ Series cable is slightly different than for the CAT data networking cable. Therefore, standard CAT5 or CAT6 cables will not work with CQ Series devices.


    Please read before connecting any RJ45 cables!
    After crimping a RJ45 connector on one end of the eight wire cable, attach a connector on the other end "upside down" from the first so that when the connectors are placed side by side the wire orientation will appear opposite of each other (i.e 12345678 - 87654321) Check the cable with a continuity tester prior to installation. There is no known distance limit for the connection of CQ units by means of this cable system. The CQ signal is not sensitive to voltage changes or frequency interference.

    The Qiwi fits in a standard two gang wall enclosure. It ships with a three gang front plate and wall box. The third enclosure space is required for AC wire termination. RJ 45 cable terminations are with standard male connectors which mate with receptacles on the Qiwi circuit board.

    Made in America

    • Specifications:

      • Dimenions: 5.50" x 6.40" x 3.75"
      • Weight: 4.0 lb
      • Circuit breaker: Side Panel, 20A Thermal
      • Power input: Hardwire with Crimp Tight Fast-on Terminals
      • Voltage input: 120 VAC at 60 Hz
      • Power outputs: .Four NEMA 5/20R, Sequenced
      • Number of sequence events: Two
      • Communications line: RJ-45 (See Owners Manual for Assembly)
      • Monitor features: Front Panel LEDs

    • GTIN:

      0852560000781
