Juice Goose JG11.0-20A 19 Inch Rack Mounted Power Module - 11 Outlets/20A Capacity

ITEM #: JG-JG11-0-20A MFG #: JG11-0-20A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$211.00

Our Price:

$180.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    JG11-0-20A - Overview

    Power and Convenience For higher current applications, the Juice Goose JG11.0-20A has a amp circuit breaker, switch, wiring and power cord - all the features required for heavier commercial and industrial applications. Note: The NEMA 5-20P plug connects only to a 20 amp rated receptacle.

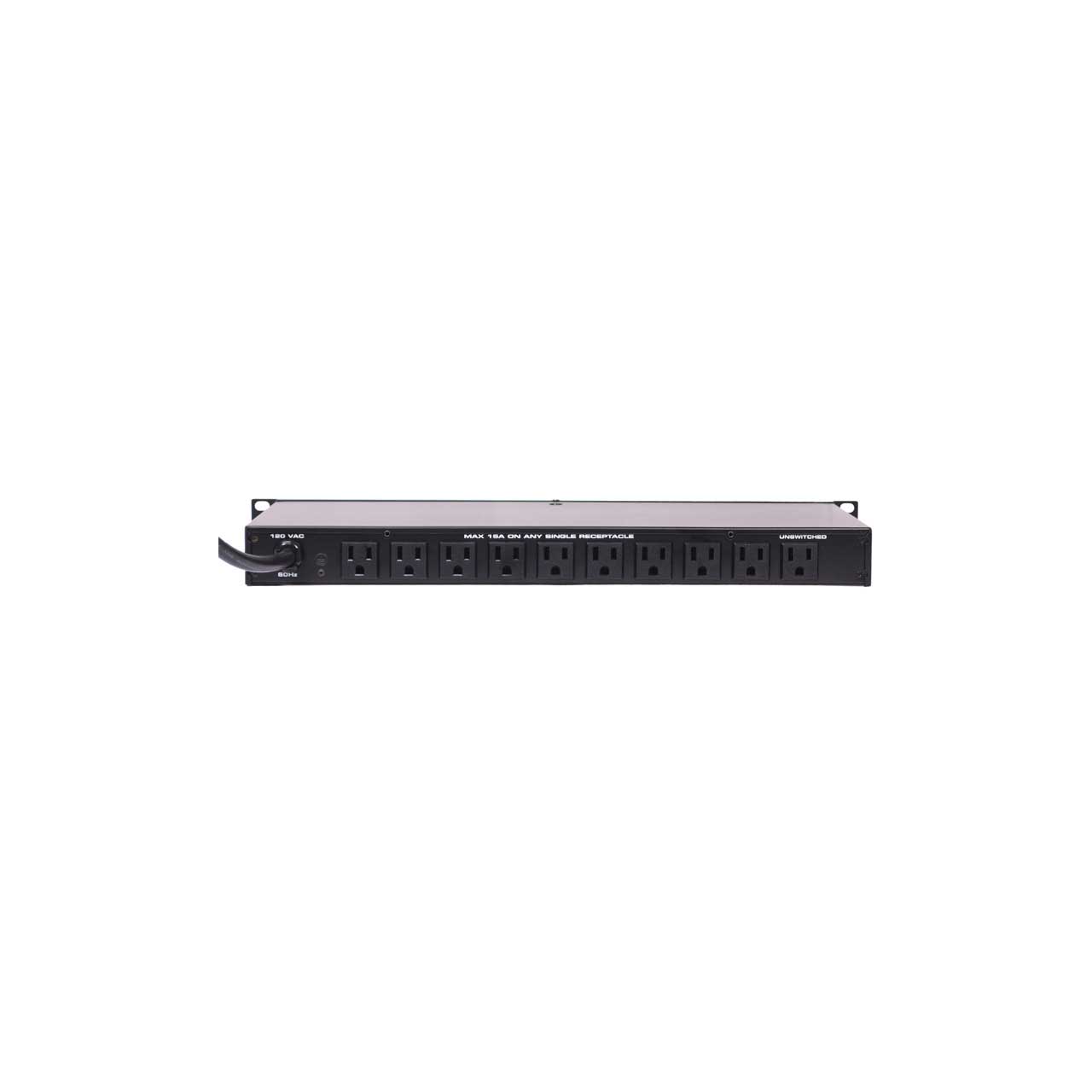

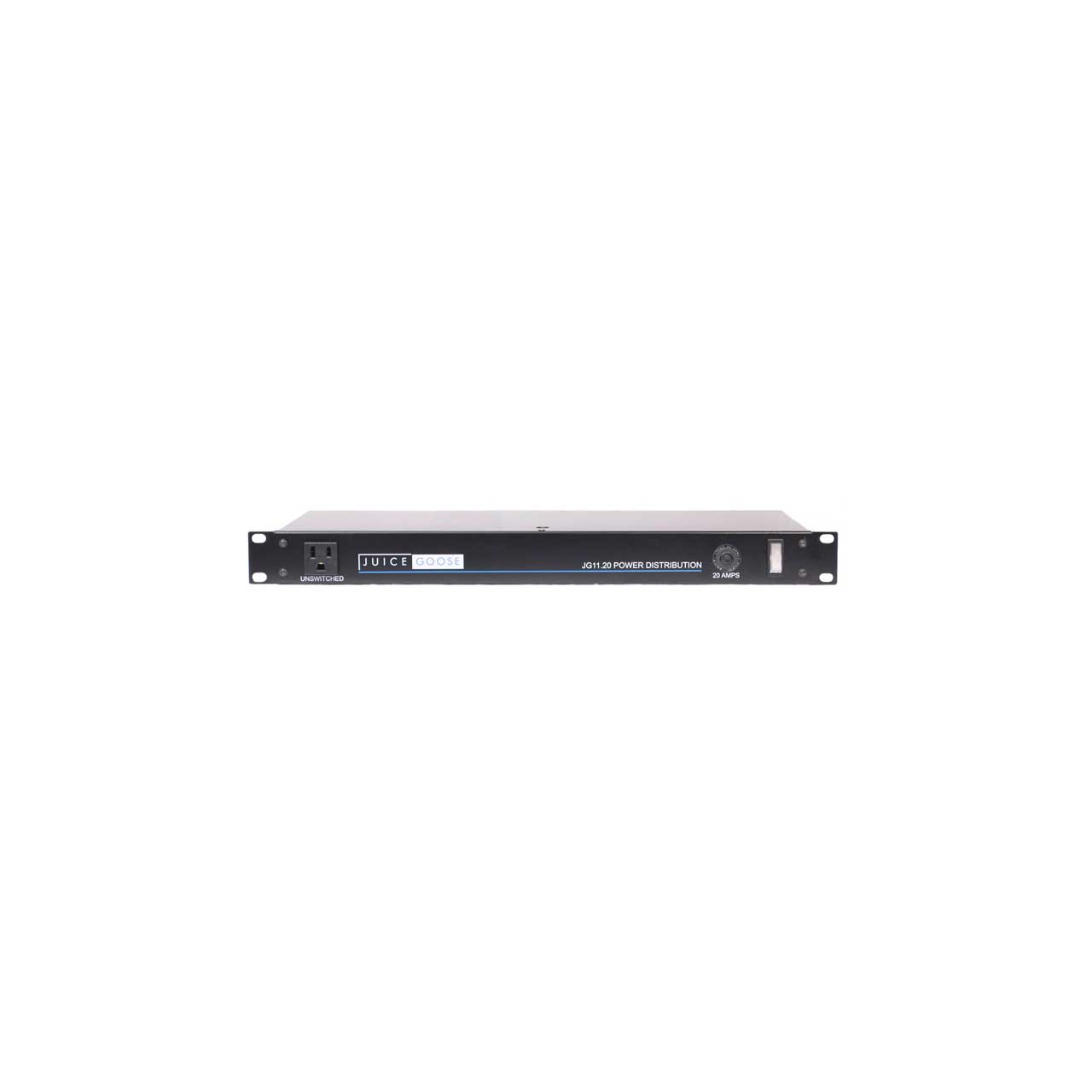

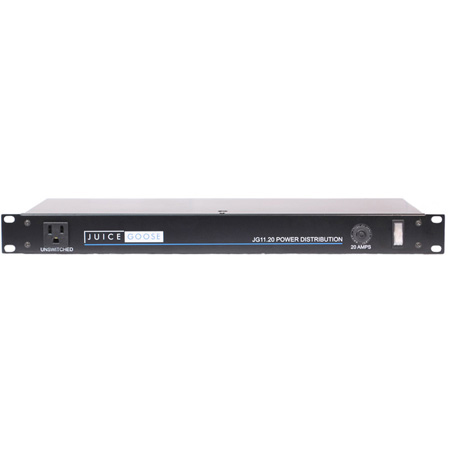

    This very economical package has 11 AC receptacles with one unswitched on each the front and back. In addition to a 20 amp capacity the JG 11-20A has a front mounted circuit breaker and a 15 foot long power cord to use in difficult to reach applications.

    G SERIES (For Basic Requirements)
    The JG Series family of power and light modules includes six high quality, economical models that are valuable accessories for any rack-mounted system. The switched outlets on the back of each unit provide power while the discreet components inside provide a basic level of protection to help clean up dirty and dangerous AC voltage.

    The Basic power conditioning includes a fast-acting metal oxide varistor (MOV) installed to clamp voltage spikes running between the incoming line and neutral leads. This level of conditioning also includes a capacitor to reduce the level of AC line interference that may be transmitted between the line and neutral leads.

    The JG 11.0-20A and JG 11.0-15A (JG11) are designed to operate with 120VAC, 60 Hz. Operation with 220 or 240 volts will cause damage and possibly cause personal injury

    Made in America

    • Specifications:

      • Input voltage: 120vac, 60 Hz
      • Technical current capacity: 18 Amps
      • Current overload protection: 20 Amps
      • Power cord: 20 Amps, 15 foot 12/3 SJT with NEMA 5-20P Plug
      • Power output receptacles: Nine NEMA 5-15 (back), one NEMA 5-15 (front)
      • AC line filtration: Line Capacitor (Line & Neutral)
      • Voltage spike protection: Metal Oxide Varistor (Line & Neutral)
      • Dimensions: 1.75H x 19W x 7D
      • Weight: 6.0 lbs

    • Warranty:

      • 3 Years

    • GTIN:

      0852560000286
