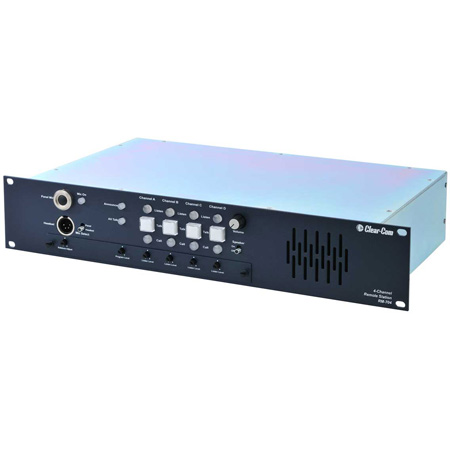

Clear-Com RM-704 4-Channel 2RU Encore Intercom System Remote Station with built-in Speaker

ITEM #: CC-RM704 MFG #: RM-704

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,845.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    RM-704 - Overview

    The ClearCom Encore RM-704 is a 2RU four-channel intercom remote station with programmable front panel buttons and individual channel volume control. The RM-704 is powered directly from the intercom line and requires no external AC power. Encore™ is a 2-wire analog partyline system with intuitive plug-and-play design and superior "Clear-Com Sound" audio quality. The RM-704 is powered directly from the intercom line and requires no external AC power.

    The RM-704 can monitor intercom activity on one or all channels with individual volume level controls. Monitoring intercom activity is possible through a headset or the internal high sensitivity loudspeaker. The RM-704 has mic pre-amps with limiters and individual electronic momentary/latching Talk button on each channel. The channels can be accessed separately or simultaneously without tying them together. A selector switch toggles between the headset or microphone.

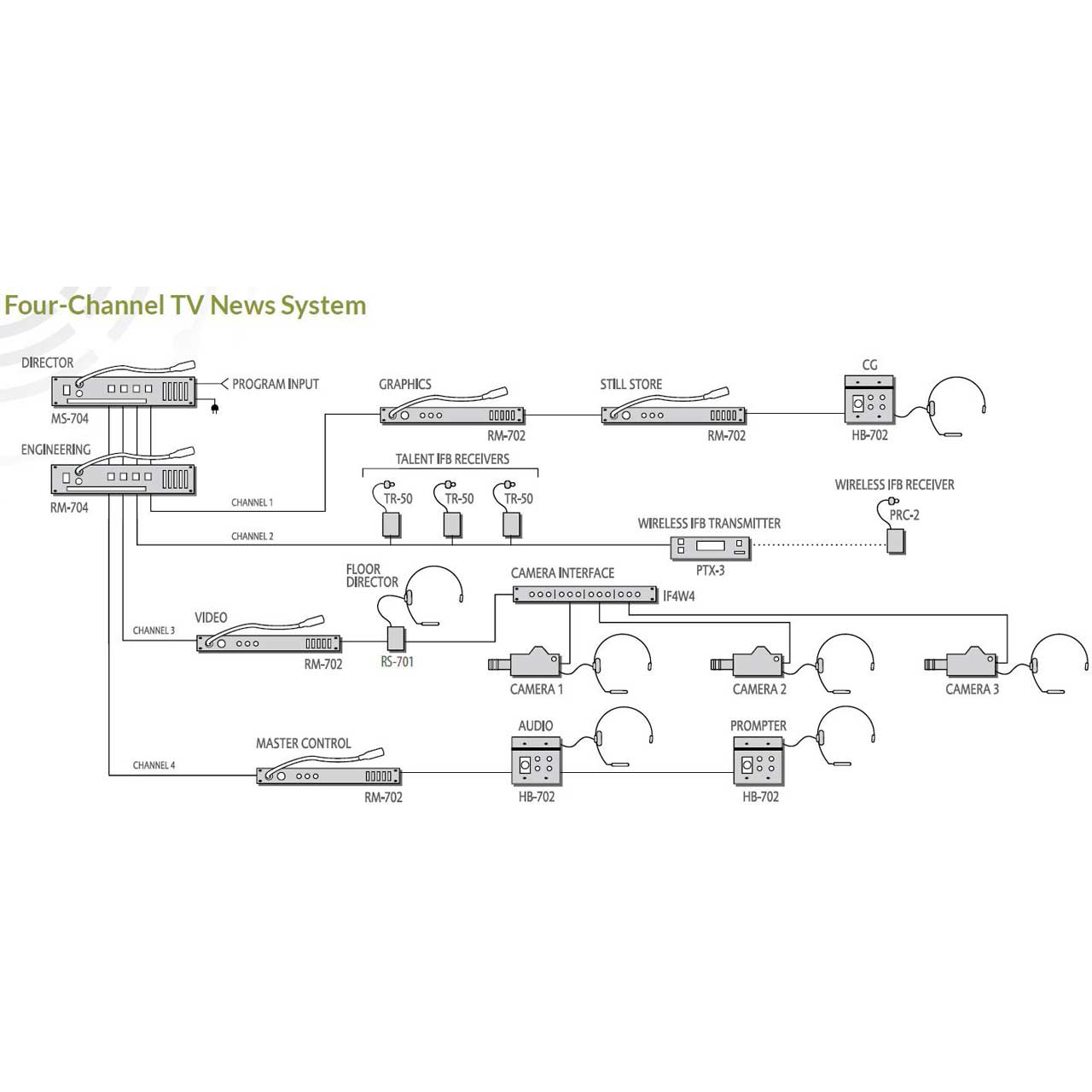

    Please Note! This item is just one component of a larger system. Please refer to the diagram shown above for ideas and recommendations for your Clear-Com intercom system.

    • Features:

      • Four-channel remote station
      • Dual-action electronic momentary/latching Talk buttons
      • Individual listen volume controls
      • Balanced audio input with program interrupt (IFB)
      • Call signal buttons for each channel
      • Microphone limiting
      • Volume controls for each channel
      • Visual and audible Tone Alert signaling
      • Hot mic and line-level outputs
      • Built-in speaker
      • External switchable line termination on each channel

    • Specifications:

      • Panel Microphone Input
      • Input Type: Electret
      • Input Impedance: >=2K
      • Mic Limiter Threshold: 0dBu ±3dB
      • Mic Limiter Range: >= 17dB

        Program Line Input
      • Maximum Level before Clipping: >= 20dBu
      • Input Impedance: >= 5K

        Headset Output
      • Load Impedance: >= 8 Output
      • Impedance: <= 25
      • Output Limiter Threshold: +5dBu ± 3dB
      • Maximum Output Level before Distortion: >= 17dBu

        Speaker Output
      • Load Impedance: >= 4
      • Max Output Level before 1% Distortion: 20dBu ± 2dBu

        Party Line Output
      • Output Noise: < -74dBu
      • Output Impedance: >10K

        Partyline Input
      • Crosstalk: < -60dB
      • Max level before Clipping: >= 12dBu
      • Sidetone Null Capability: > 25dB

        Stage Announce/Balanced Line Out
      • Type: Balanced
      • Output Impedance: >= 200
      • Load Impedance: >= 600

        IFB/Hot Mic
      • Type: Unbalanced
      • Output Impedance: 150
      • Impedance: >= 600

        Frequency Response
      • Panel Mic - Partyline: 600 - 10kHz ± 3dB
      • Headset Mic - Partyline: 200 - 12kHz ± 3dB
      • Headset Mic - Line Out: 200 - 12kHz ± 3dB
      • Program Input - Partyline: 100 - 17kHz ± 3dB
      • Program Input - Headset Out: 200 - 10kHz ± 3dB
      • Program Input - Speaker Out: 300 - 10kHz ± 3dB
      • Partyline - Headset Out: 200 - 10kHz ± 3dB
      • Partyline - Speaker Out: 300 - 10kHz ± 3dB

        Max Distortion
      • Panel Mic - Partyline: <= 0.5%
      • Headset Mic - Partyline: <= 0.5%
      • Headset Mic - Line Out: <= 0.5%
      • Program Input - Partyline: <= 0.2%
      • Program Input - Headset Out: <= 0.2%
      • Program Input - Speaker Out: <= 0.5%
      • Partyline - Headset Out: <= 0.2%
      • Partyline - Speaker Out: <= 0.5%

        Noise
      • Panel Mic - Partyline: < -65dBu
      • Headset Mic - Partyline: < -70dBu
      • Headset Mic - Line Out: < -55dBu
      • Program Input - Partyline: < -85dBu
      • Program Input - Headset Out: < -60dBu
      • Program Input - Speaker Out: < -60dBu
      • Partyline - Headset Out: < -50dBu
      • Partyline - Speaker Out: < -50dBu

        Max Gain
      • Panel Mic - Partyline: >= 37dB
      • Headset Mic - Partyline: 41dB ± 2dB
      • Headset Mic - Hot Mic Out: 55dB ± 3dB
      • Headset Mic - Announce Out: 55dB ± 3dB
      • Program Input - Partyline: >= -16dB
      • Program Input - Headset Out: >= 18dB
      • Program Input - Speaker Out: >= 24dB
      • Partyline - Headset Out: >= 34dB
      • Partyline - Speaker Out: >= 40dB

      • Min Gain Panel Mic - Partyline: <= 25dB
      • DC Power Input Voltage Range: 20-30
      • VDC Input Current (Idle): <=165 mA
      • Input Current (Max): <=195 mA
      • Environmental: 32 - 122°F
      • Dimensions: 3.5 x 19 x 10.5in (HxWxD)
      • Weight: 10.9lbs

    • GTIN:

      0797277982657
