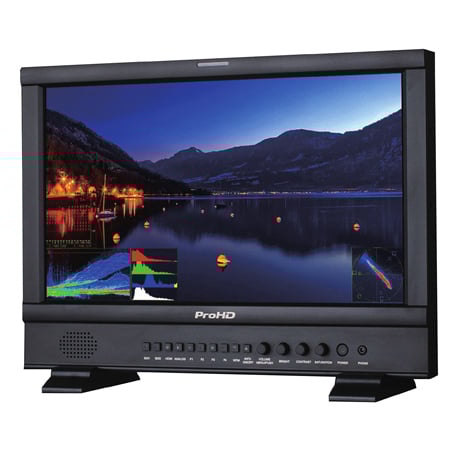

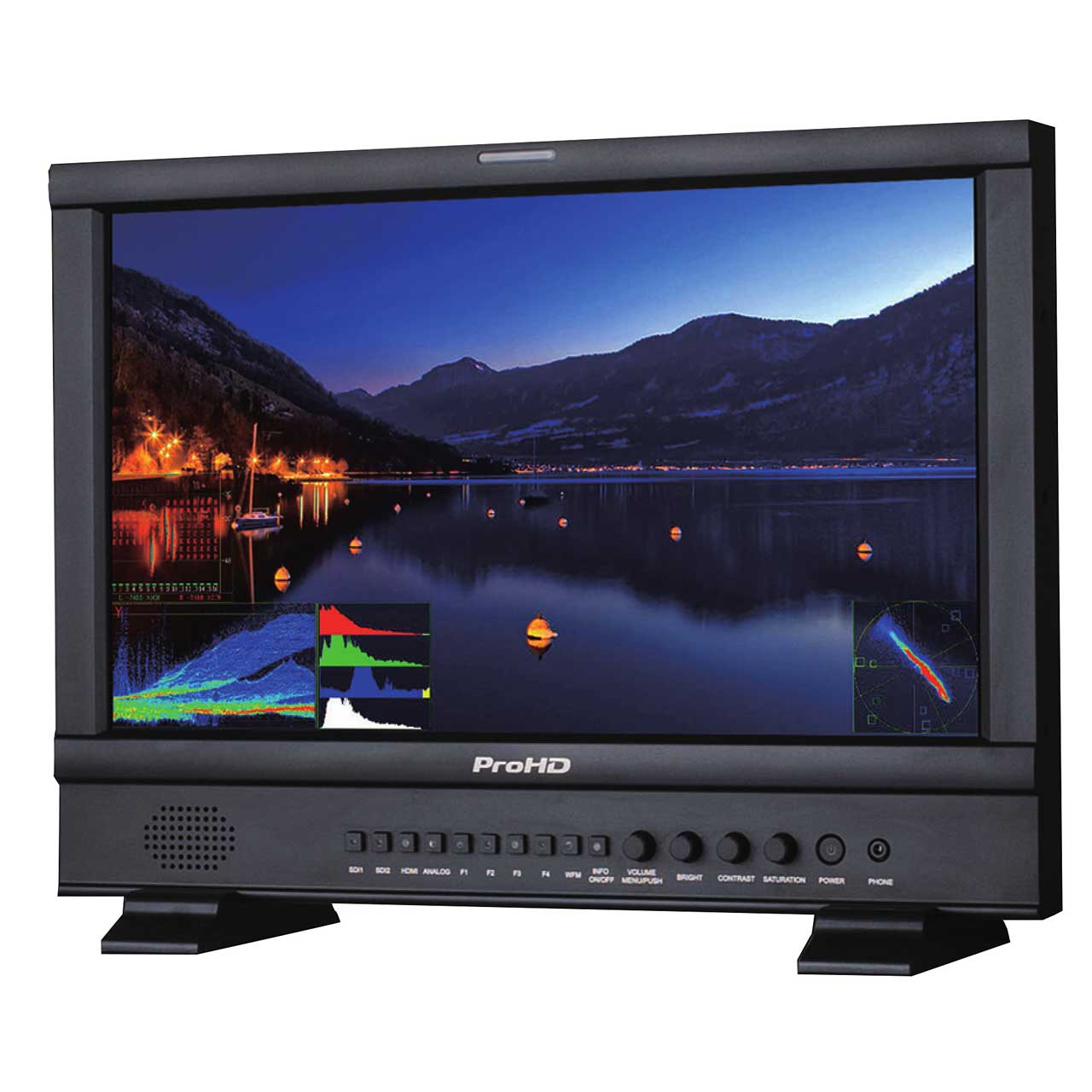

JVC DT-N17F ProHD Multiformat 17-Inch Broadcast Studio LCD Monitor with Waveform/Vectorscope & 16-Channel Audio Metering

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    JVC DT-N17F ProHD Multiformat 17-Inch Broadcast Studio LCD Monitor with Waveform/Vectorscope & 16-Channel Audio Metering

    Manufacturer: JVC

    Item #: JVC-DT-N17F   •   MFG #: DT-N17F




    Our Price:$2,665.00

    free ship


    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The JVC DT-N17F is a full broadcast 17.3” studio LCD monitor that supports multiple formats and includes pro features like a built-in waveform monitor, vectorscope and 16-channel audio meters with alert. It's complete feature set make it ideal as a studio monitor in critical applications.

      Supports 3G/HD/SD-SDI and 2K-SDI
      DT-N17F supports up to 3G-SDI (SMPTE 425M) including Level-A and Level-B, which are capable of transferring 1080p uncompressed digital video data at a max rate of 60fps at 3Gbit/s. 2K-SDI (2048x1080p) is also supported to downsample to full HD display.

      Full HD LCD panel with LED backlighting
      The monitor features a 1920×1080 pixel full HD resolution LCD panel with LED backlighting, with 160° wide viewing angle (horizontal and vertical), 700:1 contrast, and 16.7M color depth.

      ITU-709 color space
      The DT-N17F is compatible with ITU-709 standard color space for HDTV broadcasting.

      Selectable gamma preset
      The DT-N17F supports gamma preset selection from: 2.2, 2.4 and 2.6.

      TSL UMD control and display
      The DT-N17F monitor supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.

      USB firmware upgradable
      The Monitor offers a USB port on the rear side, for monitor firmware upgrade. Users can download firmware from official website to a USB stick, and the upgrade operation is directly on the monitor, without PC or other adaptors.

      Built-in waveform monitor
      The DT-N17F supports waveform selection display (Y, Cb, Cr, R, G, B), and also supports single lines waveform display. The waveform pattern position can be selected from one of four corners and center in larger size. And waveform display color can be selected from white, green and false color, with the translucence also selectable.

      Built-in vector scope and histogram monitor
      The DT-N17F supports vector scope and R/G/B/Y histogram display. The vector scope colors can be selected from white, green and false color, and the position of the patterns can be selected from one of four corners and the translucent is also selectable

      16-Channel audio level meters with alert and output selection
      The monitor can de-embed audio from SDI and HDMI, and display 16-Channel audio level meters, with audio abnormal alerts info displayed on each audio bar. You can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.


      • Features

        • SDI Timecode (LTC, VITC1&2) and AFD info display
        • R/G/B/Mono, False color, Zebra stripes display
        • Peaking focus assist display mode
        • H/V delay, freeze frame display mode
        • Safety area selection: 80%, 85%, 90%, 93%, 95%
        • Scale marker: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
        • Native scan, over scan and normal scan selection
        • GPI control via RS485 port connection
        • 3 User setting data storage
        • TALLY light with adjustable brightness
        • 4 User definable function keys
        • Easy One-key Menu operation
        • Built-in speaker (2.5W, 8?)
        • Anton Bauer plate for field application

      • Specifications

        • Rear Connections
        • RS-485 ×2: UMD input and output
        • RS-485 ×1: GPI input
        • RS-232C ×1: UMD input
        • BNC ×3: Y/Pb/Pr input
        • HDMI-A ×2: HDMI input and loop output
        • BNC ×2: SDI 1 input and loop output
        • BNC ×2: SDI 2 input and loop output
        • RCA ×2: Analog audio L and R input
        • USB ×1: USB firmware upgrade
        • Y/Pb/Pr: 480i, 480p, 576i, 576p, 720p (50 / 60), 1080i (50 / 60)
        • HDMI: 480i / 576i / 480p / 576p 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080psf (30 / 29.97 / 25 / 24 / 23.98)
        • SDI 2K: 2048×1080p (24 / 24sF / 23.98 / 23.98sF)
        • SDI SMPTE-425M:1080p (60 / 59.94 / 50)
        • SDI SMPTE-274M: 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98)
        • SDI SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
        • SDI SMPTE-296M: 720p (60 / 59.94 / 50)
        • SDI SMPTE-125M: 480i (59.94)
        • SDI ITU-R BT.656: 576i (50)
        • VGA: 640×480, 800×600, 1024×768, 1152×864, 1280×768, 1280×960, 1280×1024, 1600×1200
        • Size: 17.3 inches wide format
        • Display area: 382mm×215mm
        • Resolution: 1920×1080 (Full HD)
        • Color depth: 16.77 million
        • Aspect ratio: 16:9
        • Brightness: 300cd / m2
        • Contrast: 700:1
        • Viewing Angle: 160°(H); 160°(V)
        • Surface treatment: Non-Glass
        • Backlighting: LED
        • Working voltage: DC / battery 11V-17V
        • Power consumption: Max 32W
        • Working temperature: 0~40°C
        • Working humidity: 10-90%
        • Storage temperature: -15~+60°C
        • Storage humidity: 10-90%
        • VESA standard: 100mm x 100mm
        • Dimensions: 430×310×52mm
        • Net weight (w/o stand): 4.7 Kg

      • GTIN:

        6948193502083
