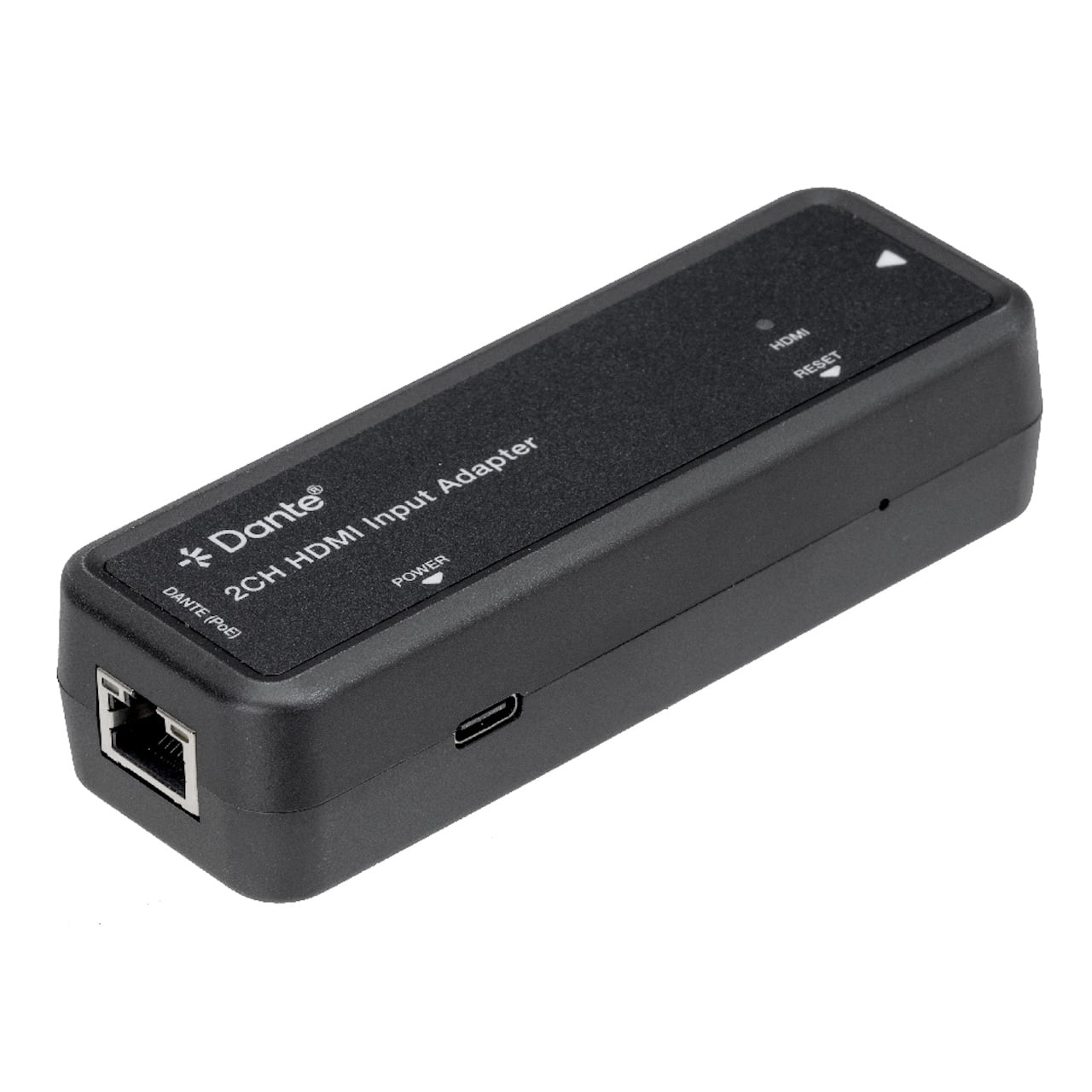

KanexPro AUD-DTE-HDMI HDMI to Dante 2-Channel Network Audio Encoder - Up to 328 Feet

AUD-DTE-HDMI - Overview

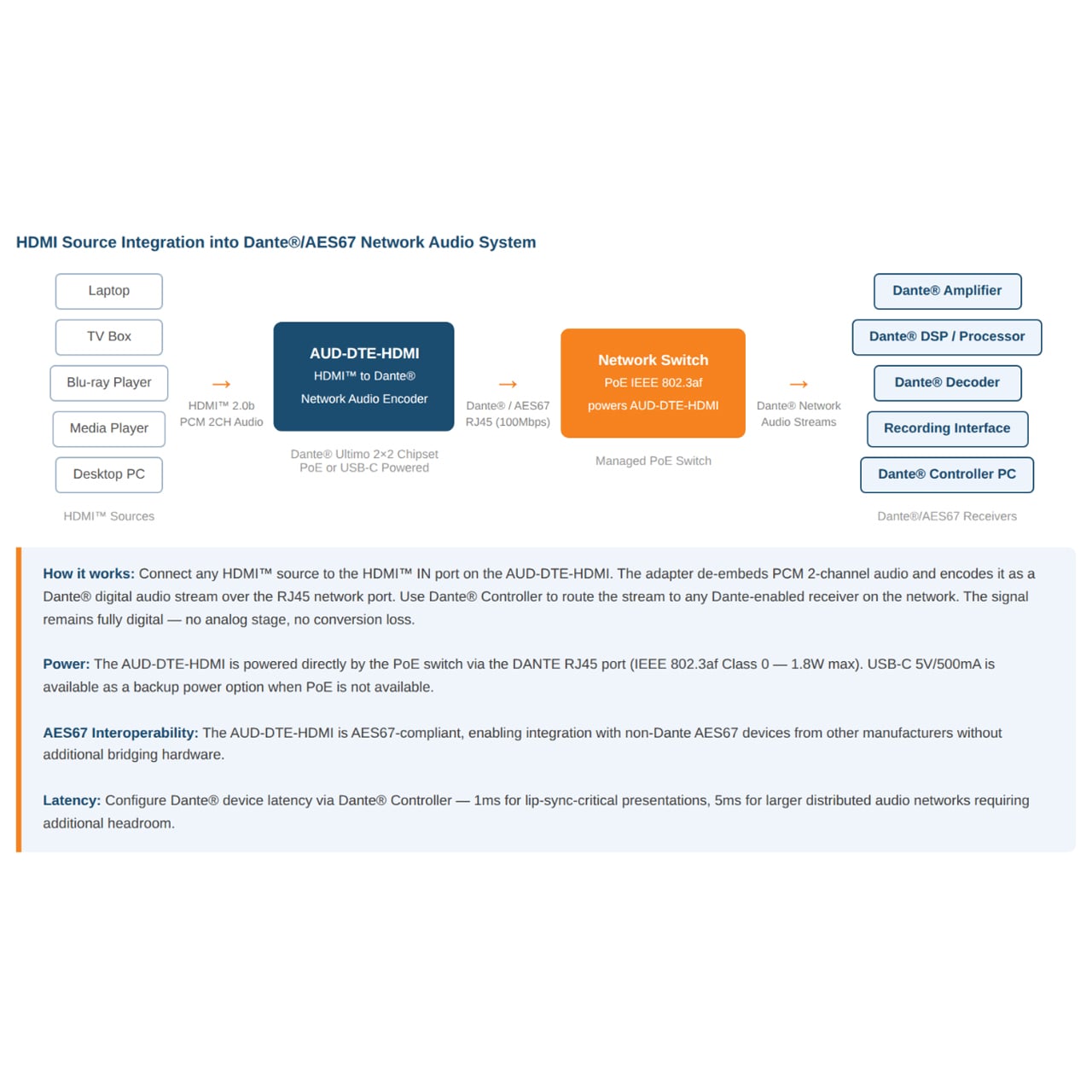

Eliminate the Multi-Device Workaround of Chaining an HDMI Extracter into an Analog Dante Encoder

• Features:

  • Converts 2-channel PCM HDMI audio to Dante digital audio - fully digital, zero analog conversion loss
  • HDMI 2.0b input accepts PCM 2CH at 32kHz - 192kHz/24-bit from any HDMI source (laptop, camera, player)
  • Dante output supports 44.1/48/88.2/96kHz @ 24-bit with full AES67 cross-vendor interoperability
  • Configurable Dante latency - 1ms for lip-sync-critical presentations, 5ms for network stability
  • Powered via PoE (IEEE 802.3af Class 0) or USB-C 5V - single-cable install with no dedicated power supply
  • Dante Ultimo 2x2 chipset - SNR >130dB, THD+N <0.01%, frequency response 20Hz - 20kHz (±0dB)
  • EDID management via API - Internal (4K60/PCM 2CH), User Defined 1, User Defined 2
  • API control via USB-C virtual RS-232 - EDID programming, firmware update, reboot, factory reset
  • Compact enclosure - installs behind displays, on rack shelves, or on desks


• Specifications:

  Technical
  • Input: 2-channel HDMI audio
  • Output: Dante 2CH digital audio
  • Control Method: Dante Controller
  • Network Bandwidth: 100Mbps
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 18Gbps
  • Color Depth: 8/10/12-bit
  • Color Space: RGB, YCbCr 4:4:4/4:2:2/4:2:0
  • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Input Video Resolutions: All resolutions as specified in HDMI 2.0b
  • HDMI Audio In: PCM 2CH, 32kHz - 192kHz @ 16/24-bit
  • Dante Audio Out: PCM 2CH, 44.1/48/88.2/96kHz @ 16/24-bit
  • Dante Latency: 1/2/5ms (configurable via Dante Controller)
  • AES67: Supported
  • Transmission Distance: Up to 328ft (100m)(CAT6/CAT6A/CAT7)
  • Audio Latency: <1ms
  • Frequency Response: 20Hz - 20kHz (±0dB)
  • Signal-to-Noise Ratio: >130dB @ 0dBu, 1kHz A-weighted
  • Dynamic Range: >130dB @ 0dBu, 1kHz A-weighted
  • THD+N: <0.01% at +4dBu, 1kHz
  • ESD Protection: IEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact)

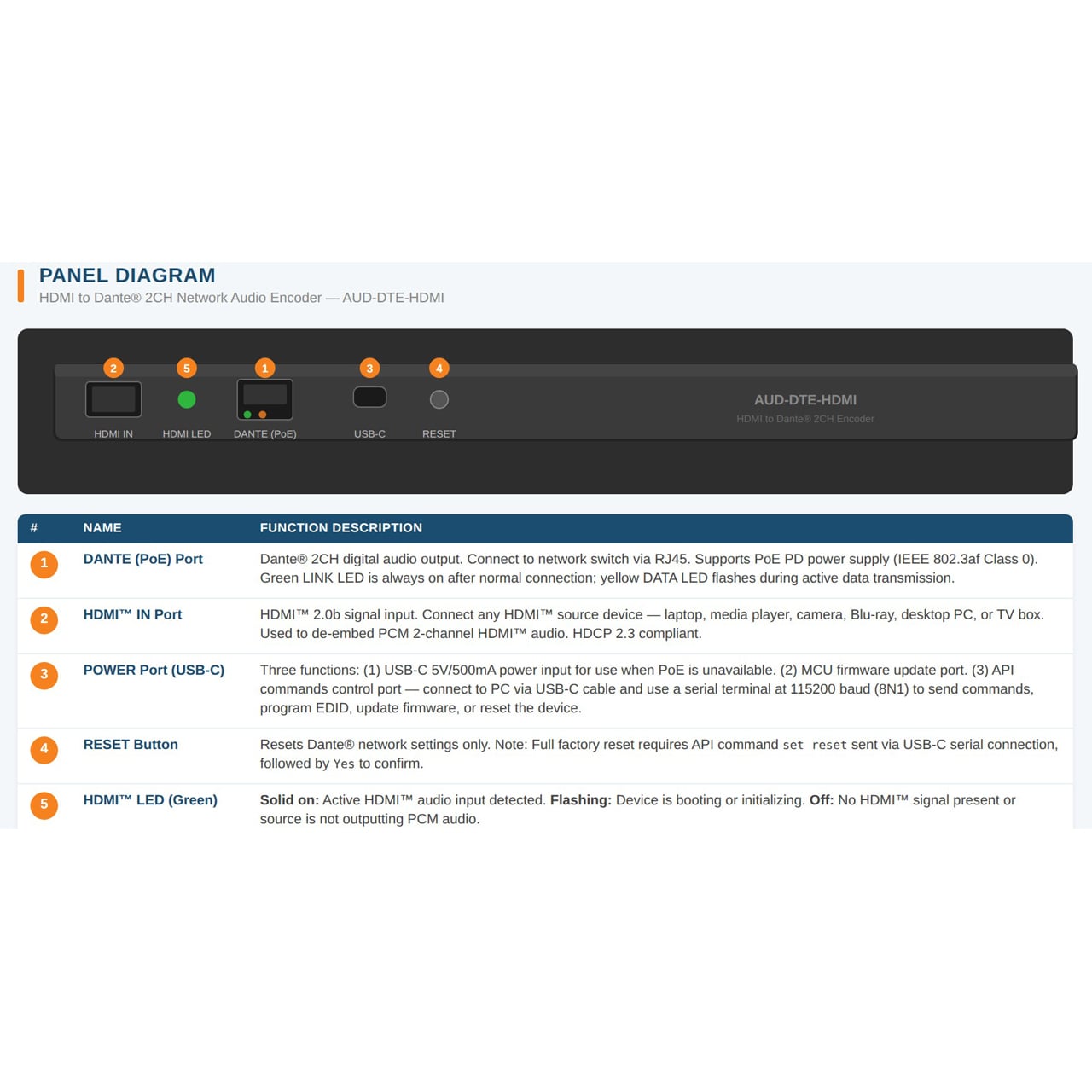

    Connection
  • HDMI In: 1x HDMI Type A (19-pin female)
  • Dante/PoE: 1x RJ45 connector (PoE IEEE 802.3af Class 0)
  • Power/API: 1x USB-C port (5V/500mA power input, MCU FW update, API control)
  • Reset: 1x Reset button (Dante setting reset)
  • Indicator: 1x HDMI LED (Green - solid: active signal; flashing: booting)

    Mechanical
  • Housing: Black plastic enclosure
  • Dimensions: 4.5" x 1.6" x 1.1" (115mm x 40mm x 28mm)
  • Weight: 0.2lbs (90g)
  • Power Supply:
    - USB-C: 5V/500mA
    - PoE: IEEE 802.3af Class 0
  • Power Consumption: 1.8W (max)


• Item Includes:

  • 1x Dante 2CH HDMI Input Adapter
  • 2x Hook & Loop
  • 1x User Manual


• Warranty:

  • 1 Year Limited Warranty
