KanexPro AUD-DTE-LINEIN Dante 2-Channel Line Output Adapter with 5-Level Gain Adjustment - PoE and USB-C Powered

ITEM #: KAN-AUDDTELINEIN MFG #: AUD-DTE-LINEIN

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
KanexPro
Free Shipping with $49 Minimum Order

Our Price:

$249.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

AUD-DTE-LINEIN - Overview

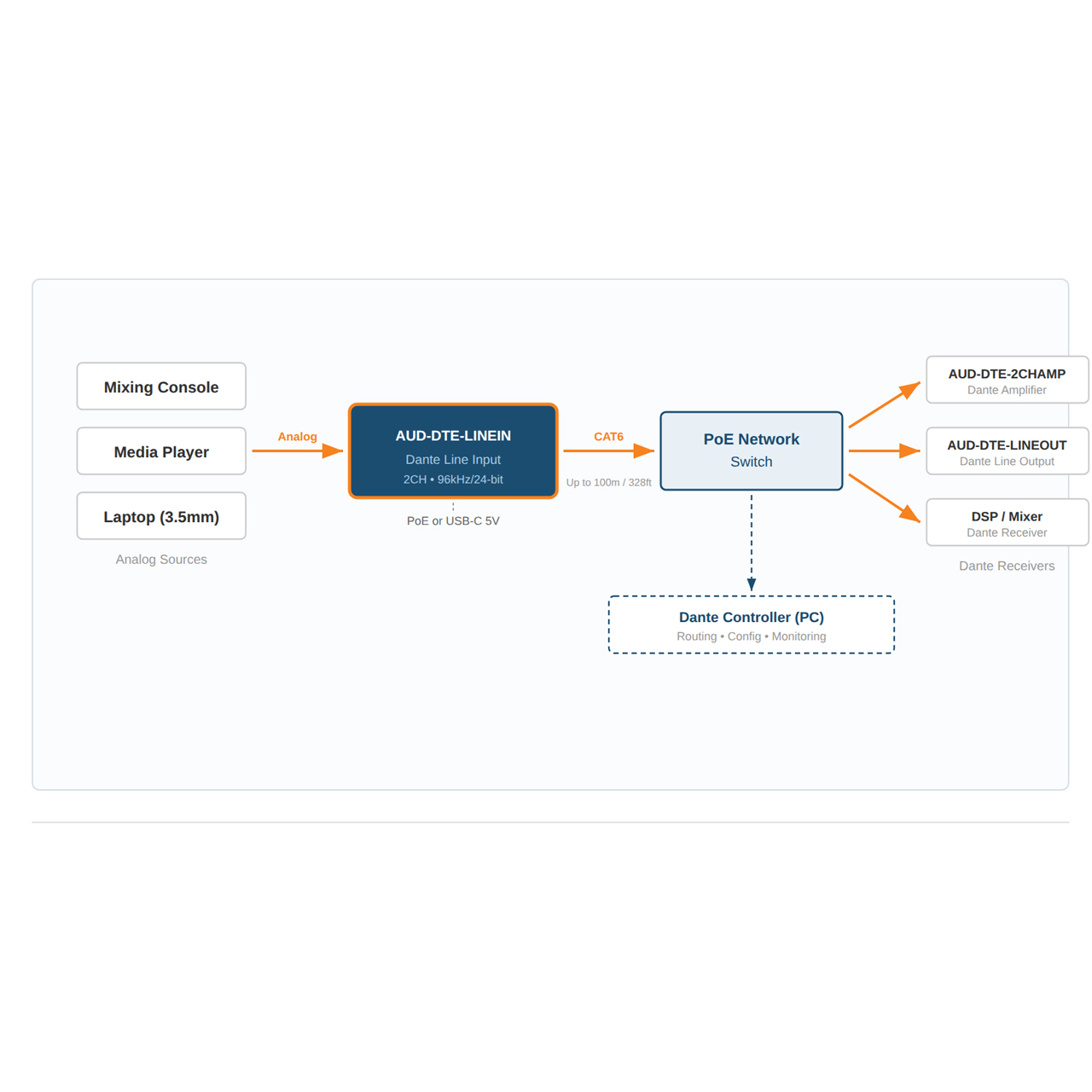

Bridges Legacy Analog Audio Aources Into Any Dante Network with a Compact, Plug-and-Play 2-Channel Line Input Adapter

The KanexPro AUD-DTE-LINEIN accepts balanced or unbalanced analog audio via a 6-pin phoenix connector and converts it to Dante digital audio at up to 96kHz/24-bit, delivering >100dB dynamic range and <0.01% THD+N for transparent signal quality.

Five-level per-channel sensitivity adjustment (+24dBu to -10dBv) accommodates everything from professional mixing consoles to consumer media players without external attenuators. Powered by PoE (IEEE 802.3af) or USB-C, the adapter installs anywhere on the network with a single CAT cable - no dedicated power run required. AES67 interoperability ensures compatibility across mixed-vendor Dante and AES67 systems.

  • Features:

    • Converts 2-channel balanced/unbalanced analog audio to Dante digital audio via 6-pin 3.5mm phoenix connector
    • Dante Ultimo 2x2 platform with sampling rates of 44.1, 48, 88.2, and 96kHz at 24-bit resolution

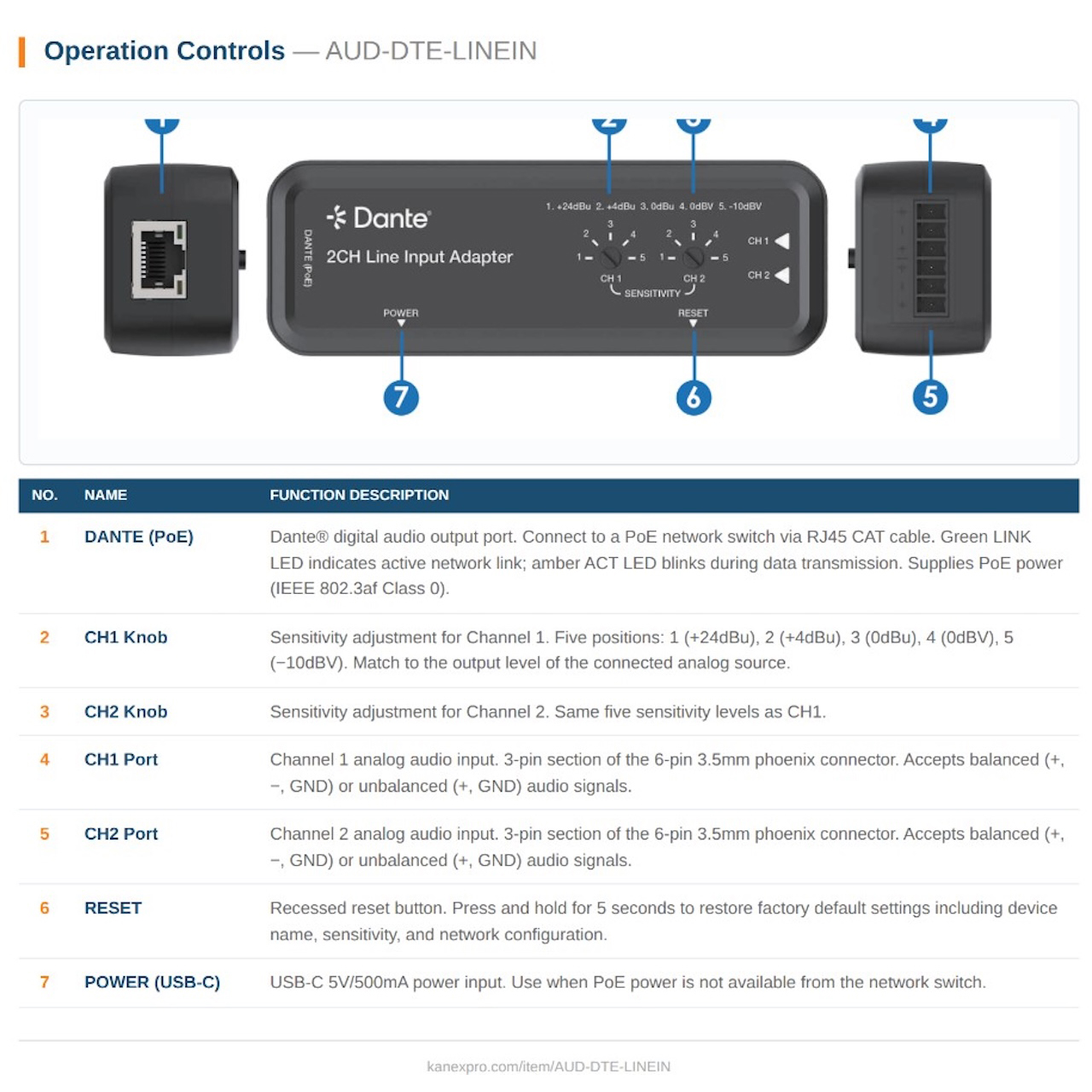

    • 5-level per-channel sensitivity adjustment: +24dBu, +4dBu, 0dBu, 0dBV, -10dBV
    • Signal performance: >100dB S/N ratio, >100dB dynamic range, <0.01% THD+N at +4dBu
    • Configurable Dante audio delay: 1, 2, or 5ms via Dante Controller
    • AES67 RTP audio transmission for cross-platform interoperability
    • Dual power: PoE (IEEE 802.3af Class 0) or USB-C 5V - single-cable network installation
    • Compact enclosure with hook-and-loop mounting for flexible placement


  • Specifications:

      Audio
    • Audio Input: 2CH balanced/unbalanced analog audio (6-pin 3.5mm phoenix connector)
    • Audio Output: Dante 2CH digital audio (RJ45 PoE)
    • Sampling Rate: 44.1/48/88.2/96kHz @24-bit
    • Sensitivity Levels: +24dBu, +4dBu, 0dBu, 0dBV, -10dBV (per channel)
    • Max Input Level (Balanced): +24dBu (12.28Vrms)
    • Max Input Level (Unbalanced): +18dBu (6.15Vrms)
    • Input Impedance (Balanced): 20kΩ
    • Input Impedance (Unbalanced): 10kΩ
    • Frequency Response: 20Hz - 20kHz (±0.5dB)
    • S/N Ratio: >100dB @0dBu, 1kHz (A-weighted)
    • Dynamic Range: >100dB @0dBu, 1kHz (A-weighted)
    • THD+N: <0.01% @+4dBu, 1kHz
    • Audio Delay: 1/2/5ms (configurable via Dante Controller)
    • Output Sync Delay: <10ms

      Network
    • Protocol: Dante/AES67 RTP
    • Network Bandwidth: 100Mbps
    • Transmission Distance: 328ft (100m) (CAT6/6A/7)
    • ESD Protection: IEC 61000-4-2 ±8kV air/±4kV contact

      Other
    • Power Input: USB-C 5V/500mA or PoE IEEE 802.3af Class 0
    • Power Consumption: 2W max
    • Dimensions: 4.5" x 1.5" x 1.1" (115mm x 40mm x 28mm)
    • Weight: 0.2lbs (94g)
    • Housing: Plastic enclosure


  • Item Includes:

    • 1x Dante 2CH Line Input Adapter
    • 1x 6-pin 3.5mm Phoenix Connector (male
    • 2x Hook & Loop
    • 1x User Manual


  • Warranty:

    • 1 Year Limited Warranty
