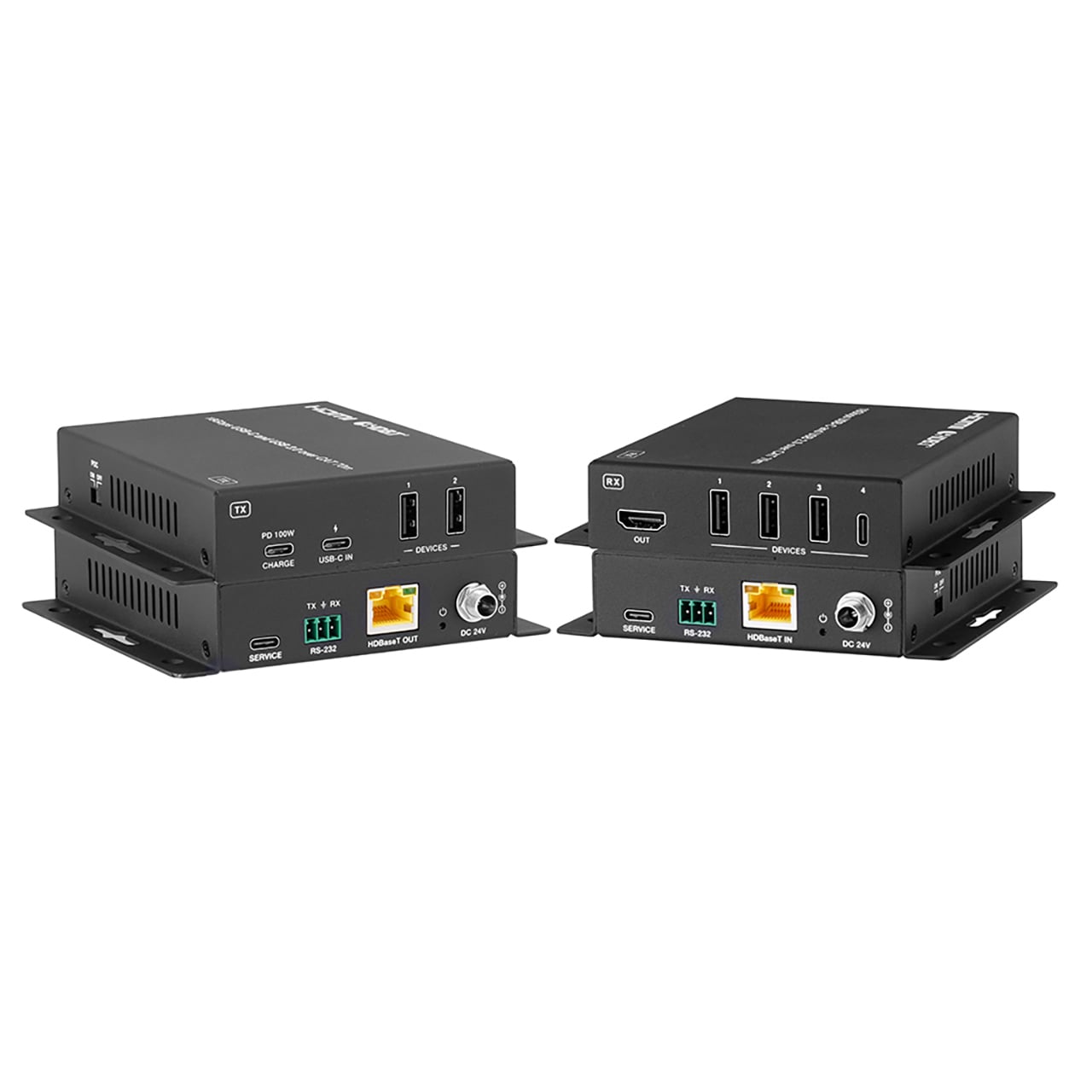

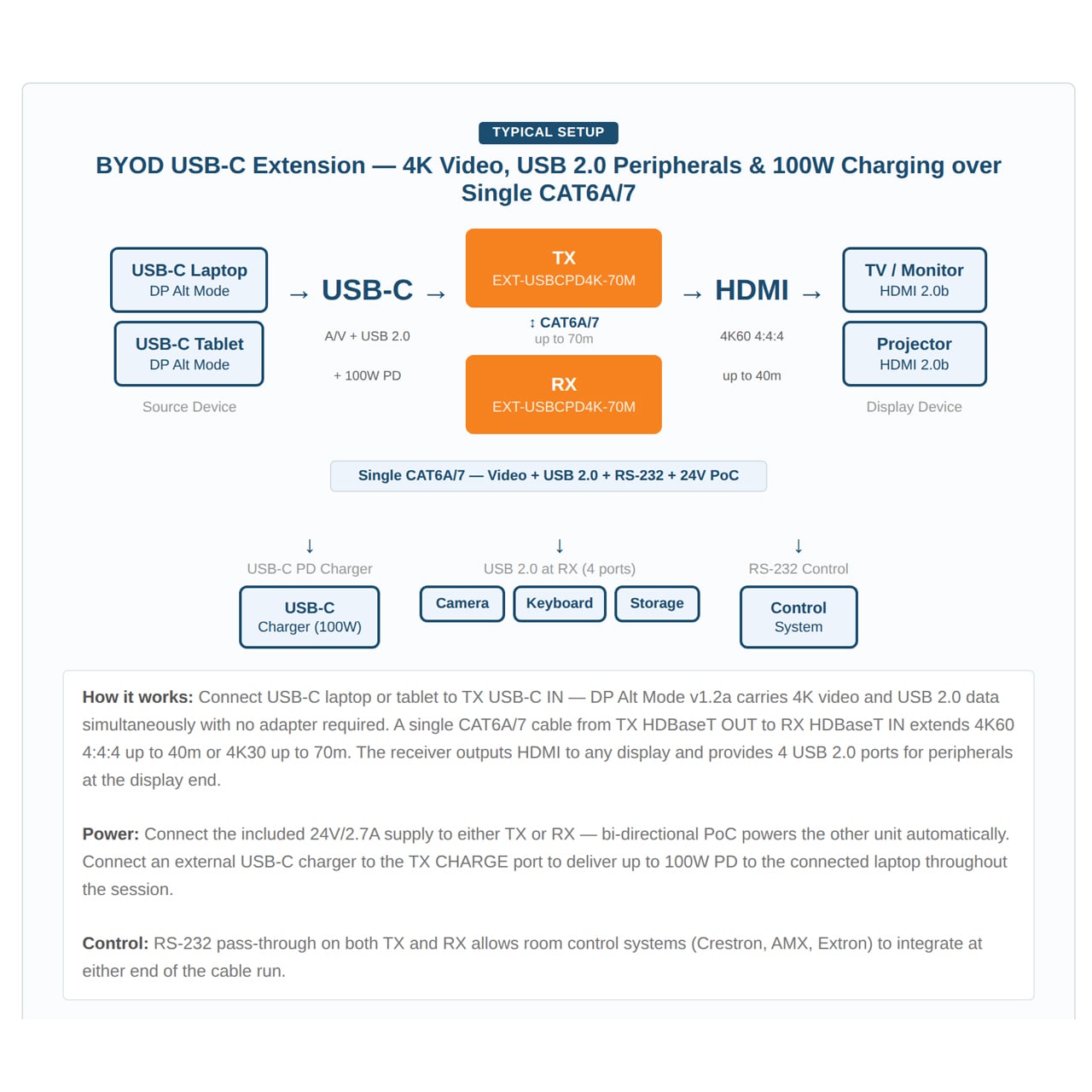

The KanexPro EXT-USBCPD4K-70M bridges USB-C laptops and remote displays over a single CAT6A/7 cable, delivering 4K60 4:4:4 video, USB 2.0 peripheral access, and up to 100W device charging - all via HDBaseT 3.0. Purpose-built for BYOD conference rooms, classrooms, and collaboration spaces, this extender eliminates the cable clutter and adapter chains that plague USB-C-to-display installations by converging video, data, and power into one HDBaseT link up to 70 meters.

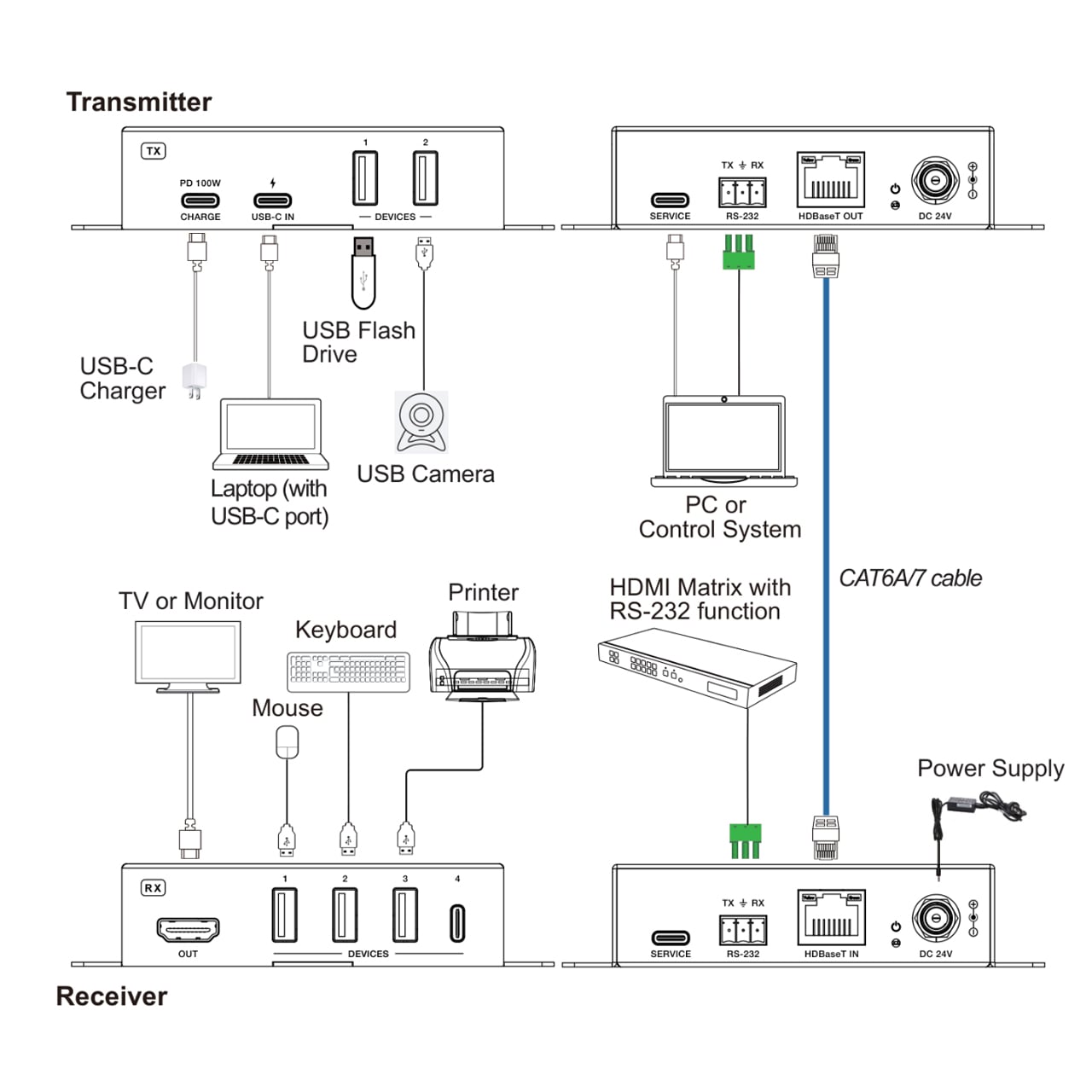

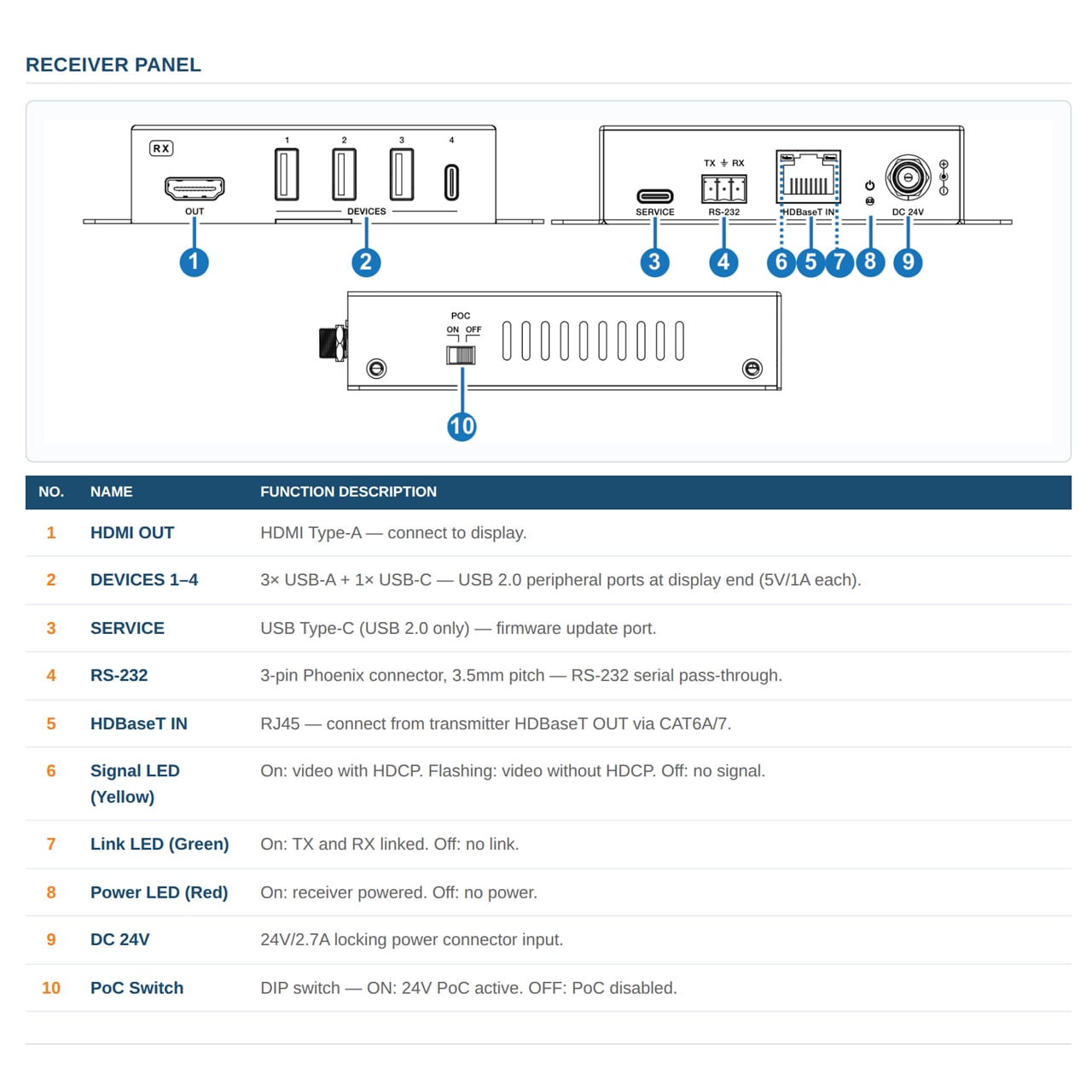

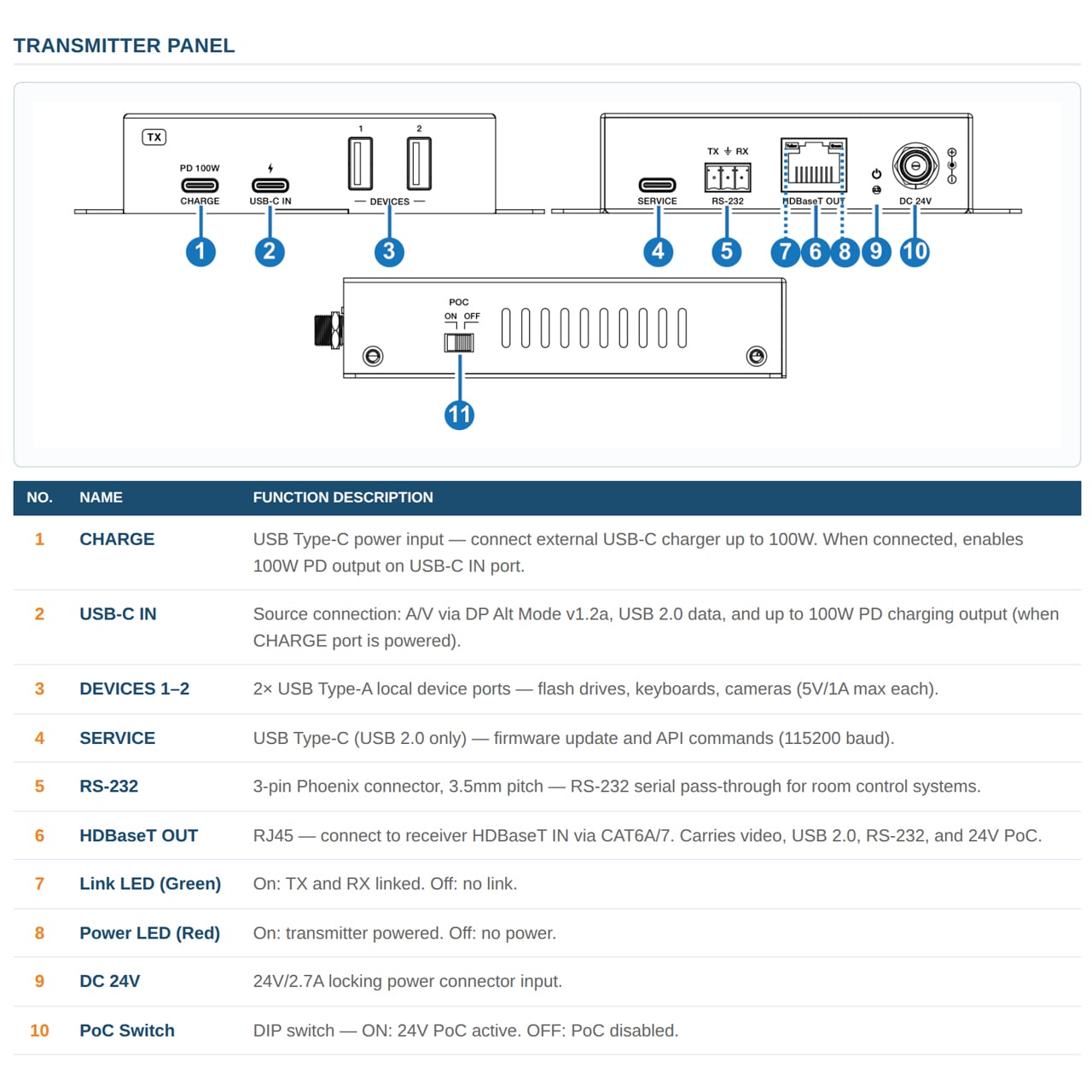

The transmitter accepts a USB-C source with DP Alt Mode (v1.2a) and passes uncompressed 4K60 4:4:4 video at 18Gbps, along with HDR, HDR10+, Dolby Vision, and HLG. A dedicated CHARGE port enables 100W USB-C PD to keep laptops powered during extended sessions. The receiver outputs HDMI 2.0b to the display and provides four USB 2.0 device ports for cameras, keyboards, mice, and storage. RS-232 pass-through and bidirectional 24V PoC simplify system integration and installation.
