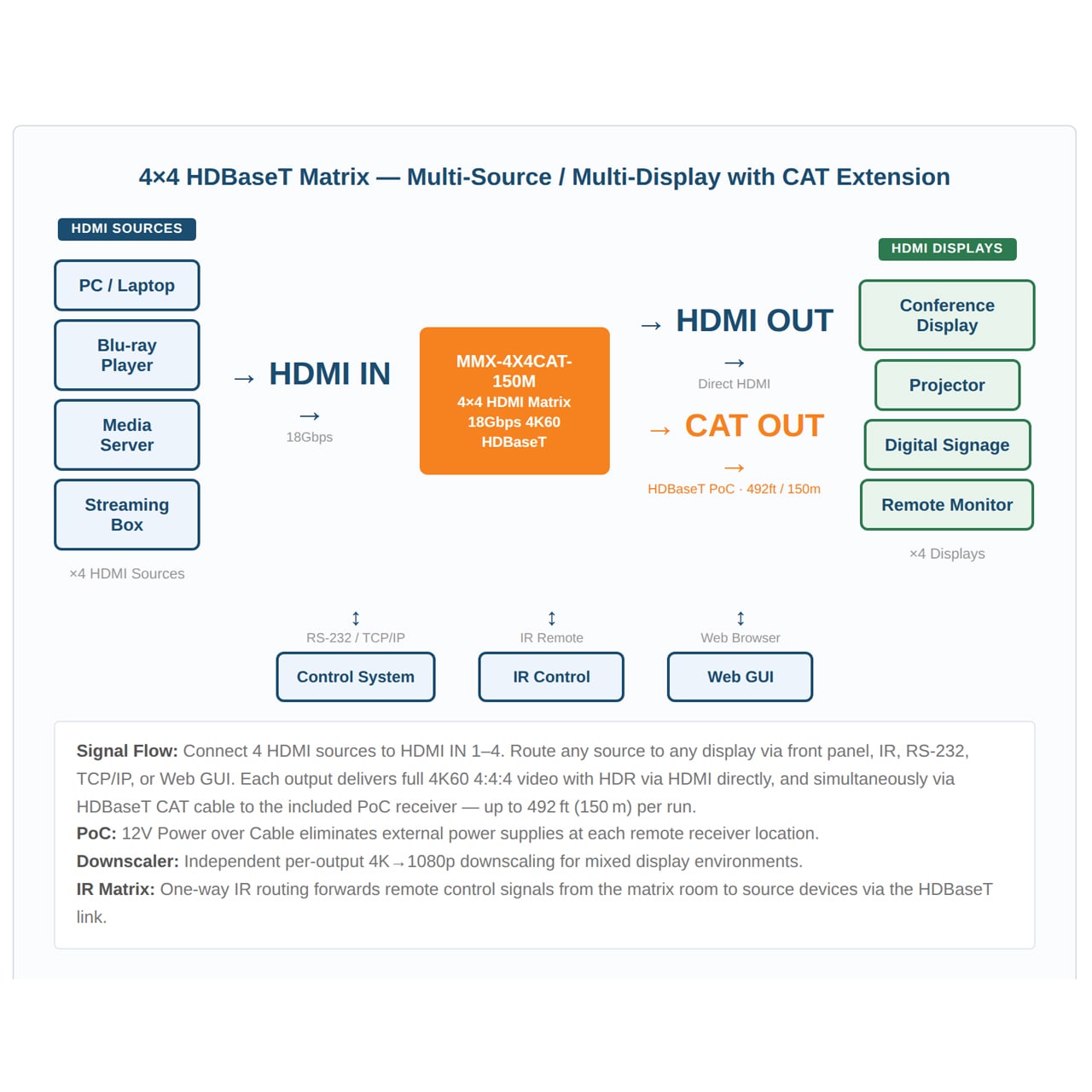

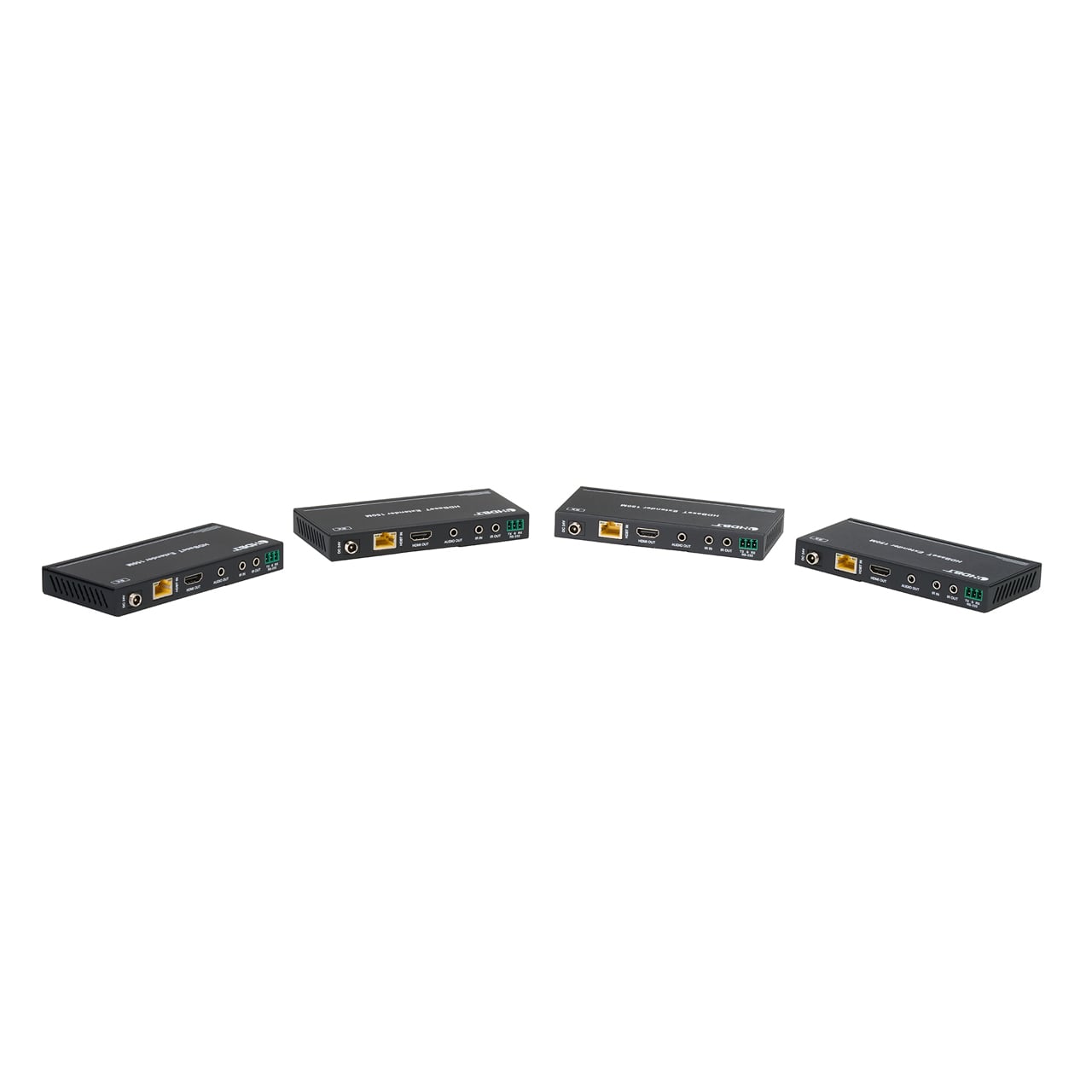

The KanexPro MMX-4X4CAT-150Mis an 18Gbps 4x4 HDMI matrix switcher with long-range HDBaseT extension up to 492ft (150m) per output, combining compact 1U form factor with enterprise-grade signal reach and built-in audio de-embedding for professional AV installations across large spaces. Four HDMI 2.0b sources are simultaneously distributed to up to eight displays - four via direct HDMI and four via HDBaseT to the included PoC-powered receivers - over a single CAT5e/6/7 cable per run. 24V Power over Cable eliminates local power requirements at each remote receiver. For 1080p signals, the maximum reach is 492ft (150m); 4K60 4:4:4 is supported to 394ft (120m).

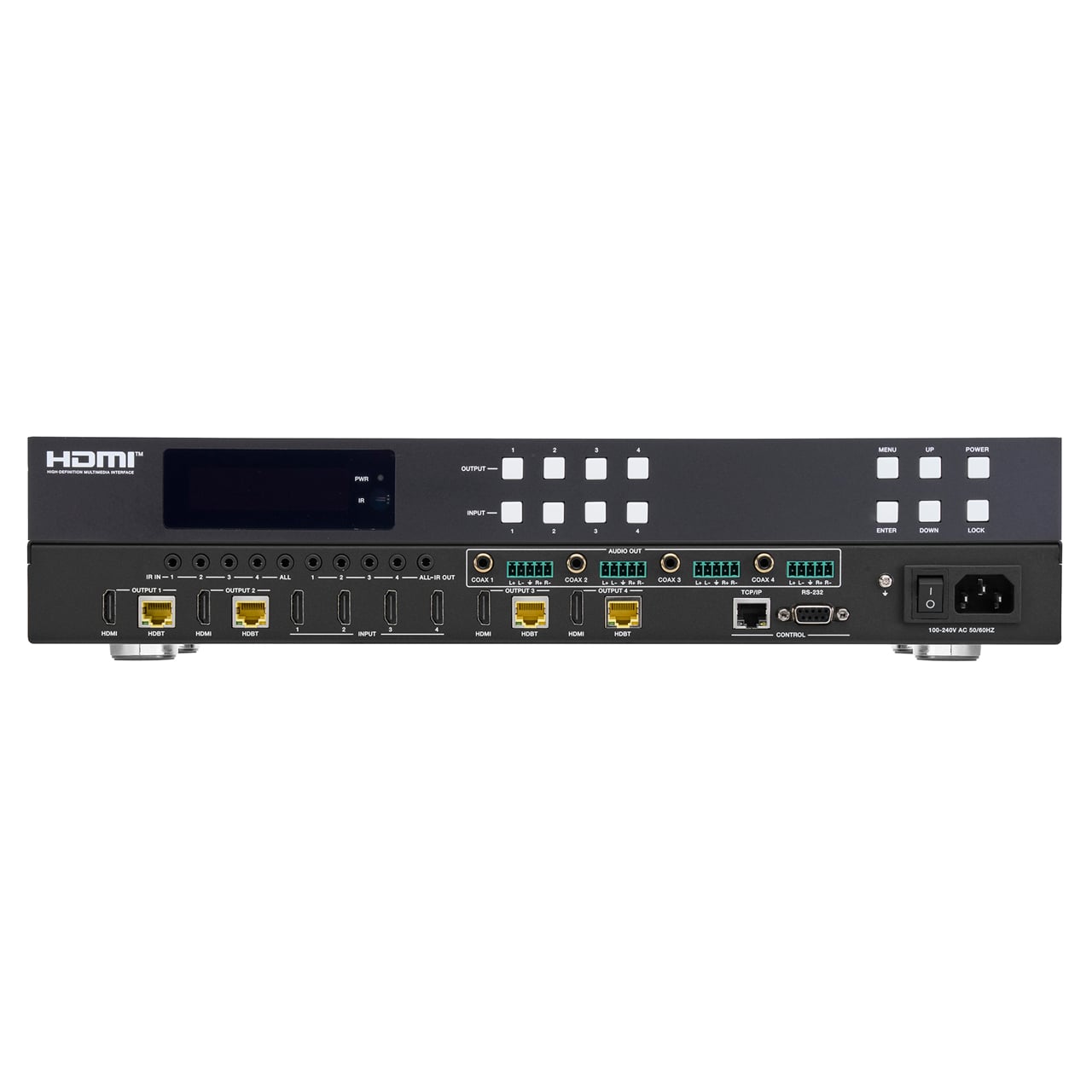

The MMX-4X4CAT-150M includes coaxial audio de-embedding (3.5mm stereo mini-jack) and balanced analog audio outputs (5-pin Phoenix connector) on every HDBaseT port, enabling direct connection to amplifiers, DSPs, and audio zone controllers without additional hardware. Analog performance: PCM 2.0CH, Vmax 2Vrms, SNR >90dB, THD+N <0.1%, frequency response 20Hz-20kHz ±0.5dB. Full 18Gbps video bandwidth supports 4K2K@60Hz (YUV 4:4:4), all HDR formats (HDR10, HDR10+, Dolby Vision, HLG), and HD audio pass-through including LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, and DTS-X. Each output includes an independent 4K-to-1080p downscaler. An OLED front panel shows live routing and system status. Control via front panel, IR remote, RS-232, TCP/IP LAN, and Web GUI - integrates with Crestron, AMX, and third-party control systems.
Ideal for mid-size conference centers, houses of worship, university environments, hospitality venues, and any installation requiring 4K distribution over long runs with integrated audio outputs in a space-efficient 1U chassis.
