Kramer KDOCK-3 USB-C 3.0 Hub Multiport Adapter with HDMI & DisplayPort out and USB/Ethernet/SD Ports

ITEM #: KR-KDOCK-3 MFG #: KDOCK-3

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Kramer
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$187.00

Our Price:

$149.60

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    KDOCK-3 - Overview

    4K@30 HDMI & DisplayPort outputs

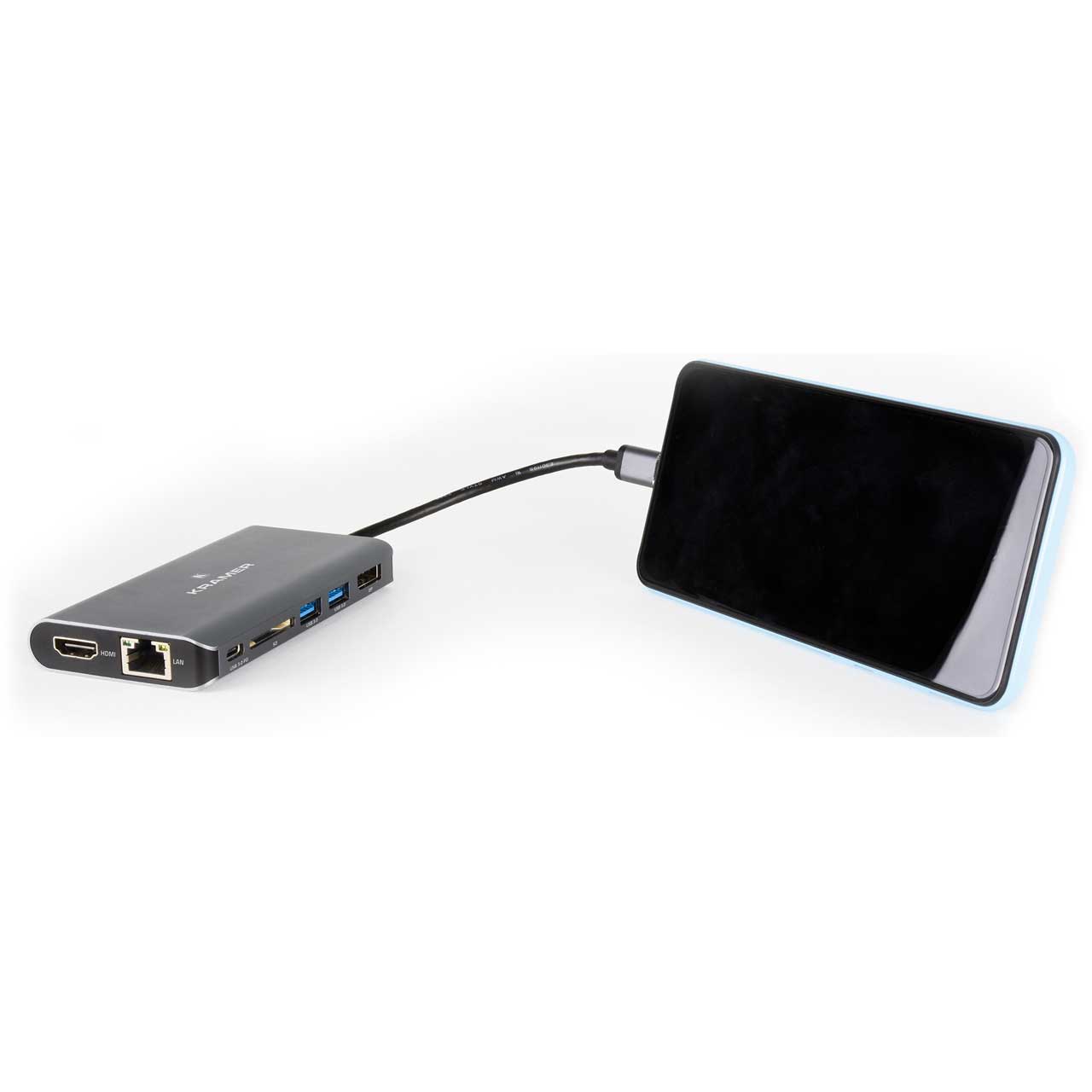

    Kramer KDock-3 is a USB-C hub multiport adapter specially designed to support mobile devices and is an ideal accessory for MacBook, laptops equipped with USB Type-C, mobile phones, and tablets. KDock-3 enables you to connect your USB-C device to HDMI™ and DisplayPort video outputs, 2 USB 3.0 ports, an Ethernet port, SD card port and USB-C data and charging pass-through.

    Please Note: Video output is supported only for smartphones that support DisplayPort Alt mode through USB-C.

    • Features:

      • 4K@30 HDMI output
      • 4K@30 DisplayPort output
      • USB 3.0 data and charging port
      • Ethernet port
      • USB-C data port and charging pass-through


    • Specifications:

      • INPUTS
      • 1 USB: On a USB Type-C male connector

      • OUTPUTS
      • 1 HDMI: On a female HDMI connector
      • 1 DisplayPort: On a female DisplayPort connector

      • PORTS
      • 2 USB 3.0/2.0: On female USB type-A connectors
      • 1 Ethernet: On an RJ-45 connector
      • 1 USB 3.0: On a female USB type-C connector for data and charging
      • SD: On an SD card port

      • VIDEO
      • Max Resolution: 3840x2160P@30Hz (with one display connected)
      • Max Resolution: 1920x1080P@60Hz (with two displays connected)
      • Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel)
      • Multiple Video Output Support: Via MST (Multi-Stream Transport) technology
      • Content Protection (HDMI output): HDCP 1.4

      • EXTENDED ETHERNET
      • Max Data Rate: 1000M (Gigabit)/100M/10M
      • Includes: Wake-on-LAN (WoL), single Mac address, PXE boot

      • GENERAL
      • USB 3.0 Data Transmission Speed (USB 3.0 & USB-C): Up to 5.0Gbps

      • POWER
      • Delivery: 100W
      • USB Charging: BC1.2 (5V 1.5A)
      • USB Limited Current when Connected to Power via female USB-C port: 1.9A
      • USB Limited Current when Not Connected to Power via female USB-C port: 1A

      • ENVIRONMENTAL CONDITIONS
      • Operating Temperature: 0° to +70°C (32° to 158°F)
      • Storage Temperature: -10° to +55°C (14° to 131°F)
      • Humidity: 5% to 90%, RHL non-condensing

      • ENCLOSURE
      • Type: Aluminum with built-in 16cm/6.3" flexible USB-C cable

      • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
      • Safety: CE
      • Environmental: RoHs, FCC


    • Item Includes:

      • KDOCK-3 USB-C 3.0 Hub Multiport Adapter


    • Warranty:

      • Standard One (1) Year Warranty


    • GTIN:

      7291063092450
