Kramer PT-871/2xr-KIT 4K HDR HDMI Compact PoC Extender over Long-Reach DGKat 2.0

PT-871/2XR-KIT - Overview

High Performance HDMI Extender!

• Features:

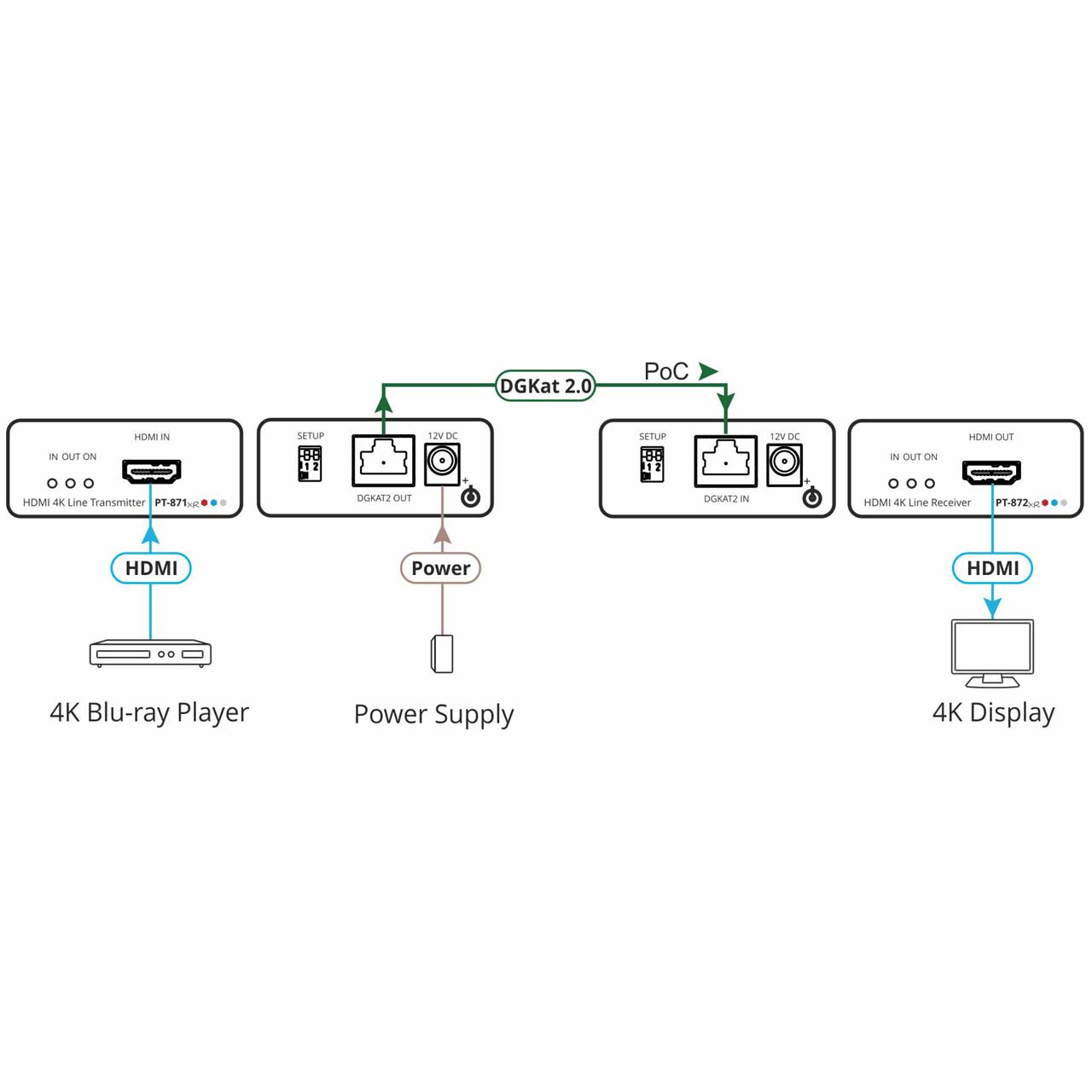

  • High Performance Extender - Professional DGKat™ 2.0 extender kit for providing long-reach signals and 2-way power over twisted pair copper infrastructures. PT-871/2xr-Kit extender employs low-level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near-zero latency. PT-871xr converts the HDMI input signal into the transmitted DGKat™2.0 signal. PT-872xr converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT-871/2xr-KIT extends video signals to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@60Hz (4:2:0) 24bpp resolution. NOTE: Per Kramer to reach the distances listed, Kramer UNIKAT non-plenum bulk cable or pre-made assemblies MUST be used.
  • HDMI Signal Extension - HDR, HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
  • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Cost-Effective Maintenance - Status LED indicators for HDMI and DGKat™2.0 ports facilitate easy local maintenance and troubleshooting.
  • Easy Installation - Single twisted-pair cable for signal and power wiring. Compact Pico TOOLS™ fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 1 HDMI: On an HDMI female connector (PT-871xr)
  • 1 DGKat: On an RJ-45 female connector for extension line (PT-872xr)


  • OUTPUTS
  • 1 DGKat: On an RJ-45 female connector for extension line (PT-871xr)
  • 1 HDMI: On an HDMI female connector (PT-872xr)


  • VIDEO
  • Transmitted Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
  • Max Resolution at High Compression Level: 3840x2160@60Hz (4:4:4) 24bpp
  • Max Resolution at Standard Compression Level: 4096x2160@60Hz (4:4:4) 24bpp
  • Standards Compliance: HDR10, HDCP 2.2
  • HDMI Support: Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • HIGH COMPRESSION REACH EXTENSION
  • Using Shielded UNIKAT Cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
  • Using Plenum HDKat Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)


  • STANDARD COMPRESSION REACH EXTENSION
  • Using Shielded UNIKAT Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)


  • EXTENSION LINE
  • Signal Compression: Standard or high compression level applied to >1080p signals
  • Compliance: DGKat 2.0


  • USER INTERFACE
  • Indicators: IN, OUT, and ON LEDs
  • Controls: Dip-switches to define compression level


  • POWER
  • Source: 12V DC, 2A
  • Consumption: 600mA


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • ENCLOSURE
  • Size: Pico Tools
  • Type: Aluminum
  • Cooling: Convection ventilation


  • REGULATORY
  • Safety: CE, UL
  • Environmental: RoHs, WEEE.


• Item Includes:

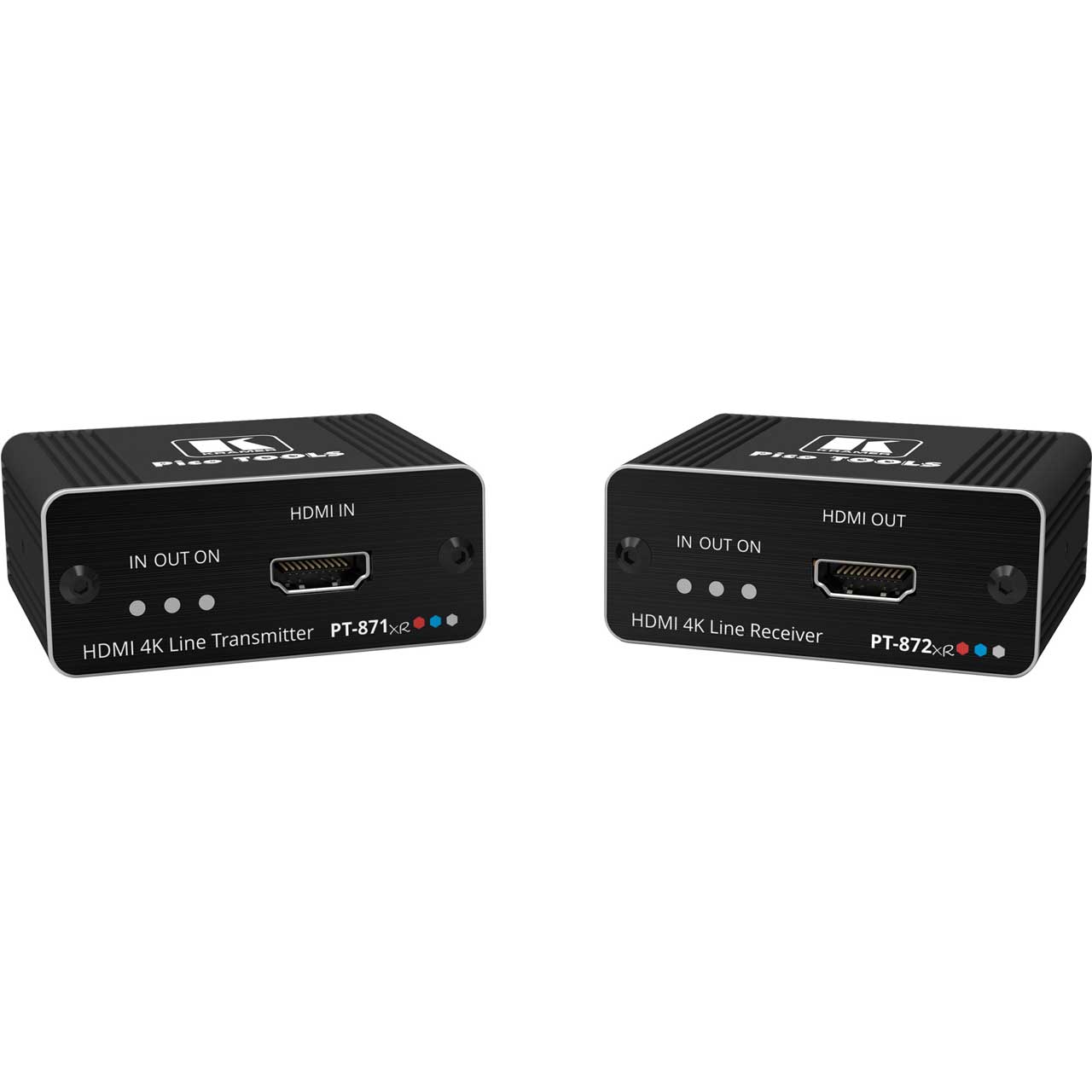

  • PT-871xr, PT-872xr HDMI 4K Line Transmitter/Receiver Set
  • Power Adapter and cord (1)
  • Bracket Set (2 sets,1 per device)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063086459
